Mounting Solar Panels on Your Caravan Roof: Complete Guide
Mounting solar panels on your caravan roof is the most popular way to add renewable power for off-grid adventures, providing clean energy without taking up valuable ground space or requiring setup at each campsite.
Getting your caravan solar install right the first time means years of reliable power generation. Whether you're planning a weekend getaway to Lake Taupo or an epic South Island road trip, properly mounted panels will keep your batteries topped up and your adventure going.
Planning Your Solar Panel Mounting System
Before you start drilling holes in your caravan roof, you need to plan the layout carefully. Most New Zealand caravans have limited roof space, so maximising your solar panel mounting area is crucial.
Start by measuring your available roof space, accounting for vents, antennas, air conditioning units, and the structural ribs underneath. You'll want to position panels to avoid shadows from roof fixtures while ensuring they're mounted over solid structural supports.
Choosing the Right Panel Size and Configuration
For most caravans, rigid monocrystalline panels between 100W and 200W offer the best balance of power and size. Multiple smaller panels often work better than one large panel, giving you more flexibility in placement and better performance if one panel gets shaded.
Consider your power needs too. A typical Kiwi caravan setup might need 200-400W of solar capacity to run LED lights, a 12V fridge, water pump, and charge devices. Our team at LUX Solar can help calculate your specific requirements based on your travel style.
Types of Roof Mount Systems
There are several mounting options for your roof mount solar installation, each with distinct advantages depending on your caravan type and budget.
Flat Mount Systems
Flat mounting brackets attach panels directly to the roof with minimal air gap underneath. This creates a sleek, low-profile installation that's less likely to catch wind or branches on bush tracks.
The downside is reduced airflow under the panels, which can decrease efficiency on hot summer days. However, for most New Zealand conditions, the performance difference is minimal compared to the aerodynamic and aesthetic benefits.
Tilting Mount Systems
Tilting mounts allow you to adjust panel angle to optimise sun exposure. In winter, when the sun sits lower in the sky, tilting your panels can significantly boost power generation.
These systems work well for caravans that stay parked for extended periods. If you're constantly on the move, the convenience of set-and-forget flat mounting usually wins out.
Adhesive Mounting Options
Some modern mounting systems use structural adhesives instead of drilling through the roof. While this eliminates leak risks, it requires perfect surface preparation and isn't suitable for all roof materials.
Adhesive mounts work best on smooth fibreglass roofs and should only be attempted in dry conditions with proper surface treatment.
Essential Tools and Materials
A successful caravan solar install requires the right tools and quality materials. Don't skimp on mounting hardware – your panels need to withstand highway speeds and New Zealand's variable weather.
Mounting Hardware

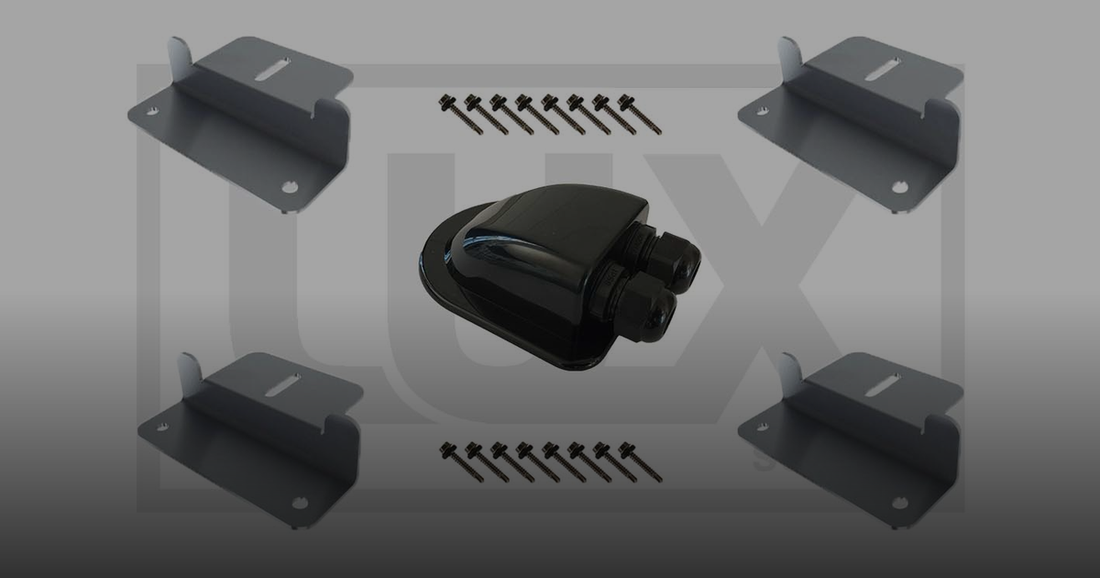

You'll need marine-grade mounting brackets, stainless steel bolts, and proper sealants. Standard automotive bolts aren't suitable for this application – the constant vibration and thermal cycling will cause failures.
Quality mounting rails distribute load across multiple attachment points, reducing stress on individual bolts. This is especially important for larger panels or older caravans with thinner roof structures.
Sealing and Waterproofing
Proper sealing is critical in New Zealand's wet climate. Use marine-grade sealants like Sikaflex or similar products designed for outdoor exposure and movement.
Apply sealant under the mounting feet, around bolt holes, and over the bolt heads for complete weather protection. Don't rely on rubber gaskets alone – they can fail over time.
Step-by-Step Installation Process
Installing your solar panels safely requires careful preparation and attention to detail. Take your time – rushing this job often leads to leaks or mounting failures down the track.
Marking and Drilling
Mark your mounting positions carefully, double-checking measurements before drilling. Use a centre punch to prevent drill bits from wandering, and start with a small pilot hole before enlarging to final size.
Always drill from the outside in to prevent gel coat chipping on fibreglass roofs. Clean out all drill debris and check that bolts fit properly before applying sealant.
Securing the Mounting System
Install mounting brackets with liberal amounts of sealant, ensuring the brackets sit flat against the roof surface. Tighten bolts gradually in a cross pattern to avoid warping the brackets.
The inside nuts should be secured with additional backing plates if you're going through thin roof material. This distributes the load and prevents pull-through failures.
Panel Installation and Wiring
Once your mounting system is secure, attach the panels according to the manufacturer's instructions. Most systems use end clamps and mid clamps to secure panels without drilling through the panel frames.
Route wiring carefully to avoid damage from sharp edges or moving parts. Use cable entry glands where wires pass through the roof, and secure cables inside the caravan to prevent damage during travel.
Testing and Maintenance
After installation, test your system thoroughly before heading out on your first trip. Check all electrical connections, verify proper charging operation, and inspect the mounting for any issues.
Regular maintenance involves checking bolt tightness, inspecting seals, and keeping panels clean for maximum performance. A quick wash with soapy water every few months will keep your panels operating at peak efficiency.
Most mounting systems will require periodic re-sealing, particularly if you notice any signs of water intrusion. Address small issues early before they become major problems.
Ready to Power Up Your Caravan?
A properly installed solar system transforms your caravan into a self-sufficient adventure machine. Whether you're exploring remote beaches or freedom camping in national parks, you'll have reliable power wherever your travels take you.
Need help choosing the right components or want professional installation advice? Visit LUX Solar for expert guidance on your caravan solar project. Our team understands New Zealand conditions and can help design the perfect system for your adventures.
