Maximising your Roof Space with good solar design

Your caravan's roof space is a critical asset when it comes to harnessing solar energy, and is often the constraining factor to how much off-grid power you can generate.   In this article, we explore how you can make the most of your caravan's roof space when installing a solar system. :)

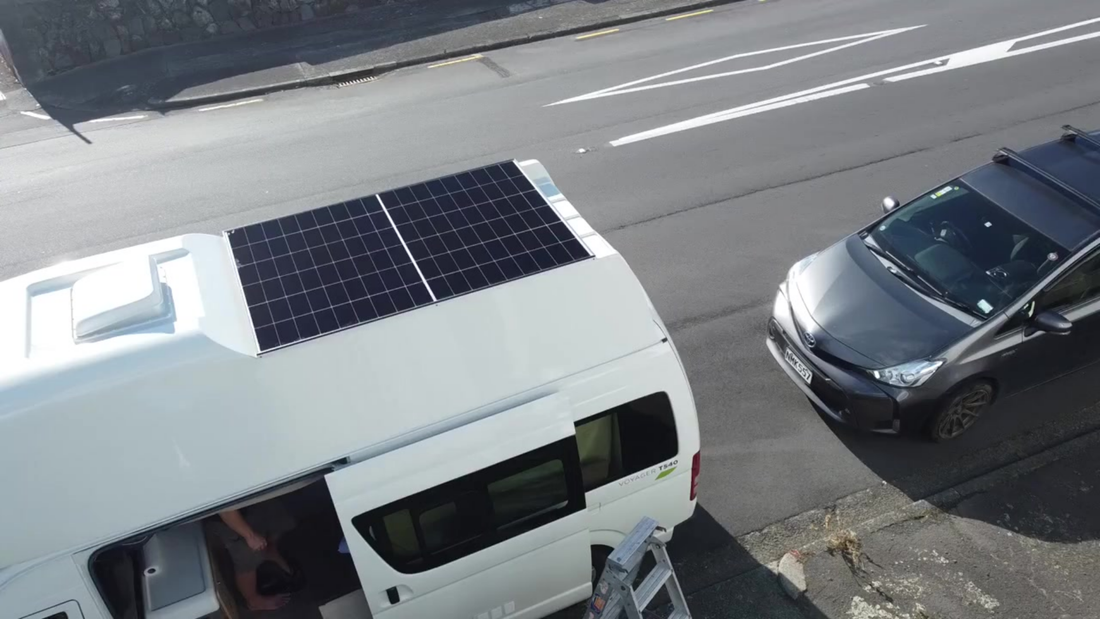

Optimize Your Roof Layout

Not all caravan roofs are created equal—some may have built-in obstructions like air conditioning units, antennas, or vent fans. Maximizing usable space requires a thoughtful layout:

• Measure and Plan: Create a scaled diagram of your caravan roof. Factor in roof curves and any pre-existing features.
• Consider Shadowing: Even a small shadow from a vent or an antenna can significantly reduce solar panel efficiency. Place panels in areas with full sun exposure, and consider relocating obstructions, if possible.
• Low-Profile Designs: Choose low-profile alternatives for external features like exhaust vents or antennas, which can cast fewer shadows.

The old-school way to size solar is to use cardboard cutouts with the same dimensions as your solar panels. This can help visualize potential layouts before installation.

LUX Solar's Solar Panel Roof sizing tool speeds up the process by allowing you to see all of LUX Solar's Panels to scale on your roof and quickly find the best layout!!

Choose the Right Solar Panels

• Monocrystalline vs. Polycrystalline: Monocrystalline panels are more efficient per square meter and are generally the best option when roof space is limited.
• Higher Output Panels: Look for solar panels with high wattage ratings to generate maximum power. For example, instead of installing two 120W panels, opt for a single 250W panel, if space allows.
• Flexible Solar Panels: If your caravan roof is curved, lightweight flexible solar panels can deliver the output you need without adding significant weight. They are simple to install and can even be adhered directly to the roof surface.

Consider Solar Panel Mounting Options

Solar mounts can also take up space!  Consider the clearance required around each panel for your chosen mounting system.  LUX Solar's Solar Panel Roof sizing tool also allows you to see the clearance required for each of the mounts we stock.

Invest in High-Quality Components - and good solar design

A solar system's efficiency extends beyond just the panels—choosing high-quality components will also impact your performance, as will the solar design. Ensure your system includes:

• MPPT Solar Charge Controller: Maximum Power Point Tracking (MPPT) controllers are more efficient than PWM controllers and can optimize energy collection, particularly in low-light conditions.
• Efficient Wiring: Use appropriate wiring thicknesses and lengths to reduce energy loss from your panels to your battery bank.
• Battery Storage: Invest in high-capacity deep-cycle lithium-ion batteries. These are lightweight, long-lasting, and store energy more efficiently than lead-acid batteries—ideal for off-grid travel.

Making the best use of your roof space when installing a solar system for your off-grid caravan requires careful planning, quality equipment, and regular maintenance. By designing a system around your unique energy needs, optimizing your roof layout, and selecting the right components, you'll ensure your caravan stays powered in even the most remote locations.

A well-designed solar setup will provide you with the freedom to explore the great outdoors while staying connected to the comforts of modern living. Happy travels!
