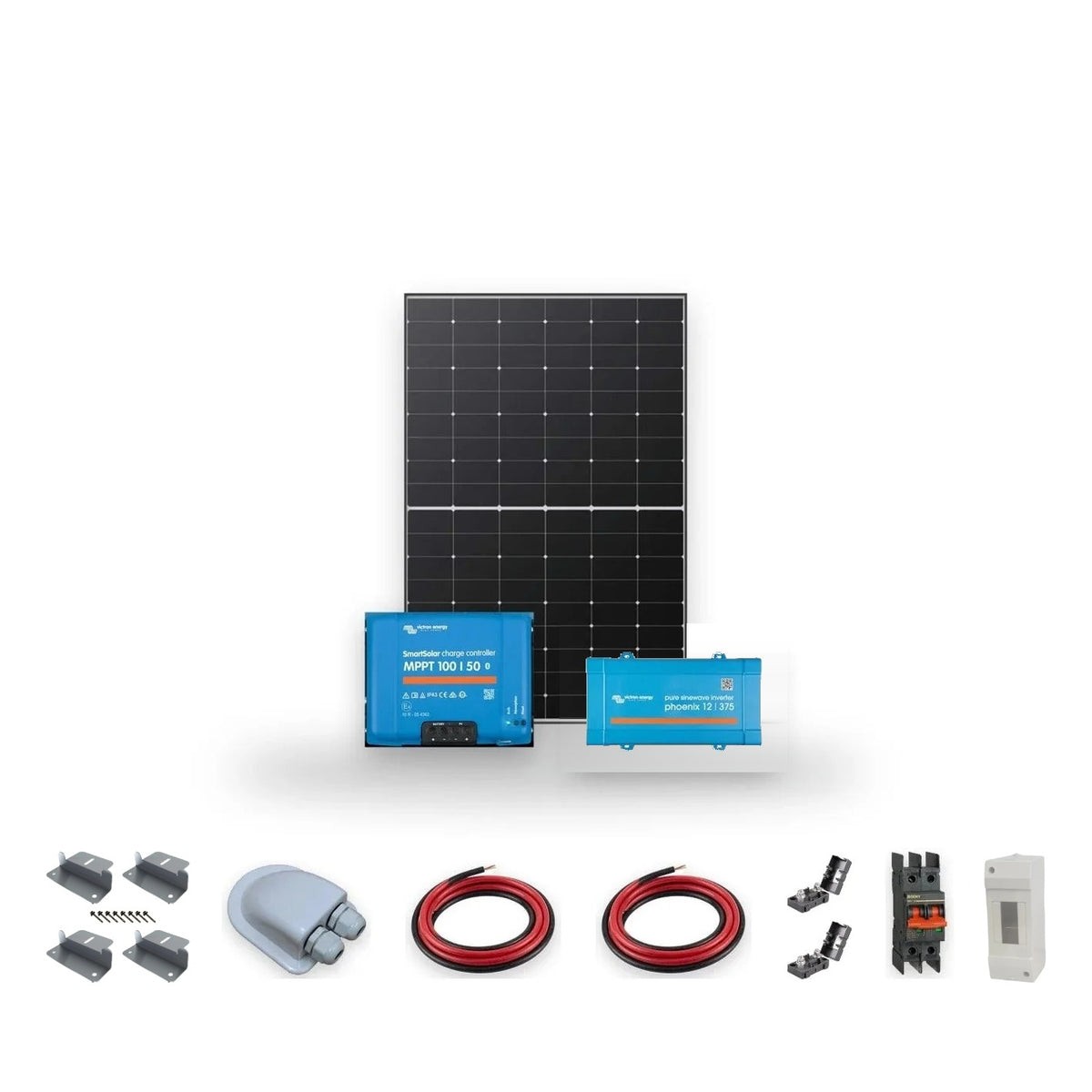

LUX Solar Customisable Complete Off-Grid Kits
LUX Solar Customisable Complete Off-Grid Kits
SKU: ANY-KIT-STD-200-12V
Couldn't load pickup availability
Shipping
Shipping
Orders are shipped Mondays to Fridays and take on average 1-3 working days to arrive.
Warranty & Returns
Warranty & Returns
We have a 7 day change of mind return policy, subject to a restocking fee.
Complete off-grid solar kits for campervans, caravans, boats and tiny homes. Every kit is designed by our AnyKit system, so the panels, controller, cabling, fusing and mounting hardware are all sized to work together — no guesswork about what connects to what.

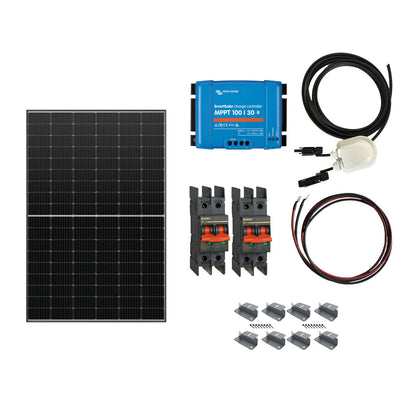

What's in every kit
- Solar panels — half-cut HPBC or LONGi, depending on the size you choose
- Victron SmartSolar MPPT charge controller, matched to the array
- Solar cable, MC4-Evo Staubli IP68 connectors and a roof cable entry gland
- Battery cable with crimped lugs, correctly sized for the current
- Circuit breaker, enclosure and fusing

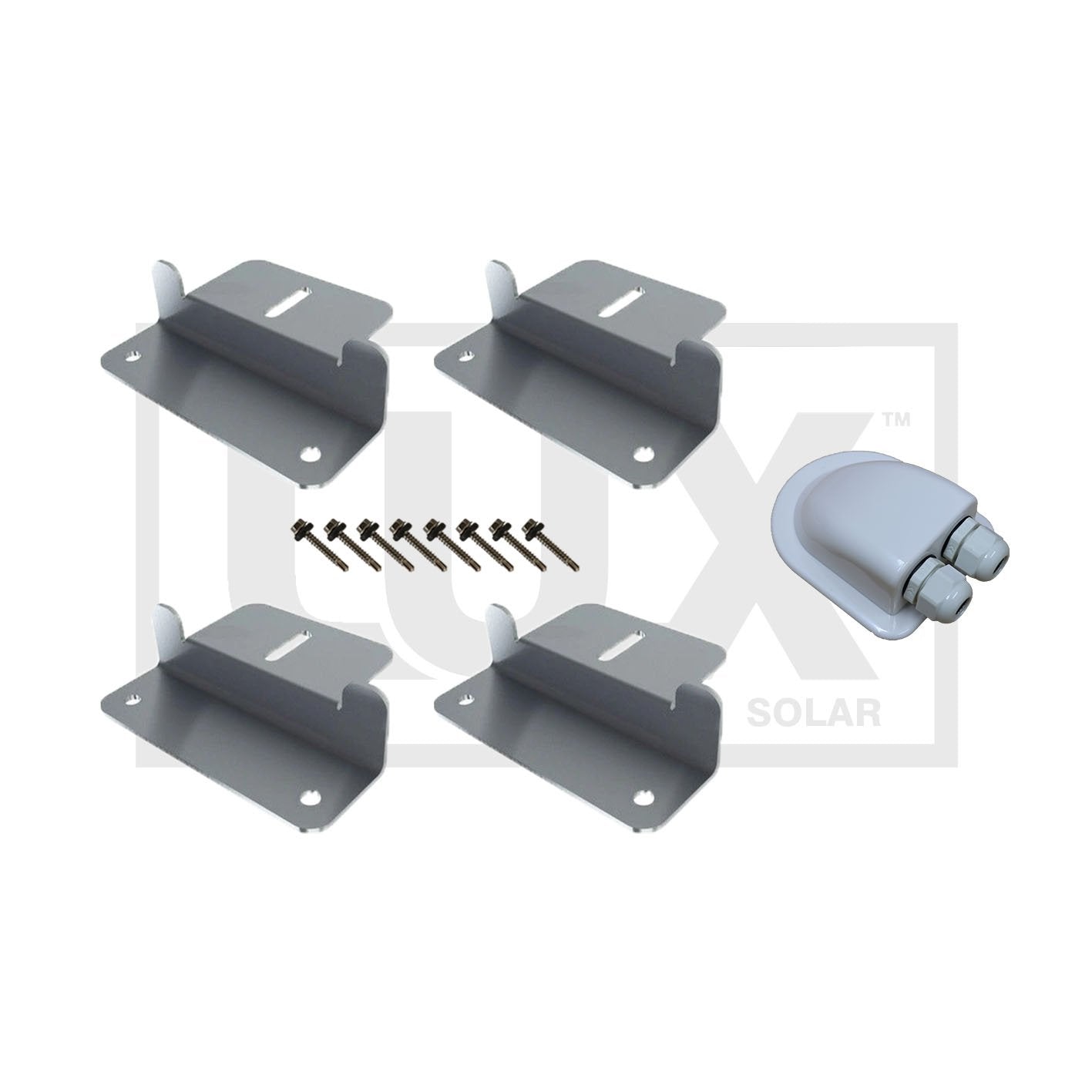

- Aluminium mounting brackets and screws for every panel
- Wiring diagram and installation manual
- Pre-crimped connectors, ready to fit
Choosing your kit
Wattage — how much power you generate each day.
Voltage — match this to your battery bank. Most campervans run 12V. Larger systems use 24V to keep currents and cable sizes down.

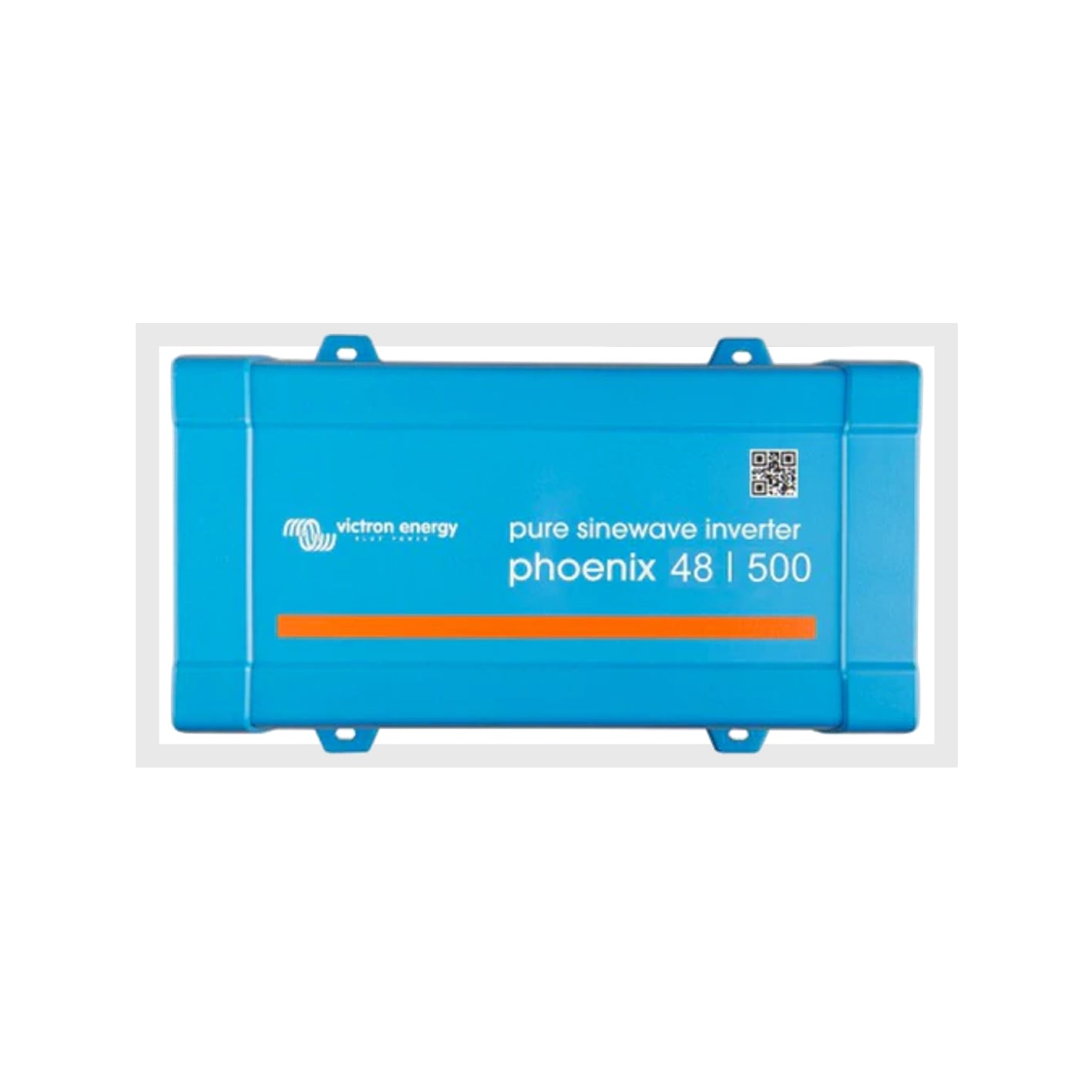

Inverter — add one if you need 230V household sockets. The inverter is matched to the system size, so larger kits come with a larger inverter.
Panels and roof space
Panel size matters as much as wattage. Check your available roof area against the figures below before you choose.
| Kit | Panels | Each panel | Total roof area |
|---|---|---|---|
| 200W | 1 × 200W | 170 × 59 cm | 1.00 m² |
| 300W | 3 × 100W | 86 × 59 cm | 1.52 m² |
| 400W | 2 × 200W | 170 × 59 cm | 2.01 m² |
| 475W | 1 × 475W | 180 × 113.4 cm | 2.04 m² |
| 950W | 2 × 475W | 180 × 113.4 cm | 4.08 m² |
| 1425W | 3 × 475W | 180 × 113.4 cm | 6.12 m² |
Leave room around each panel for mounting brackets and airflow. The 475W LONGi panels are nearly twice the width of the 200W, so they suit wider roofs — a narrow van may fit three 100W panels where one 475W won't go.
To plan the layout properly, try our free Roof Sizer: drag and drop our panels to scale on your roof and see what fits around your vents, hatches and aerials.
Which system do I need?
What a solar array can run depends heavily on when and where you use it. A system that's comfortable through a Northland summer may fall short in a South Island winter, so we've shown both.
| System | Year-round use | Summer only (Nov–Feb) |
|---|---|---|
| 200W | Lights and device charging | Weekender van — lights, phone charging, small pump |
| 300W | Lights, phone charging, small water pump | Weekender van — fridge, lights, phone charging |
| 400W | Lights, phone charging, fridge in summer only | Full-time van — fridge, lights, laptop, TV |
| 475W | Small van setup — fridge, lights, device charging | Large van or motorhome with 230V sockets |
| 950W | Full-time van — fridge, laptop, TV, Starlink | Motorhome or small tiny home with microwave |
| 1425W | Large motorhome or small tiny home | Tiny home or cabin — washing machine, kettle |
Figures assume lithium batteries with one day of backup, based in the upper North Island. Further south, or with heavier use, size up. For an answer based on your actual appliances, list them in our AnyKit designer and it will size the whole system for you.
Make it yours
Every kit is a starting point. Configure it in our AnyKit designer to set your exact cable runs, add a mains charger or battery monitoring, or change any component — the system resizes the whole design and prices it as you go.
Before you install
Solar and DC wiring can be installed yourself. Any 230V AC or grid-connected work must be carried out by a licensed electrician under AS/NZS 4777.
Plan your Solar in under 2 Minutes
LUX Solar's AnyKit Builder helps you design a pre-wired kit for your caravan, boat, campervan, or small tiny home. No Experience Needed!
In just minutes, create a custom electrical setup tailored to your use case. Select the major components you would like and LUX AnyKit automatically figures out all the details such as product compatibility, required cables, fuses, lugs, circuit breakers and more.
