475 Watt LONGi Bifacial Solar Panel — HPBC 2.0 All Black, 1800×1134mm
475 Watt LONGi Bifacial Solar Panel — HPBC 2.0 All Black, 1800×1134mm
SKU: LR7-54HVD-475M
Couldn't load pickup availability
Shipping
Shipping
Orders are shipped Mondays to Fridays and take on average 1-3 working days to arrive.
Warranty & Returns
Warranty & Returns
We have a 7 day change of mind return policy, subject to a restocking fee.

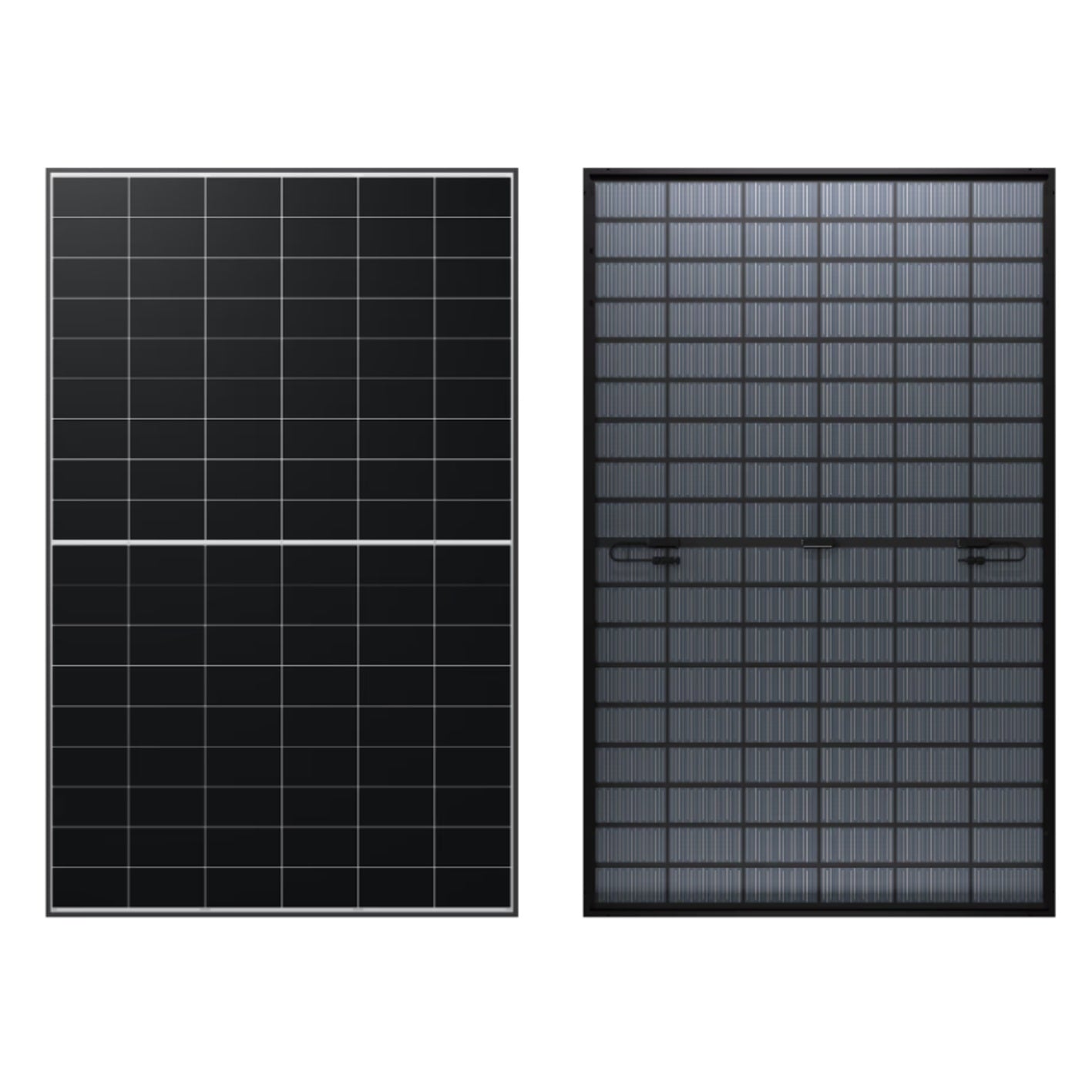

LONGi Hi-MO X10 LR7-54HVD 475W Dual Glass Solar Panel
Engineered for performance and built to last, the LONGi Hi-MO X10 475W is a premium N-type dual-glass module that delivers 23.3% efficiency from a sleek all-black design. Powered by LONGi's next-generation HPBC 2.0 back-contact cell technology, it produces more energy per square metre while running cooler in real-world conditions — ideal for residential rooftops where space, output, and aesthetics all matter.
Key features
- 475W output with 23.3% module efficiency

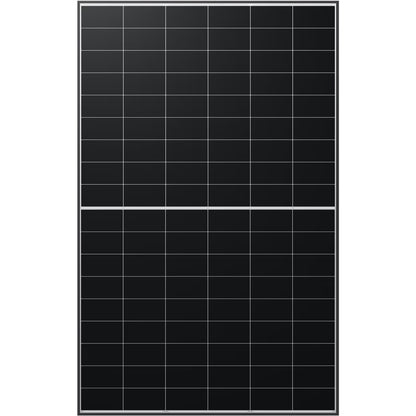

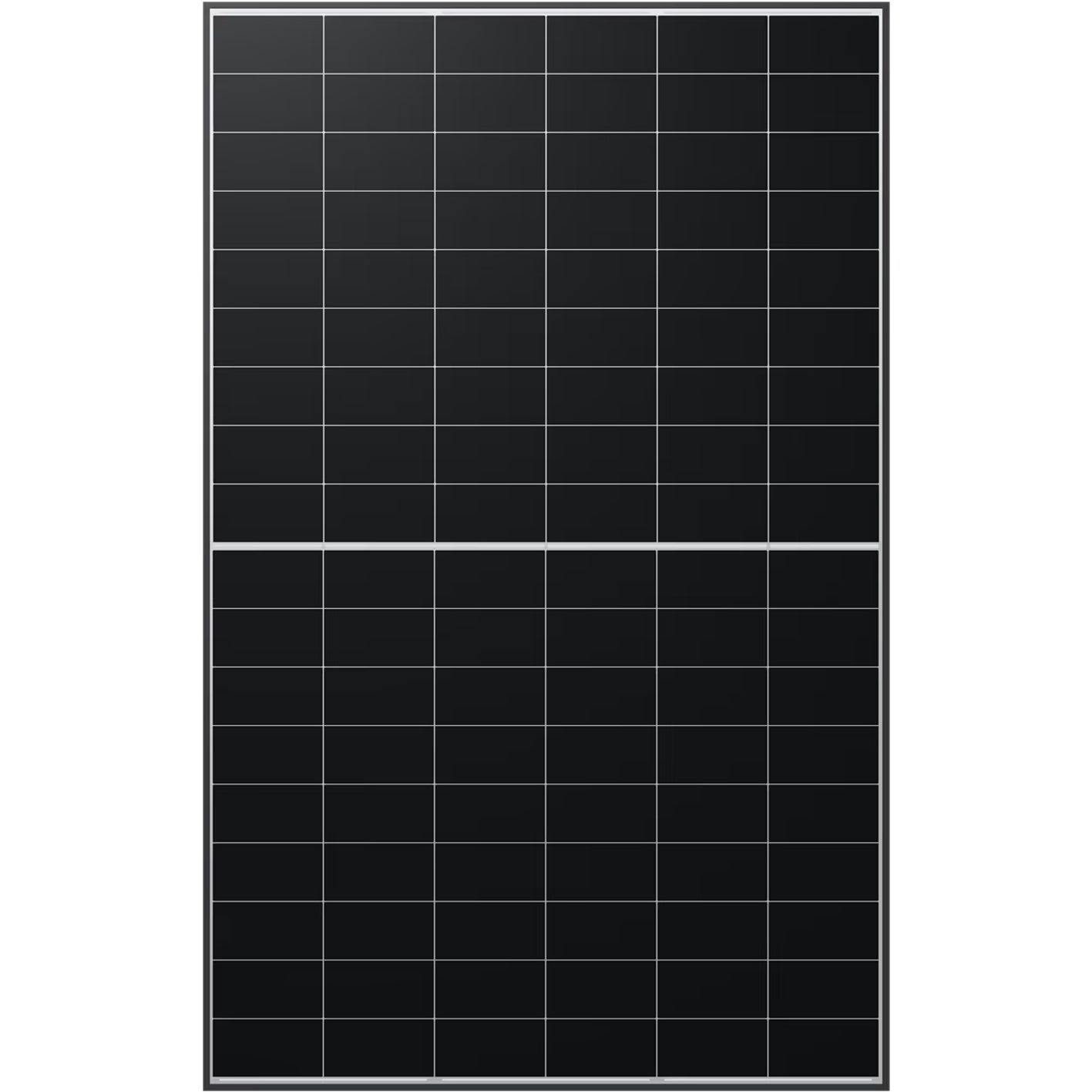

- HPBC 2.0 N-type back-contact cells — no front-side busbars, for a clean black appearance and higher yield

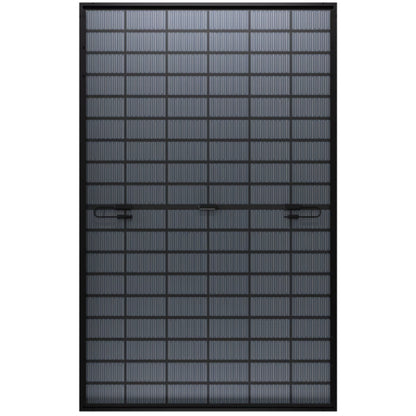

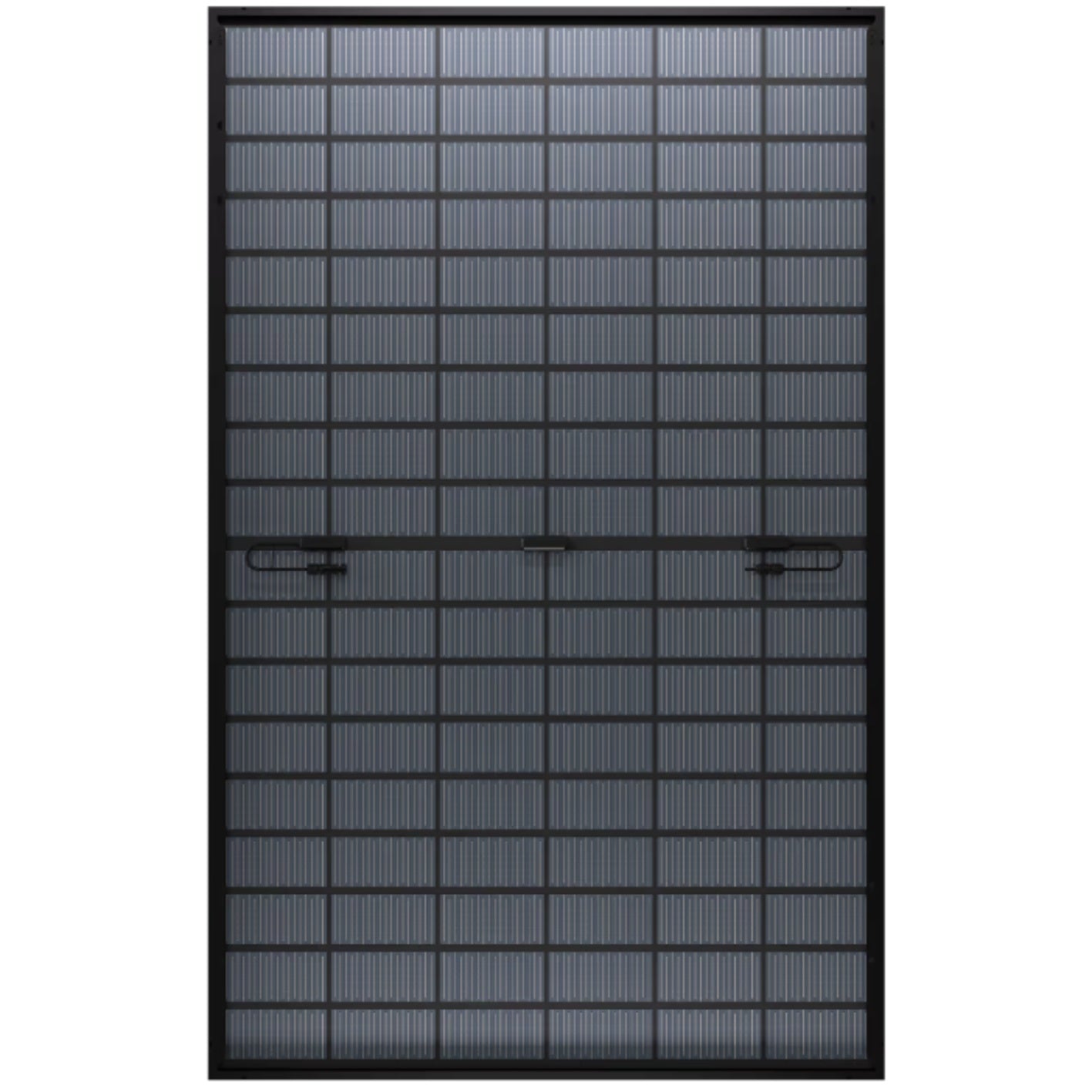

- Dual-glass construction (2.0mm + 1.6mm tempered glass) for superior durability and a longer service life
- Strong low-light and high-temperature performance (Pmax temp coefficient just −0.26%/°C)
- Anti-shading design helps prevent localised overheating and hotspots
- Heavy-duty 5400Pa front / 2400Pa rear load rating — handles snow, wind, and 25mm hail at 23 m/s
- Black anodised aluminium frame with IP68 junction box
Warranty
- 30-year linear power warranty — 88.85% output guaranteed at year 30
- 15-year product warranty on materials and workmanship
Specifications

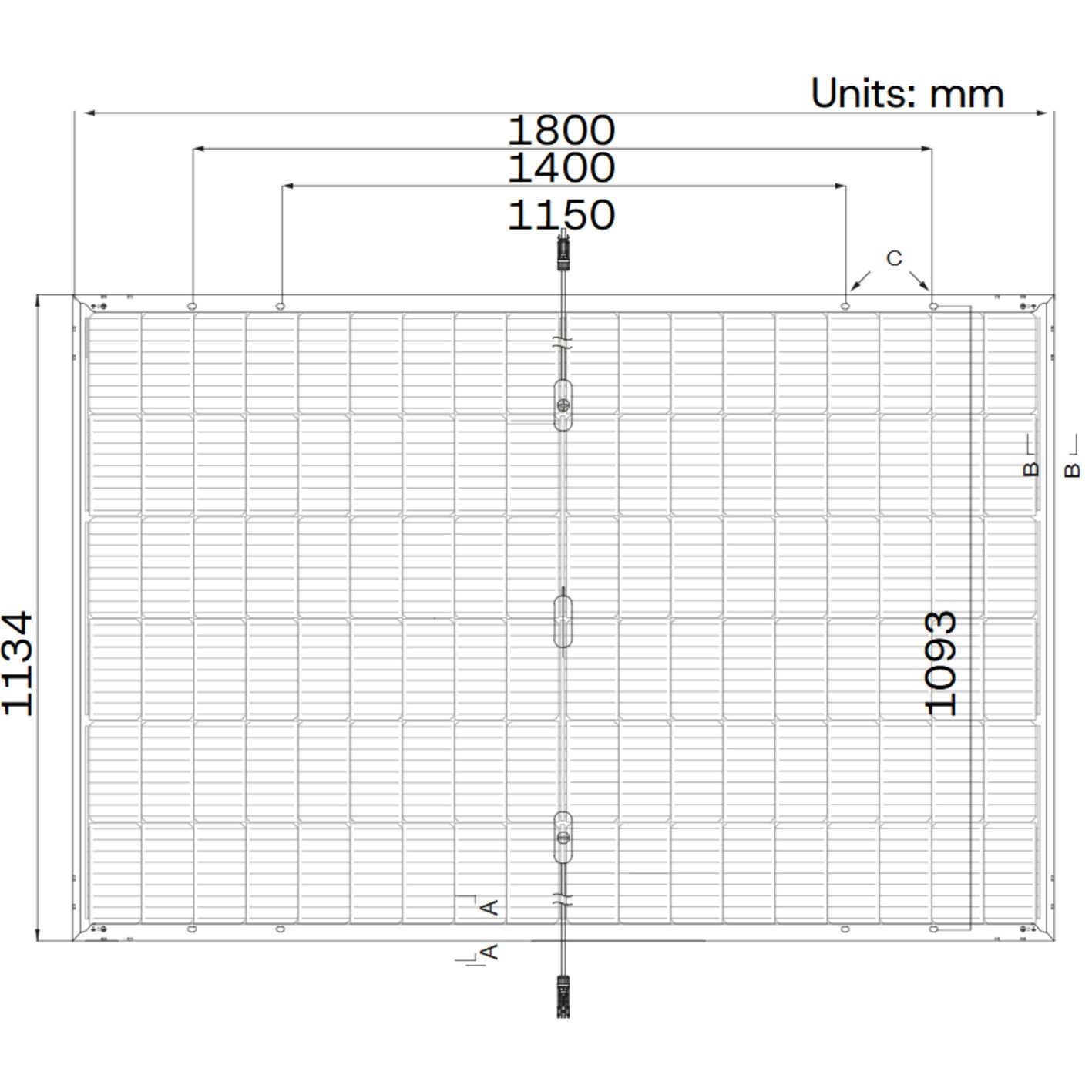

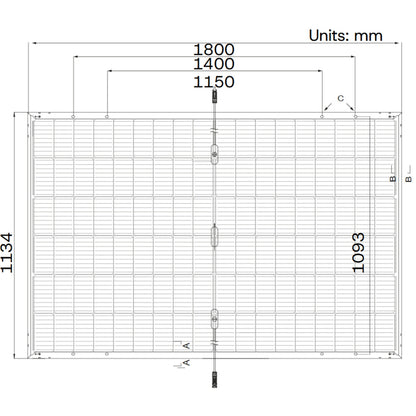

- Dimensions: 1800 × 1134 × 30 mm
- Weight: 23.5 kg
- Voc: 40.42 V | Isc: 14.88 A
- Vmp: 33.4 V | Imp: 14.23 A
- Max system voltage: 1500 V DC
- Operating temperature: −40°C to +85°C
- Certifications: IEC 61215, IEC 61730, ISO 9001/14001/45001
Complete your installation
Everything you need to get this panel mounted and charging:
- Mounting brackets & cable glands — mounts and IP68 roof cable entries to suit fixed panels.
- Solar cable, MC4 connectors & fuses — correctly sized cable and TUV-certified connectors for the run to your controller.
- A solar charge controller — pair with an MPPT charge controller sized to your battery bank.
Not sure what to pair it with? Our AnyKit™ sizing tool matches panel and battery capacity to the way you actually use power.
