AC-Transfer Switch Transfer Switch 10kVA - consider Quattro instead 175 x 215 x 120
AC-Transfer Switch Transfer Switch 10kVA - consider Quattro instead 175 x 215 x 120
SKU: AC-Transfer Switch Transfer Switch 10kVA - consider Quattro instead 175 x 215 x 120 | COS230103100
Couldn't load pickup availability
Shipping $ & Timeframe
Shipping $ & Timeframe
Free Shipping New Zealand wide.
Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before midday ship out same-day.
Warranty & Returns
Warranty & Returns
5 Year Warranty
We have a 7 day change of mind return policy, subject to a restocking fee.
Datasheets, Manuals, Certifications
Datasheets, Manuals, Certifications

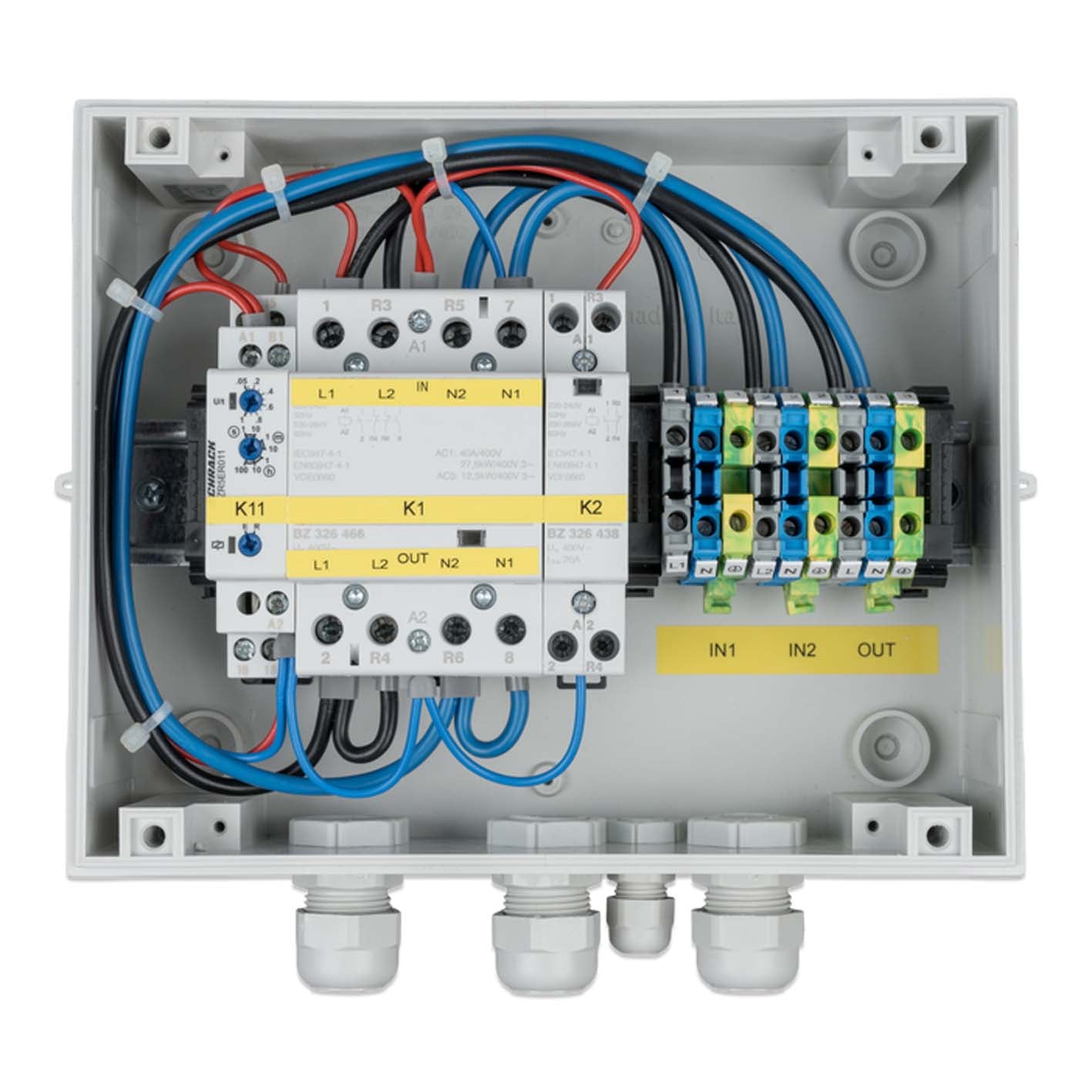

The Victron VE Transfer Switch automatically switches between different AC power sources — between a generator and shore power, between an inverter and a generator, or between an inverter and shore power. With two AC inputs and one output, it ensures your loads always receive power from the best available source without manual intervention.
Key Features
- Automatic switching between two AC power sources
- 10kVA single-phase capacity (200–250Vac)
- Two inputs, one output
- Seamless source changeover for uninterrupted power

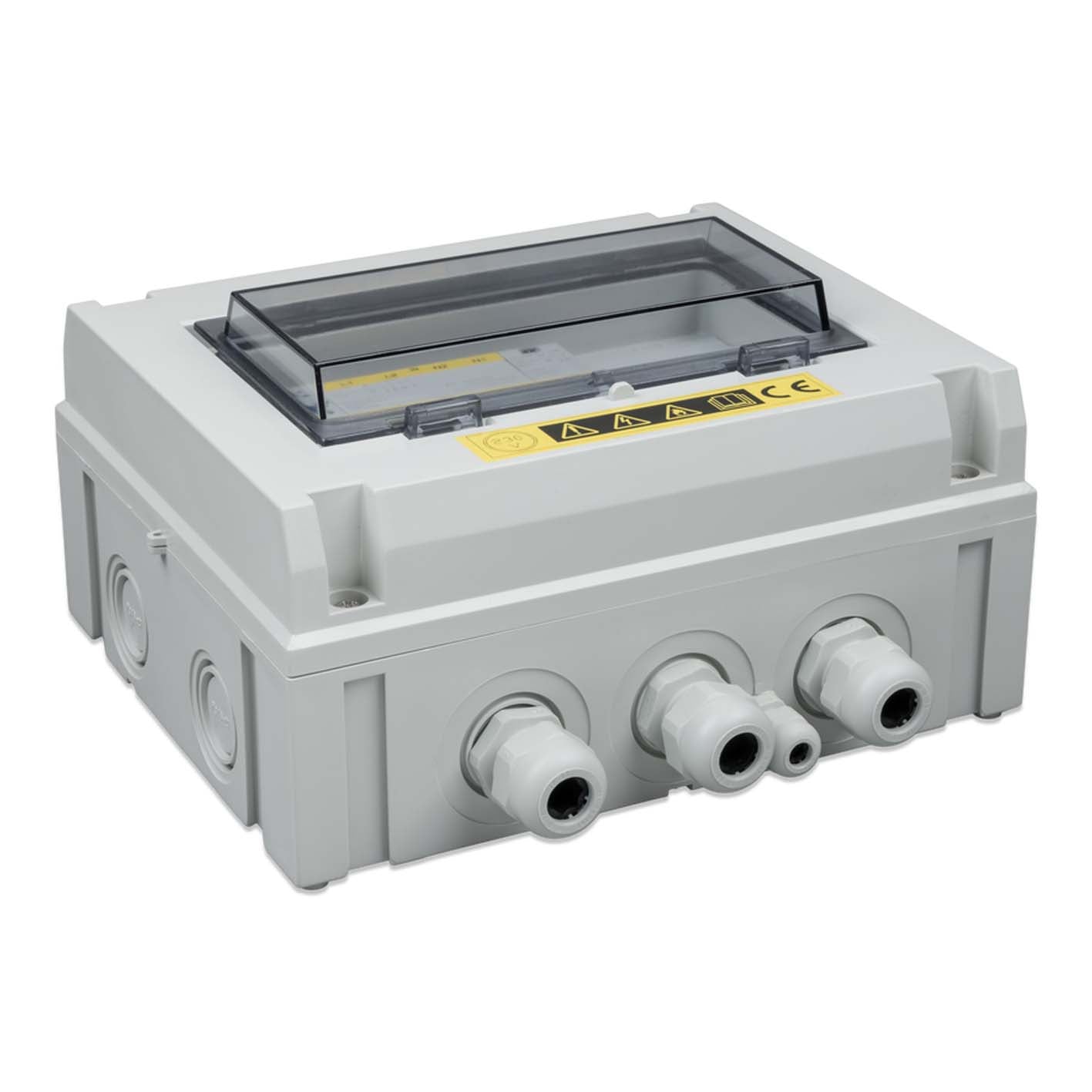

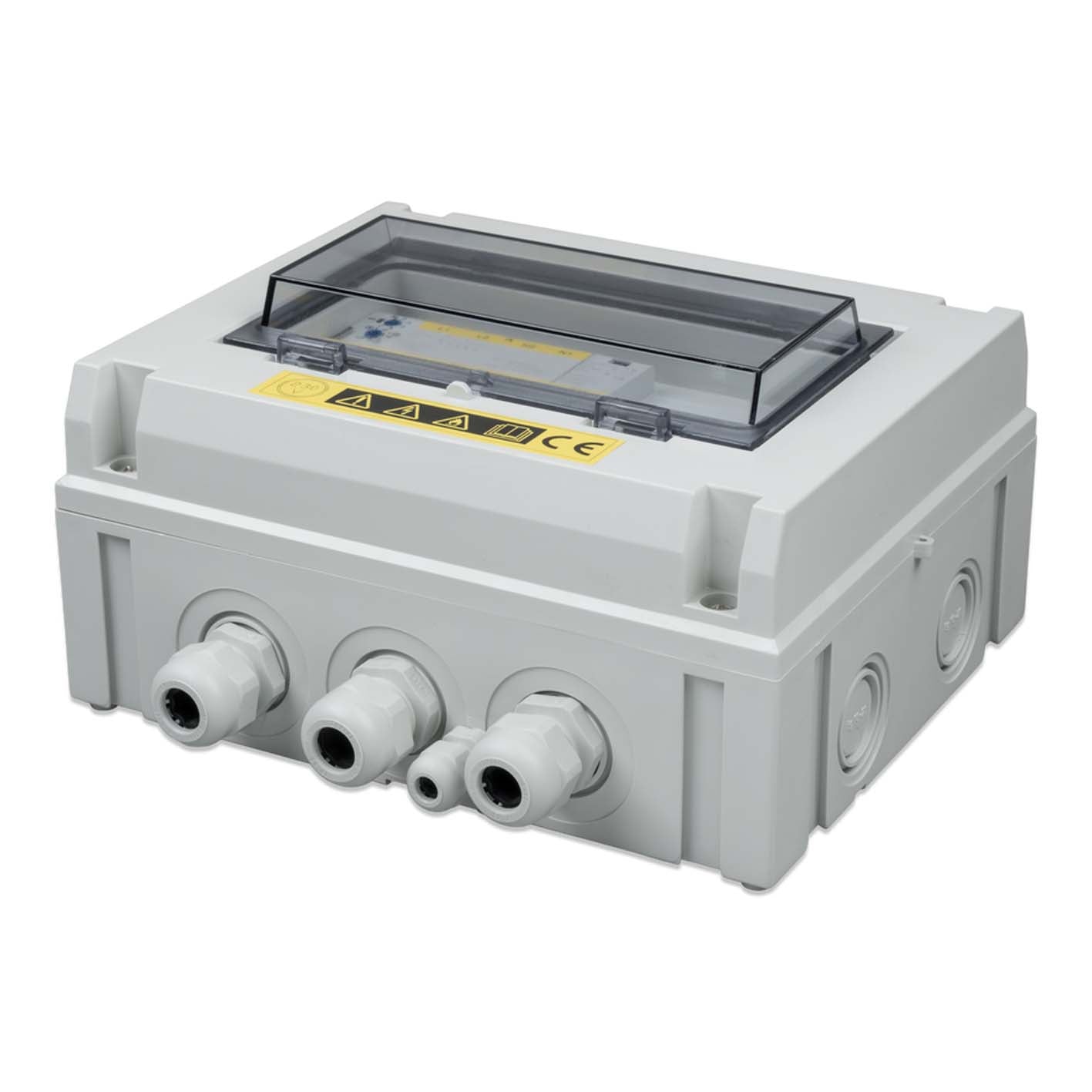

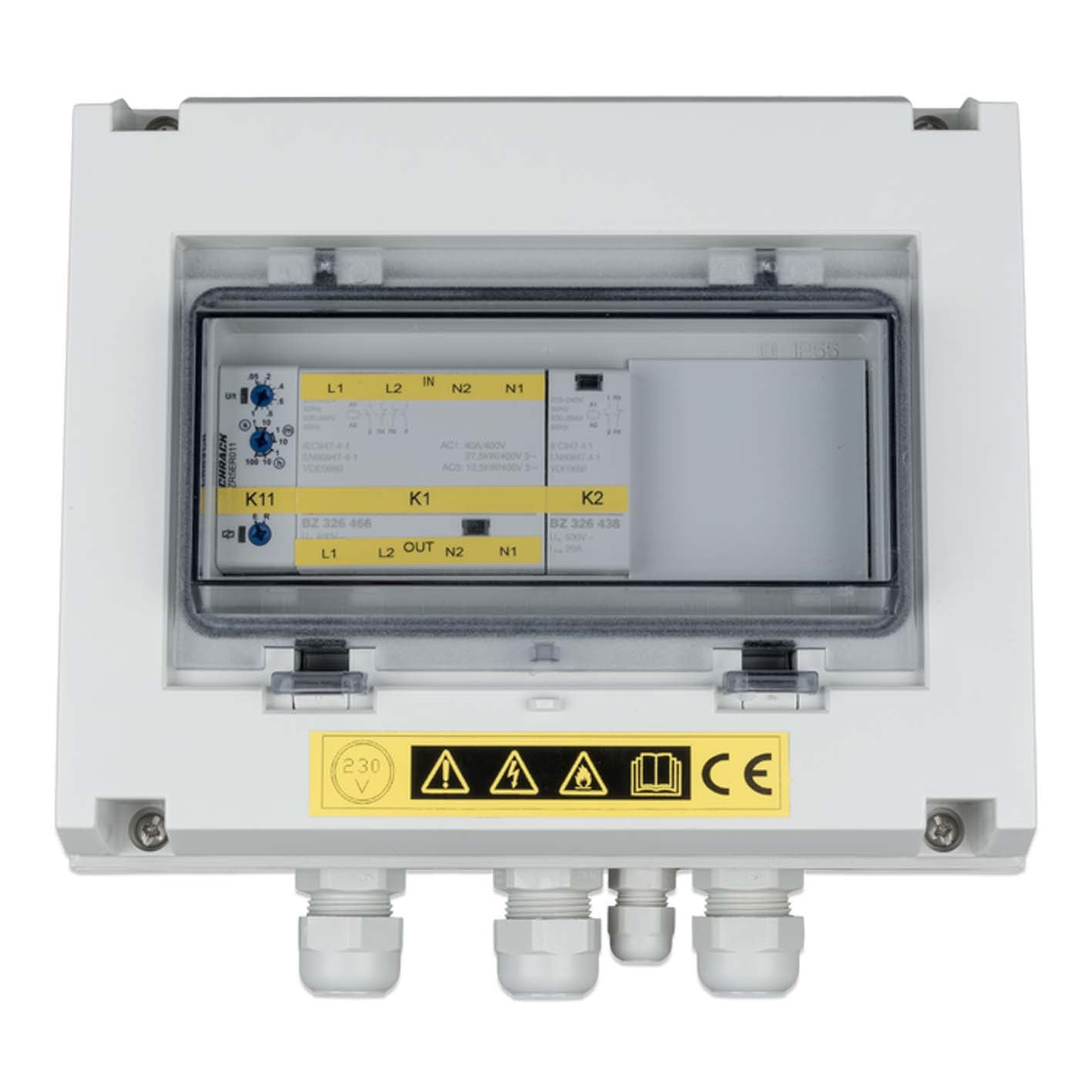

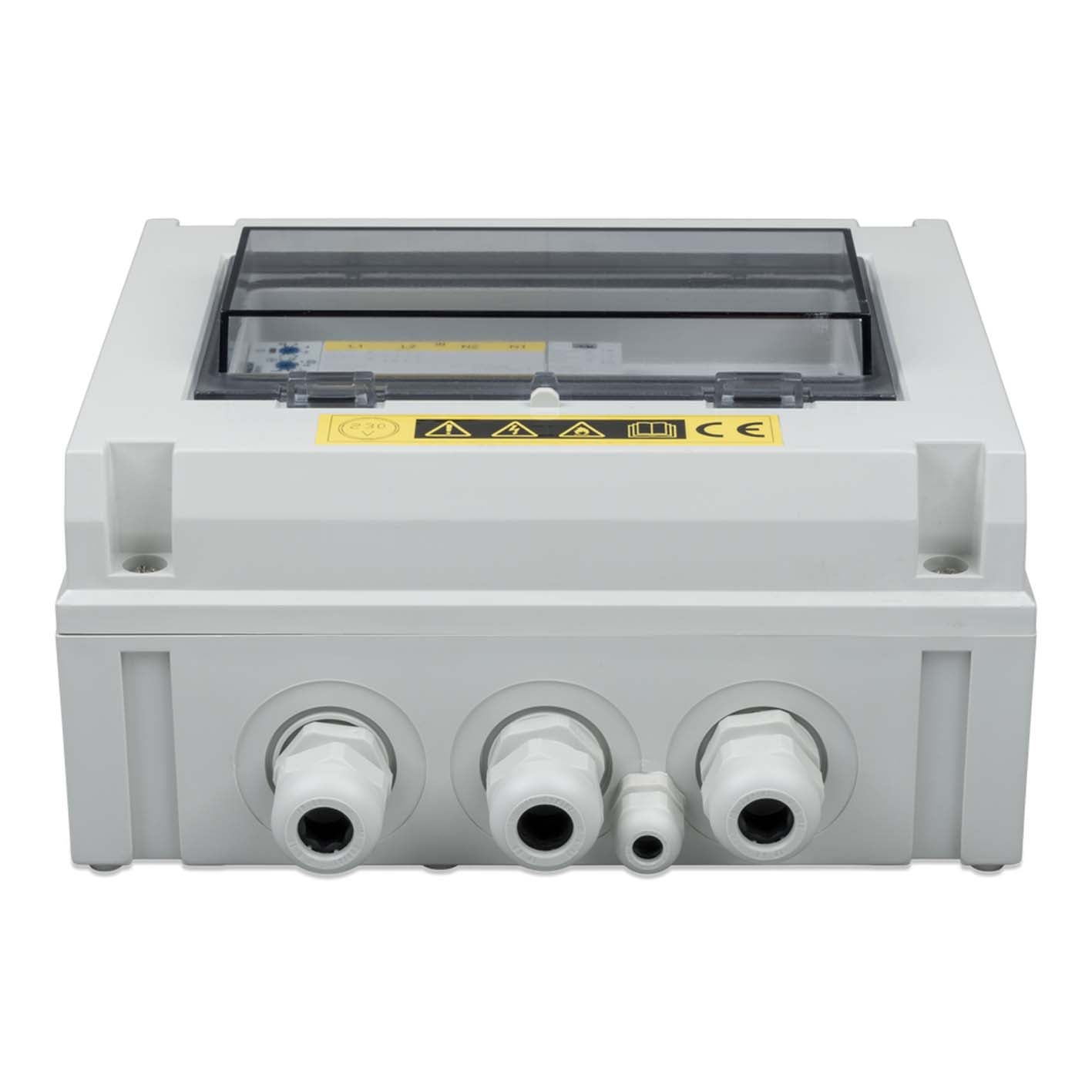

- Wall-mountable enclosure (175 x 215 x 120 mm)
Typical Applications
- Marine — switch between shore power and inverter/generator
- Off-grid — switch between generator and inverter
- Backup power — automatic failover between mains and inverter
Specifications
| SKU | COS230103100 |
| Capacity | 10kVA |
| Input Voltage | 200–250Vac, single phase |
| Inputs / Outputs | 2 inputs / 1 output |
| Dimensions | 175 x 215 x 120 mm |
| Warranty | 5 years |
Note: For installations requiring integrated inverter/charger functionality with automatic transfer switching, consider the Victron Quattro which combines both functions in a single unit.
