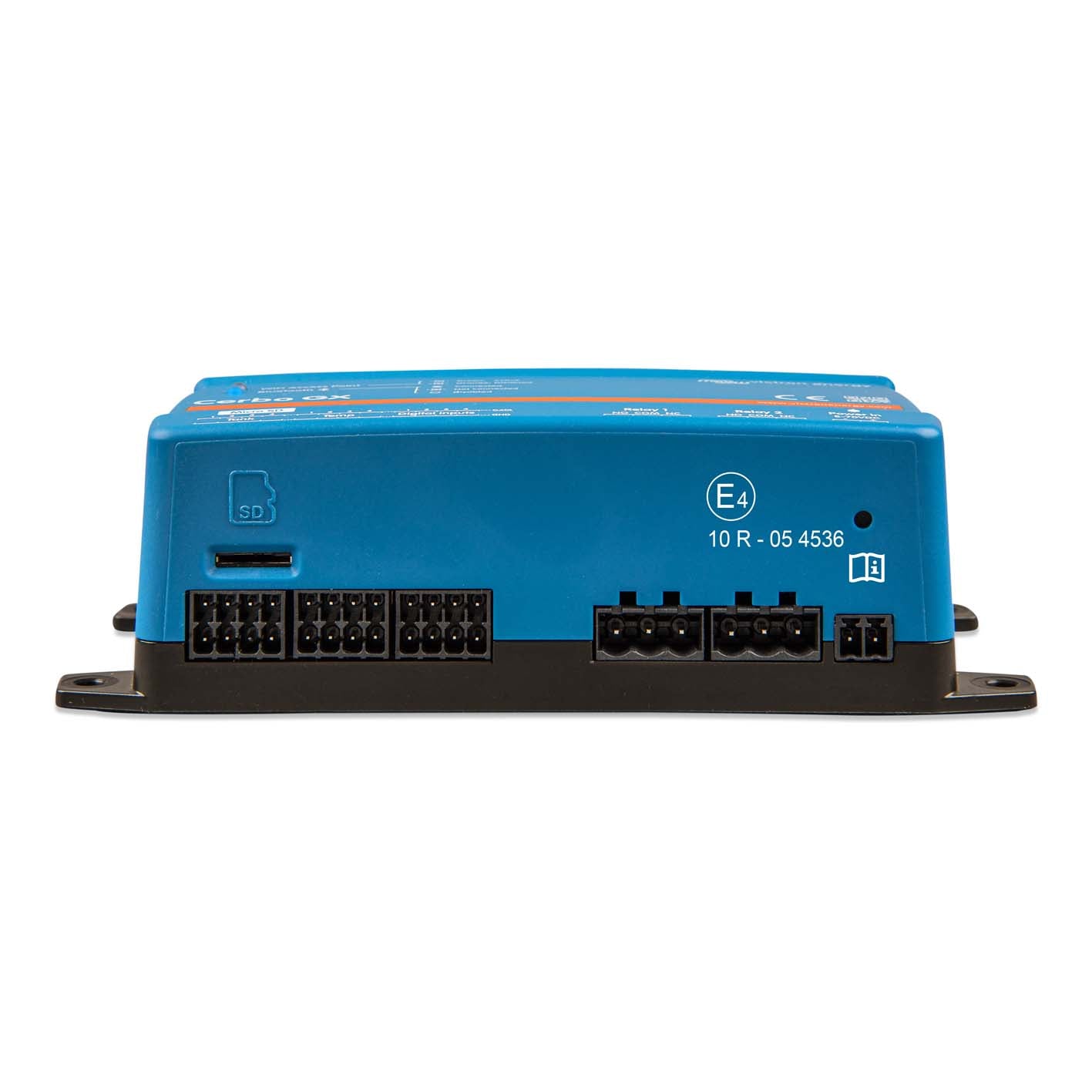

Cerbo GX MK2. Panels and system monitoring. - BPP900451100
The main differences between the original version and this MK2 version are:
- Two fully functional CAN bus ports, called VE.Can 1 and VE.Can 2, instead of one VE.Can and one BMS-Can port.
- VE.Can 1 is isolated. Previous models did not have an isolated CAN bus port.
- RJ-45 sockets have been rotated 180 degrees, making it easier to remove the cables.
- All three USB ports are fully functional, instead of two functional and one for power (to a GX Touch) only.
- Digital inputs can perform pulse counting.
This revision is most valuable for very specific applications, such as the RV market in the US, where a Lynx Smart BMS (VE.Can connection) and an RV-C port are required.
This all-new communication center allows you to always have perfect control over your system from wherever you are and maximizes its performance. Simply connect through the Victron Remote Management (VRM) portal, or access directly using the separate GX Touch 50, an MFD, or the VictronConnect app, thanks to its added Bluetooth capability. This latest addition to the GX range combines all the best of connectivity, redefining smart power solutions in every way.
PERFECT MONITORING & CONTROL
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s), or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.
MAXIMIZE YOUR SYSTEM PERFORMANCE
The Cerbo GX maximizes the performance of your system's components in real time and keeps them in perfect tune. With its Dual-Core Processor and the addition of an extra CAN bus port, you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support allows the GX to be easily integrated into any boat's network. Four tank and four temperature ports, as well as three VE.Direct ports, three USB ports, four digital inputs, and two relays, allow you to expand control to a new level. Maximizing system performance has never been this easy.
EXPAND YOUR VIEW
The new (optional) GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super-slim 5-inch waterproof design, top-mountable setup, and simple installation provide a lot of flexibility when creating a crisp and clean dashboard.
OUTSMART ANY POWER CHALLENGE
The Cerbo GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine or Backup & Off-grid, it will auto-start/stop your generator or delay ignition until the end of 'quiet' periods. For Energy Storage Systems, it keeps backup batteries at 100%, kicks in during power cuts, and diverts excess (solar) power to self-consumption, saving you money. For RV and emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few...
