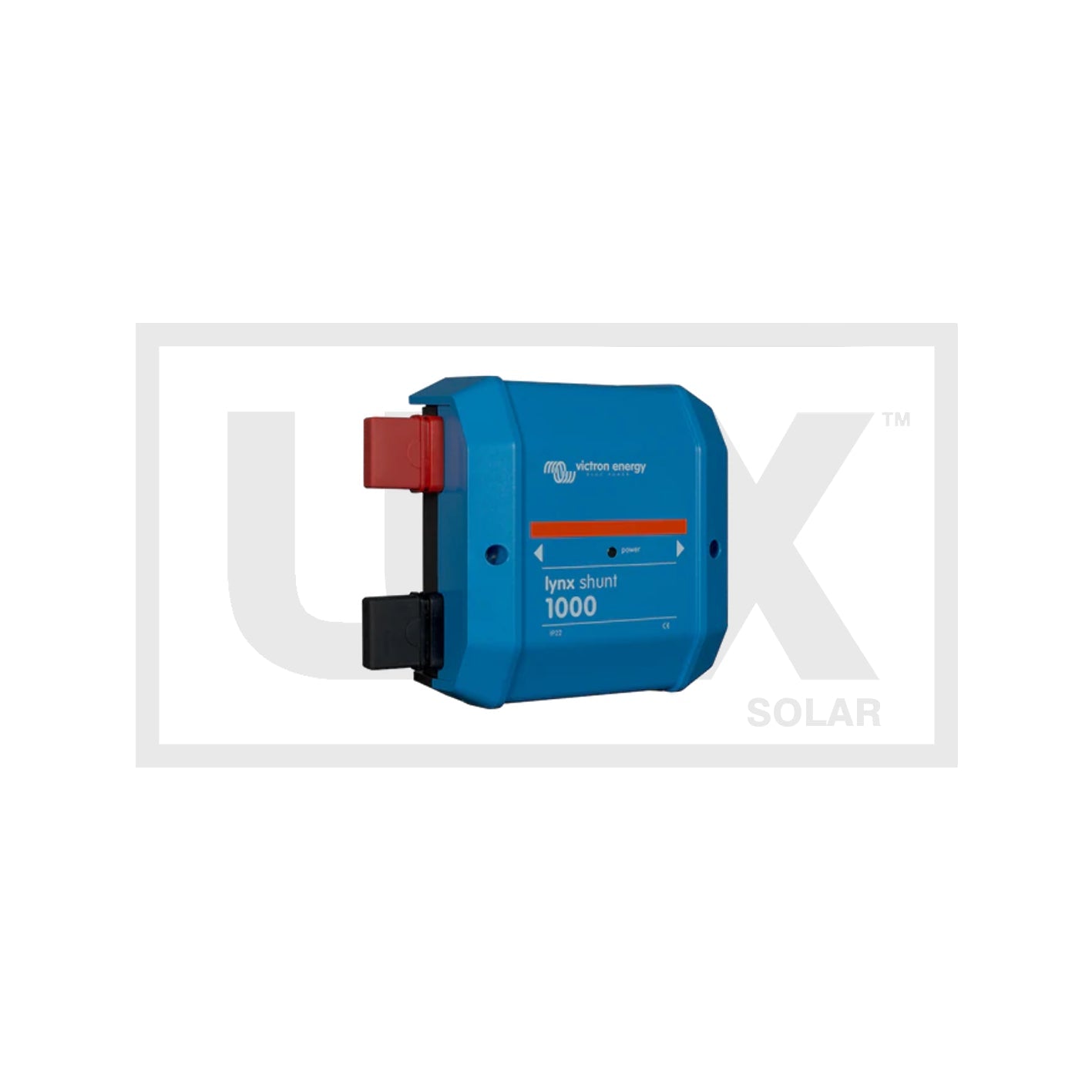

Victron Lynx Shunt VE.Can

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

Busbar integrated battery monitoring
The Lynx Shunt VE.Can is an integral part of the Lynx Distribution system, featuring a
positive and negative busbar, a battery monitor, and a fuse holder for the main system
fuse. It is available in two versions: M8 and M10. The shunt can communicate with GX
devices via VE.Can. Additionally, it is equipped with a power LED for status indication.

The M10 model includes an additional piece of busbar that can replace the fuse inside
the shunt, providing the flexibility to place the main fuse outside the shunt in a
different location. This is particularly useful in larger systems where higher-rated fuses
are required.

The Lynx Shunt VE.Can ships with two RJ45 VE.Can terminators, which are used when
connecting to a GX device.

The Lynx Shunt VE.Can M8 is specifically designed to accommodate a CNN fuse. The
M10 model can handle CNN, ANL or Mega fuses. The fuse needs to be purchased
separately. For more information, see the Fusing section in the Lynx Shunt VE.Can
manual.

The Lynx Distribution System
The Lynx Distribution System is a modular busbar system that incorporates DC
connections, distribution, fusing, battery monitoring and/or Lithium battery
management. For more information also see the

The Lynx Distribution System consist of the following parts:

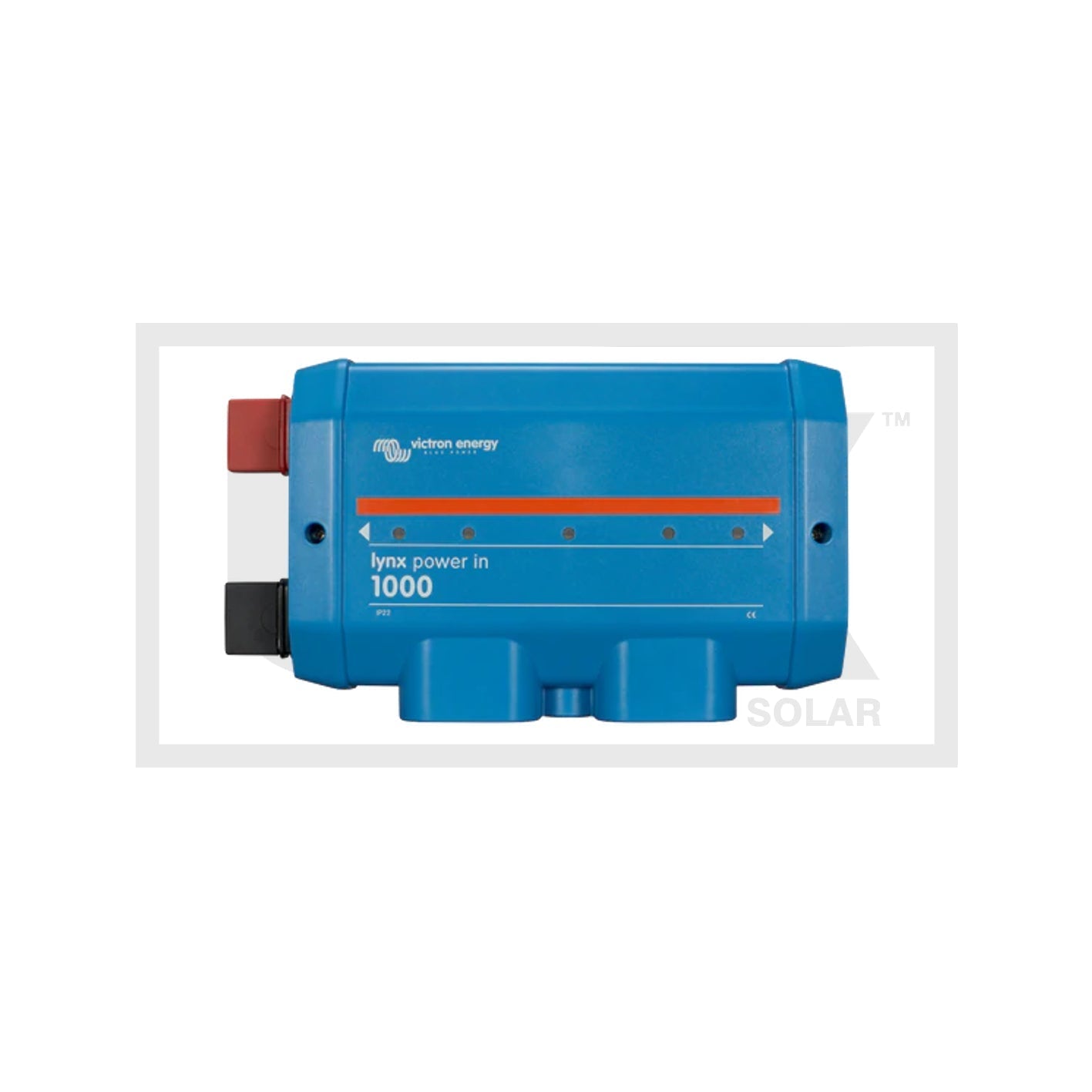

• Lynx Power In (M8, M10) - A positive and negative busbar with 4 connections for
batteries or DC equipment.
• Lynx Class-T Power In (M10) - A positive and negative busbar that connects and
fuses up to two strings of lithium batteries using Class-T fuses (available in 225 A,
250 A, 350 A, and 400 A; must be purchased separately).

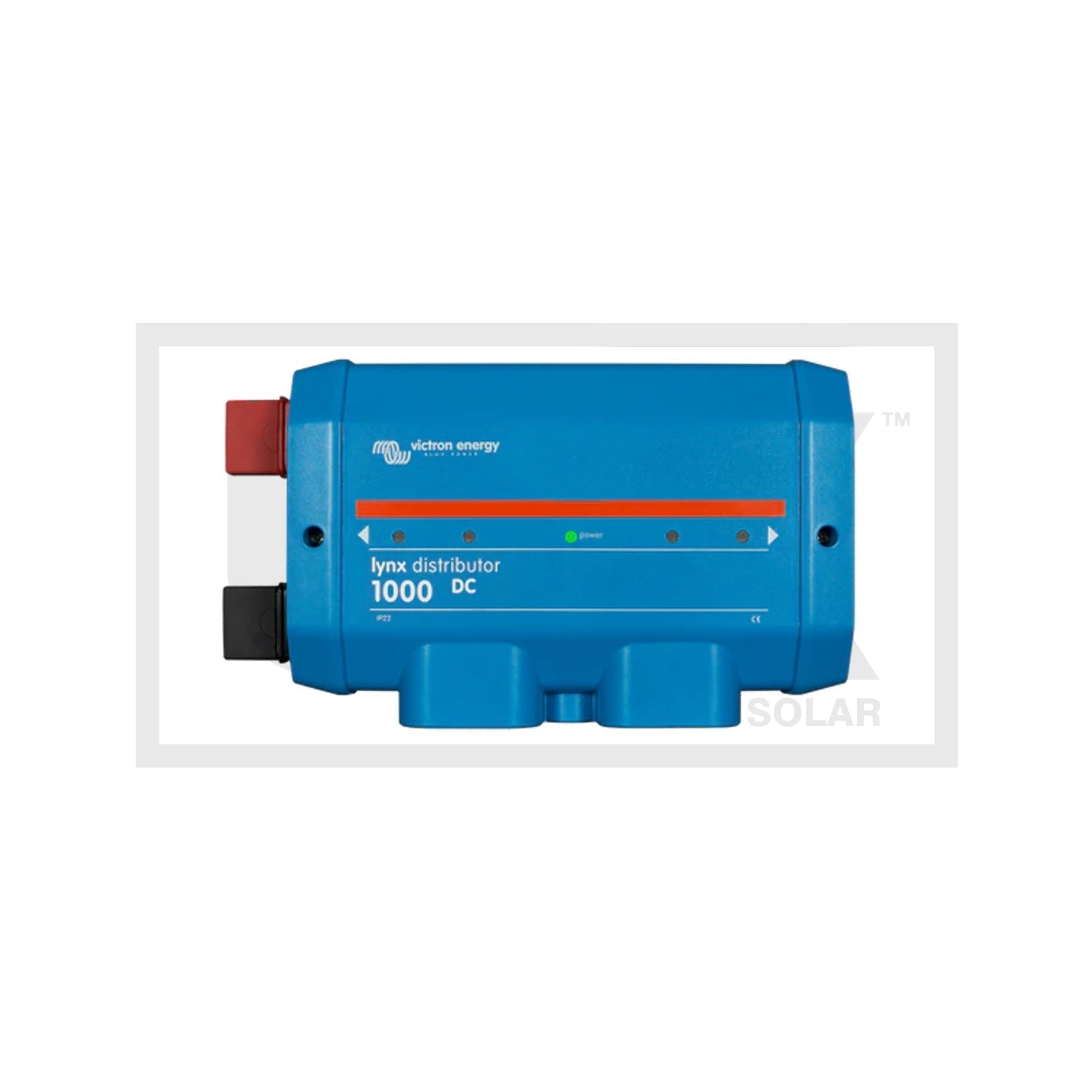

• Lynx Distributor (M8, M10)- A positive and negative busbar with 4 fused
connections for batteries or DC equipment together with fuse monitoring.
• Lynx Shunt VE.Can (M8, M10) - A positive busbar with a space for a main system
fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can
communication for monitoring and setup with a GX device.

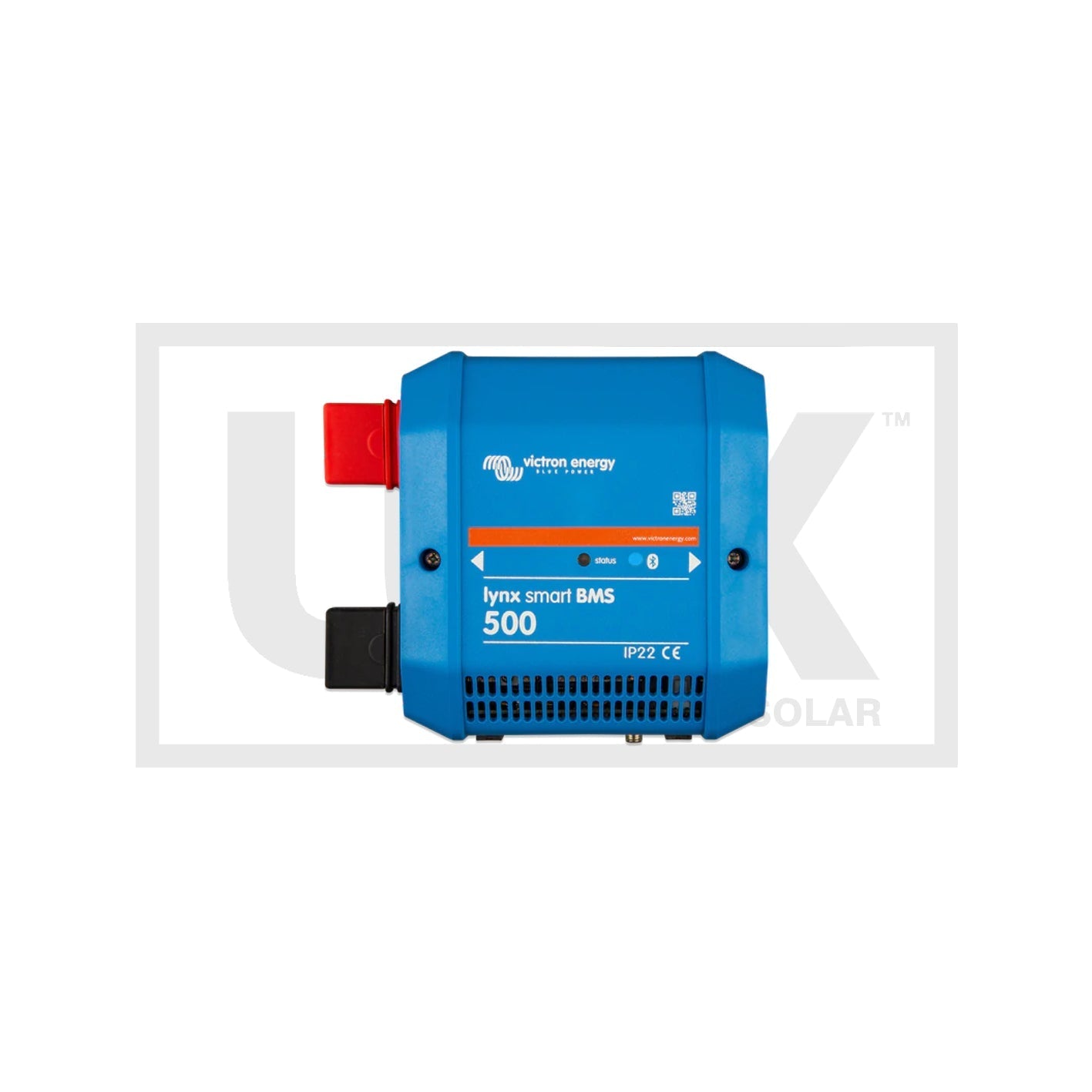

• Lynx Smart BMS 500 and 1000 (M8 – 1000A model only in M10) - For use
together with Victron Energy Smart Lithium batteries. It contains a positive busbar
with a contactor that is driven by a battery management system (BMS) and a
negative busbar with a shunt for battery monitoring. It has Bluetooth
communication for monitoring and setup via the VictronConnect App and VE.Can
communication for monitoring with a GX device and the VRM portal.
• Lynx Smart BMS 500 and 1000 NG (M10)* - For use together with Victron Energy
Lithium NG batteries. It contains a positive busbar with a contactor that is driven
by a battery management system (BMS) and a negative busbar with a shunt for
battery monitoring. It has Bluetooth communication for monitoring and setup via
the VictronConnect App and VE.Can communication for monitoring with a GX
device and the VRM portal.
