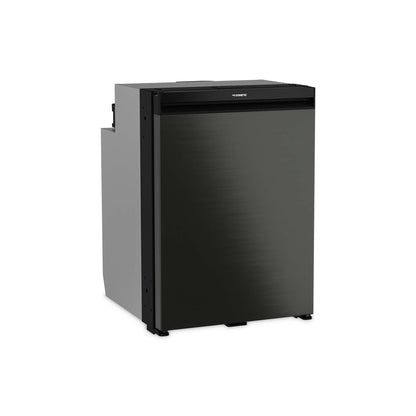

Dometic NRX - 12/24V DC 240V AC COMPRESSOR REFRIGERATORS

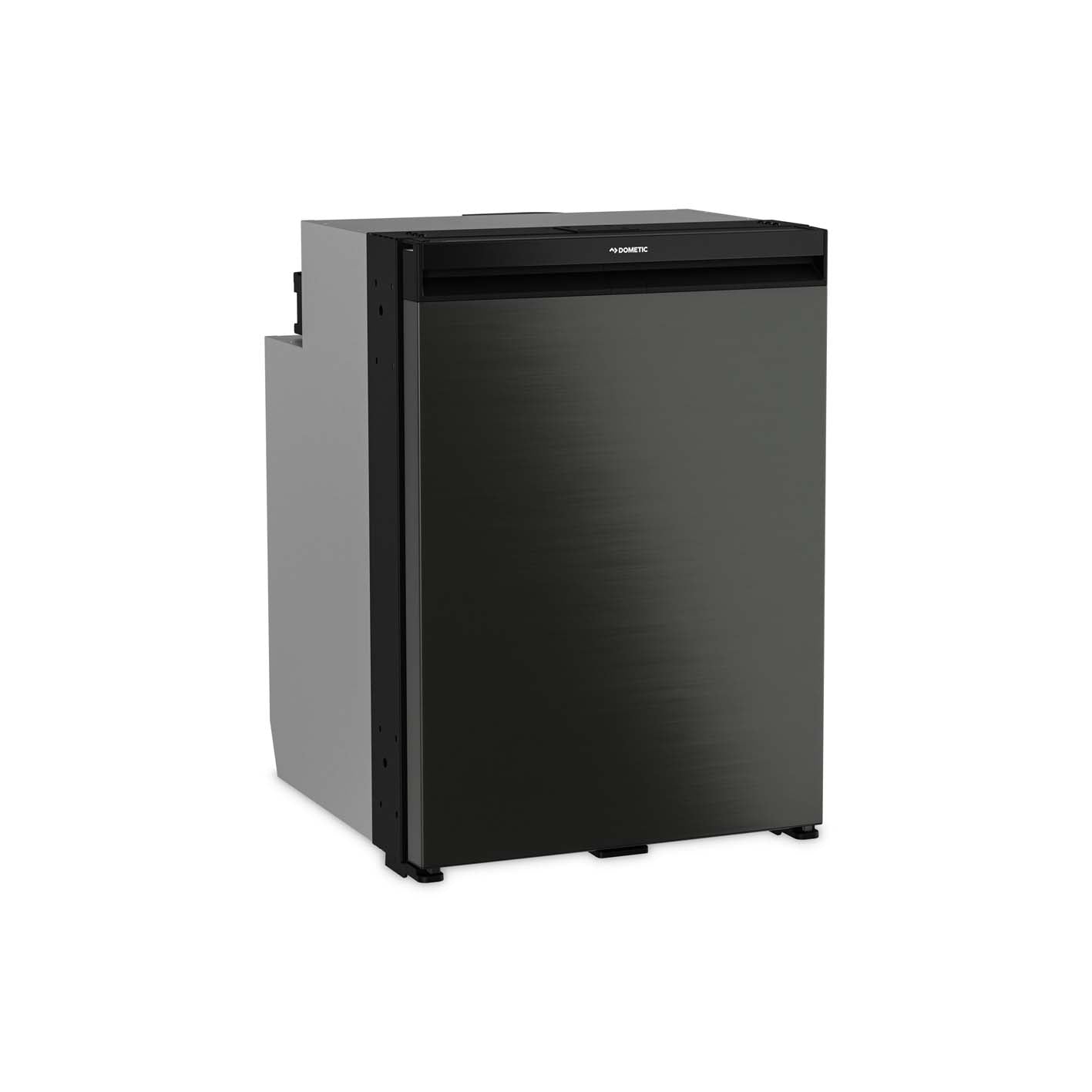

Dometic NRX-115C Built-In Compressor Fridge/Freezer

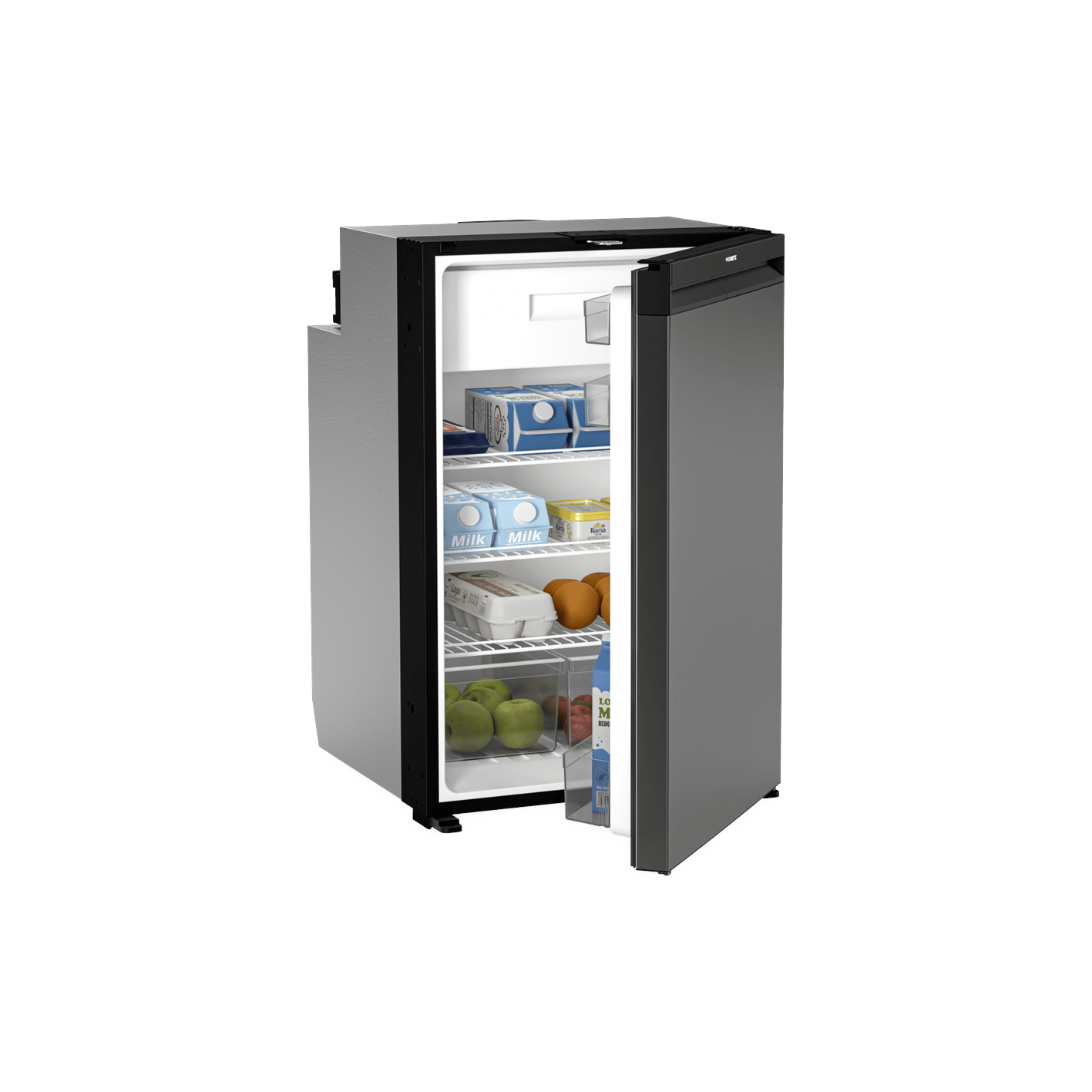

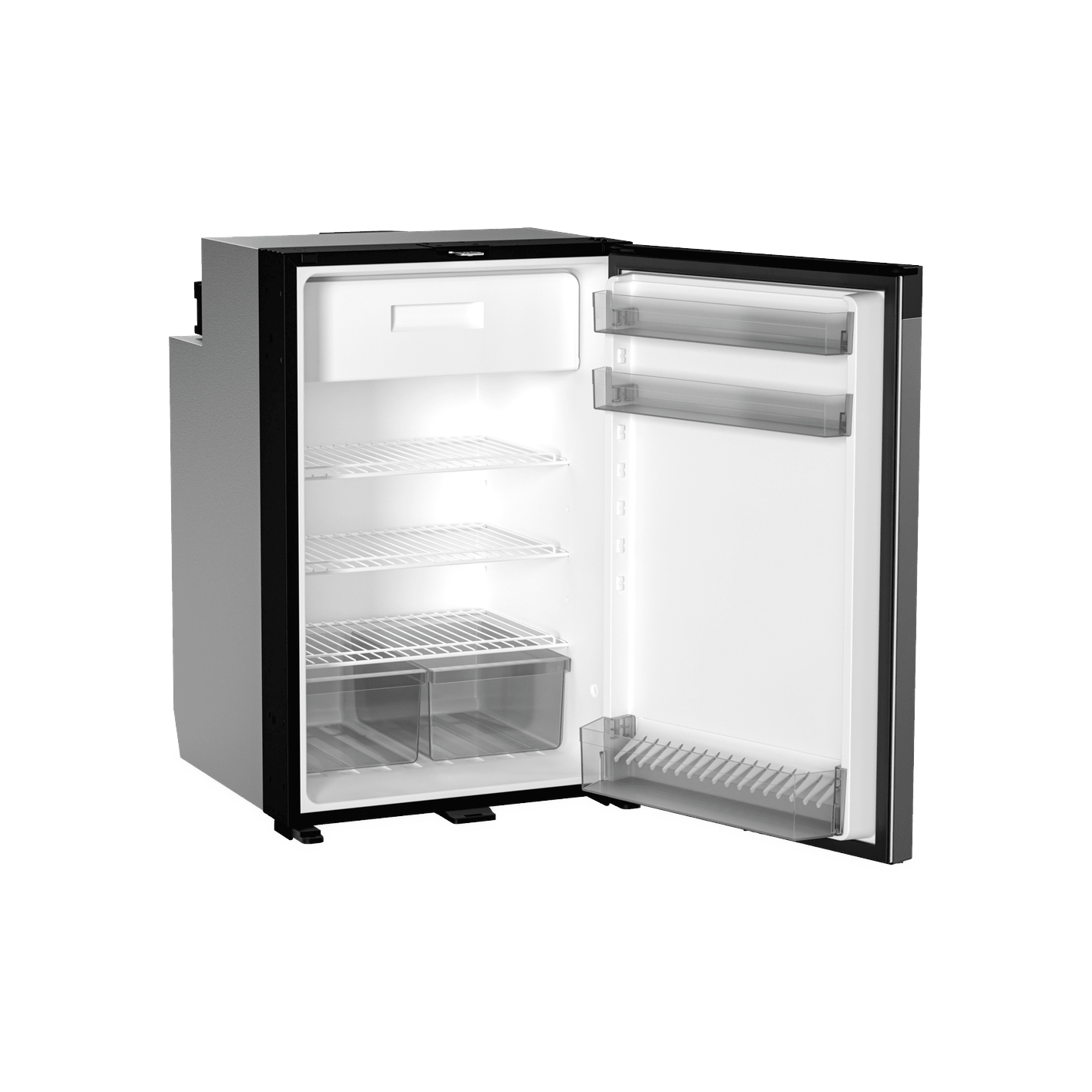

The Dometic NRX-115C is a stylish and energy-efficient cooling solution that can be used as a fridge, freezer, or both simultaneously. It features a powerful high-end compressor with three operating modes: Eco, Performance, and Quiet, which can be set using the illuminated touch control panel inside the cabinet. The elegant frameless door with a dark grey front panel and full-width handle opens to a well-equipped interior, including a removable freezer compartment, multiple shelves, two crispers, a bottle holder, and a door shelf.

Key Features:
- 3-in-1 cooling solution: fridge, freezer, or both
- Energy-efficient compressor with Eco, Boost, and Silent modes
- Easy-to-use control panel with integrated LED light bar
- Winter Mode for airing out with a smart closing mechanism
- Well-equipped interior: freezer, shelves, bottle holder, door tray, crispers
- Removable freezer compartment for more fridge storage
- Two crispers for optimal fruit and vegetable storage
- Frameless door with dark silver front panel and full-width handle
- Beveled rear side for maximum space utilization
- Reversible door hinge for left or right fitting
- Dual function locks that act as vents
- Optional standard or flush-mount installation frame

-------------------------------------------------------------------------------------------------

Specifications:
- Model: NRX115C
- Description: Compressor refrigerator, 113L, dark silver front
- Adjustable shelves x 3, crisper x 2, bottle holder x 1, egg shelf x 1, upper door shelf
- Refrigeration technology: Compressor
- Refrigerator compartment: 104.5L
- Freezer compartment: 8.2L
- Total capacity: 113L
- Total capacity (freezer compartment removed): 116L
- Input voltage: 12/24V DC, 100-240V AC

Battery Protection:
- 12V Cut-off voltage: 10.4V, Cut-in voltage: 11.7V
- 24V Cut-off voltage: 22.8V, Cut-in voltage: 24.2V

Storage Temperature Range:
- Refrigerator: 0 °C to +12 °C
- Freezer compartment: –15 °C to –5 °C
- Freezer mode: –6 °C
- Ambient temperature: +16 °C to +43 °C

Power Consumption:
- ~1.27Amp/hr over 24hrs (25 °C ambient, 5 °C fridge)

Refrigerant:
- Type: R134a
- Quantity: 40g
- CO2 equivalent: 0.057t
- Global warming potential (GWP): 1430

Noise Emission: 40–45dB(A)


Features:
- High-end, energy-efficient compressor technology
- Three operating modes: Eco, Performance, and Quiet
- Can be used as a full-sized fridge or freezer
- Illuminated touch control panel for easy adjustments
- Frameless door design with a modern dark grey front panel
- Full-width handle for easy access from any angle
- Reversible door hinge for flexible installation options
- Beveled rear side to maximize space efficiency
- Removable freezer compartment for versatile storage options
- Dual crispers to keep fruits and vegetables fresh
- Well-organized interior with shelves, bottle holder, and door tray
- Supersedes the Dometic Coolmatic CRX series
- 3-year warranty

---------------------------------------------------------------------------------------------

Specifications:
- Model: 9620001868, NRX80c
- Brand: Dometic
- Direct Replacement For CoolMatic CRX 80
- Overall Capacity: 75L
- Fridge Capacity: 68.4L
- Freezer Capacity: 6.6L
- Voltage: 12/24V DC & 100-240V AC
- Nominal Consumption: ~ 1.05Amp/hr over 24hrs
- Climate Class: T
- Temperature Range - Fridge: 0C to +12C
- Temperature Range - Freezer Compartment: -15C to -5C
- Temperature Range - Full Freezer Mode: -6C
- Nominal Ambient Temperature: +16C to +43C
- Noise Emission: 40-45dB(A)
- Overall Dimensions (mm): 475(w) x 625(h) x 537(d)
- Cut-out Dimensions (mm): 487(w) x 634(h) x 587(d)
- Net Weight: 20kg
- Shipping Weight: 25.00 kg
- Shipping Dimensions: 70 cm x 60 cm x 62 cm

--------------------------------------------------------------------------------------------

Specifications:
- Model: NRX1130c
- Description: Compressor refrigerator, 126L, dark silver front
- Features: Adjustable shelves x 3, crisper x 2, bottle holder x 1, egg shelf x 1, upper door shelf
- Refrigeration technology: Compressor
- Capacity: Refrigerator compartment: 118L, Freezer compartment: 8.2L, Total capacity: 126L, Total capacity (freezer compartment removed): 130L
- Input voltage: 12/24V DC, 100-240V AC
- Supply battery protection (12V): Cut-off voltage: 10.4V, Cut-in voltage: 11.7V
- Supply battery protection (24V): Cut-off voltage: 22.8V, Cut-in voltage: 24.2V
- Storage temperature range: Refrigerator: 0°C to +12°C, Freezer compartment: –15°C to –5°C, Freezer mode: –6°C
- Intended ambient temperature use: +16°C to +43°C
- Freestanding power consumption (25°C ambient, 5°C fridge): ~1.29Amp/hr over 24hrs
- Refrigerant: R134a
- Refrigerant quantity: 40g
- CO2 equivalent: 0.057t

-------------------------------------------------------------------------------------------------

Specifications:
- Model: NRX1060C
- Description: Compressor refrigerator, 55L, dark silver front
- Features: Adjustable shelves x 2, crisper x 2, bottle holder x 1, upper door shelf
- Refrigeration technology: Compressor
- Capacity:
- Refrigerator compartment: 48.9L
- Freezer compartment: 6.1L
- Total capacity: 55L

------------------------------------------------------------------------------------------------


Features:
- 3-in-1 cooling solution: fridge, freezer, or both at the same time
- Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent)
- Frameless door with dark silver front panel and full-width handle
- Beveled rear side for maximal utilization of space on board
- Reversible door hinge – can be fitted left or right as required
- Dual function locks can also act as vents for your fridge
- Standard or flush-mount installation frame available as accessory

Specifications:
- Model: 9620001870, NRX50c
- Brand: Dometic
- Direct Replacement For CoolMatic CRX 50
- Overall Capacity: 46L
- Fridge Capacity: 39.6L
- Freezer Capacity: 4.4L
- Voltage: 12/24V DC & 100-240V AC
- Nominal Consumption: ~0.77Amp/hr over 24hrs
- Climate Class: T
- Temperature Range - Fridge: 0°C to +12°C
- Temperature Range - Freezer Compartment: -15°C to -5°C
- Temperature Range - Full Freezer Mode: -6°C
- Nominal Ambient Temperature: 16°C to +43°C
- Noise Emission: 40-45dB(A)
- Overall Dimensions (mm): 380(w) x 525(h) x 510(d)
- Cut-out Dimensions (mm): 392(w) x 534(h) x 560(d)
- Net Weight: 17kg
- Shipping Weight: 22.00 Kgs
- Shipping Dimensions: 60 cm x 58 cm x 62 cm
