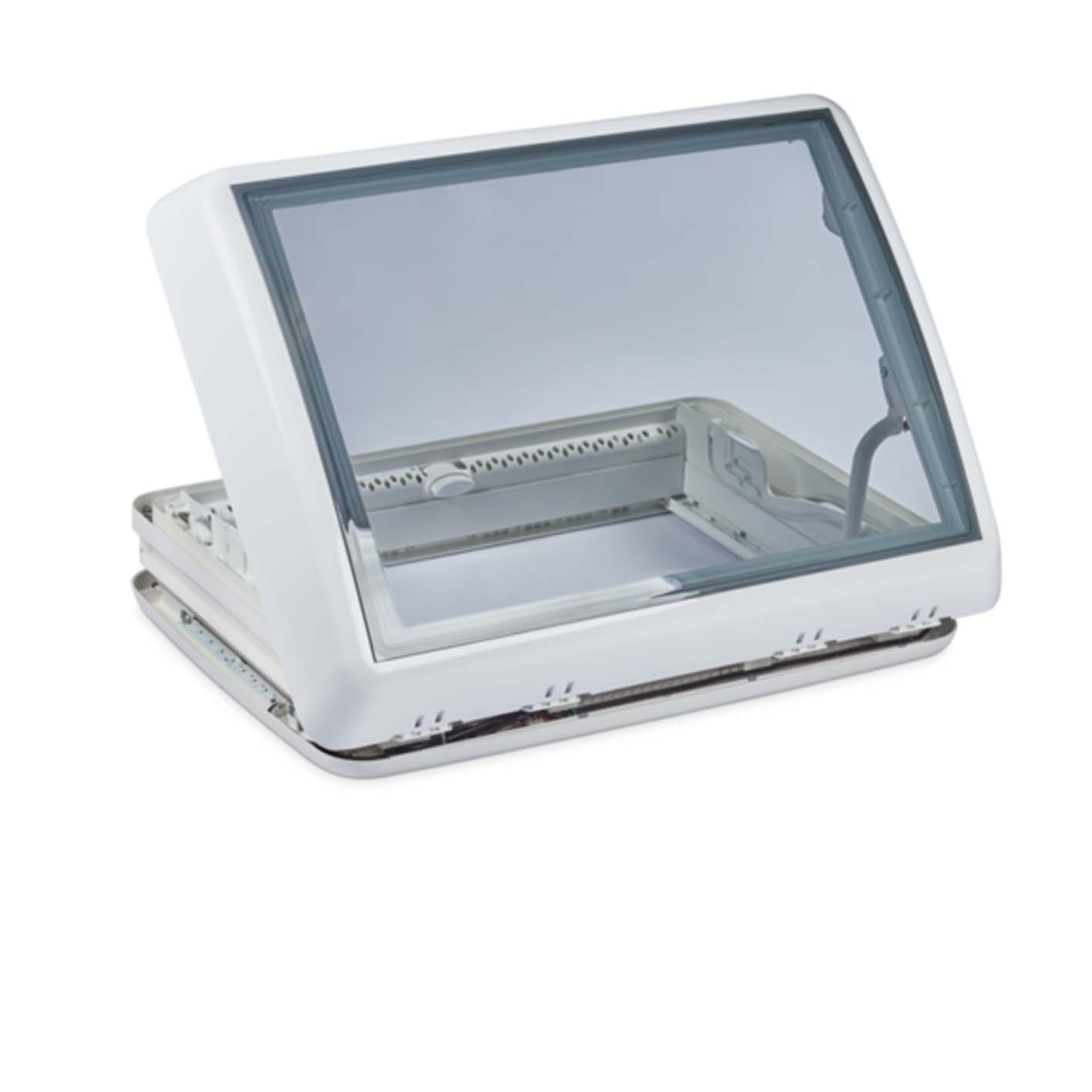

Dometic Midi Heki FL – 700 x 500 mm Roof Hatch with Integrated LED Lighting

Dometic Midi Heki FL – 700 x 500 mm Roof Hatch with Integrated LED Lighting

The Dometic Midi Heki FL is a premium 700 x 500 mm roof hatch designed to deliver excellent natural light, efficient ventilation and modern integrated lighting for caravans and motorhomes. Its double-glazed tinted dome reduces heat and glare while maintaining privacy and insulation. The aerodynamic design minimises wind resistance, and the easy push-bar mechanism allows smooth, one-handed lift operation with multiple open positions.

An independently sliding insect screen and block-out blind allow full control over airflow, brightness and privacy, while the built-in ventilation system keeps fresh air circulating even during poor weather. The updated internal frame now features a more modern look with sharper contours and upgraded interior fabric. The integrated lighting switch and night light have been removed, giving installers more flexibility with an external-switch-only setup—resulting in a cleaner ceiling appearance and improved design compatibility for new installs or retrofits.

Note: Mounting kits are sold separately.

Features:

- Tinted double-glazed dome for temperature and glare control
- Bad-weather ventilation setting restricts water entry while allowing airflow
- Push-bar lift system for simple, one-handed operation
- Integrated LED lighting system
- Insect screen and block-out blind slide independently
- Mounting kits available for roof thicknesses from 25 mm to 60 mm
- 2-year warranty

Specifications:

- Model: 9620015780
- Brand: Dometic
- Replaces: DOM14921702
- Requires external switch
- Suits 700 mm x 500 mm roof opening
- Internal frame dimensions: 785 mm x 575 mm
- Height when closed: 120 mm
- Frame colour: White
- Weight: 8.0 kg
- Fixed permanent ventilation: 150 cm²
- Shipping Weight: 14.10 kg
- Shipping Dimensions: 95 cm x 70 cm x 25 cm
