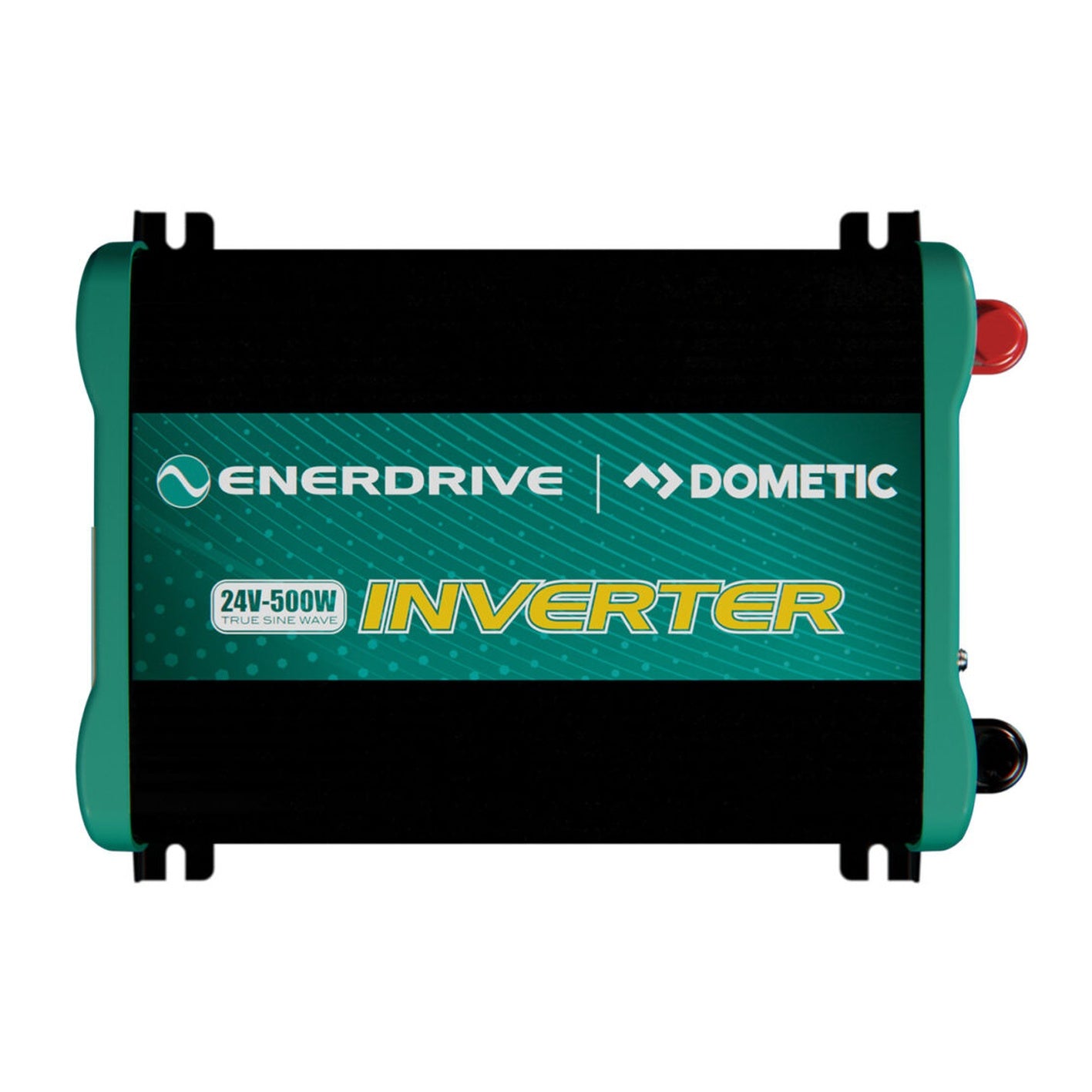

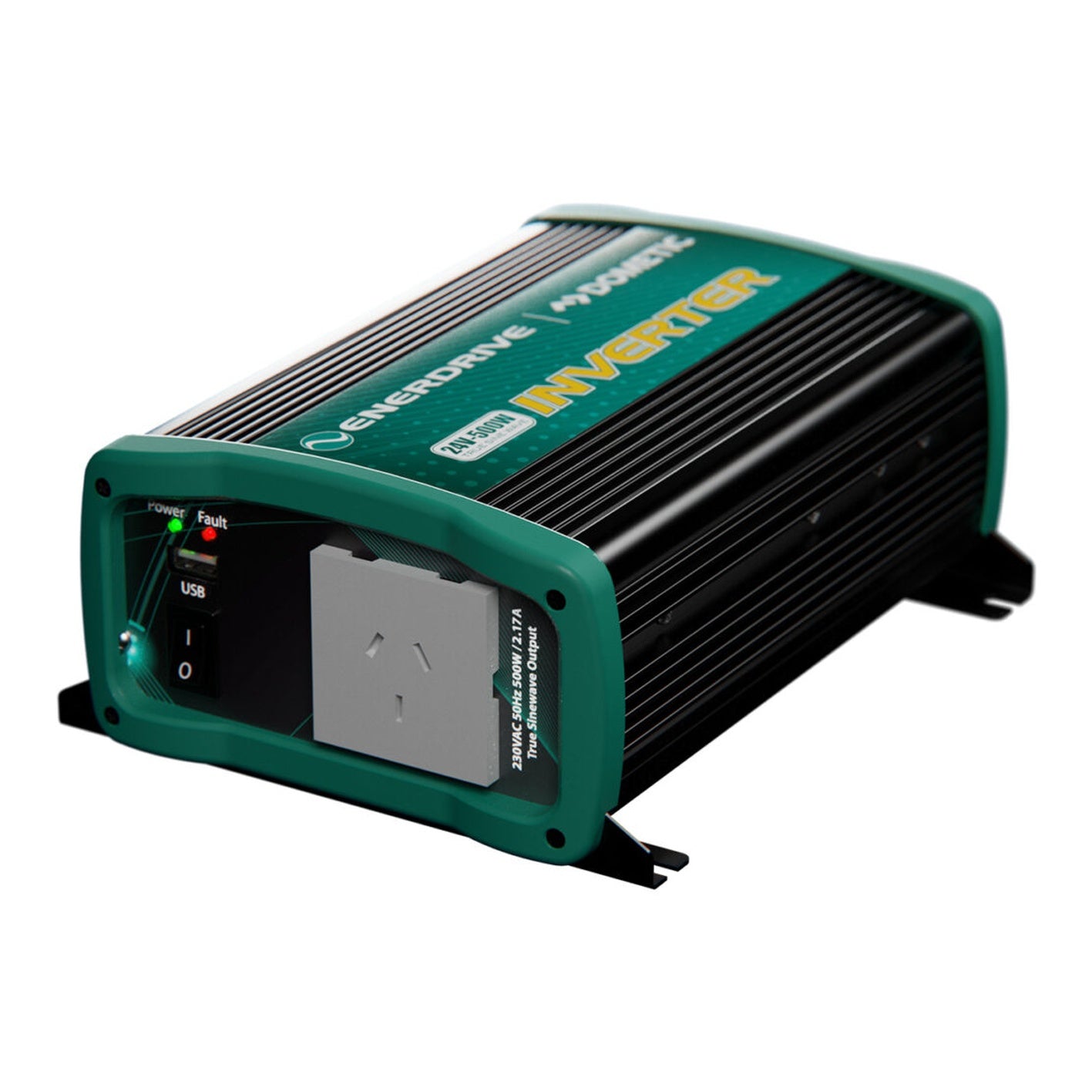

ENERDRIVE PSW INVERTER (500W/24V)

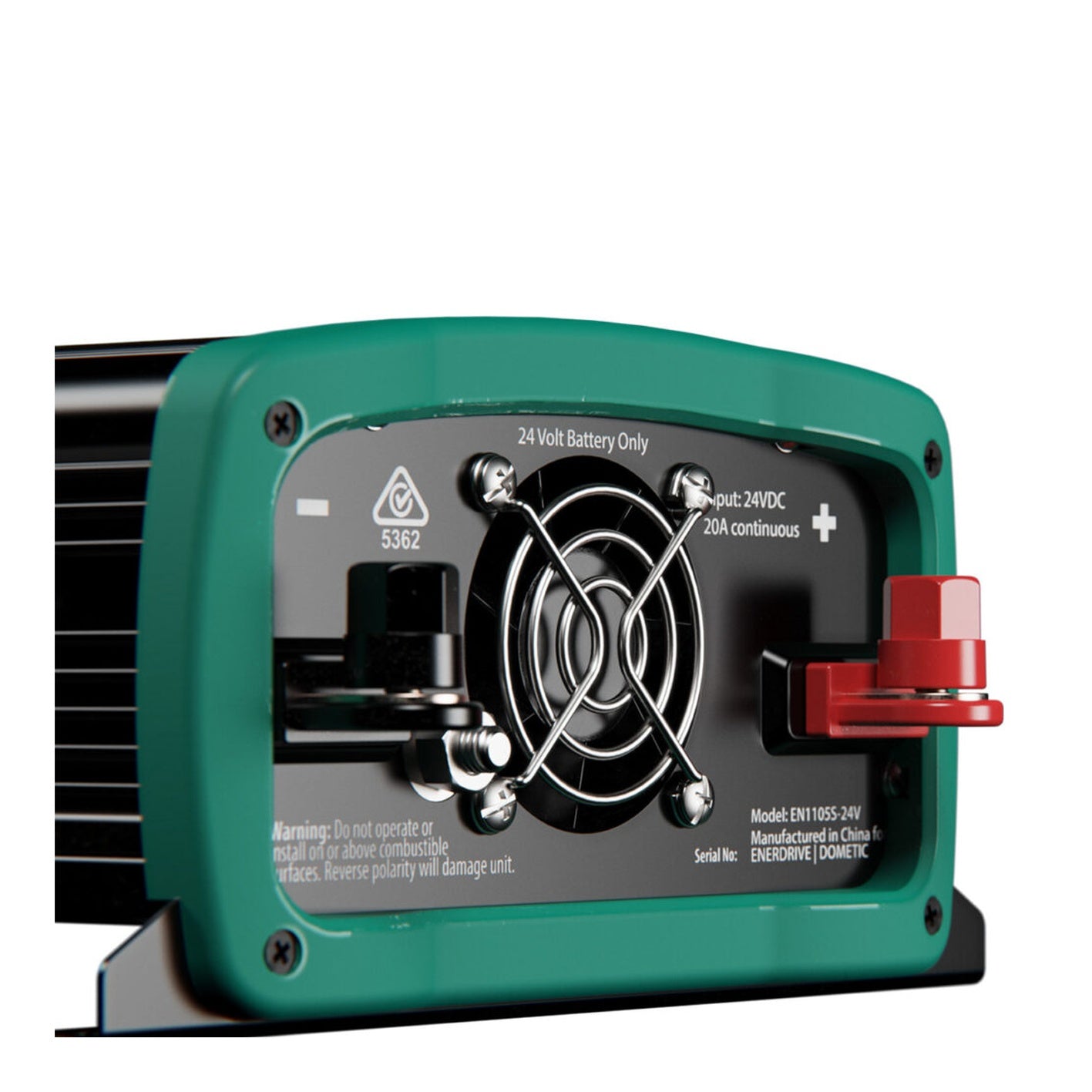

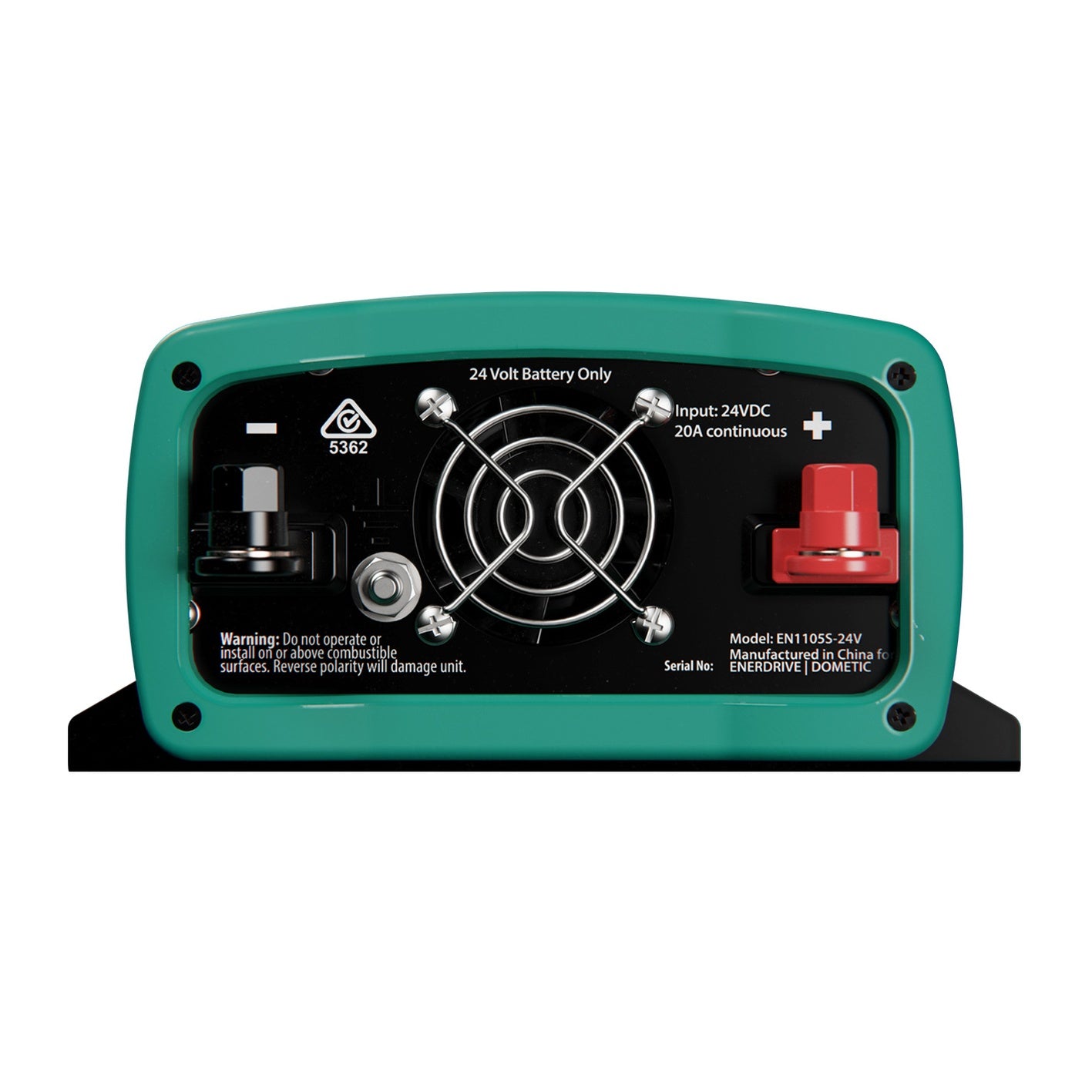

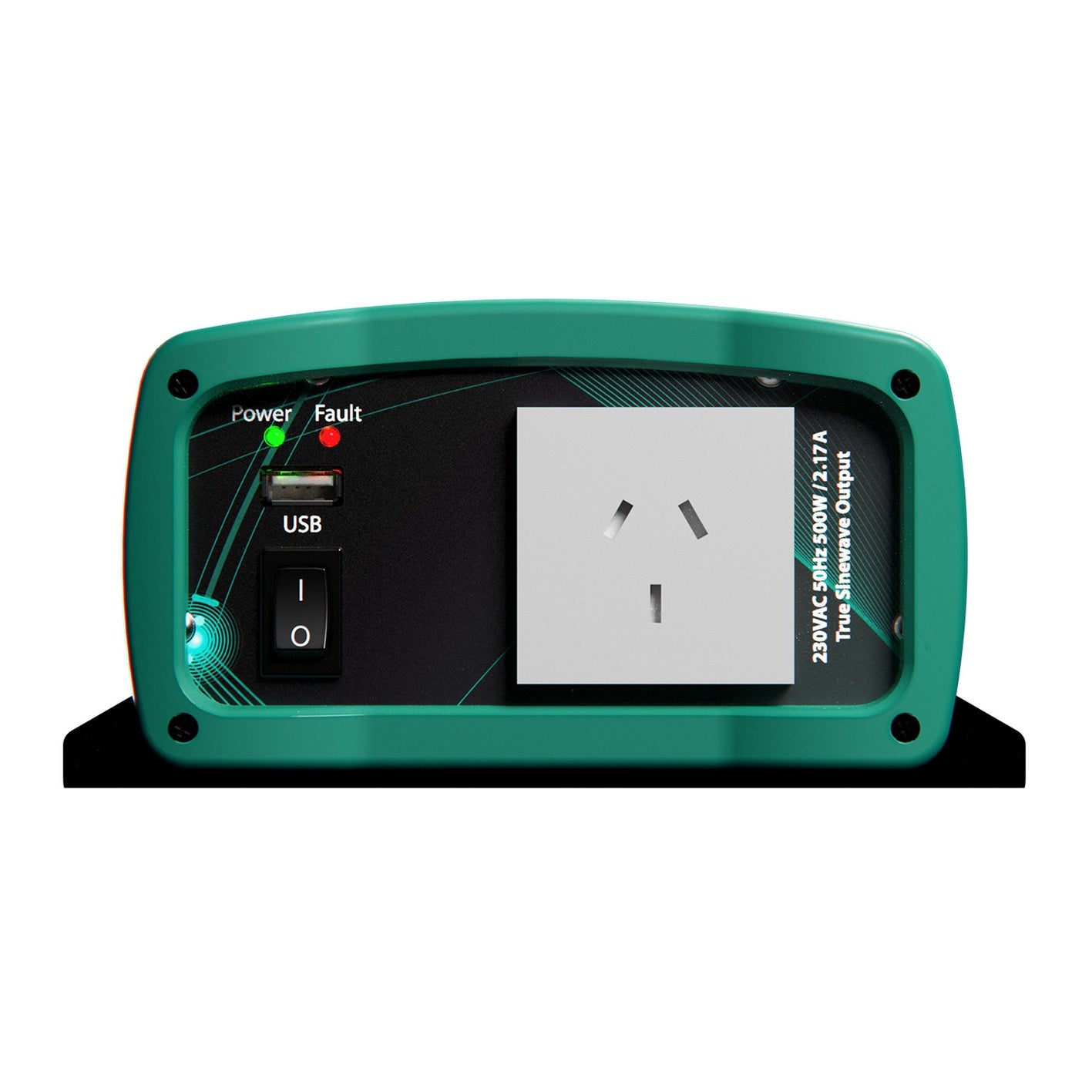

With a state of the art, easy to use design, this 500W 24V inverter will offer you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle. The Enerdrive | Dometic 500W Inverter can run many AC powered appliances when you need AC power anywhere. Australian GPO Outlets True Sine Wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown Automatic shutdown protects overload, over temperature and low/high battery conditions High surge capacity for products that require more power to start (2 x constant) High efficiency conversion of battery available power to AC power Mounting brackets for permanent installation Heavy duty DC battery stud connectors Includes 5V USB port

	ePOWER 500-24V Inverter
SKU	EN1105S-24
AC Output Power	500W
AC Output Current	2.17A
AC Surge Power (Peak)	1000W
AC Output Voltage	230 Vac / 50 Hz
AC Output Waveform	True Sinewave
AC Output Socket	1 outlet
Nominal DC Input Voltage	25 VDC
No Load battery draw	< 0.5 ADC
DC Input Voltage operating range	21.0 – 31.0 VDC
Under Voltage Alarm	22.4 VDC
Under Voltage Shutdown	21.0 VDC
Under Voltage Recovery	23.6 VDC
Over Voltage Shutdown	31.0 VDC
USB	5V, 2.1A
Safety and Environmental
Conformance	All required Australian Standards
Agency Markings	RCM
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Relative Humidity	5-90% noncondensing
Operating Altitude	Up to 2000 meters above sea level
Weights and Dimensions
Weight	1.73Kg
Dimensions (W x L x H)	175 x 312 x 87mm
Warranty	5 Years
