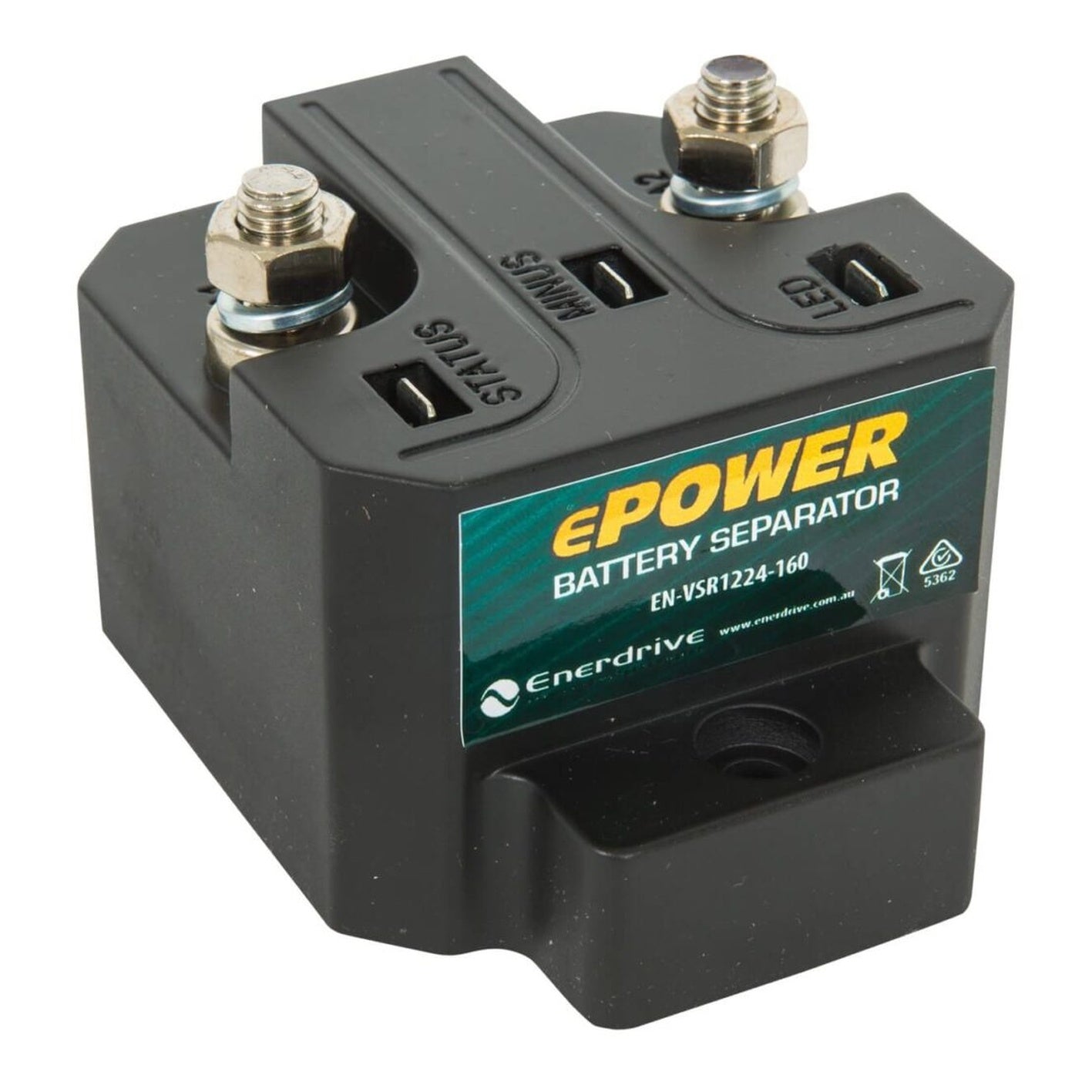

ENERDRIVE VSR 12V/24V 160A
ENERDRIVE VSR 12V/24V 160A
SKU:EN-VSR1224-160
Shipping $ & Timeframe
Shipping $ & Timeframe
Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before 11am will ship same day.
Warranty & Returns
Warranty & Returns
Enerdrive products are backed by a 5-Year Warranty. Enjoy peace of mind with a 5-year warranty from an Australian company known for exceptional customer support.
We have a 7 day change of mind return policy, subject to a restocking fee.
Datasheets, Manuals, Certifications
Datasheets, Manuals, Certifications
When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.
Additionally, the ePOWER VSR range offers features like:
- No voltage loss Intelligent battery monitoring to prevent unwanted switching
- Starter battery priority
- Bipolar switching Voltage dependent switching
- Applications: Marine Caravans Camper vans RV’s
| EN-VSR1224-160 | |
|---|---|
| Auto Voltage Detect | 12 / 24V |
| Continuous Current (A) | 160 |
| Connect Voltage (V) | 13.2 / 26.4 |
| Disconnect Voltage (V) | 12.8 / 25.6 |
| Standby Current | <3mA |
| Connection for remote on / off | Yes |
| Micro switch for remote status indication | LED |
| IP Rating | IP67 |
| Weight (kg) | 0.47 |
| Dimensions L x W x H (mm) | 108 x 72 x 58 |
