EPOWER CHARGER 12V/40A

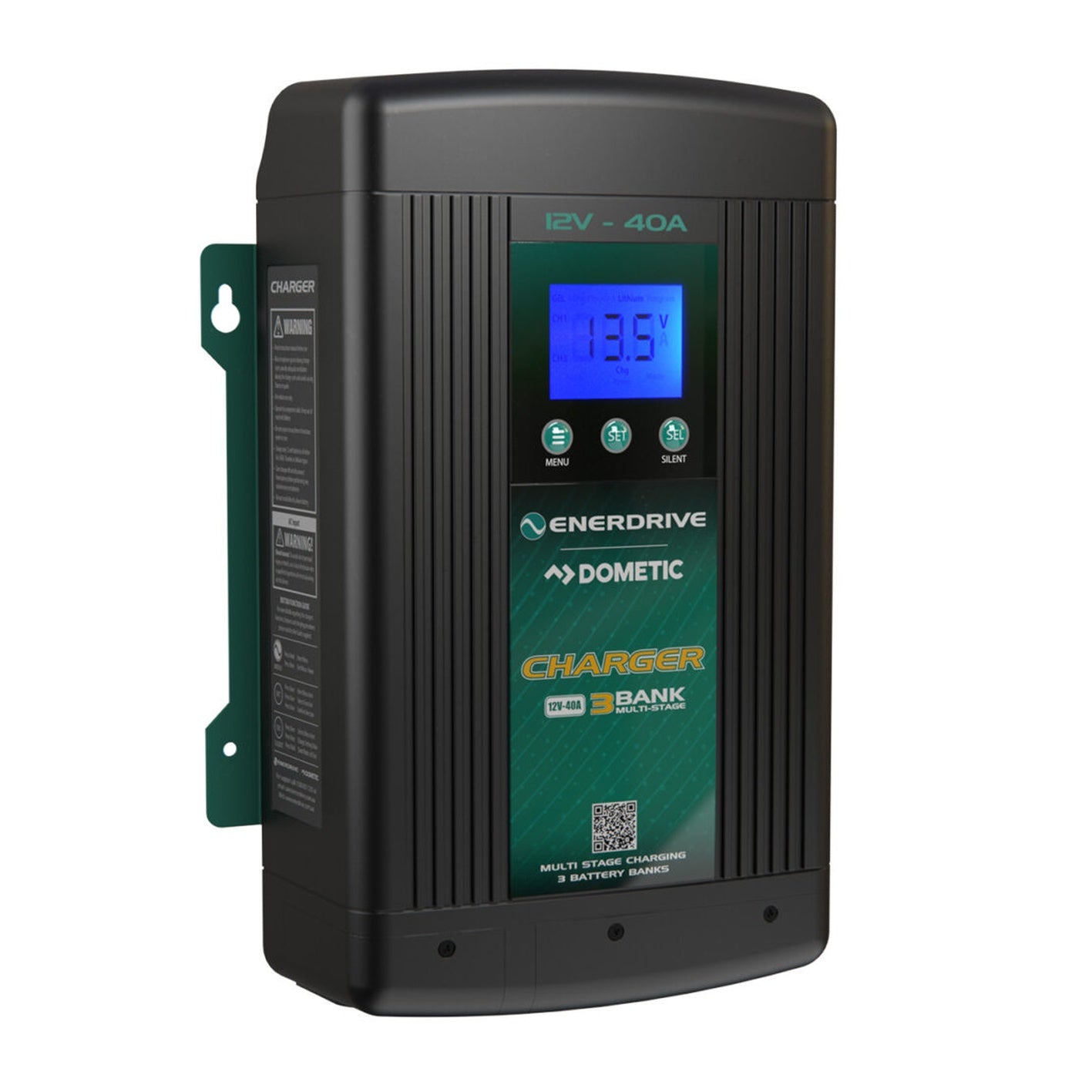

Enerdrive | Dometic 12V 40A AC Battery Charger

The Enerdrive | Dometic 12V 40A AC Battery Charger is a versatile, fully automatic multistage charger designed to meet the needs of modern battery systems, including lithium, AGM, and lead-acid batteries. With advanced features, robust construction, and user-friendly operation, this charger is ideal for a wide range of applications.

Key Features

• Multistage Charging: Fully automatic charger with four-stage charging for optimal battery performance and longevity.
• Charge 3 Separate Battery Banks: Isolated charging design allows independent charging of up to three battery banks.
• Programmable Settings: Battery Bank 1 can be programmed with a different charge algorithm than Banks 2 and 3.
• User-Adjustable Current Control: Adjust the current output to suit your power source (e.g., reduce output to run on a 1kVA generator).
• Smart Charging: Automatically regulates output based on the loads connected to your battery banks.
• Wide AC Input Range: Operates on both 110V/60Hz and 240V/50Hz power supplies.
• LED Display: Easy-to-use “set and select” menu with scrolling charger status information.
• Silent Mode: Disables the cooling fan for quiet operation, reducing charge output by half for up to 12 hours.
• Battery Temperature Sensor: Includes a 7.5-meter cable for precise temperature monitoring.
• 5-Year Warranty: Backed by an Australian company renowned for exceptional customer support.

Multistage Charging Process

The Enerdrive | Dometic 12V 40A AC Battery Charger is a fully automatic, “set and forget” charger designed to quickly and accurately recharge your batteries while maximizing their service life. Its multistage smart charging technology ensures safe, efficient, and permanent connection to your battery banks.

The charger delivers four primary charging stages:

Bulk (Boost) Charge:  Charges the battery at full rated output until it reaches its absorption voltage.  Recovers approximately 80% of the battery capacity as quickly as possible.

Absorption Charge: Maintains a steady voltage while the remaining 20% of the battery is charged.  Current gradually decreases as the battery approaches full charge.

Float Charge:  Reduces voltage to a safe, constant level to prevent overcharging.  Supports additional loads connected to the battery, such as DC lighting or refrigerators.  Allows the charger to function as a DC power supply.

Maintenance Charge:  After 7 days of constant operation in float mode, the charger switches back to bulk mode. This process agitates the battery’s electrolyte, extending its service life.

Priority Charging: Charge Where You Need It Most

The charger prioritizes Battery Bank 1 (e.g., your main house battery bank) to recharge it as quickly as possible before transitioning to Banks 2 and 3.

• Mixed Battery Chemistries: Bank 1 can have a different battery chemistry (e.g., AGM) than Banks 2 and 3 (e.g., lead calcium).
• Override Function: If all three banks require charging, the override function ensures all banks are recovered quickly and evenly before returning to prioritize Bank 1.

Optimized for Lithium Batteries

The Enerdrive | Dometic 12V 40A AC Battery Charger is specifically designed to meet the unique requirements of lithium batteries.

• Constant Current/Constant Voltage Algorithm: Lithium batteries accept nearly every amp-hour delivered, making constant current charging essential.
• Lithium Programming: The charger delivers its full rated output until the voltage peak is reached, then switches to power supply mode.

This ensures efficient and safe charging for lithium battery systems, maximizing their performance and lifespan.

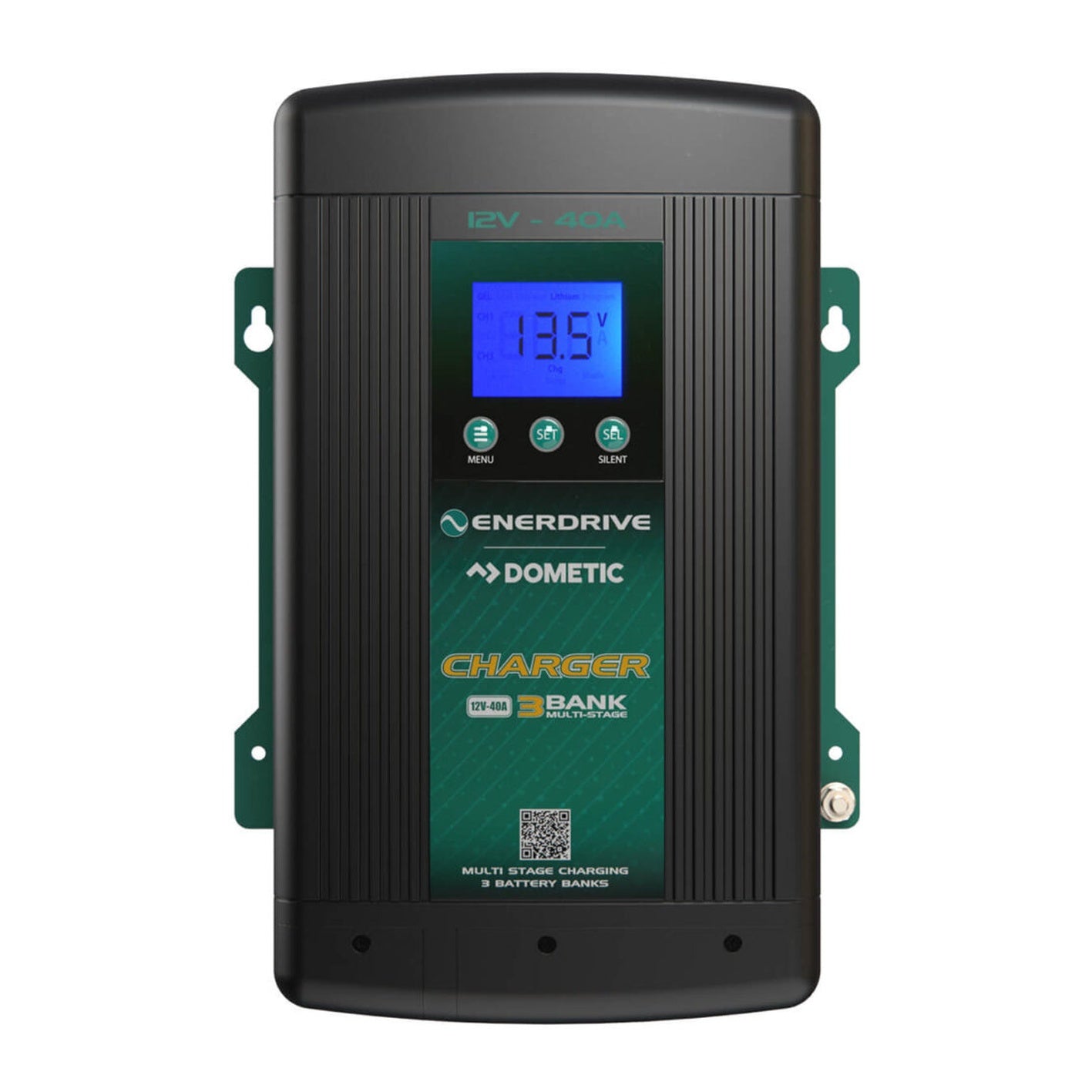

User-Friendly Display Panel

The charger’s display provides all the information you need at a glance:

• Charger amps
• Battery voltage
• Charge state
• Load amps (in float/power supply mode)

The display also allows you to program settings and activate Silent Mode.

Silent Mode: Quiet Operation When You Need It

By pressing the “SEL” button for 5 seconds, the charger enters Silent Mode, which disables the cooling fan for up to 12 hours.

• Ideal for Nighttime Use: Perfect for use near sleeping quarters.
• Reduced Output: Limits current output to 50% for safe, quiet operation.
• Automatic Reset: After 12 hours, the charger returns to normal operation with the fan enabled.

Battery Temperature Sensor

The included battery temperature sensor ensures precise monitoring and safe charging. The sensor comes with a 7.5-meter cable for flexible installation.
