EPOWER SMART CHARGER 100AMP / 12V

100A AC Battery Charger

Key Features

• Multistage Charging: Fully automatic charger capable of charging 3 separate battery banks.
• Separate Battery Banks: Isolated charging design ensures battery bank one is independent of banks two and three.
• Programmable: Customize the charge algorithm for battery bank 1 separately from banks 2 and 3.
• Current Control: Adjustable current output allows operation on smaller generators (e.g., dial back the 100A unit to run off a 1kVA generator).
• Smart Charging: Automatically regulates output based on the loads connected to your battery banks.
• Wide AC Input Range: Operates on both 110V/60Hz and 240V/50Hz power supplies.
• LED Display: User-friendly “set and select” menu with scrolling charger status updates.
• Silent Mode: Disables the cooling fan for silent operation, reducing charge output by half for up to 12 hours.
• Temperature Sensor: Includes a battery temperature sensor with a 7.5-meter cable.
• 5-Year Warranty: Backed by an Australian company renowned for excellent customer support.

Multistage Charging Process

The Enerdrive | Dometic 100A Battery Charger is a fully automatic, “set and forget” charger designed to quickly and accurately recharge your batteries. Its multistage smart charging technology ensures optimal battery performance and longevity.

Four Primary Charge Stages:

1. Bulk/Boost Charge:

   • Delivers full-rated output current until the battery reaches its absorption voltage.
   • Recovers approximately 80% of the battery capacity as quickly as possible.

2. Absorption Charge:

   • Maintains a steady voltage while the remaining 20% of the charge is completed.
   • Current gradually decreases as the battery approaches full charge.

3. Float Charge:

   • Reduces voltage to a safe, constant level to prevent overcharging.
   • Supports additional loads like DC lighting and refrigerators.
   • Allows the charger to function as a DC power supply.

4. Maintenance Charge:

   • After 7 days in float mode, the charger switches back to bulk mode to agitate the battery electrolyte, extending battery life.

1 Priority – Charge Where You Need It Most

The Enerdrive 100A Battery Charger prioritizes charging Bank 1 (main house battery bank) to ensure it recharges quickly. Once Bank 1 is charged, the charger transitions to Banks 2 and 3.

• Mixed Battery Chemistries: Supports different battery types across banks (e.g., AGM for house and lead calcium for start banks).
• Override Function: If all 3 banks require charging, the charger evenly recovers all banks before prioritizing Bank 1.

Optimized for Lithium Batteries

The Enerdrive 100A Battery Charger is designed to meet the unique requirements of Lithium batteries.

• Constant Current/Voltage Algorithm: Delivers consistent current until the battery is fully charged.
• Power Supply Mode: Automatically switches to power supply mode once the voltage peak is reached.
• Efficient Charging: Lithium batteries accept nearly every amp-hour delivered, ensuring fast and efficient charging.

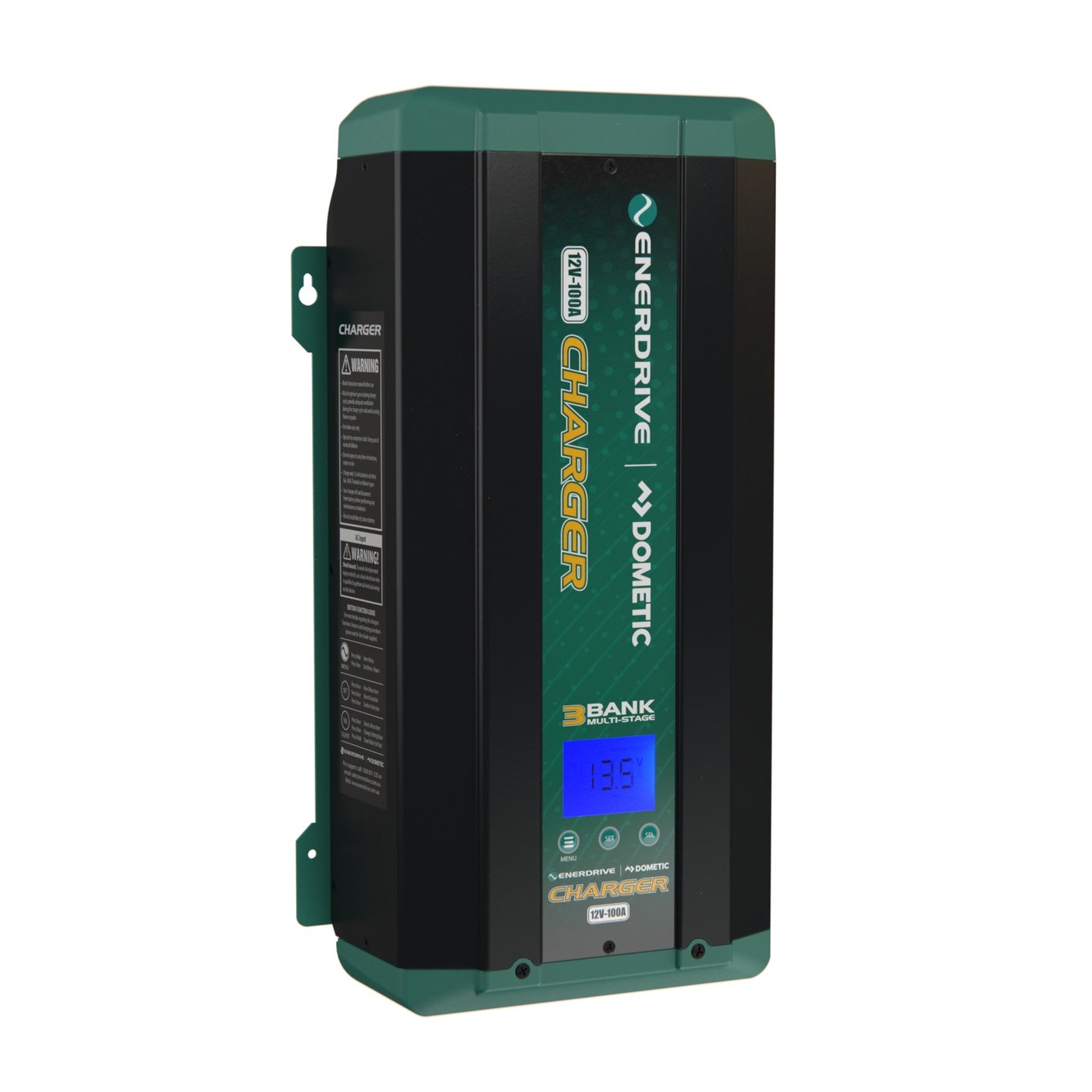

Display Panel

The Enerdrive 100A Battery Charger features an intuitive display panel that provides real-time information:

• Charger amps, battery voltage, and charge state alternate on the screen.
• In float/power supply mode, load amps are displayed for easy monitoring.
• Allows full programming of charger settings, including activating Silent Mode.

Silent Mode

• Activate Silent Mode by holding the “SEL” button for 5 seconds.
• Disables the cooling fan for quiet operation, ideal for nighttime use near sleeping areas.
• Limits current output to 50% and remains active for 12 hours before returning to normal operation.

Battery Temperature Sensor

• Included as standard with all Enerdrive Battery Chargers.
• Comes with a 7.5-meter cable for convenient installation.

Backed by a 5-Year Warranty
Enjoy peace of mind with a 5-year warranty from an Australian company known for exceptional customer support.
