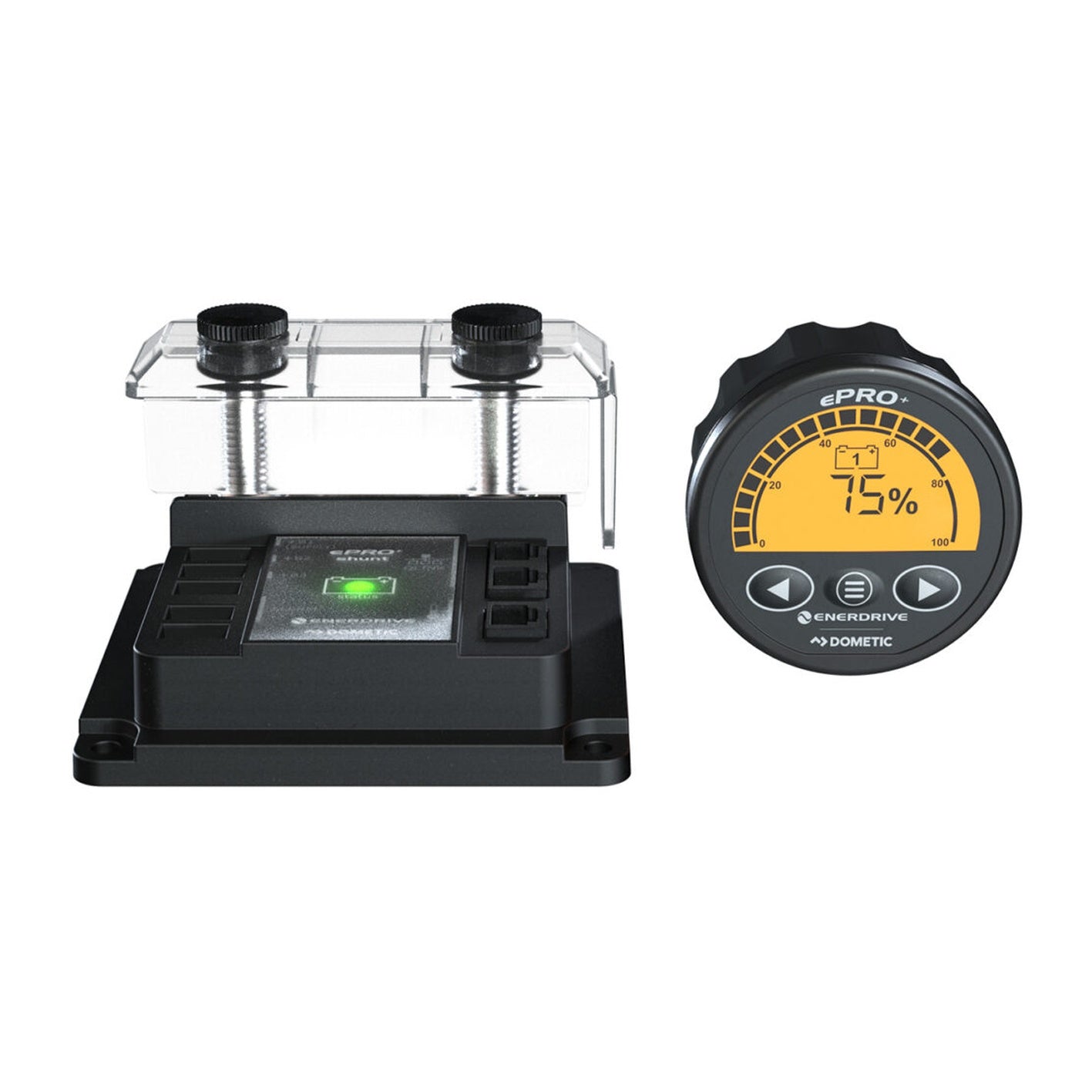

ePRO+ High Precision Battery MonitorThe ePRO+ is our latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimised footprint for perfect integration with our DC Modular products.This advanced battery monitor not only shows the true state of charge of your battery system. It also offers a large amount of additional features to optimally supervise your battery system and control external equipment. The ePRO+ is compatible with lead based and Lithium batteries (LiFePO4).The ePRO+ can monitor up to three battery banks. The inputs for battery bank 2 and 3 can also be configured for other purposes, like mid-point voltage measurement, keyswitch input, setup lock or backlight control. The ePRO+ battery monitor can measure DC currents up to 600Amps (500Amp continuous) and voltages up to 70Vdc. So any lead- or lithium based battery from 12V up to 48V can be monitored.The installation time is minimal, requiring only one supply wire to the intelligent shunt base and a single ‘QuickLink’ cable between the shunt base and the control/display unit (CDU). Additionally, the battery minus cable must be interrupted in order to insert the shunt into the high current circuit. The fused supply wire and the QuickLink cable are both included in the package, avoiding the need for a separate connection kit.ePRO+ Alarm Output Expander (EN5093120 Optional)The ePRO+ 2-Channel Alarm Expander Kit adds two additional alarm relays to your ePRO+ device via the Quicklink port. This kit can be used in case the application requires each alarm type to be assigned to a different relay contact.The Alarm Expander also has the capability to be used as a relay contact. The Alarm Expander relays A and B are combined in order to control the ‘open (reset)’ and ‘close (set)’ coils from a dual coil magnetically latching contactor. Which relay contact to use for controlling the contactor coils, depends on whether the contactor needs to operate in a Normally Open (NO) or Normally Closed (NC) configuration.

	ePRO+ Battery Monitor
	EN55050
Supply voltage range	7..70Vdc
Supply current (@ 12V/ 24V/48V)	10mA / 6mA / 5mA
Input voltage range main battery (+B1)	7..70Vdc1)
Input voltage range second & third battery (+B2, +B3)	1..70Vdc
Input current range	-600..+600A2)
Battery capacity range	10..10000Ah
Operating temperature range	-20..+50°C
Storage temperature range	-30..+70°C
Readout resolution:
Voltage (0..70V)	± 0.01V
Current (0..10A)	± 0.01A
Current (10..100A)	± 0.1A
Current (100..600A)	± 1A
State of Charge (0..100%)	± 1%
Time remaining (0..24hrs)	± 1min
Time remaining (24..240hrs)	± 1hr
Amphours (0..10000Ah)	± 0.01Ah..10Ah (variable)
Power (0..42kW)	± 0.01W..1kW (variable)
Temperature (-20°C..+50°C)	± 0.5°C
Voltage measurement accuracy	± 0.3%
Current measurement accuracy	± 0.4%
Shunt dimensions:
Footprint	100 x 100mm
Base height	24.0mm
Total height	64.5mm
Weight	290grams
Display dimensions:
Front panel	Ø 64.0mm
Body diameter	Ø 51.5mm
Total depth	36.0mm
Weight	70grams
Protection class	IP20 (CDU front panel only IP65)
Standards	CE certified (EMC Directive 2014/30/EU) including EN50498 Automotive EMC
