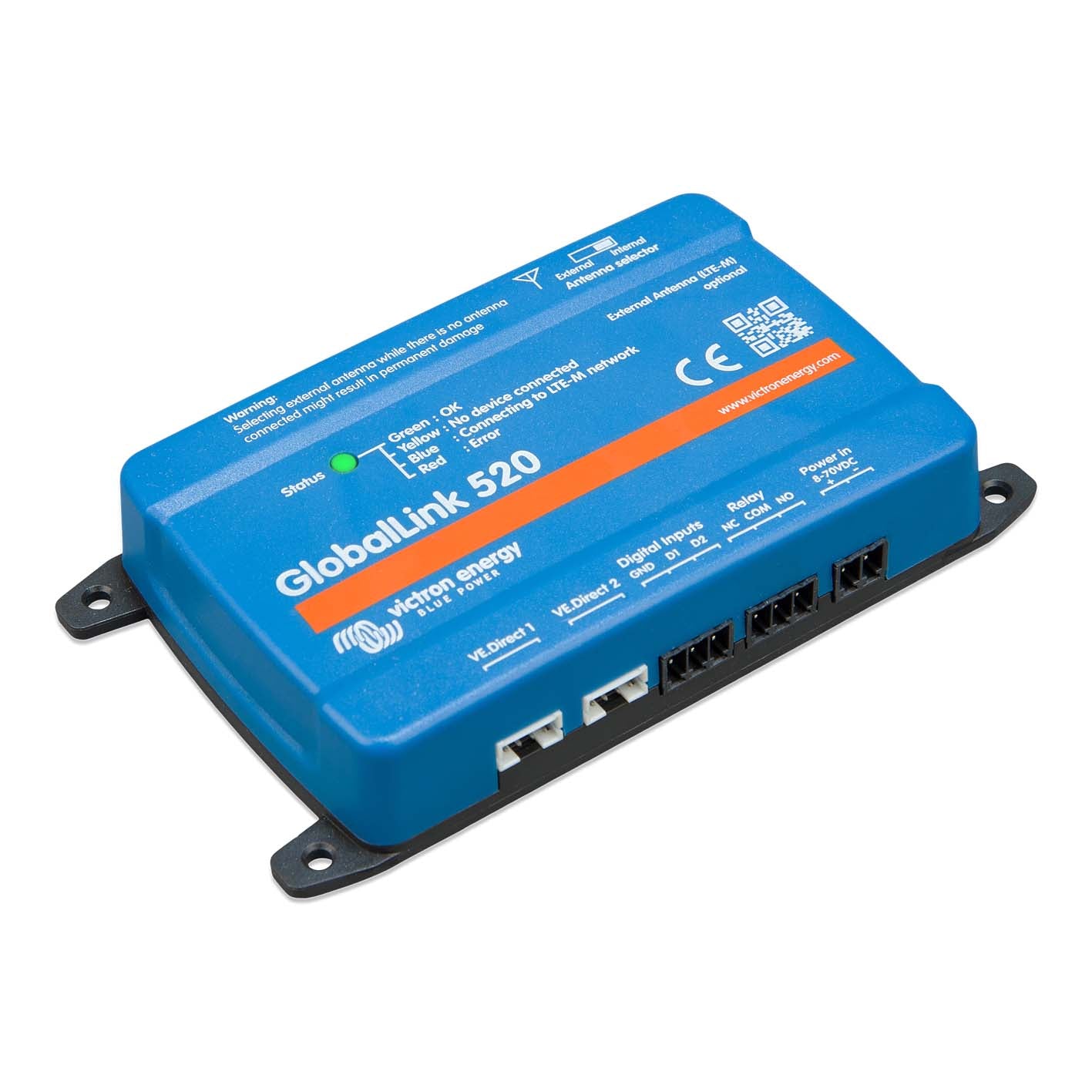

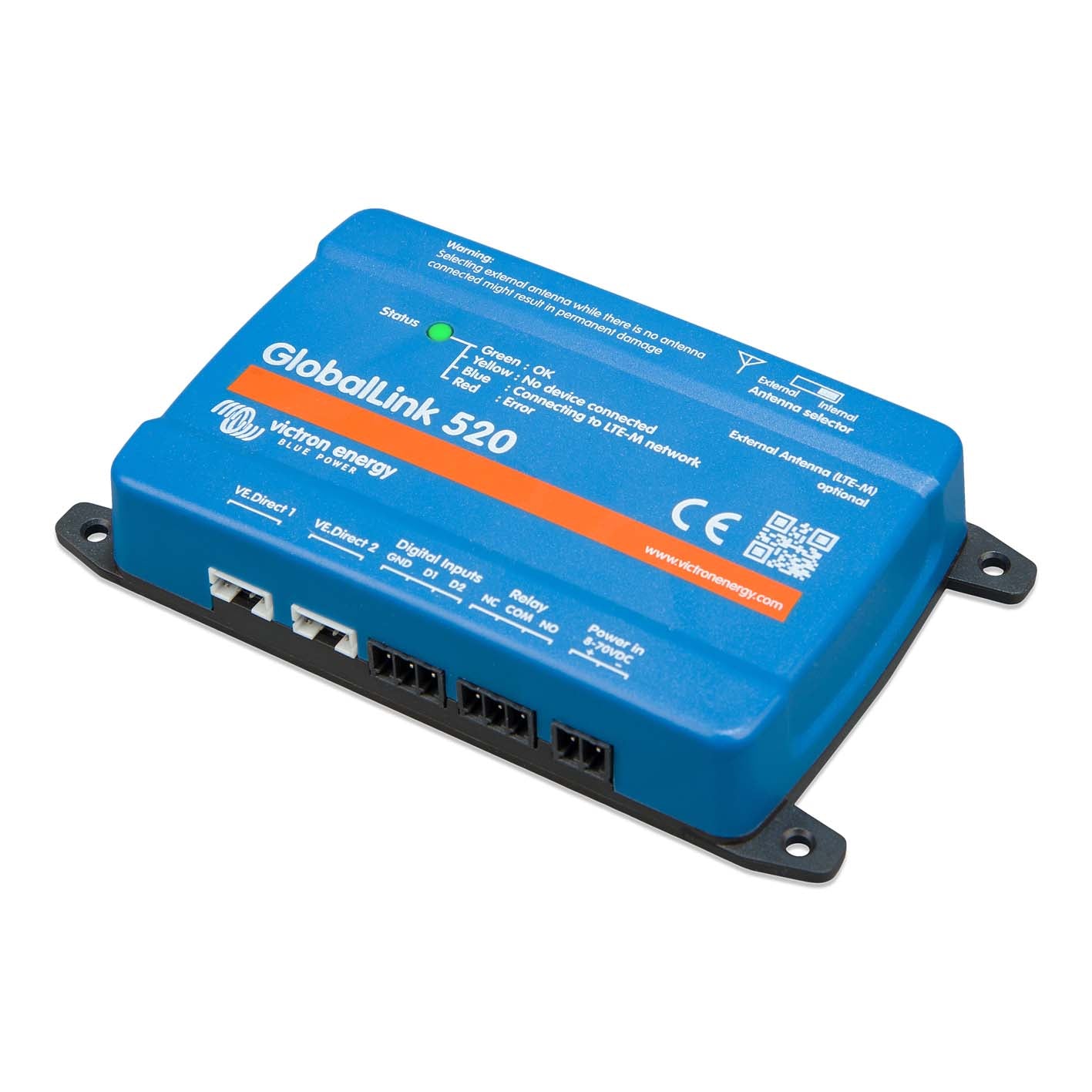

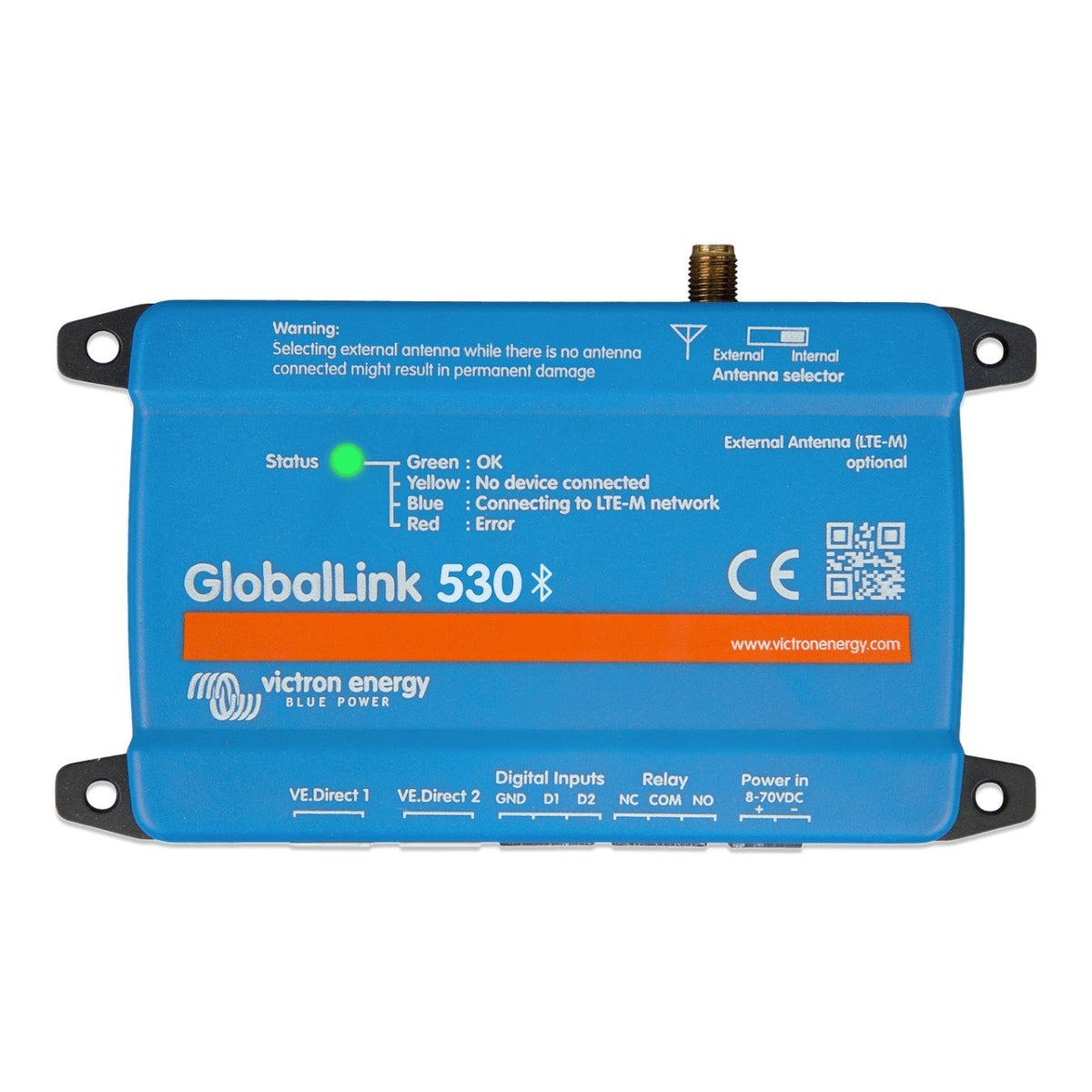

GlobalLink 520 & 530 (incl. 5 year activated SIM card)

We believe that having insight into your installation is a key factor in maintaining and operating your off-grid energy solutions. Off-grid should not mean offline, thanks to Victron’s GlobalLink range. The GlobalLink 520 and the newer GlobalLink 530 both bring 4G connectivity to all VE.Direct-enabled devices without any monthly fees or subscriptions, for the first five years. The two are the same device apart from the cellular network they connect to.

Global connectivity: LTE-M on the 520, 4G LTE on the 530

The GlobalLink 520 uses LTE-M, the abbreviation for LTE Cat-M1 or Long Term Evolution (4G), category M1. This cellular technology is designed to connect Internet of Things devices to existing 4G towers while using low energy. LTE-M does support handovers and roaming, so it is possible to use this device in a moving vehicle like a campervan. Check the list in our GlobalLink 520 manual to see if LTE-M is officially confirmed to be available in your area.

The GlobalLink 530 uses standard 4G LTE instead, the same network technology your phone uses, with 2G as a fallback where it is available. LTE-M is an excellent fit in the areas that support it, but it is not available everywhere, so the 530 gives you broader coverage and more flexibility about where the unit can be installed. In New Zealand either model will connect, and we would suggest the 530 as the default choice for vehicles, boats and remote sites where coverage is less certain.

Whichever model you choose, your purchase includes 5 years of connectivity, so there is no need to worry about purchasing a separate data bundle and SIM card. Both models also accept a custom SIM card if coverage from the supplied one is poor at your site.

System monitoring & control

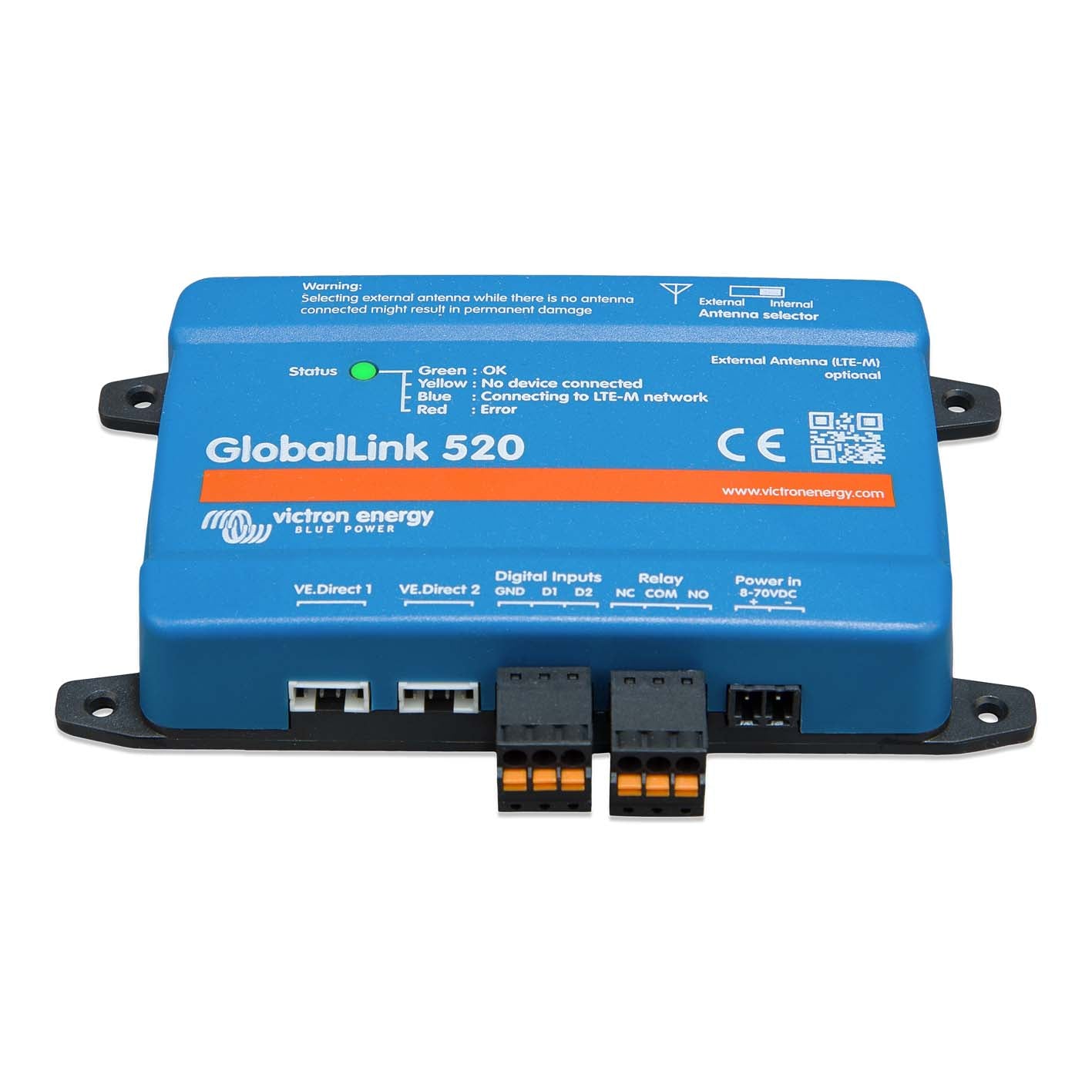

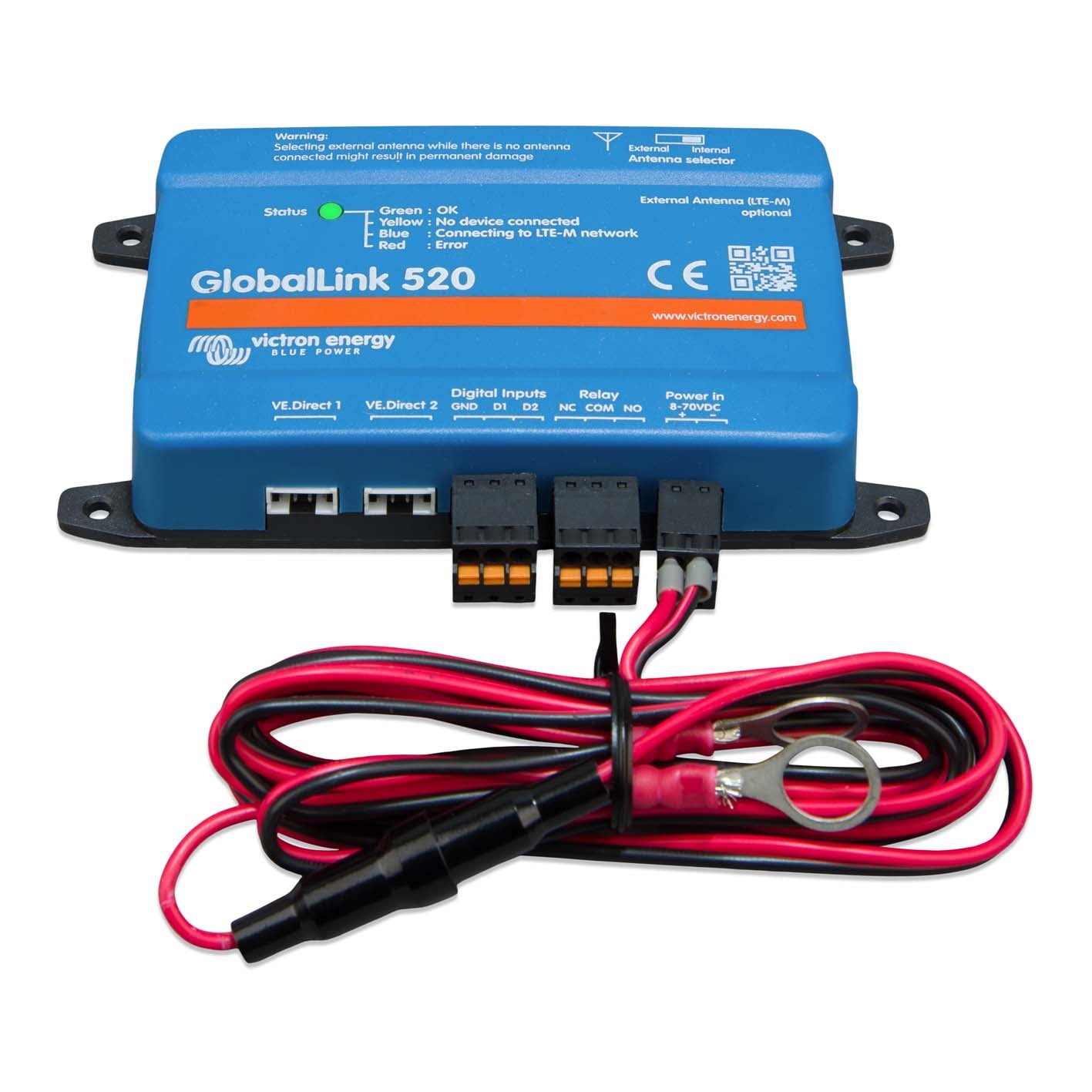

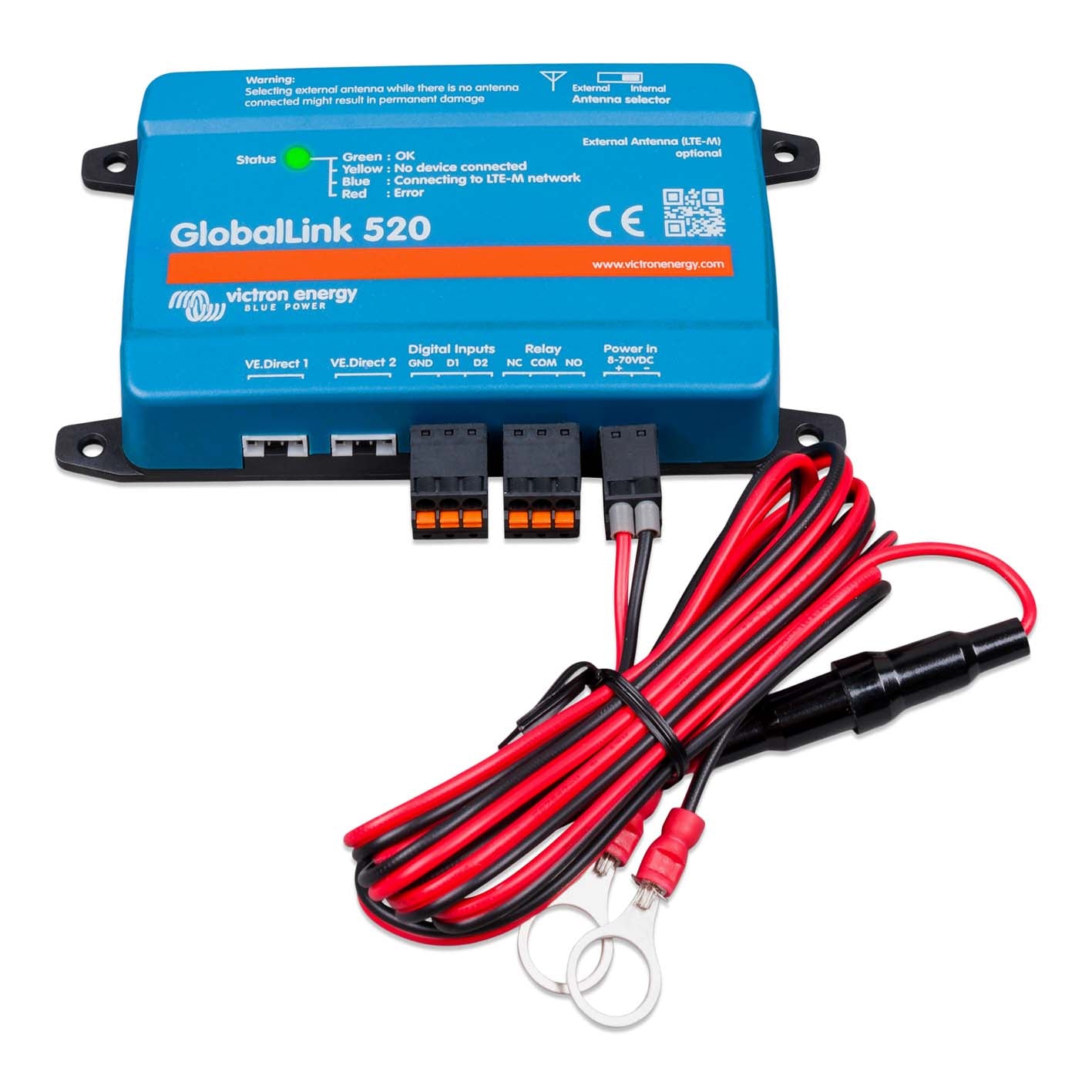

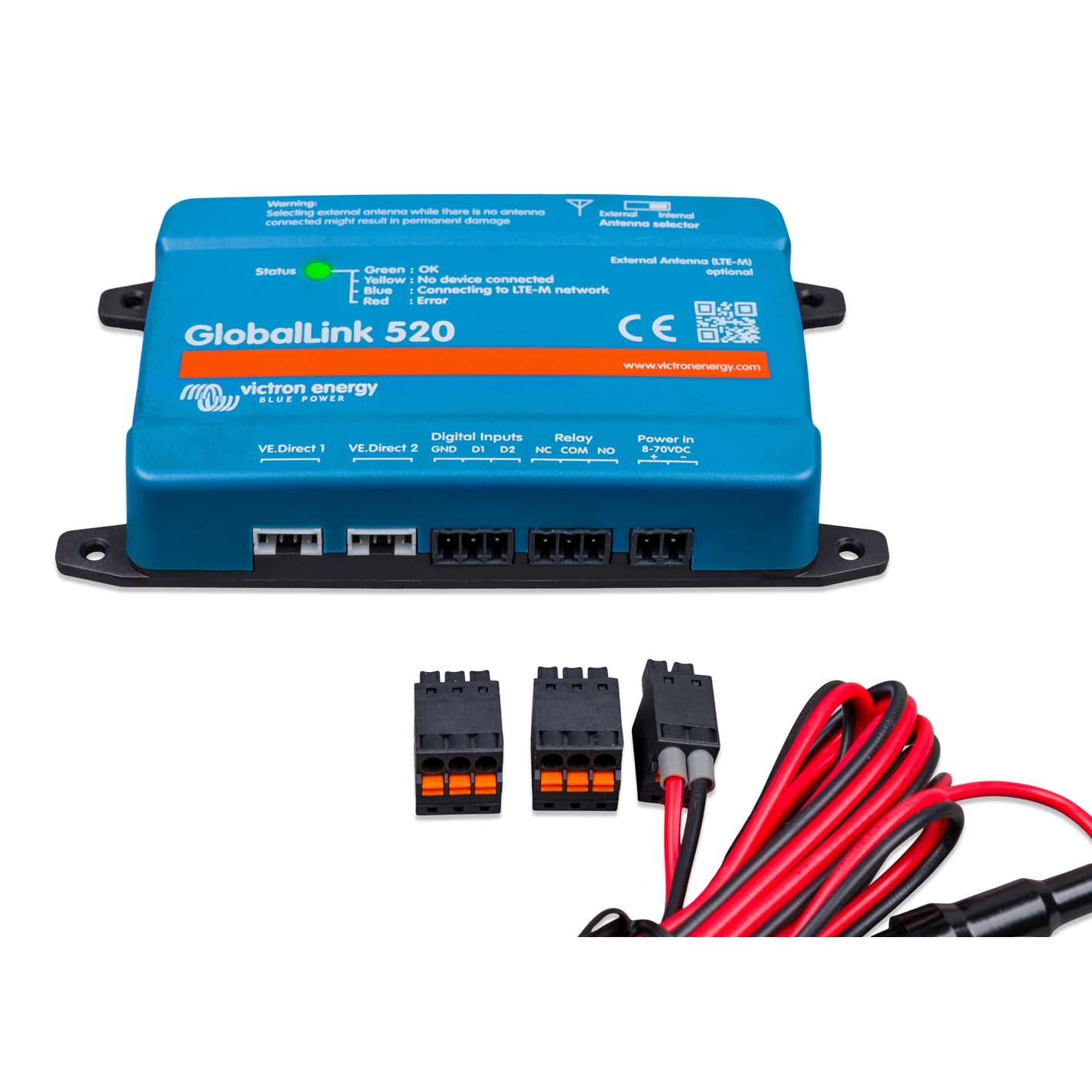

The GlobalLink comes with two communication ports, which allow connecting up to two VE.Direct devices such as a BMV Battery Monitor and/or an MPPT Solar Charge Controller directly to VRM. Up to ten compatible Victron Smart products can be connected via BLE. With two digital inputs that also act as pulse counters and a remotely controllable relay, it's a perfect solution to monitor and control your installation.

Antenna built-in

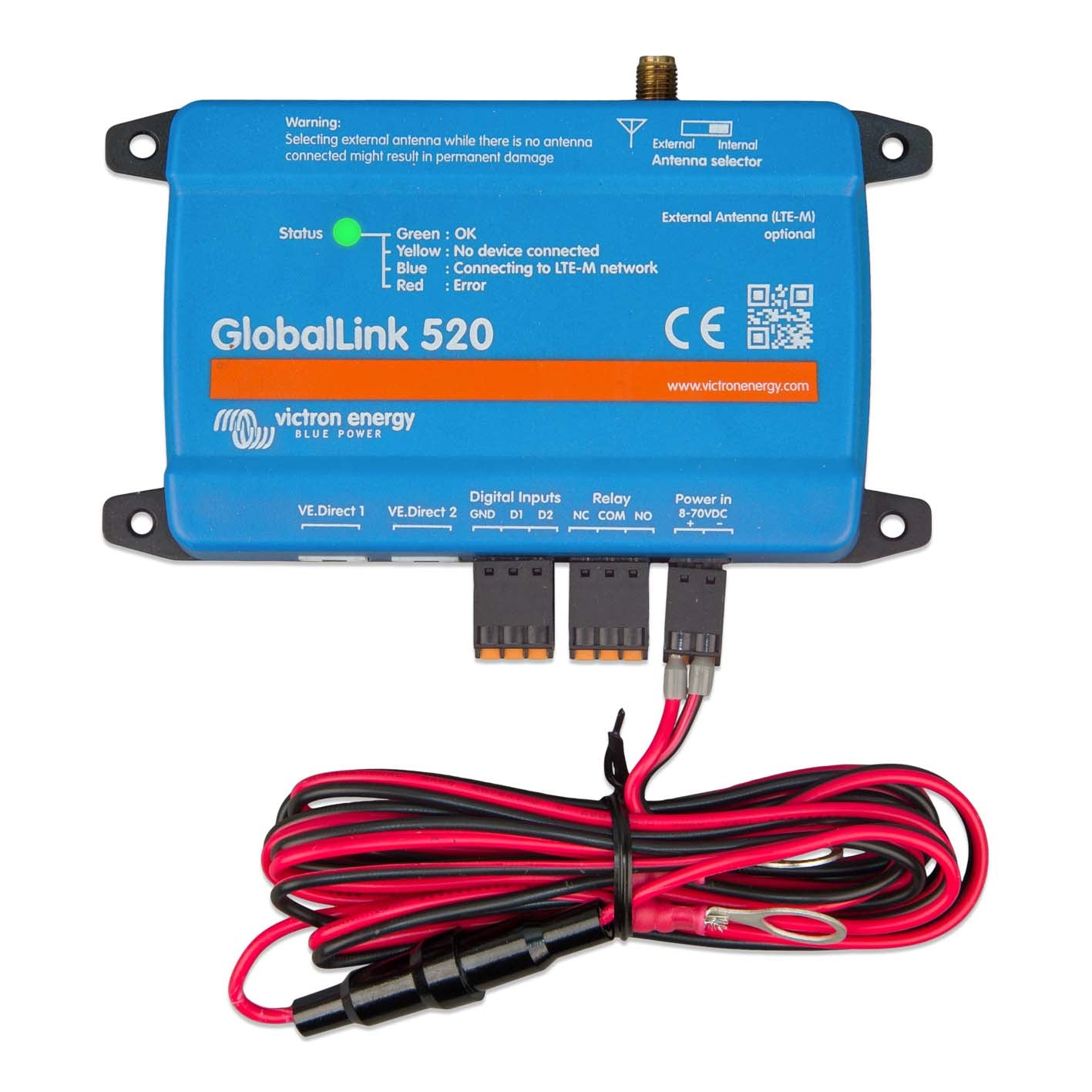

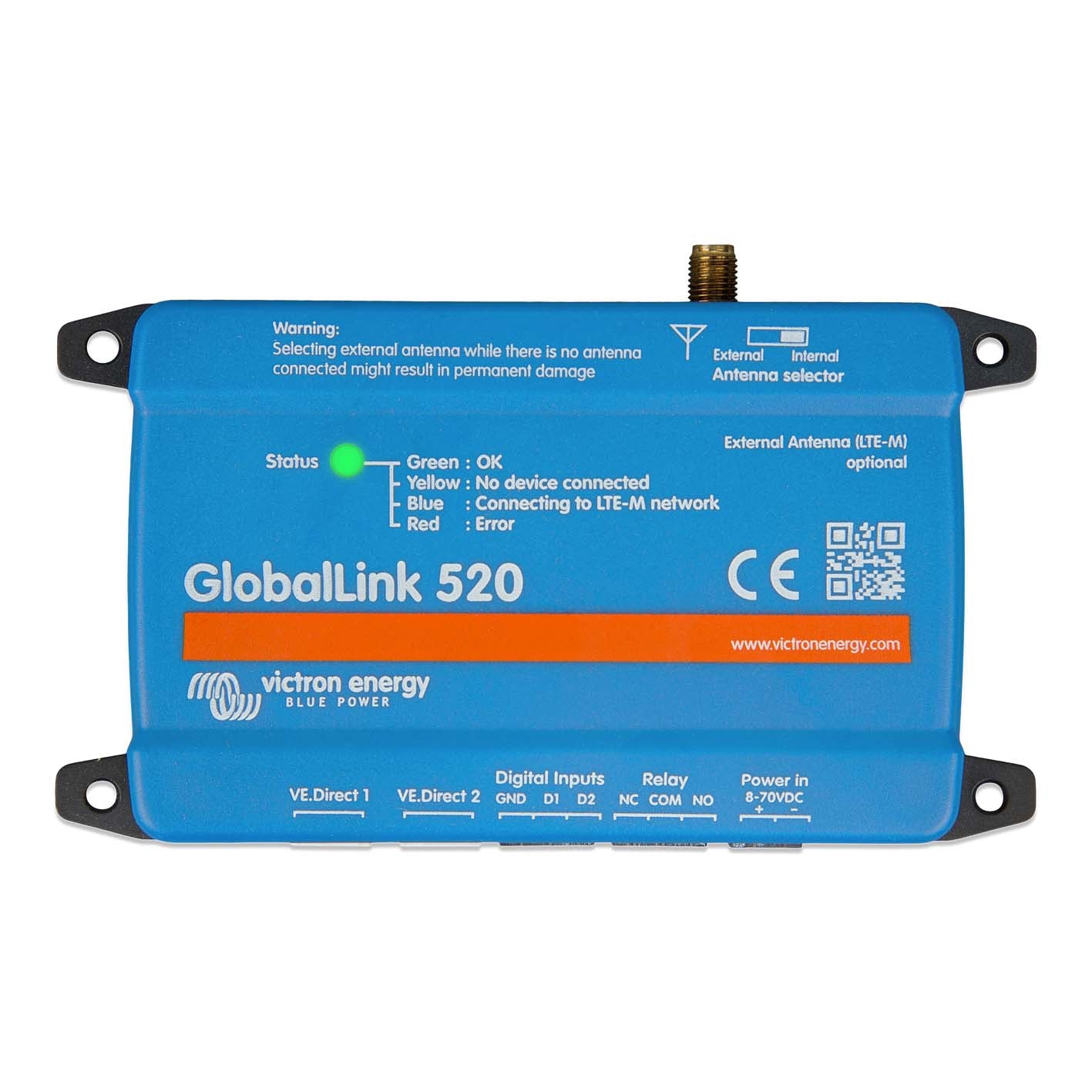

The GlobalLink comes with a built-in antenna that is designed to work all around the globe. However, if you require better reception or want to install your module in a utility van, for example, it is also possible to mount an external antenna.

RuuviTag Support

The GlobalLink supports the RuuviTag temperature sensors. These battery-powered sensors connect via BLE and are easy to set up via VictronConnect. All the data, like temperature, humidity, and air pressure from the RuuviTag sensors, will directly be available in VRM.

Victron Remote Management

The online Victron Remote Management (VRM) portal provides you with access to your installation, from anywhere, at any time. In VRM you can check the status of your connected products, view detailed history graphs of your energy, generate detailed analytical reports, and even configure automatic alarms in case something goes wrong.
