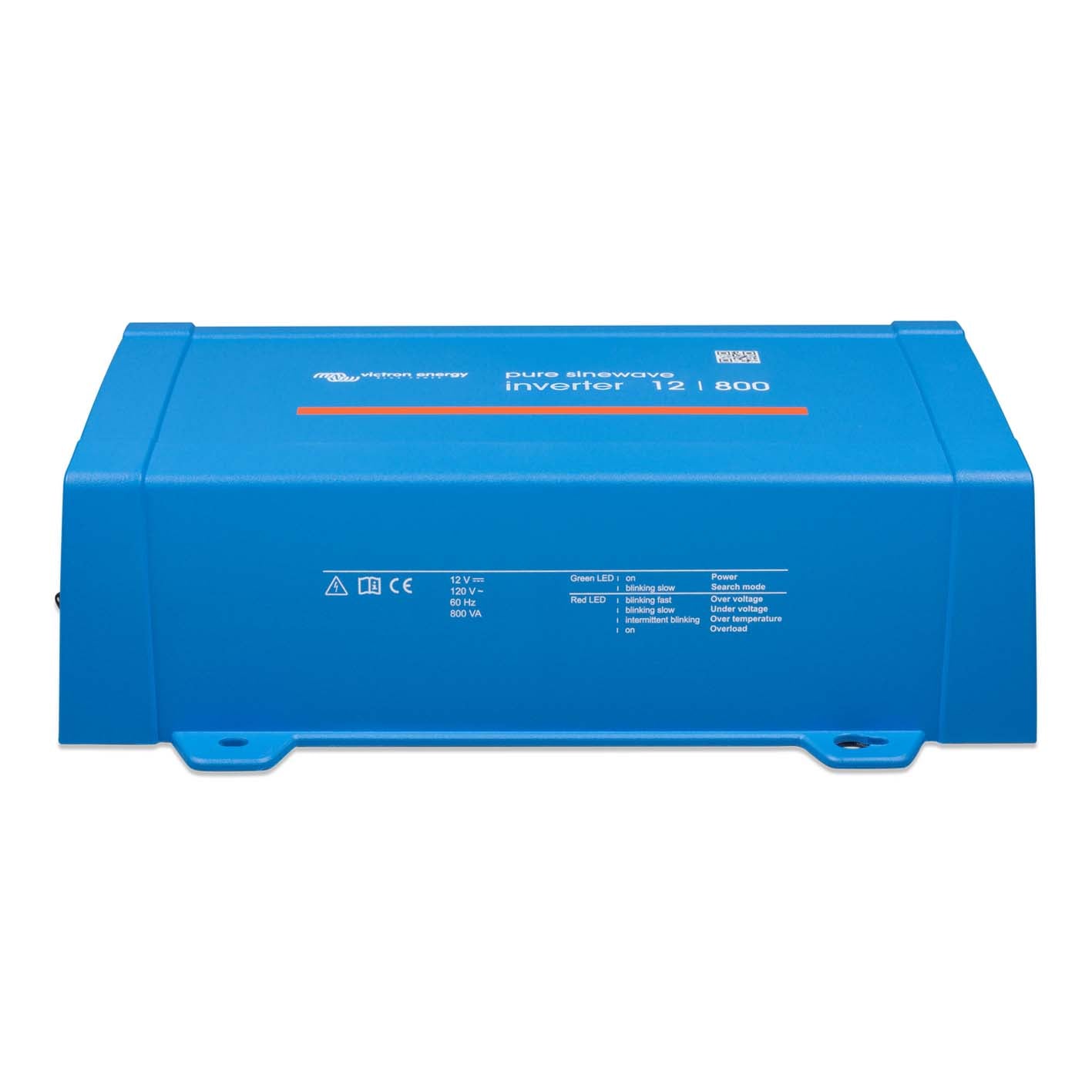

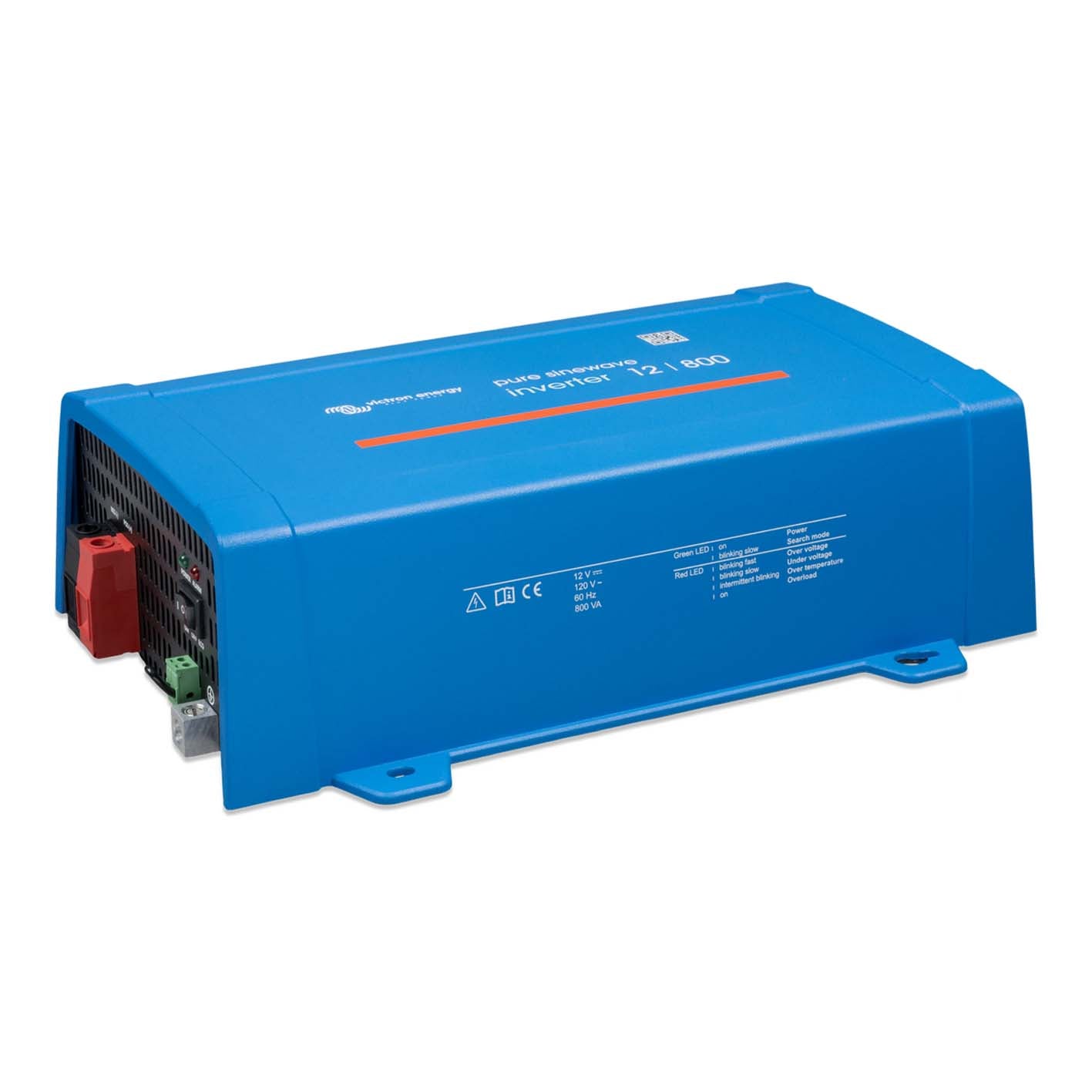

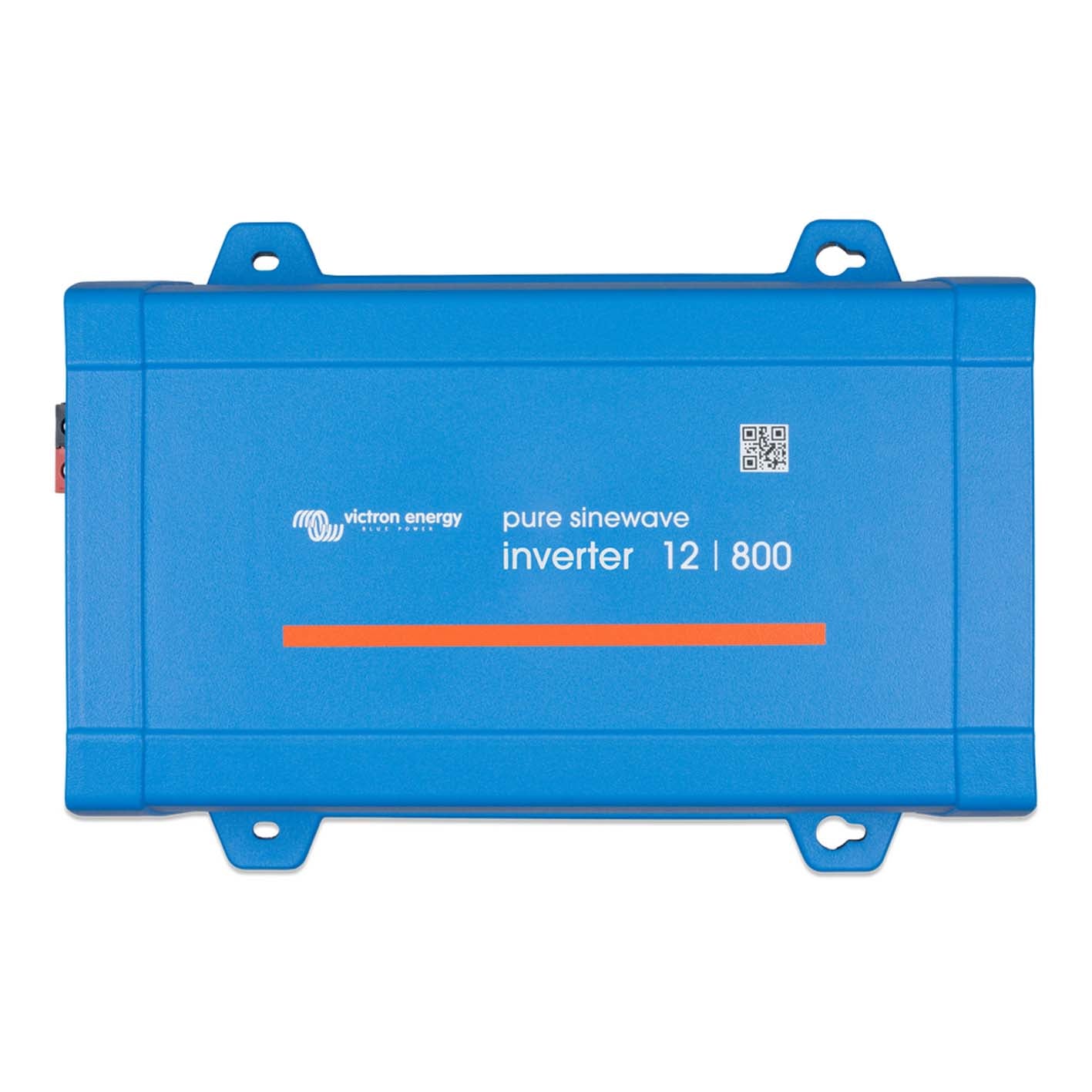

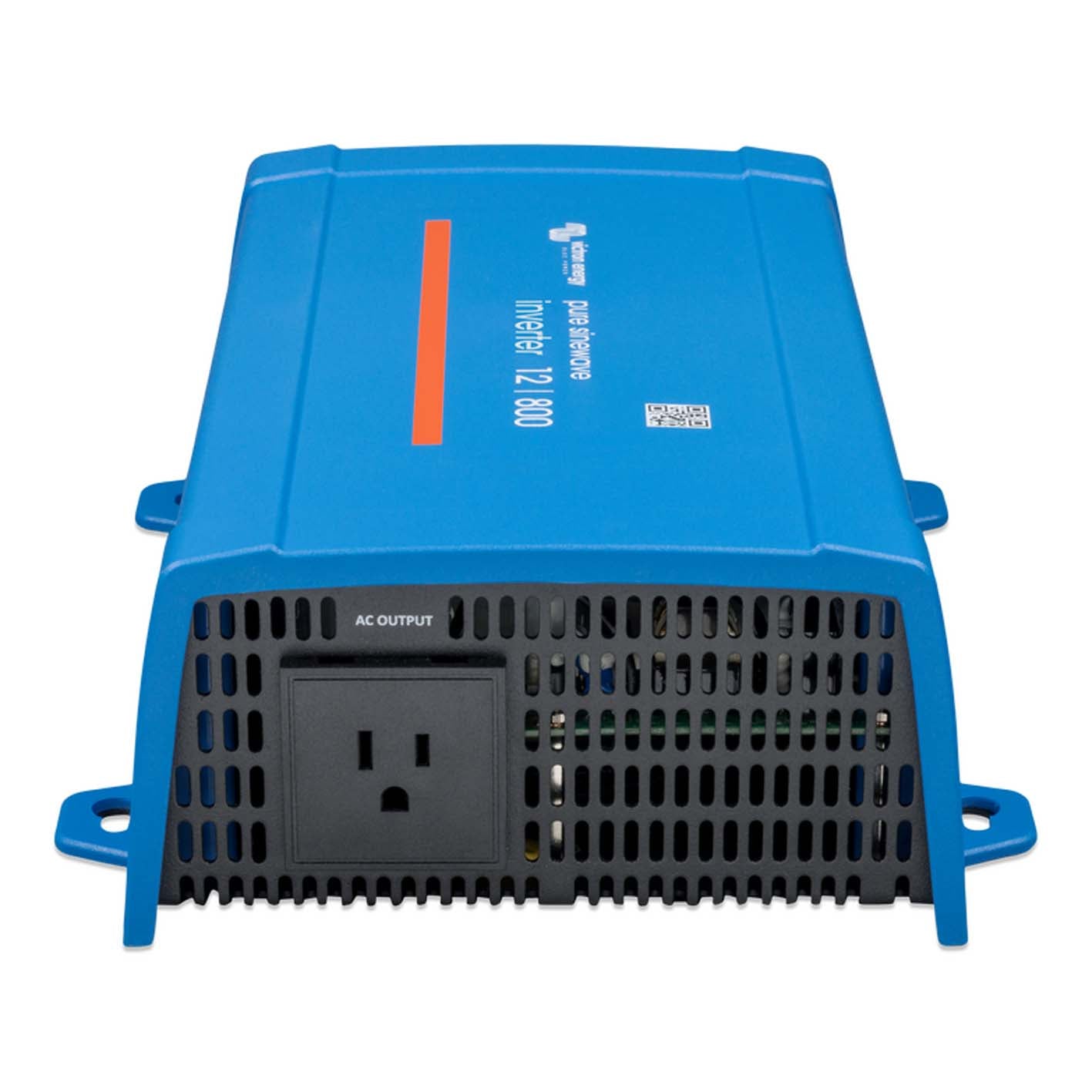

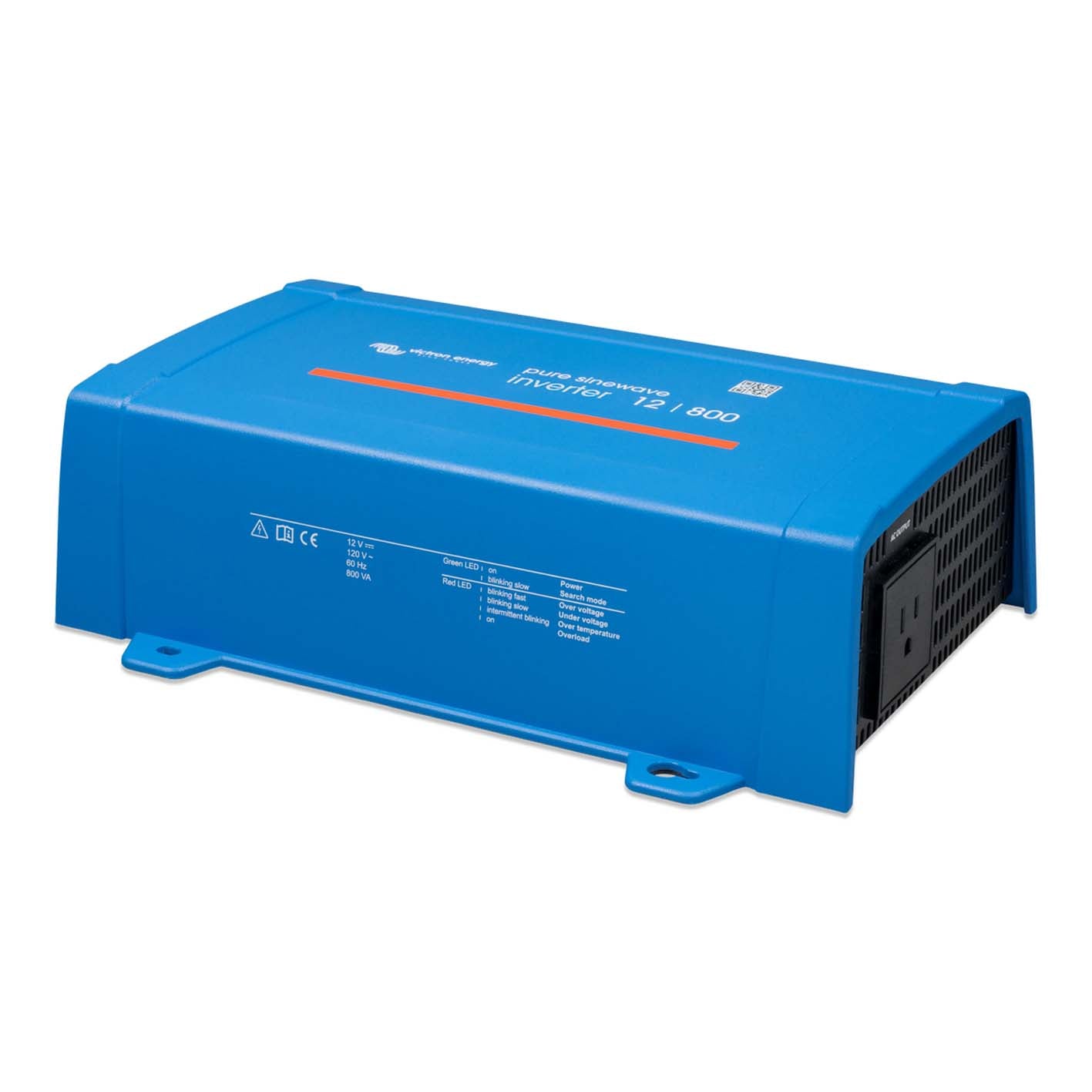

Phoenix Inverter 12/800 120V VE.Direct NEMA 5-15R

Phoenix Inverter VE.Direct

Inverters allow you to power domestic equipment requiring 230V/120V AC using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48V DC.

Models
250VA, 375VA, 500VA, 800VA, 1200VA

Highly Reliable - built for the years ahead

Phoenix Inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology, which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected.

Full bursts - High Peak output

Some electronic devices, particularly those with an electric motor, require short bursts of energy on start-up, which is much higher than their rated power consumption. No problem - the Phoenix inverter has industry-leading peak-power capability.

Intelligent alarms, shut-downs, and restarts

A high power draw on start-up can trigger false alarms and shut-downs. Phoenix makes allowance for this and only shuts down in cases of persistent overload. Intelligently, shut-downs will be followed by a series of restarts to eliminate "false alarms".

Conserve power with Eco mode

In Eco mode, the inverter shuts down when no power is required. Phoenix senses the output socket every couple of seconds and automatically turns back on if power is again required.

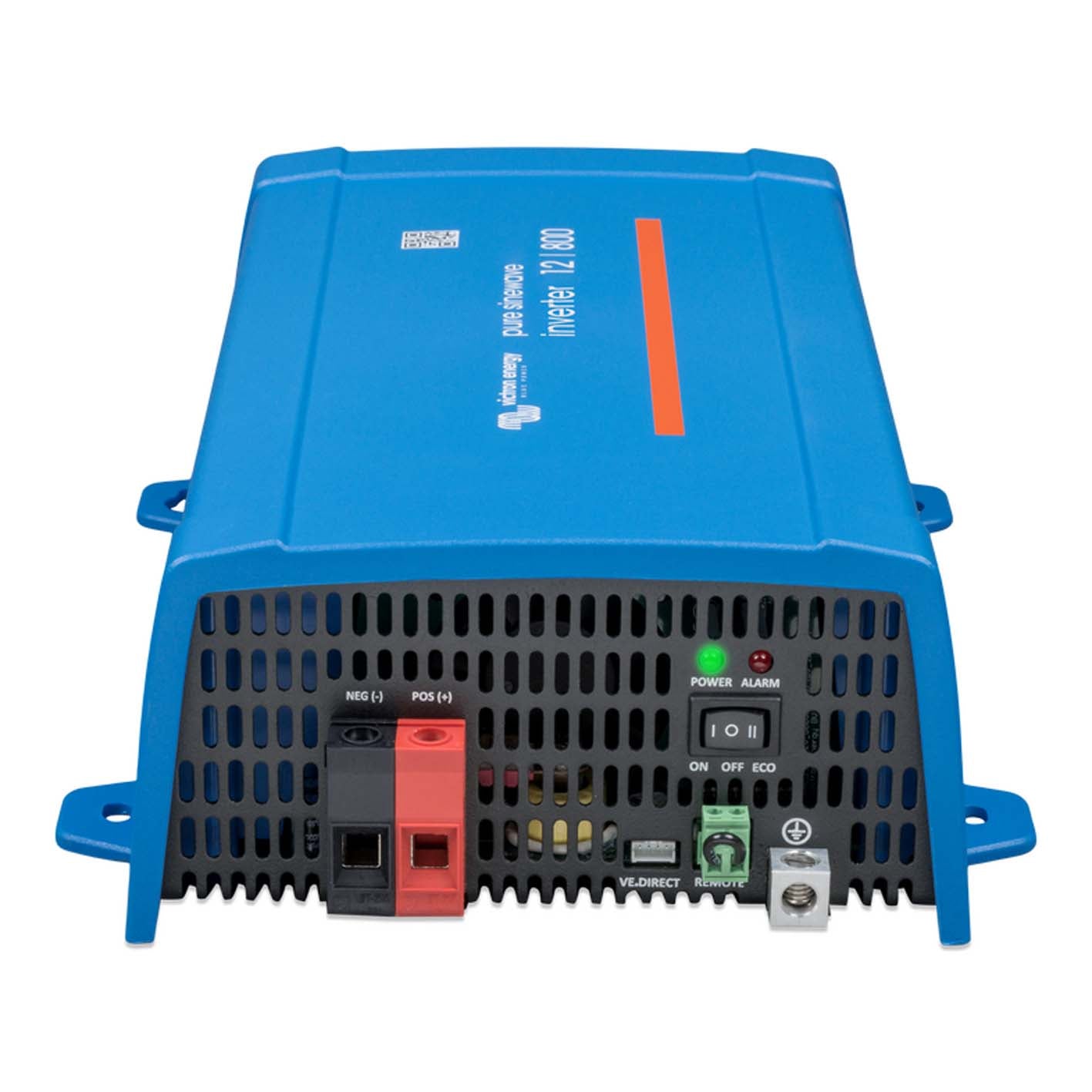

User-configurable settings

Phoenix has a communication port providing access to status information, alarms, and automatic user-configurable low-voltage shut-downs. Shut-downs will be followed by a series of intelligent restart attempts. User settings can be accessed from your computer or mobile device via VictronConnect, our free-to-use app.
