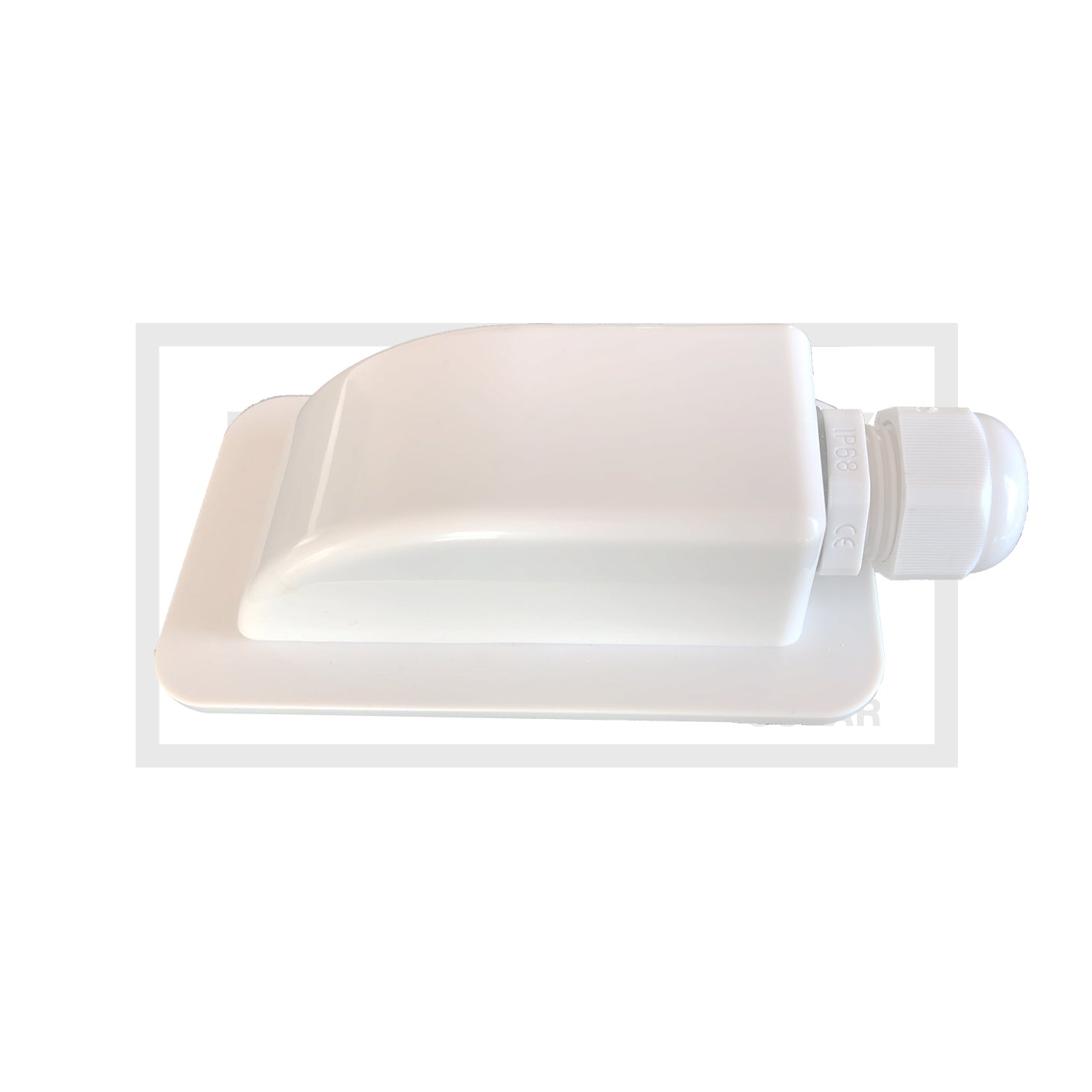

Single Roof Mount Cable Entry with IP68 Gland - Caravan and Marine
Single cable entry, for 2.5mm2, 4mm2 and 6mm2 solar cable. Ideal for getting the solar cable through the roof of your boat, caravan or RV.
The casing includes a groove on the underside which allows for a bead of sealant to be run in it, creating a better weatherproof seal and a nicer finish than cable entries with a flat bottom, which tend to disperse sealant out the sides.
The gland is:
- waterproof rated to IP68 and carry the CE Mark (European conformity).
- designed for cable sizes with an outside diameter of 5 - 9 mm.
- Made from ABS casing.
A hole will be required in the roof below the gland to allow the cables through. Apply an industrial adhesive such as sikaflex 252 to hold it down and seal it against weather.
