Victron Cyrix-Series - 230A - LiFePO4 Battery - Enhanced Cell Protection

LiFePO4 Battery - Enhanced Cell Protection

Prevent cell under voltage, over voltage, and over temperature with the advanced features of the LiFePO4 battery.

Key Features:

• Integrated cell balancing ensures maximum performance and reliability across all Victron LiFePO4 batteries.
• Dual protection system includes:
  • Automatic load shut down to prevent cell under voltage.
  • Reduction or shut down of the charging current during:
    • Imminent cell over voltage
    • High temperature (>50°C)
    • Low temperature (<0°C)
• The VE.Bus BMS acts as the core of the second protection line to ensure safe operation, compatible with several VE.Bus controllable Cyrix switches for enhanced safety.

Cyrix Switch Options

Cyrix-Li-Load

• Automatically disengages when the battery voltage drops dangerously low.
• Re-engages after voltage recovery with a 30-second delay and performs three attempts before remaining disengaged.
• An alternative option: BatteryProtect (recommended for low power consumption).

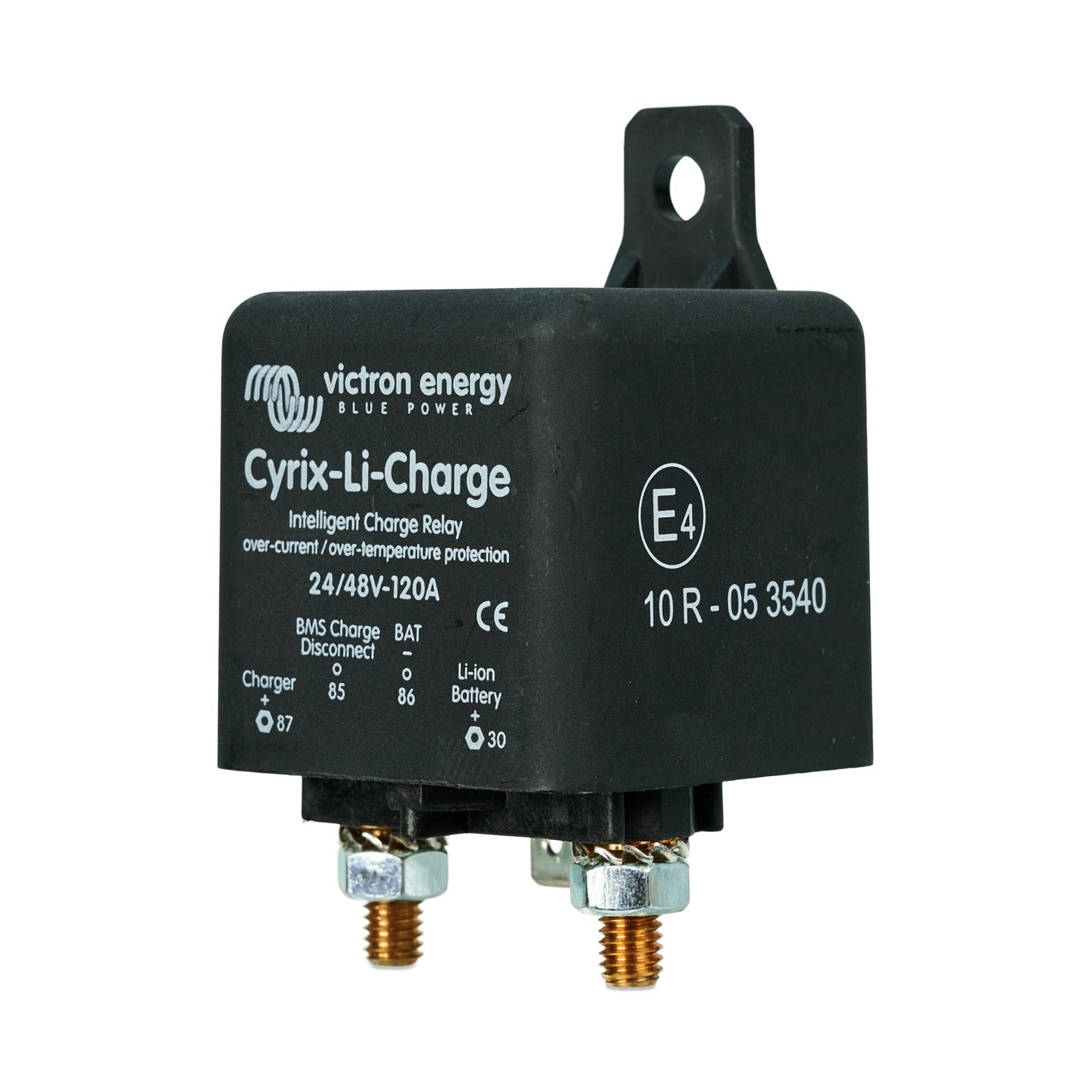

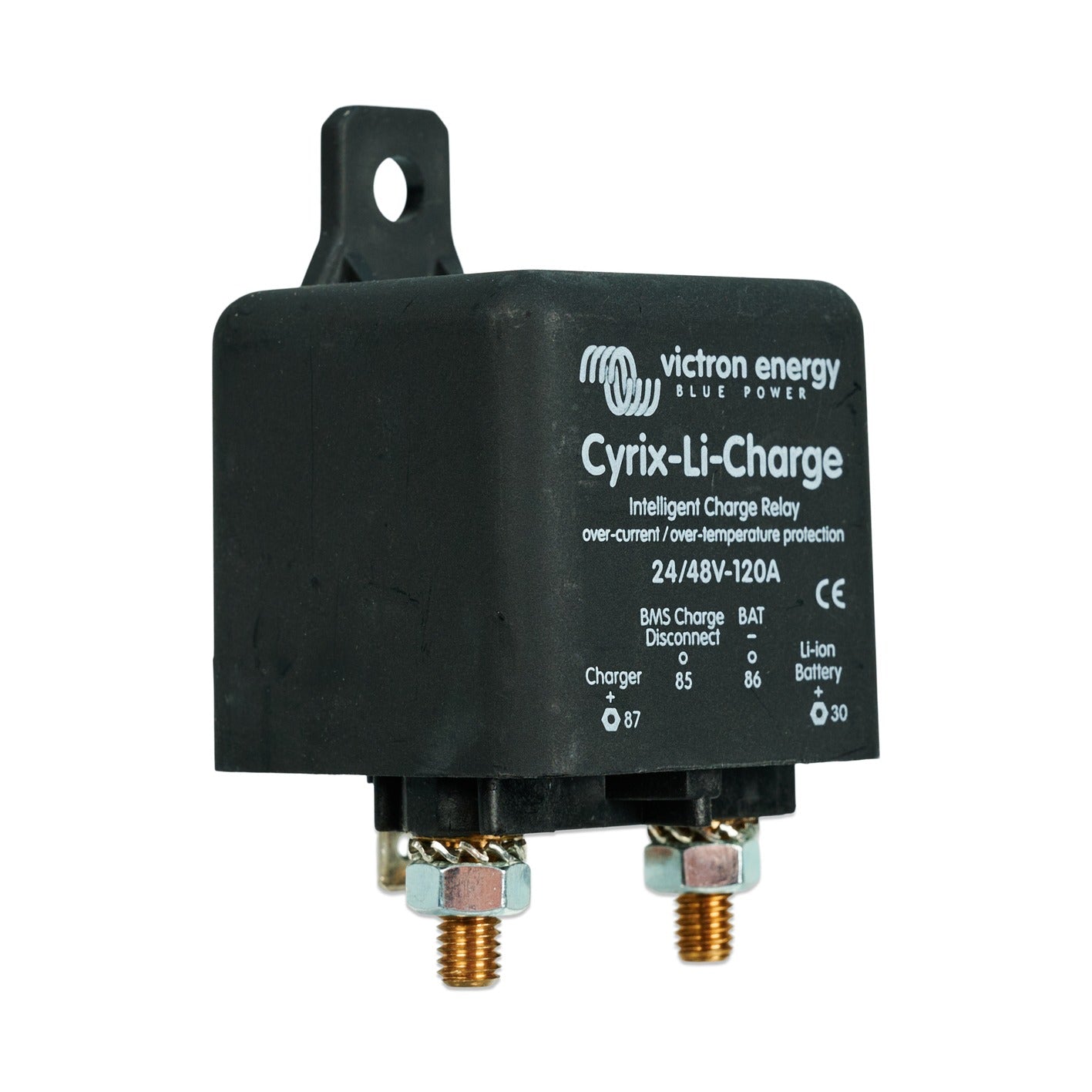

Cyrix-Li-Charge

• Connects a battery charger with a short 3-second delay when:
  • Battery voltage is at least 13.0V (or 26V/52V for specific models).
  • Charger connection terminal voltage is 13.0V or more.
  • Battery terminal voltage is above 2V.
• Automatically disengages if the battery experiences overvoltage, overheating, or voltage drops.
• Reconnects charging automatically when the overvoltage or overheating reset occurs, ensuring uninterrupted performance.

Cyrix-Li-ct

• Designed to parallel connect a lead acid starter battery and LiFePO4 battery when the Charge Disconnect output of the VE.Bus BMS is high and battery voltage exceeds 13.4V (or 26.8V for different models).
• Automatically disengages during cell overvoltage, overheating, or when battery voltage drops below 13.2V.
• Includes a start assist function where a short negative pulse closes the relay for 30 seconds.

Product Benefits

• Automatic, reliable protection for LiFePO4 batteries against common cell issues.
• Prolonged battery life with intelligent management from the VE.Bus BMS.
• Easy to integrate with Cyrix controllable switches for various applications.
• Built-in transient voltage suppressor prevents sudden spikes during disengagement.
