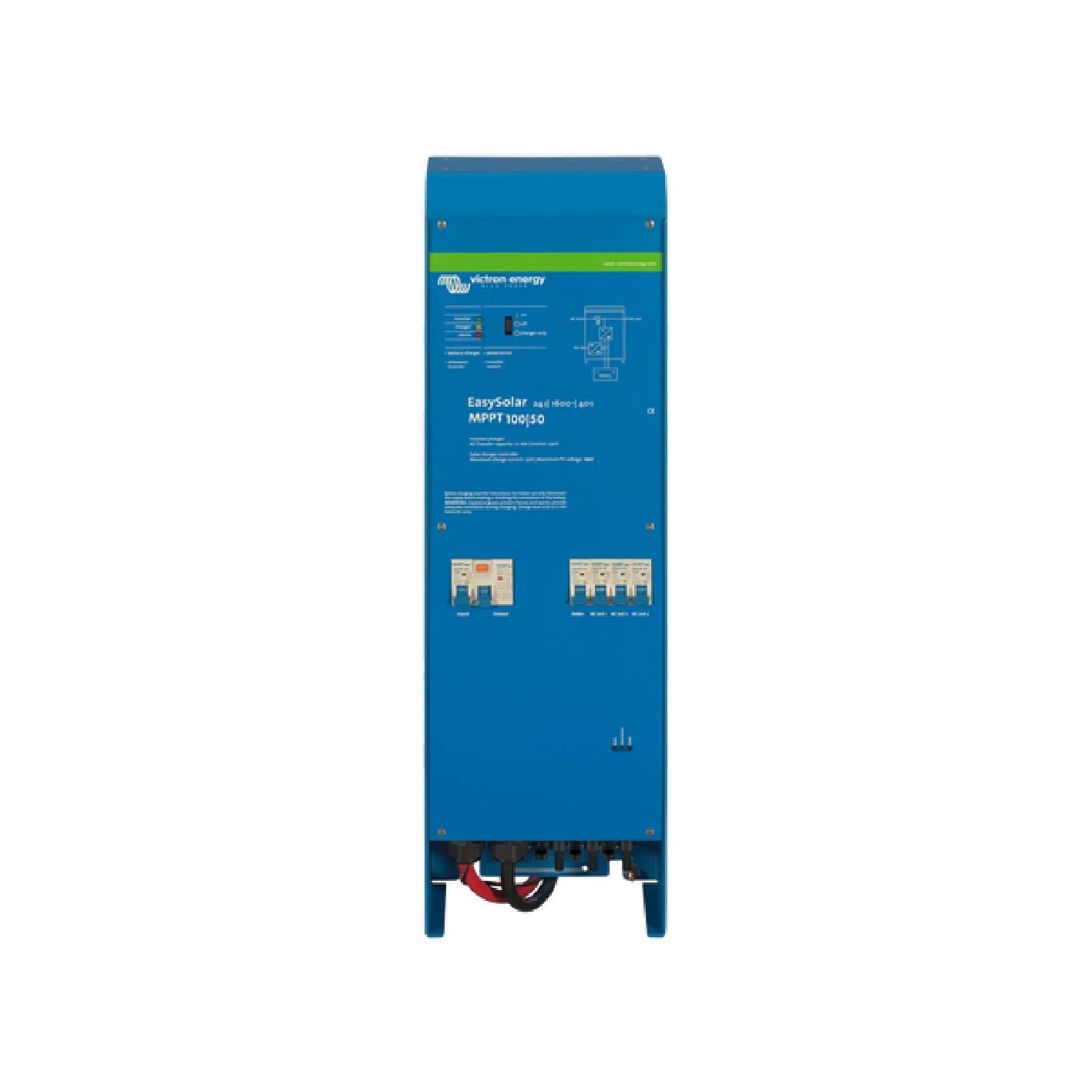

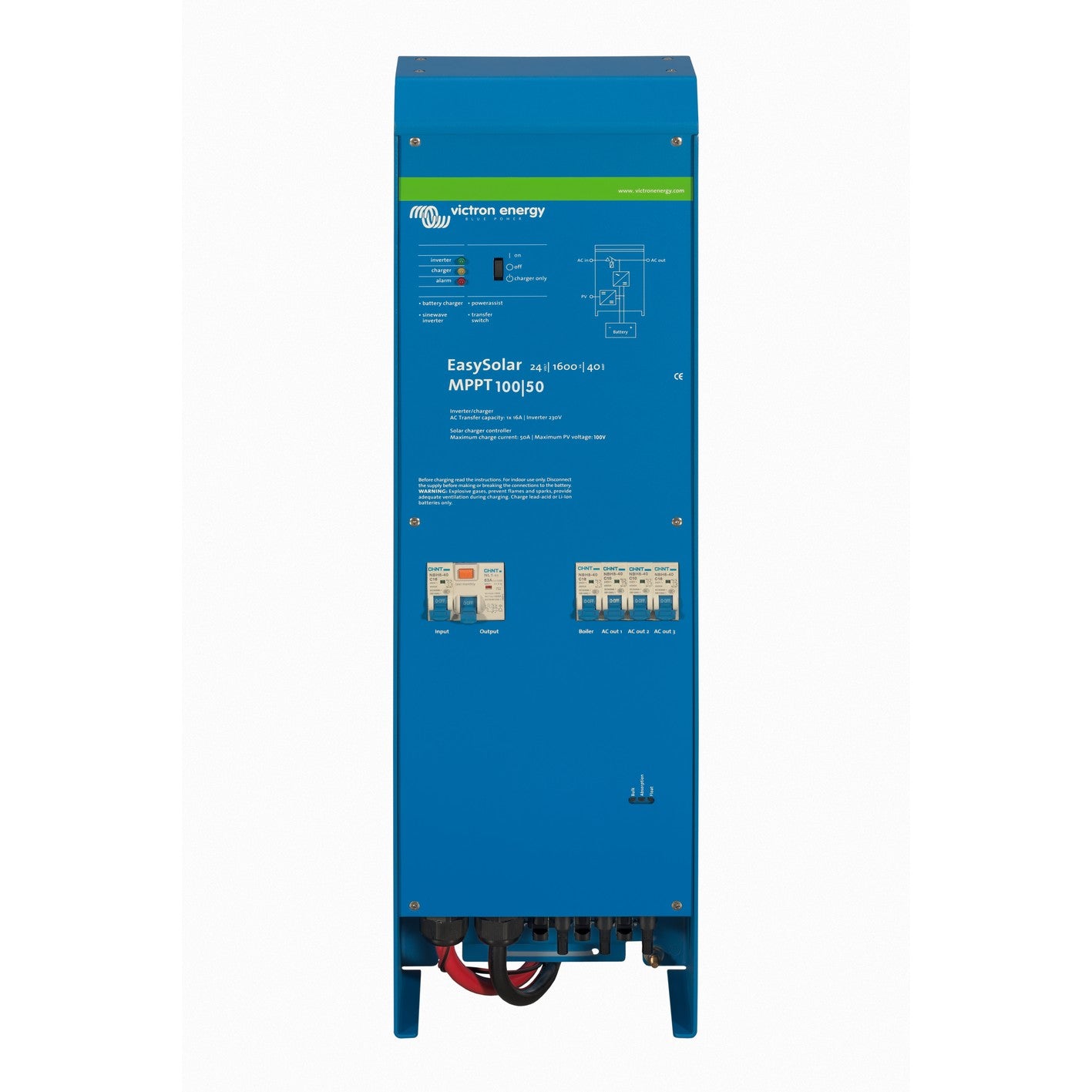

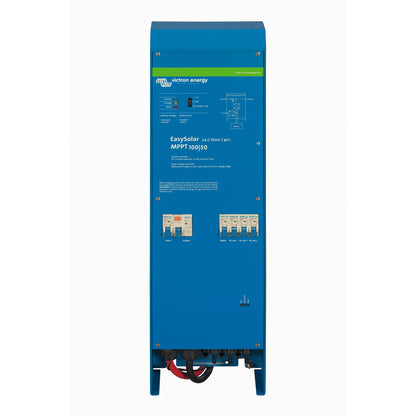

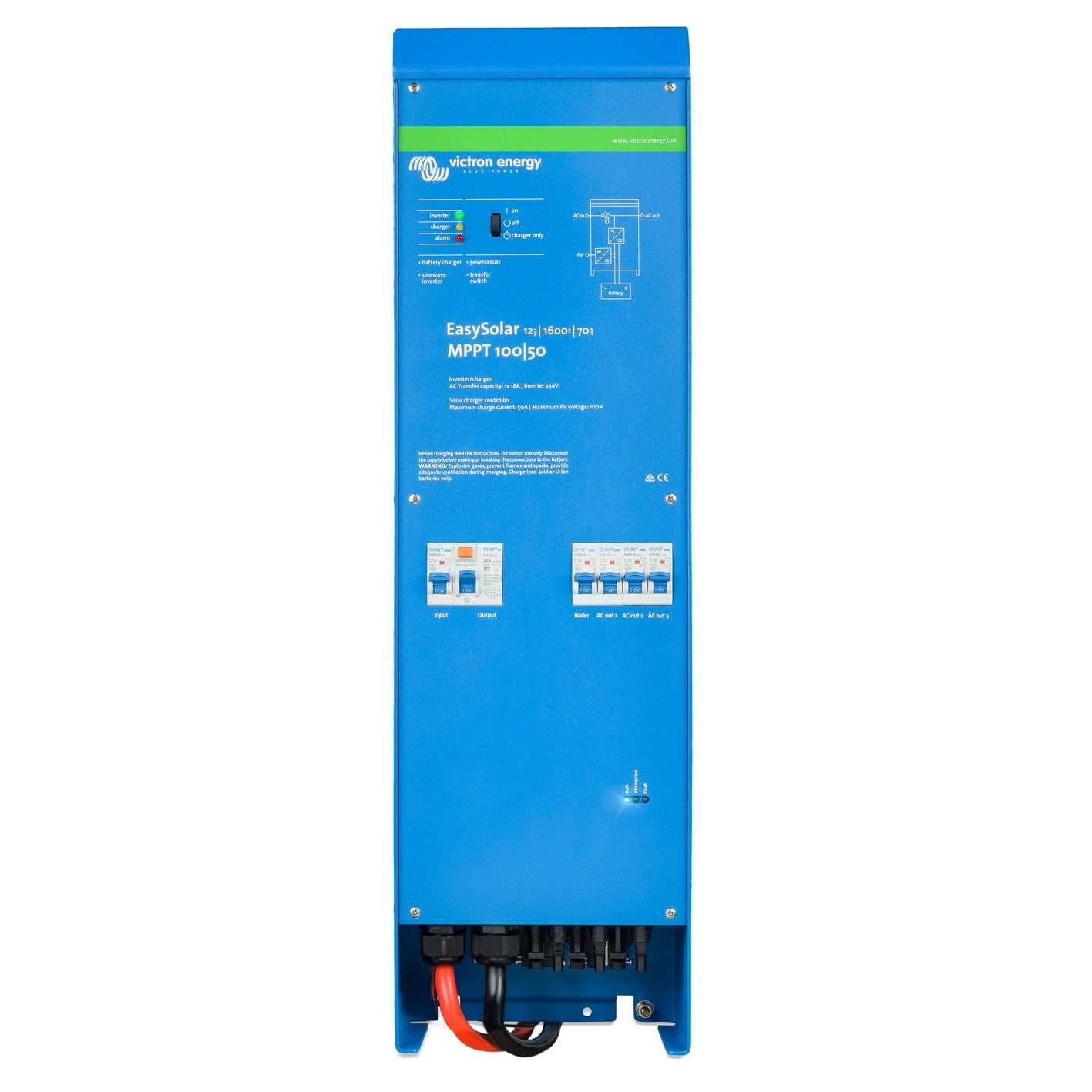

Victron Inverter/Charger EasySolar
Victron Inverter/Charger EasySolar
SKU:CEP241621010
Couldn't load pickup availability
Shipping $ & Timeframe
Shipping $ & Timeframe
Free Shipping New Zealand wide.
Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before 11am will ship same day.
HOLIDAY HOURS: The LUX Solar team will be working sporadically Christmas to New Years, most orders received in this period will ship on 5 January 2026!
Warranty & Returns
Warranty & Returns
5 Year Warranty
We have a 7 day change of mind return policy, subject to a restocking fee.
Datasheets, Manuals, Certifications
Datasheets, Manuals, Certifications
All-in-one solar power solution
The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (SmartSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application softwareÂ
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications. Please see http://www.victronenergy.nl/support-and-downloads/software/
