Victron Fuse CNN
Victron Fuse CNN
SKU: Fuse CNN 325A/80V for Lynx shunt | CIP140325000
Couldn't load pickup availability
Shipping $ & Timeframe
Shipping $ & Timeframe
Free Shipping New Zealand wide.
Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before midday ship out same-day.
Warranty & Returns
Warranty & Returns
5 Year Warranty
We have a 7 day change of mind return policy, subject to a restocking fee.
Datasheets, Manuals, Certifications
Datasheets, Manuals, Certifications

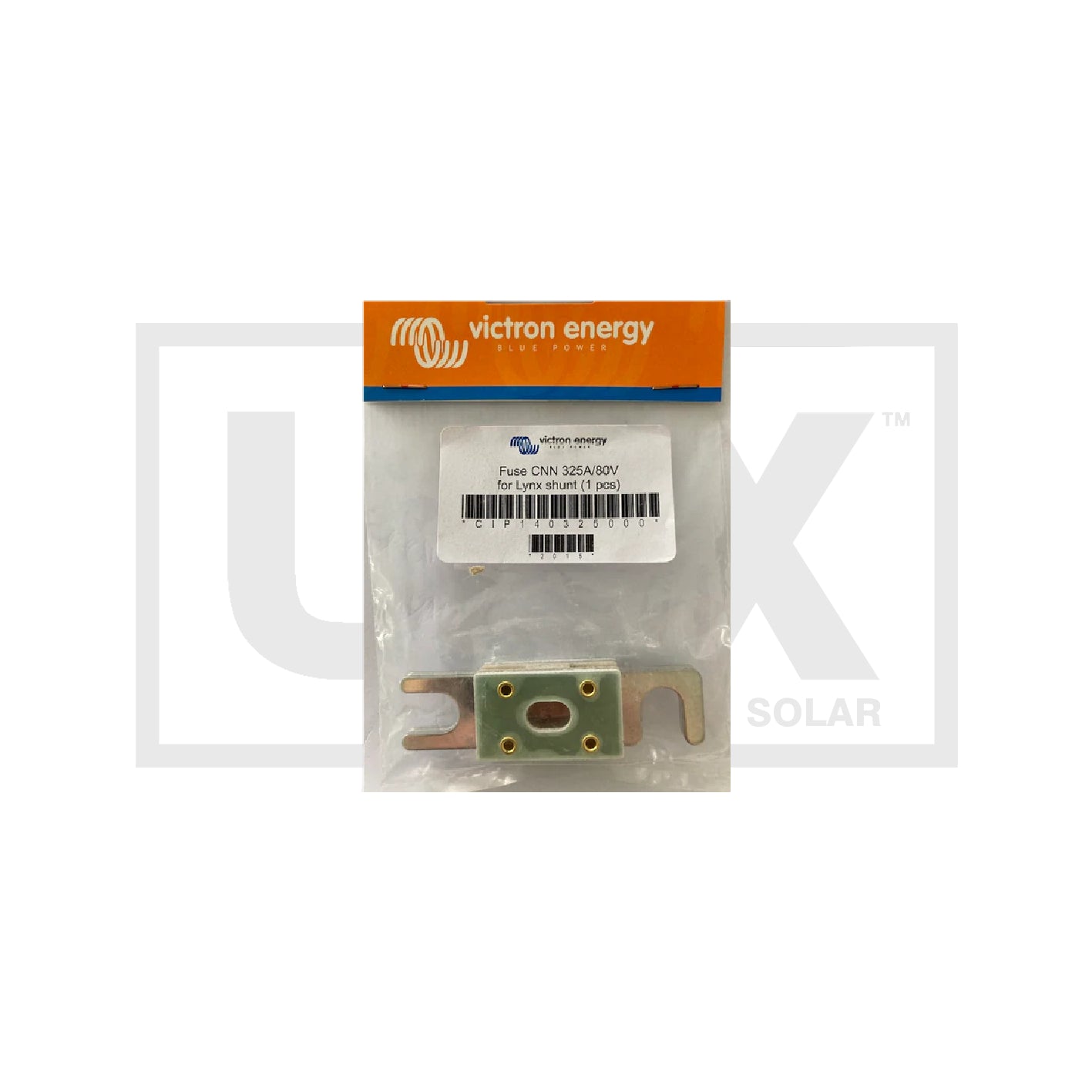

The Victron Fuse CNN 325A/80V is a high-current fuse designed specifically for use with the Victron Lynx Shunt VE.Can. It provides essential overcurrent protection in DC distribution systems, particularly in lithium battery installations running at 48V.
Key Features
- 325A / 80V DC rated — suitable for high-power 48V battery systems
- Designed specifically for the Victron Lynx Shunt VE.Can fuse slot
- CNN fuse format — compact bolt-down style
- Certified to EN 60947-1 and EN IEC 60947-3 safety standards
- CE, RoHS, and REACH compliant
Compatibility
- Victron Lynx Shunt VE.Can (fuse slot)
- Suitable for 48V lithium and lead-acid battery systems
- Part of the Victron Lynx DC distribution system
Specifications
| SKU | CIP140325000 |
| Fuse Type | CNN |
| Rating | 325A / 80V DC |
| Standards | EN 60947-1, EN IEC 60947-3, EN IEC 63000 |
| Compliance | CE, RoHS, REACH |
| Warranty | 5 years |
