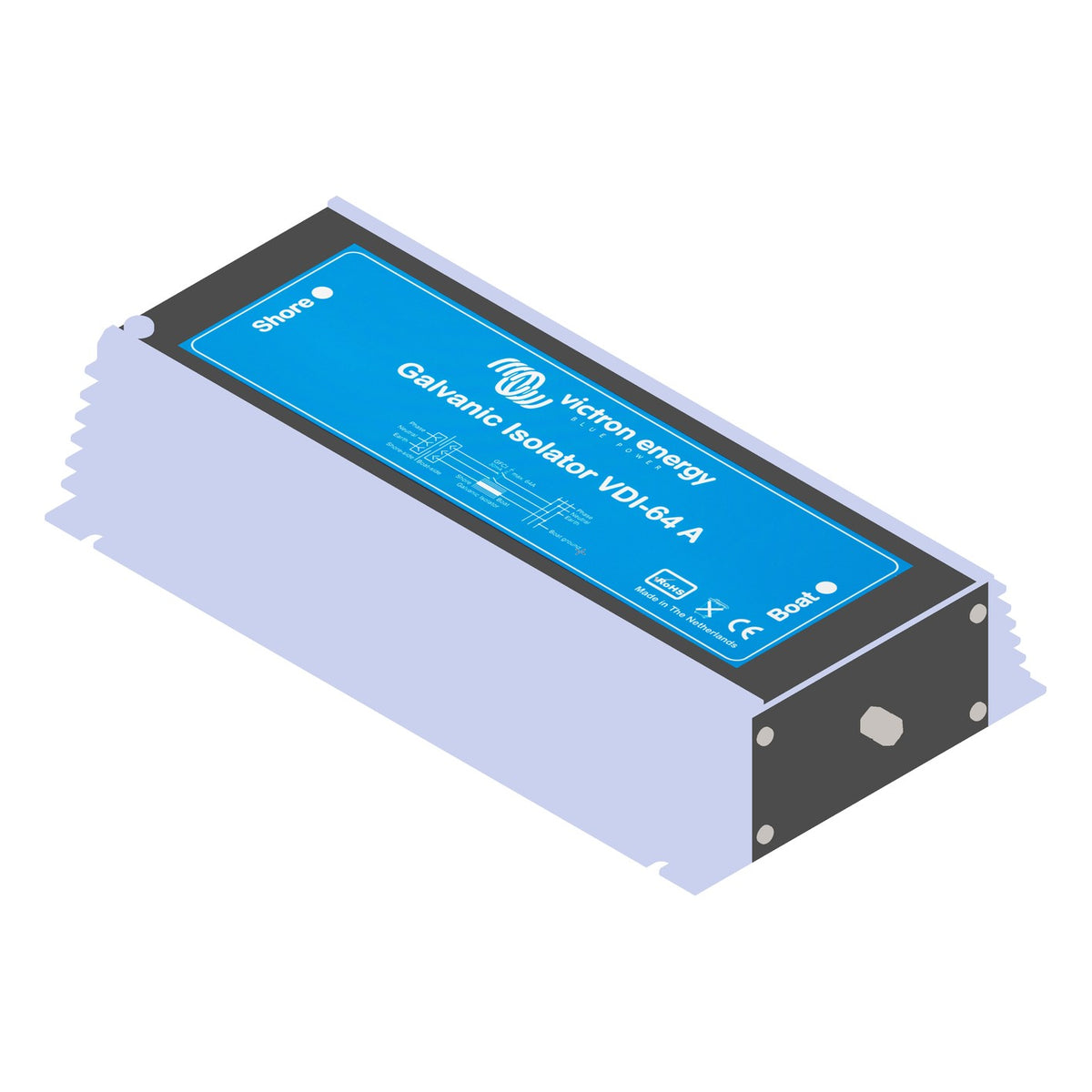

Victron Galvanic Isolator
Victron Galvanic Isolator
SKU:GDI000016000
Regular price
$206.99 NZD
Regular price
Sale price
$206.99 NZD
Unit price
/
per
Couldn't load pickup availability
Shipping $ & Timeframe
Shipping $ & Timeframe
Free Shipping New Zealand wide.
Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before 11am will ship same day.
Warranty & Returns
Warranty & Returns
5 Year Warranty
We have a 7 day change of mind return policy, subject to a restocking fee.
The Victron Energy Galvanic Isolator Diode consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.
The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.
Datasheet: Victron Galvanic Isolator
