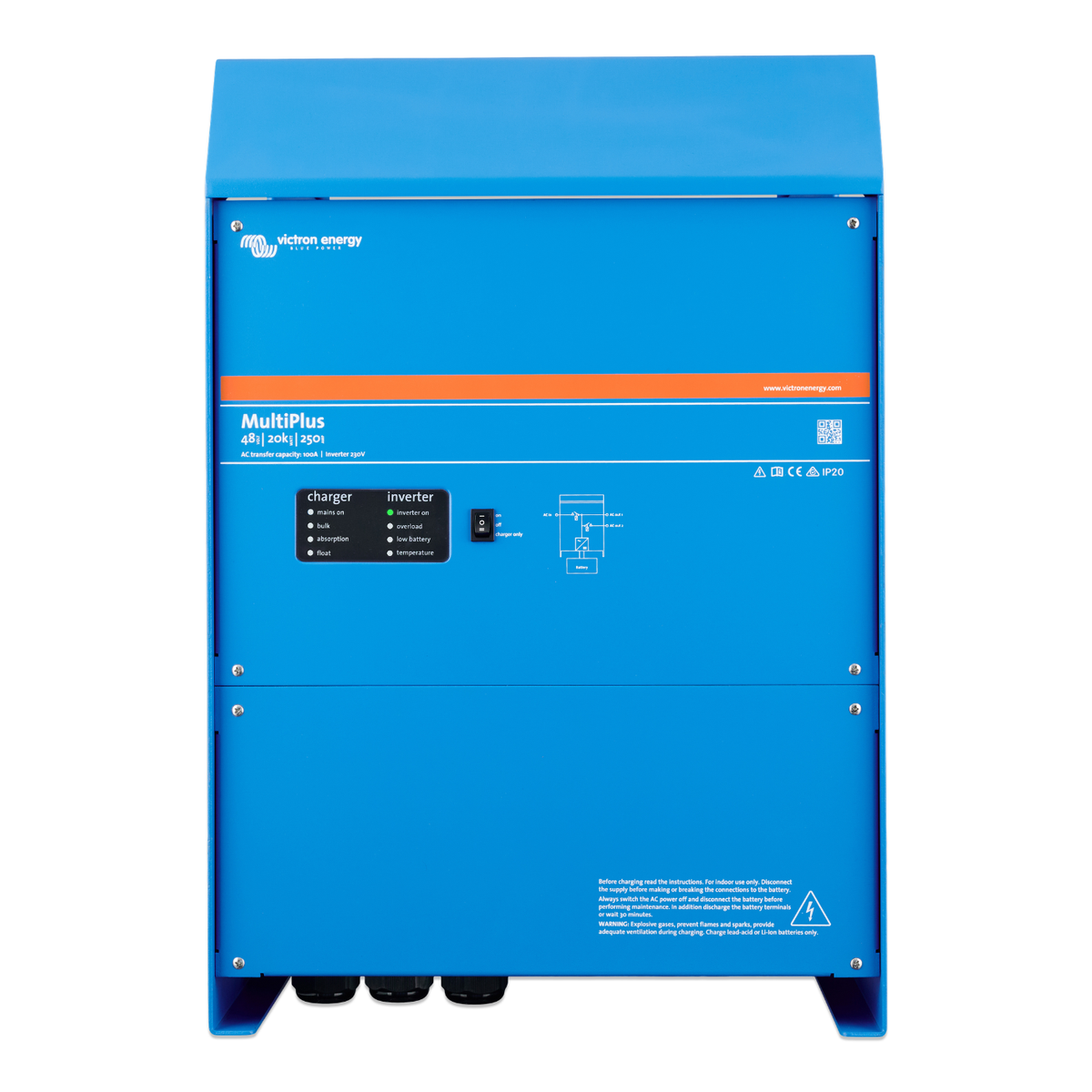

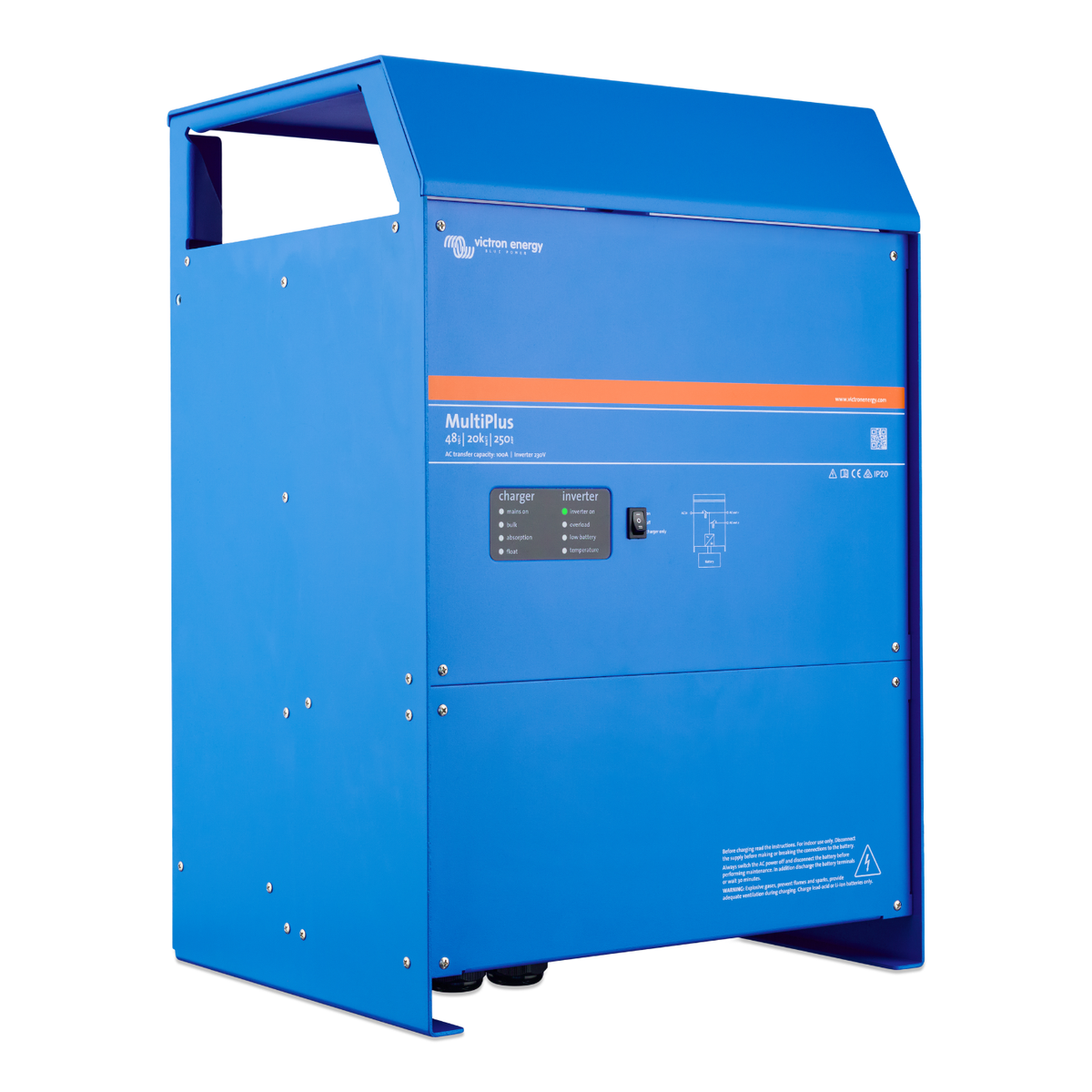

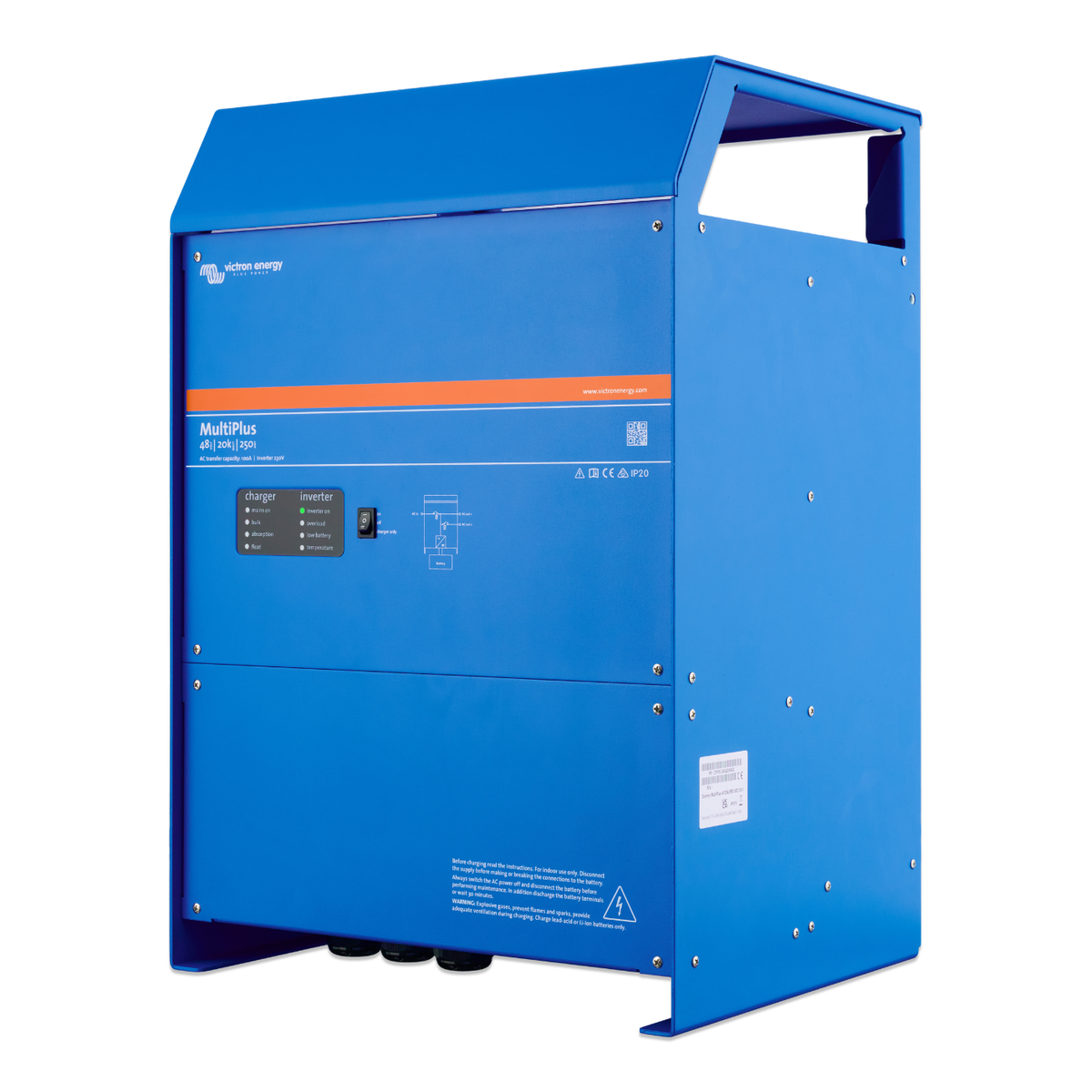

Victron Inverter/Charger MultiPlus 20k
Victron Inverter/Charger MultiPlus 20k
SKU: MultiPlus 48/20k/250-100 230V | PMC483200400
Couldn't load pickup availability
Shipping $ & Timeframe
Shipping $ & Timeframe
Free Shipping New Zealand wide.
Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before midday ship out same-day.
Warranty & Returns
Warranty & Returns
5 Year Warranty
We have a 7 day change of mind return policy, subject to a restocking fee.
Datasheets, Manuals, Certifications
Datasheets, Manuals, Certifications
The Victron MultiPlus 48/20k/250-100 230V combines a 20 kW inverter, 250 A battery charger and 100 A transfer switch in one unit, built for large off-grid, backup and marine power systems on a 48 V battery bank.
Free NZ shipping on Victron inverter/chargers.
Key features
- 20 kW continuous at 25 °C, 25 kW peak: enough for whole-home and light commercial loads from a single unit
- Uninterrupted AC power: if the grid or generator drops out, the 100 A transfer switch moves your loads to the inverter in under 20 milliseconds, so computers and electronics keep running
- Two AC outputs: the main output stays on through an outage, and a second output is live only while AC input is present, for loads like a water heater that shouldn't drain the battery
- 250 A battery charger: charges large lithium and lead-acid banks quickly from grid or generator
- PowerControl & PowerAssist: set a maximum grid or generator current and the MultiPlus reduces charging to stay under it, then adds battery power when loads peak
- Works with solar: compatible with MPPT solar charge controllers and grid-tie PV inverters
- Parallel and three-phase capable: combine units for more power, or use three for a three-phase supply. An external AC transfer switch is recommended for parallel systems.
- Monitoring and configuration: add a Cerbo GX or Ekrano GX for free remote monitoring and setting changes through VRM, or configure on site with VEConfigure (MK3-USB) or Bluetooth (VE.Bus Smart dongle)
Specifications
| Continuous output power | 20 kW @ 25 °C, 18 kW @ 40 °C, 14 kW @ 65 °C |
| Peak power | 25 kW (1 min) |
| Output voltage | 230 VAC ± 2% |
| Maximum efficiency | 96% |
| Maximum charge current | 250 A @ 25 °C |
| Transfer switch | 100 A |
| DC input voltage range | 38 to 60 V |
| Operating temperature | -40 °C to +65 °C |
| Dimensions (H × W × D) | 616 × 422 × 357 mm |
| Weight | 80 kg |
Full specifications are in Victron's MultiPlus 48/20k datasheet (PDF).
Not sure if this is the right size for your system? Email technical@luxsolar.co.nz and we'll help you choose.
