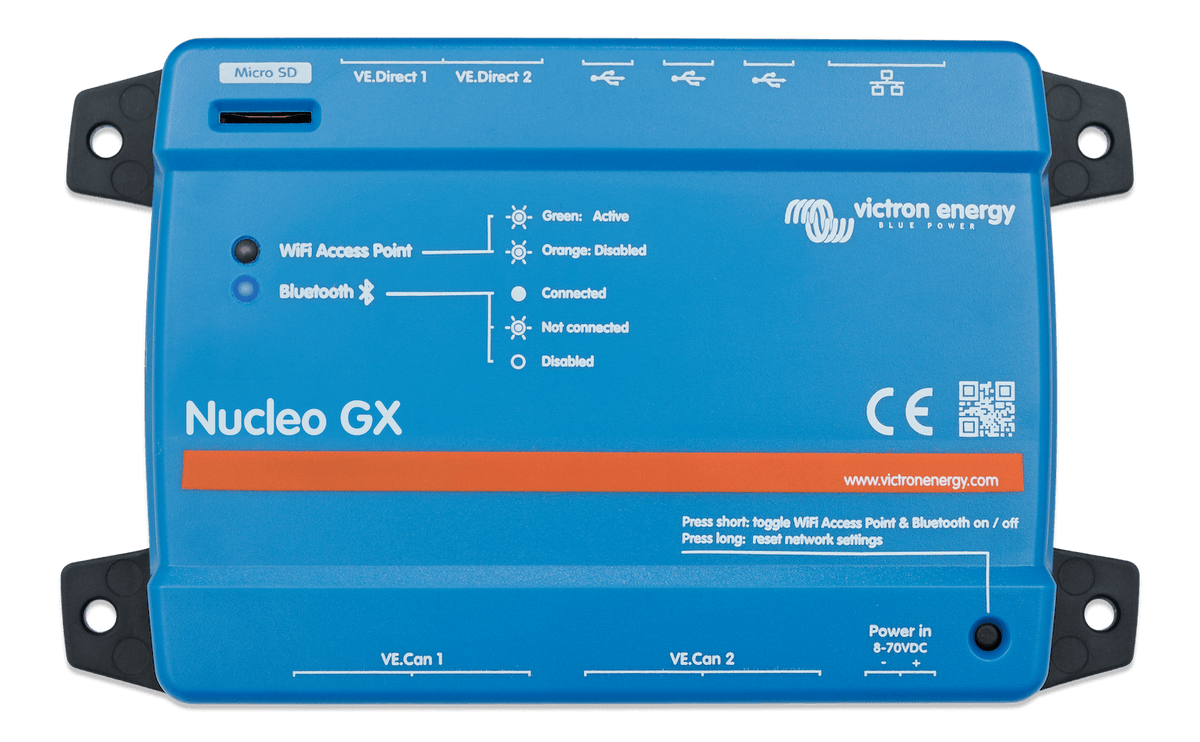

The Victron Nucleo GX is a compact, lower-cost GX device for monitoring and controlling a Victron system, with the same fast quad-core processor as the Ekrano GX.
- Supports up to 25 connected devices
- Ports: 2 isolated VE.Direct, 2 VE.Can, 3 USB-A, Ethernet, WiFi and microSD
- No VE.Bus port: MultiPlus/Quattro connect via an optional USB dongle
- No built-in relays, tank or digital inputs (add a GX IO-Extender 150 or GX Tank 140 if needed)
- No screen: use the web interface on your phone or tablet, or VRM remotely
- 8–70V DC supply, IP20, 78 × 154 × 48 mm
A smart choice for simpler systems built around solar controllers, battery monitors and DC-DC chargers.
