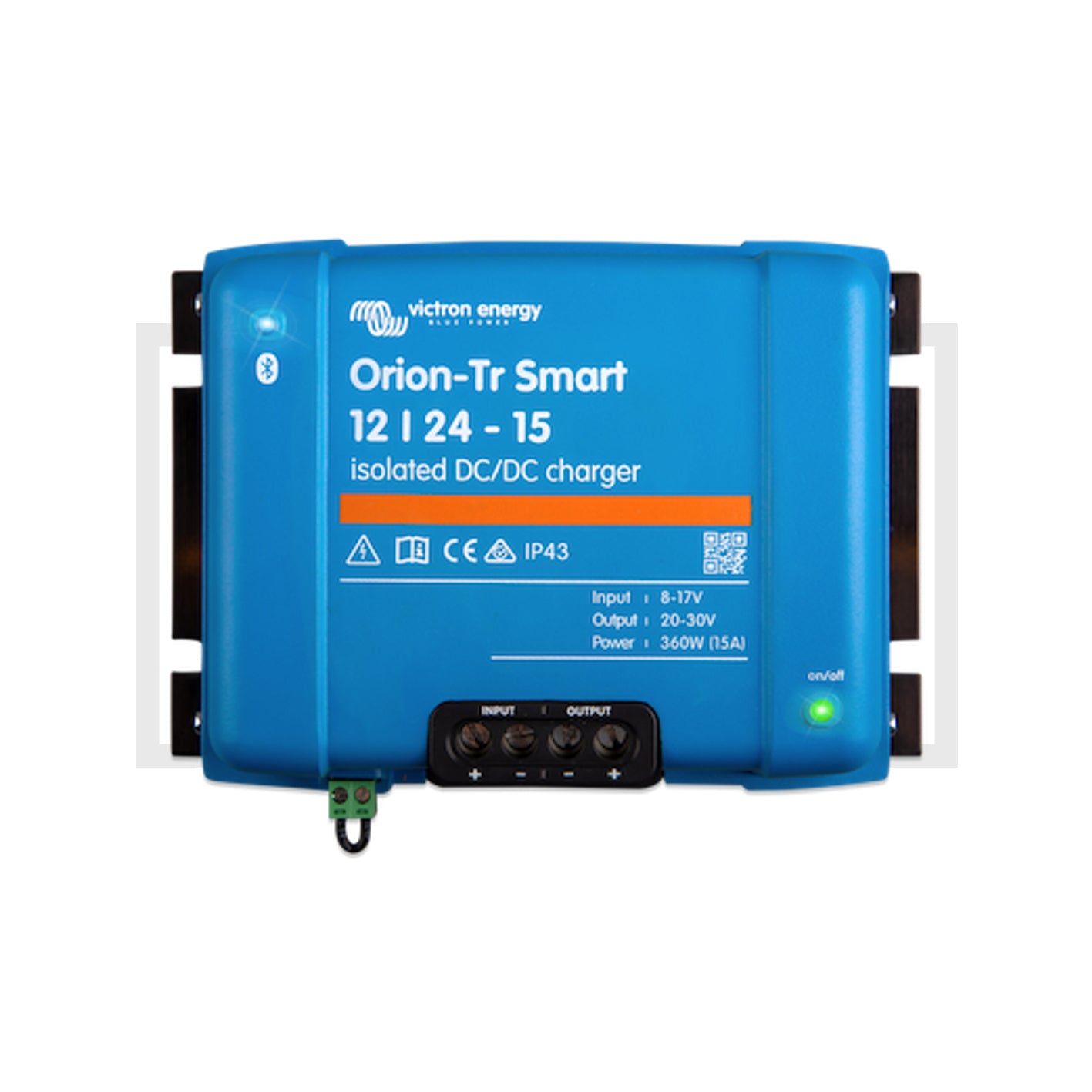

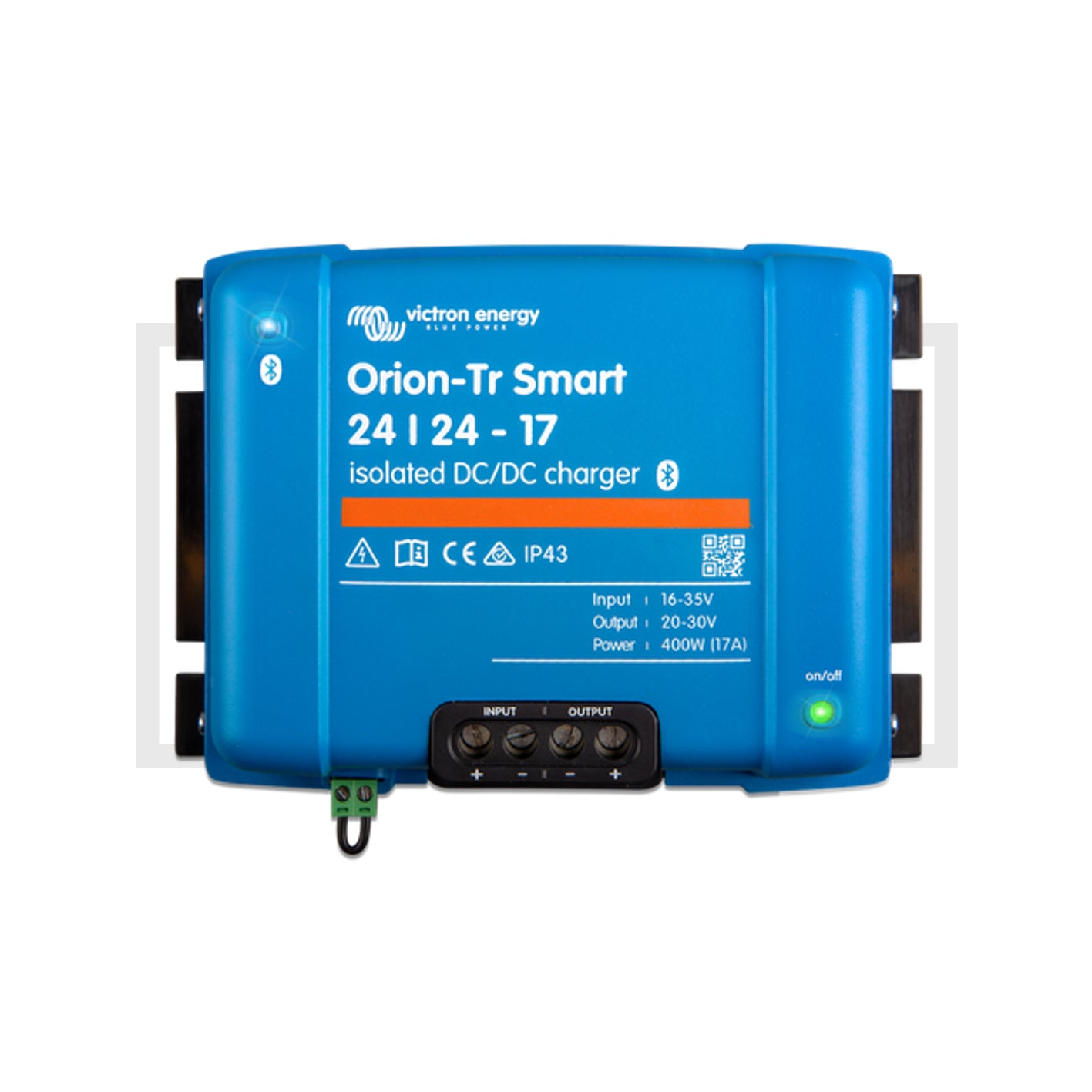

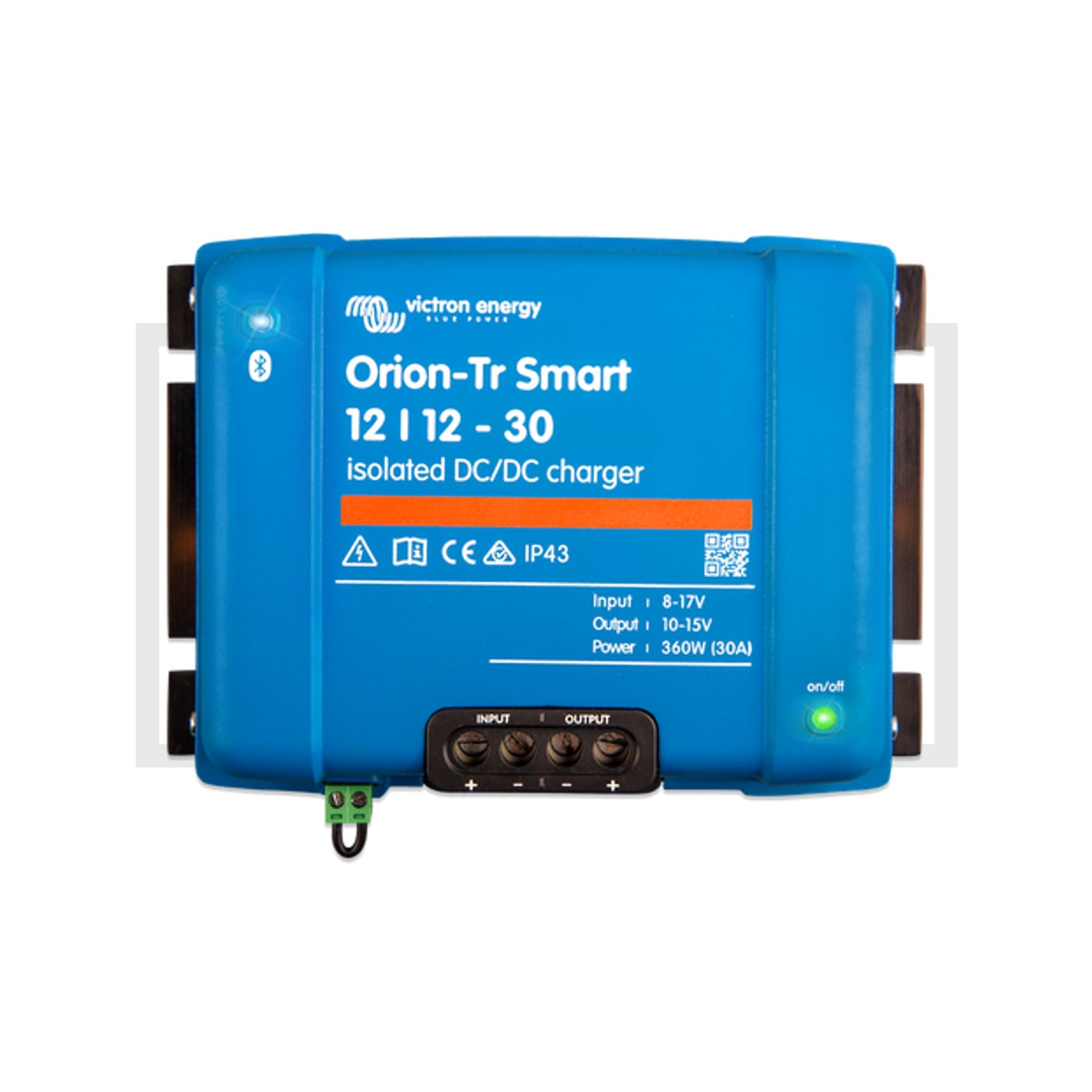

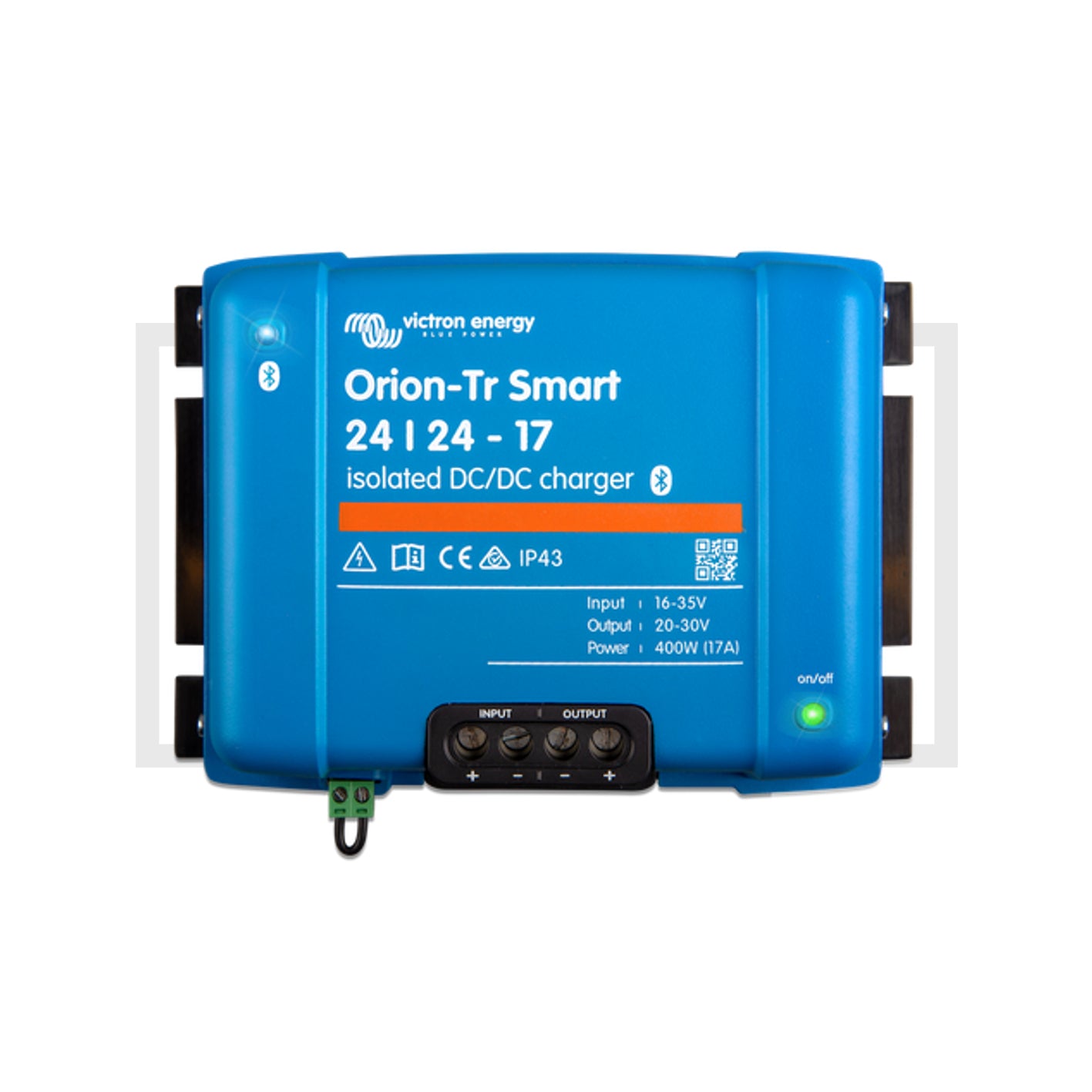

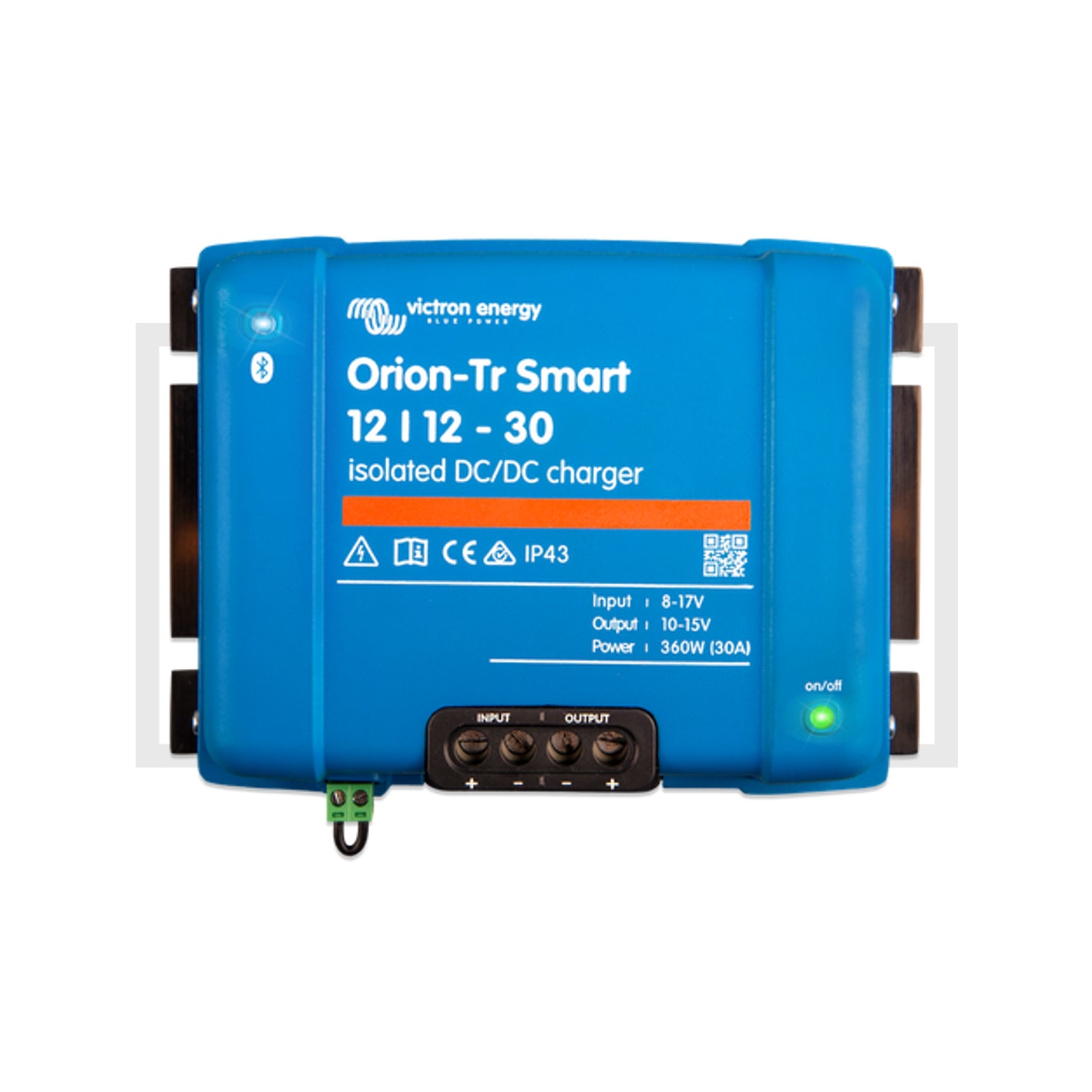

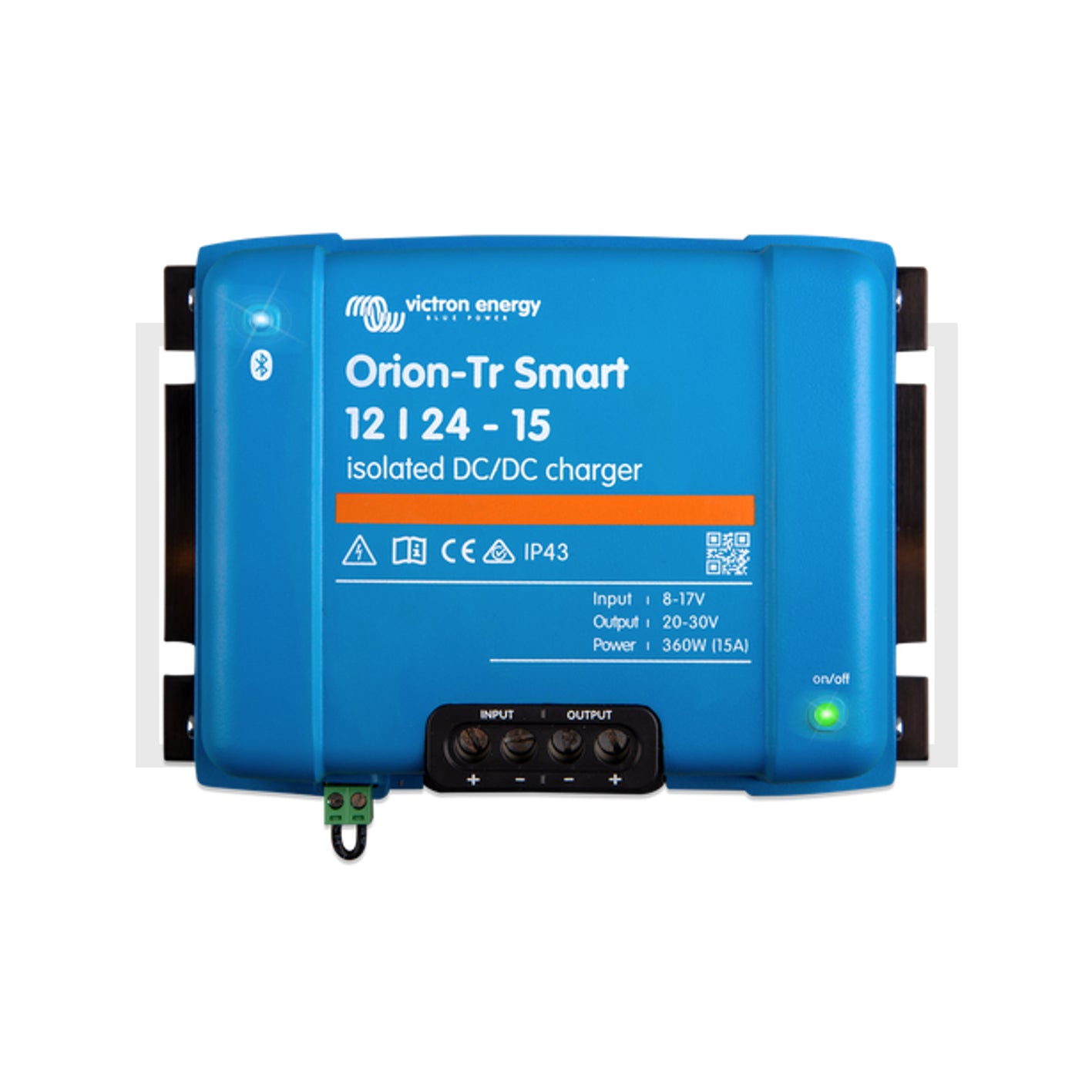

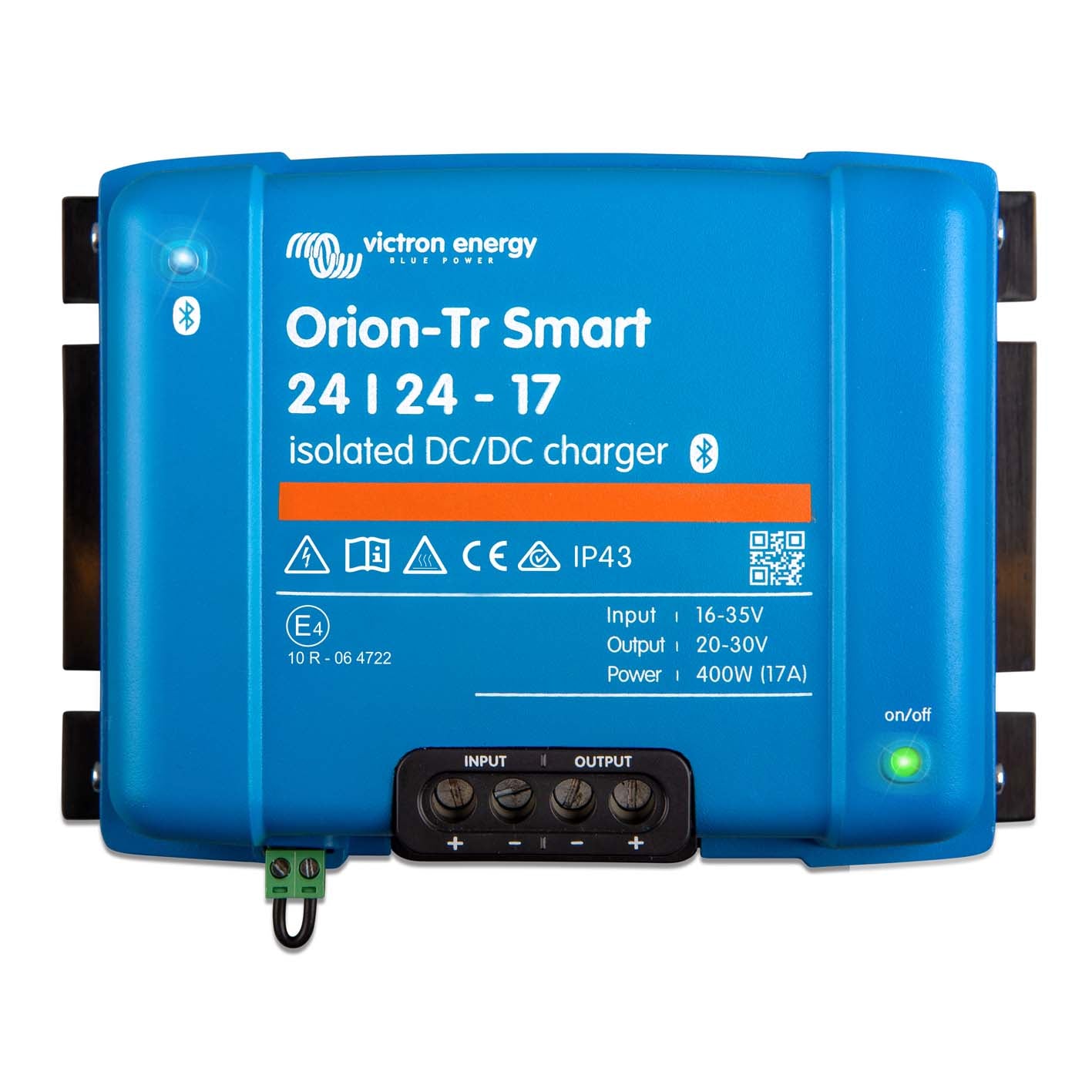

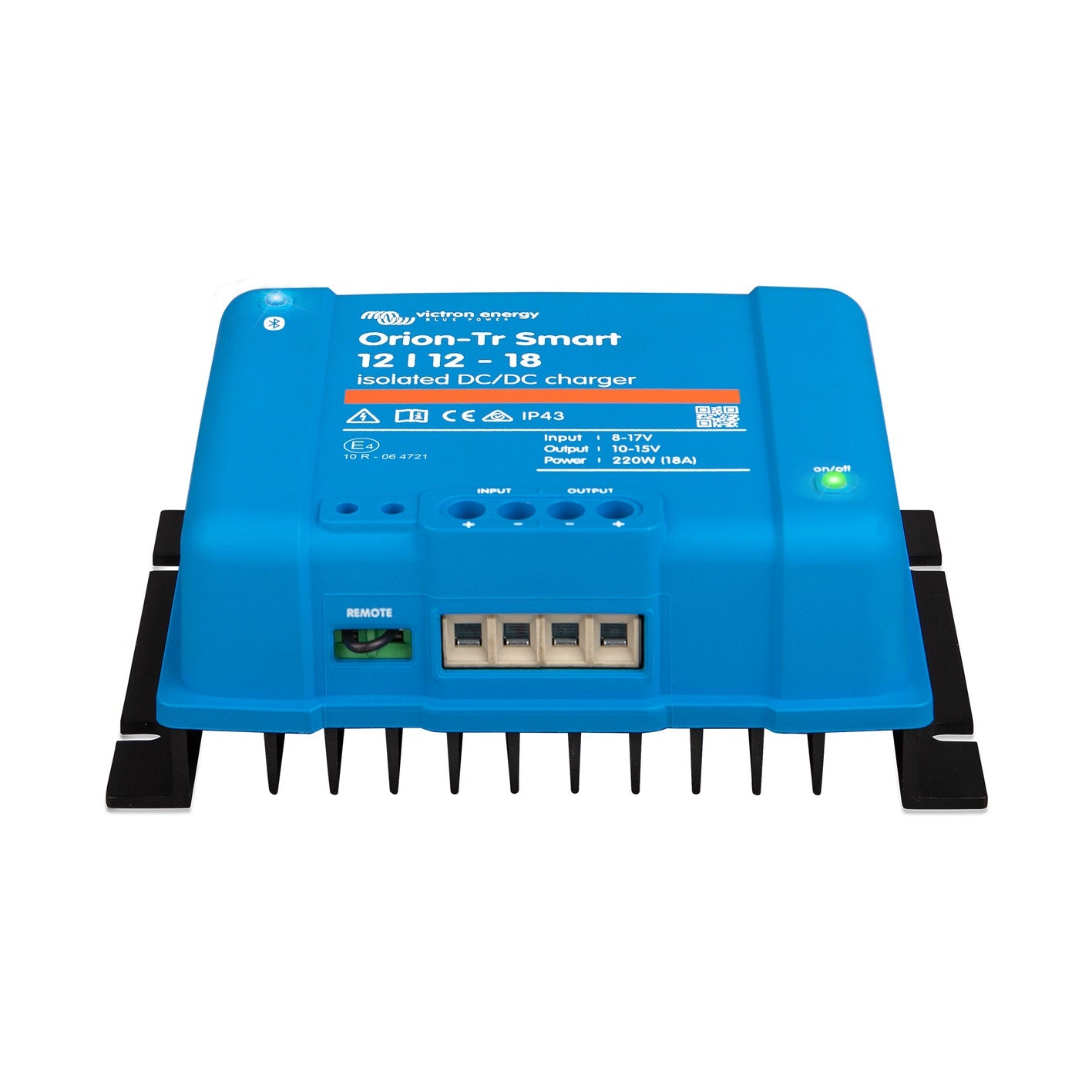

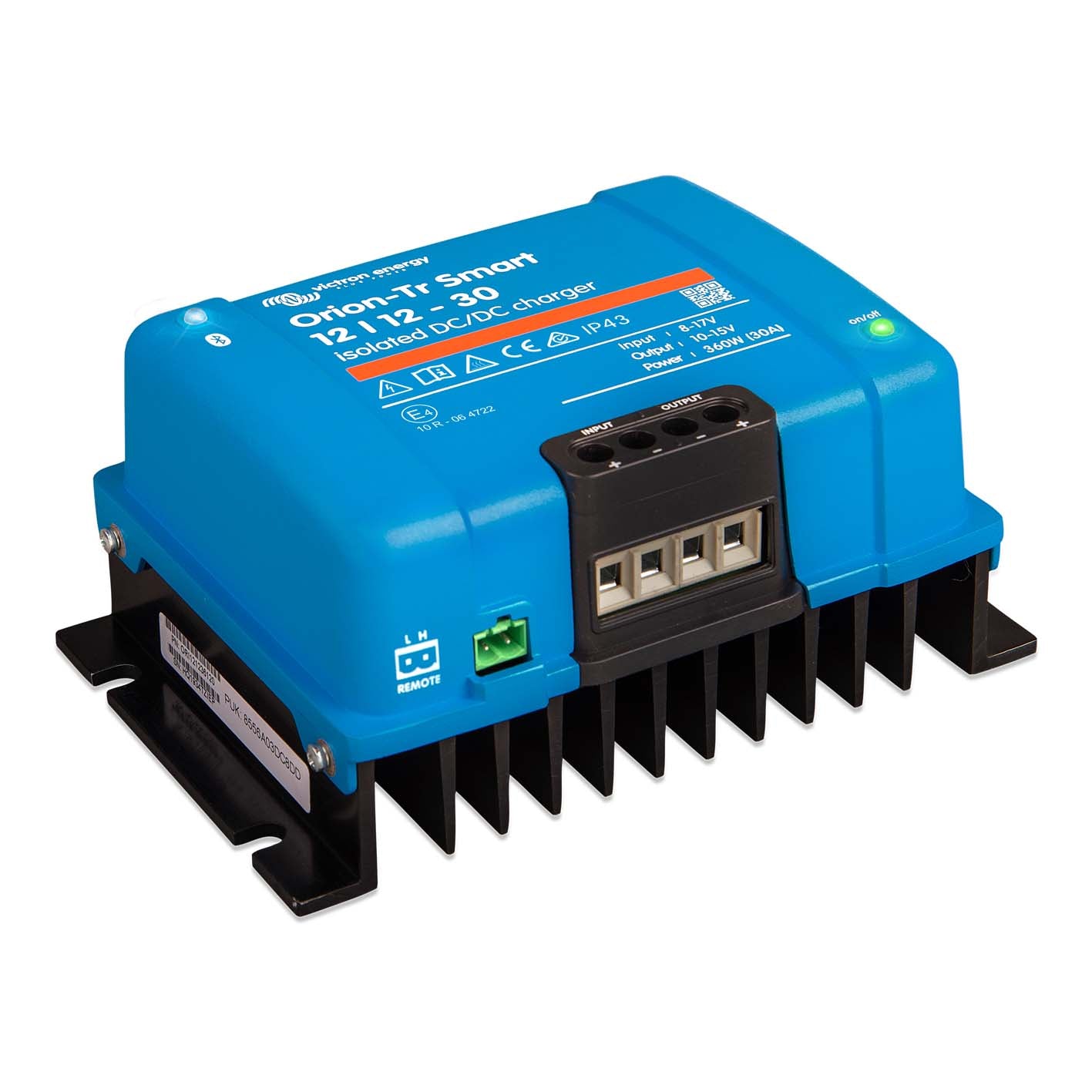

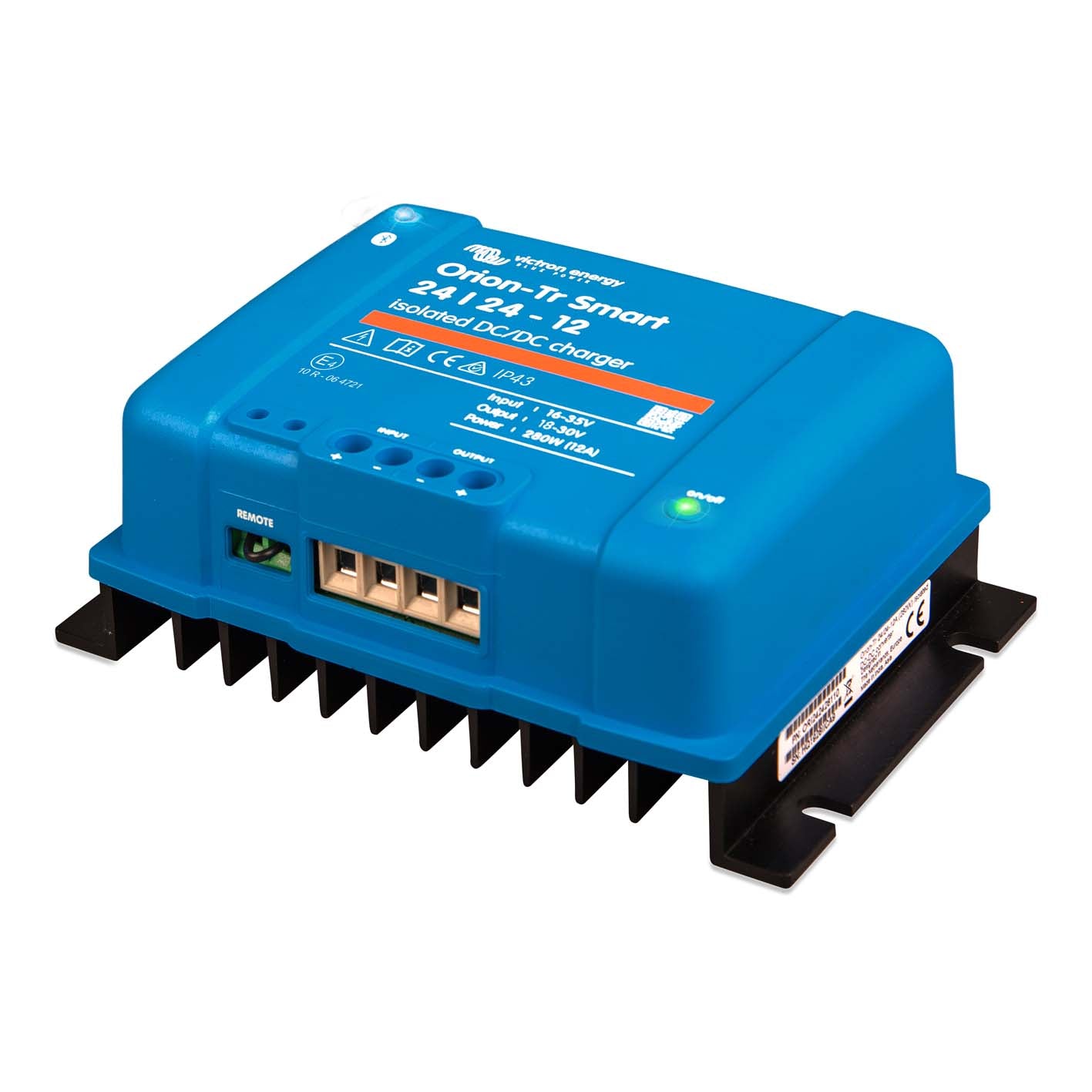

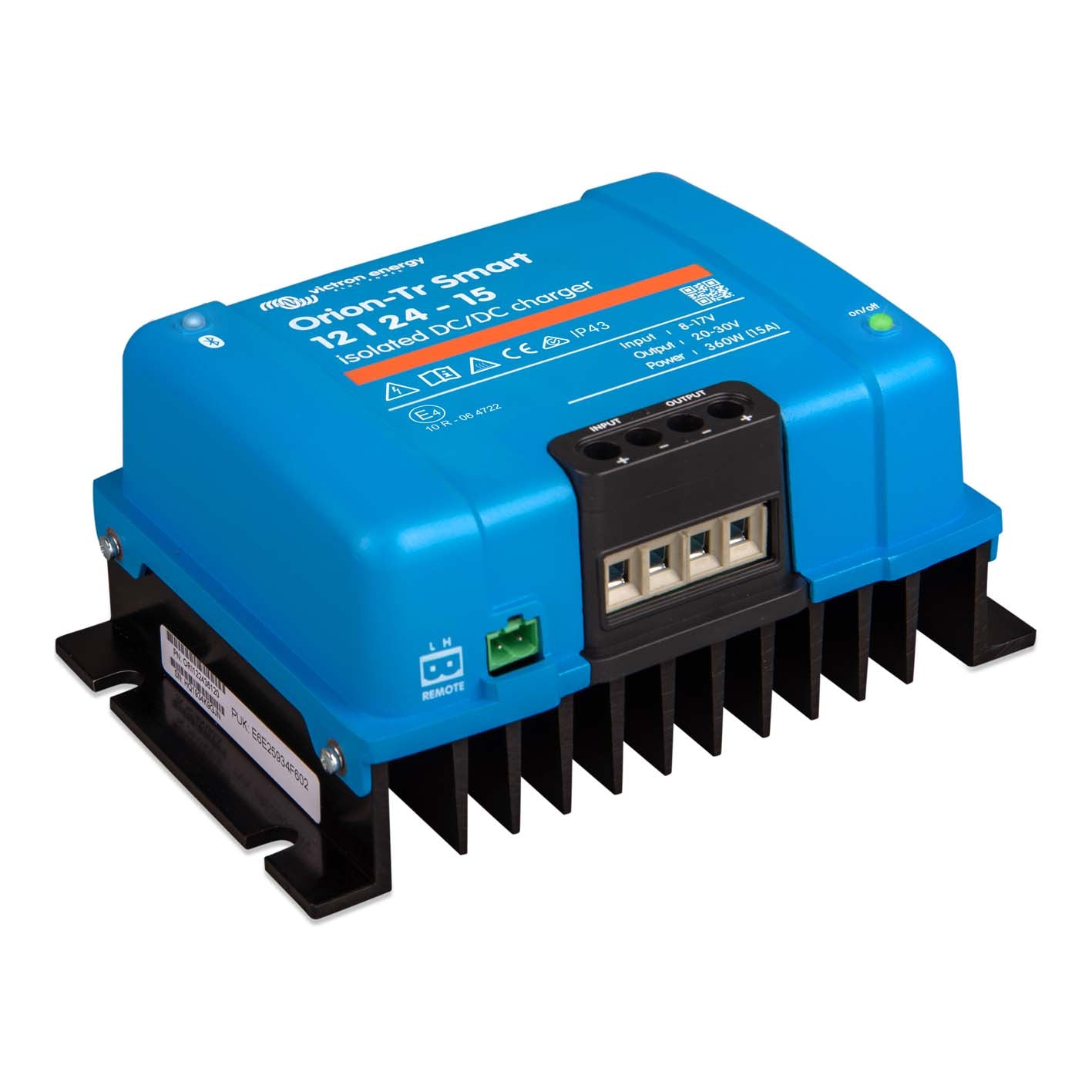

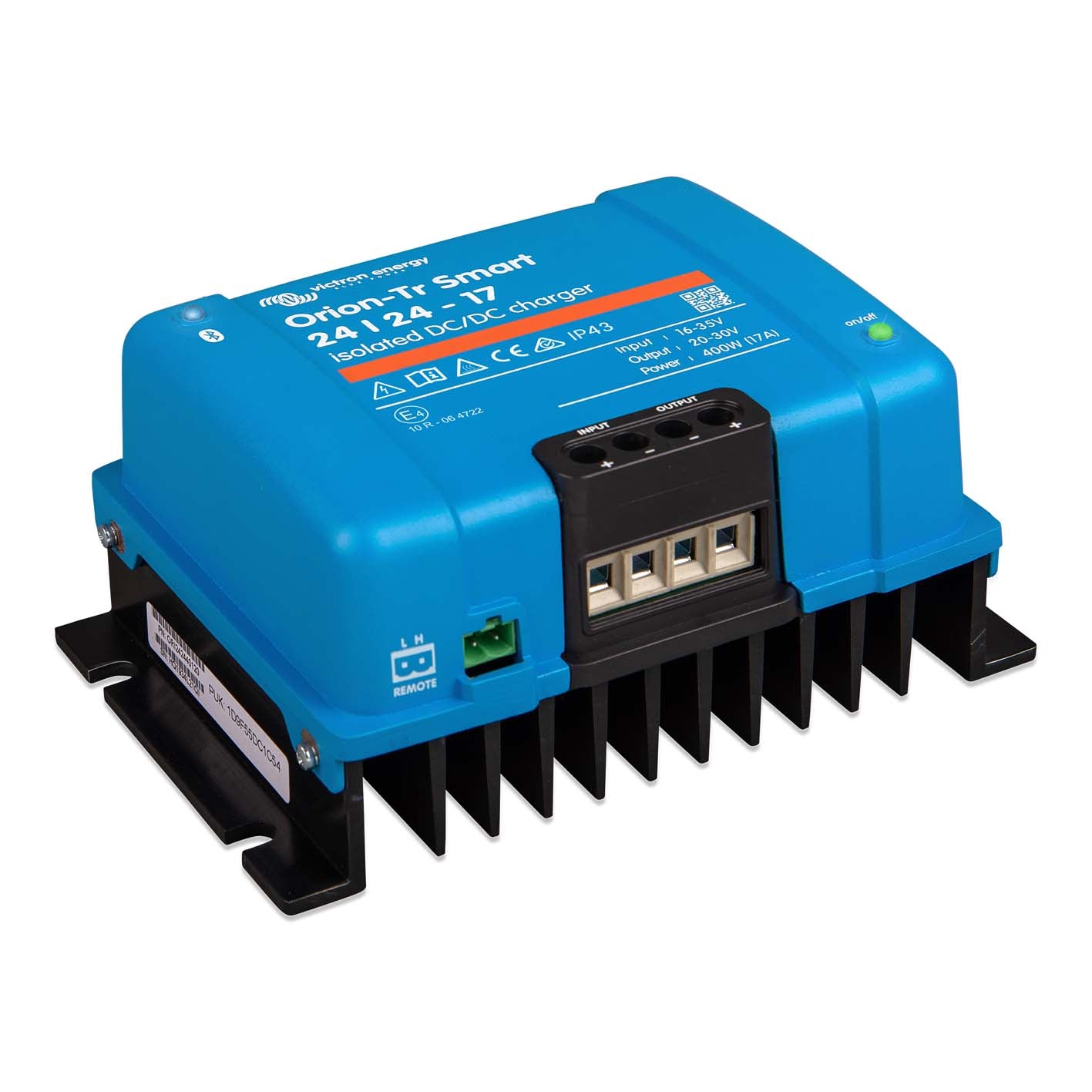

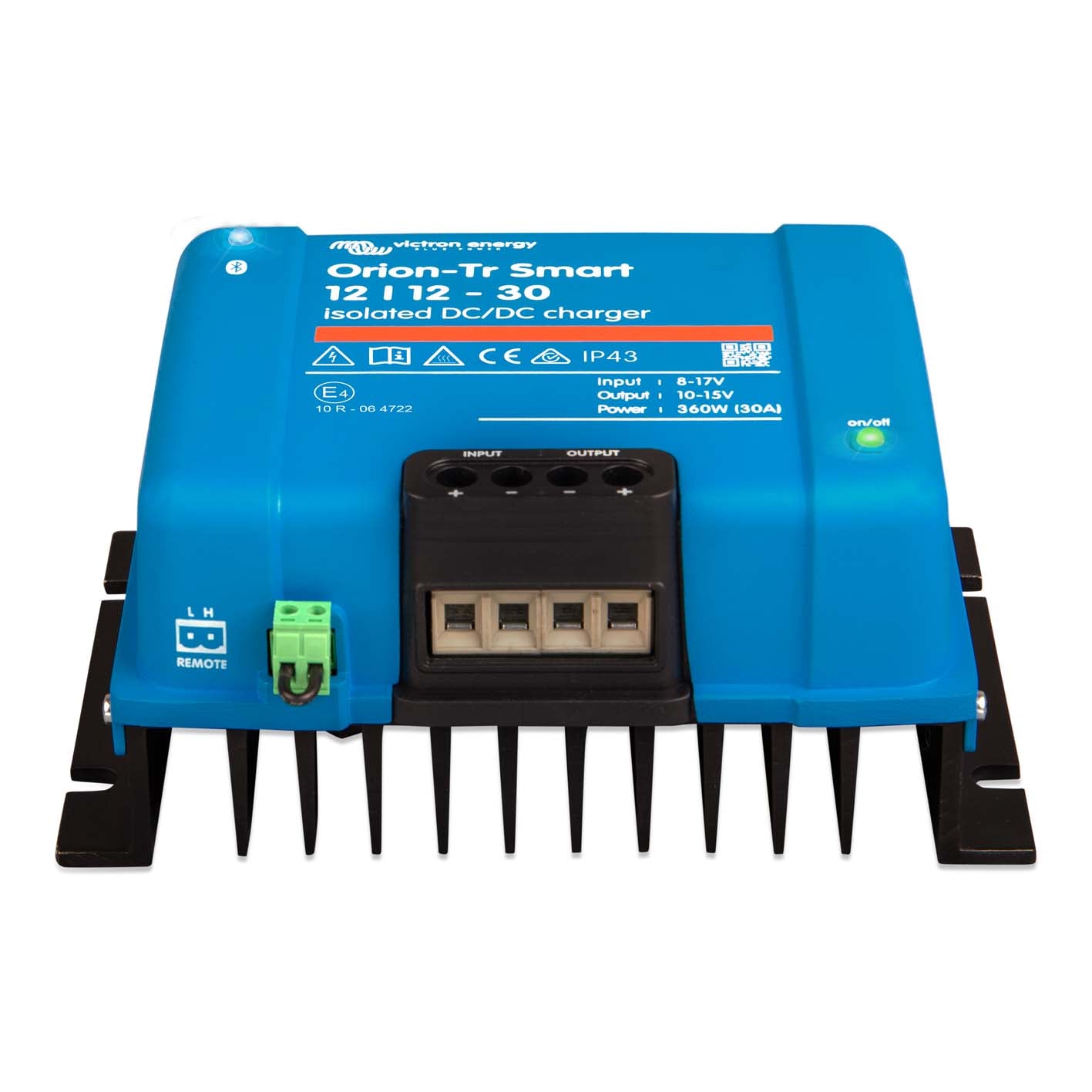

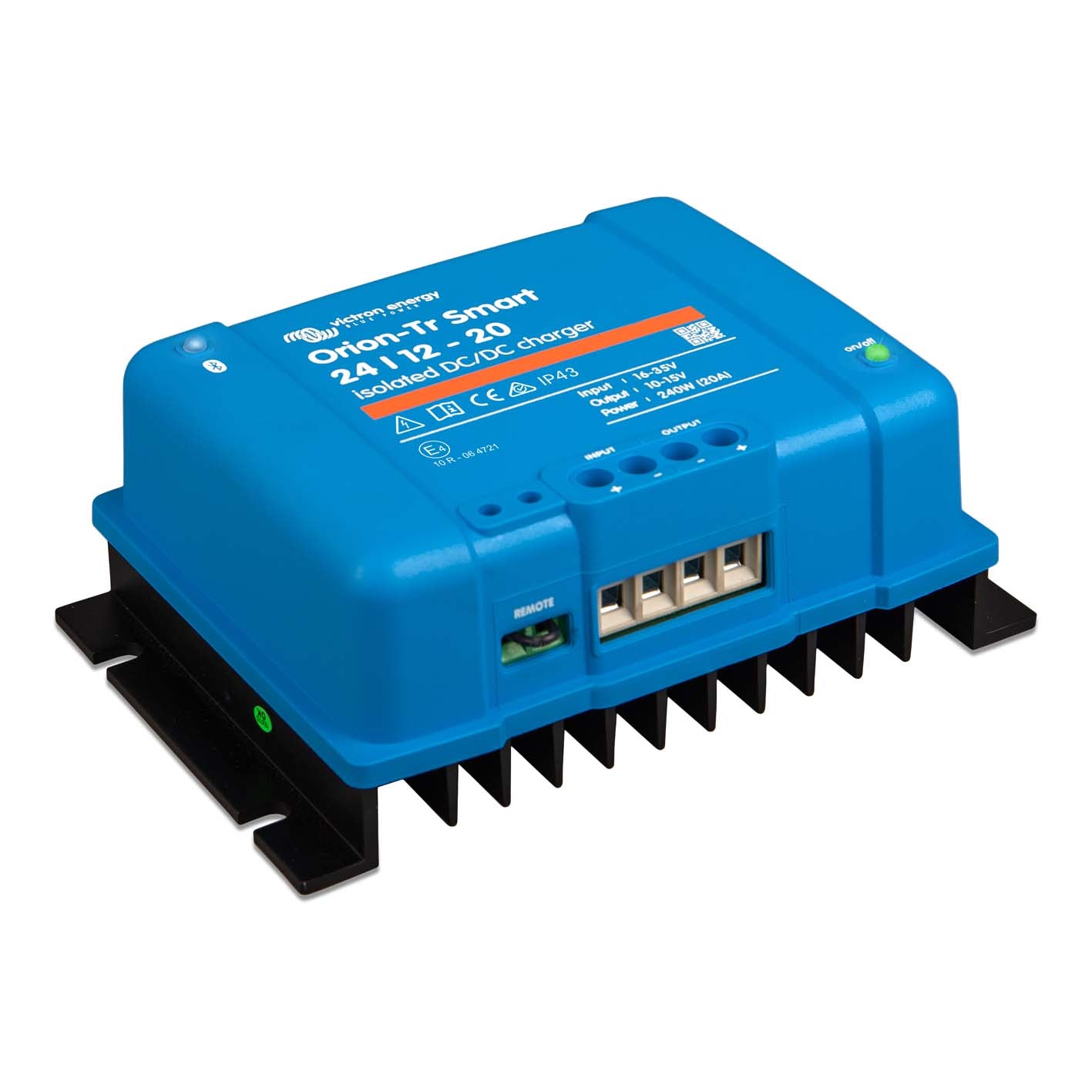

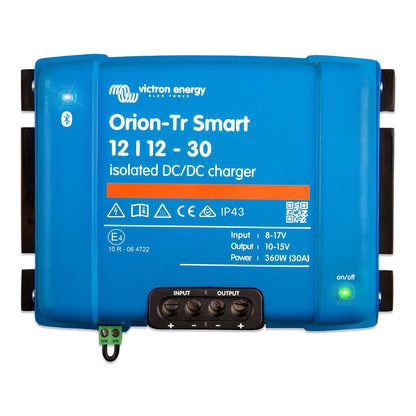

Victron Orion-Tr Smart DC-DC Charger (Isolated)
Victron Orion-Tr Smart DC-DC Charger (Isolated)

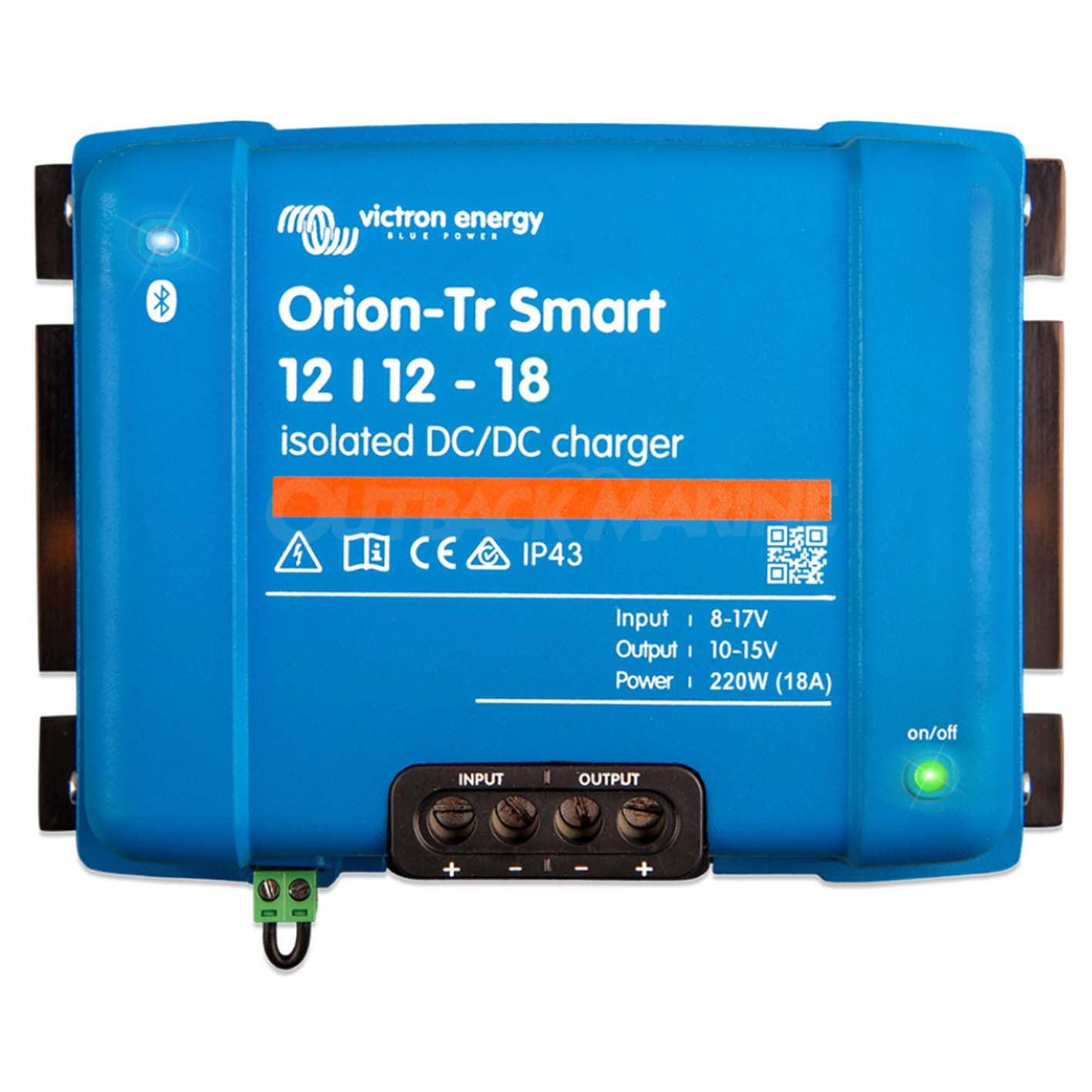

SKU: Orion-Tr Smart 12/12-18A (220W) Isolated DC-DC charger | ORI121222120
Couldn't load pickup availability
Shipping $ & Timeframe
Shipping $ & Timeframe
Free Shipping New Zealand wide.
Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before midday ship out same-day.
Warranty & Returns
Warranty & Returns
5 Year Warranty
We have a 7 day change of mind return policy, subject to a restocking fee.
Datasheets, Manuals, Certifications
Datasheets, Manuals, Certifications
Perfect for Dual Battery Systems in Vehicles and Boats
Keep your service battery properly charged off the alternator — with full galvanic isolation between input and output for safe, noise-free charging on boats and sensitive systems.

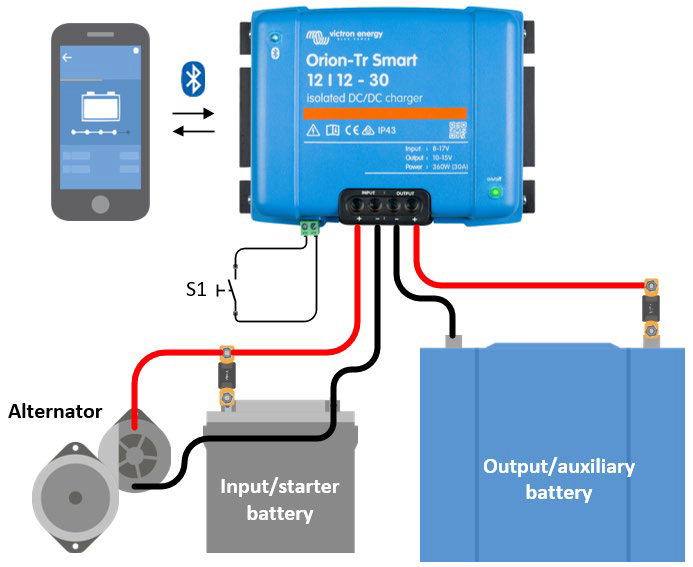

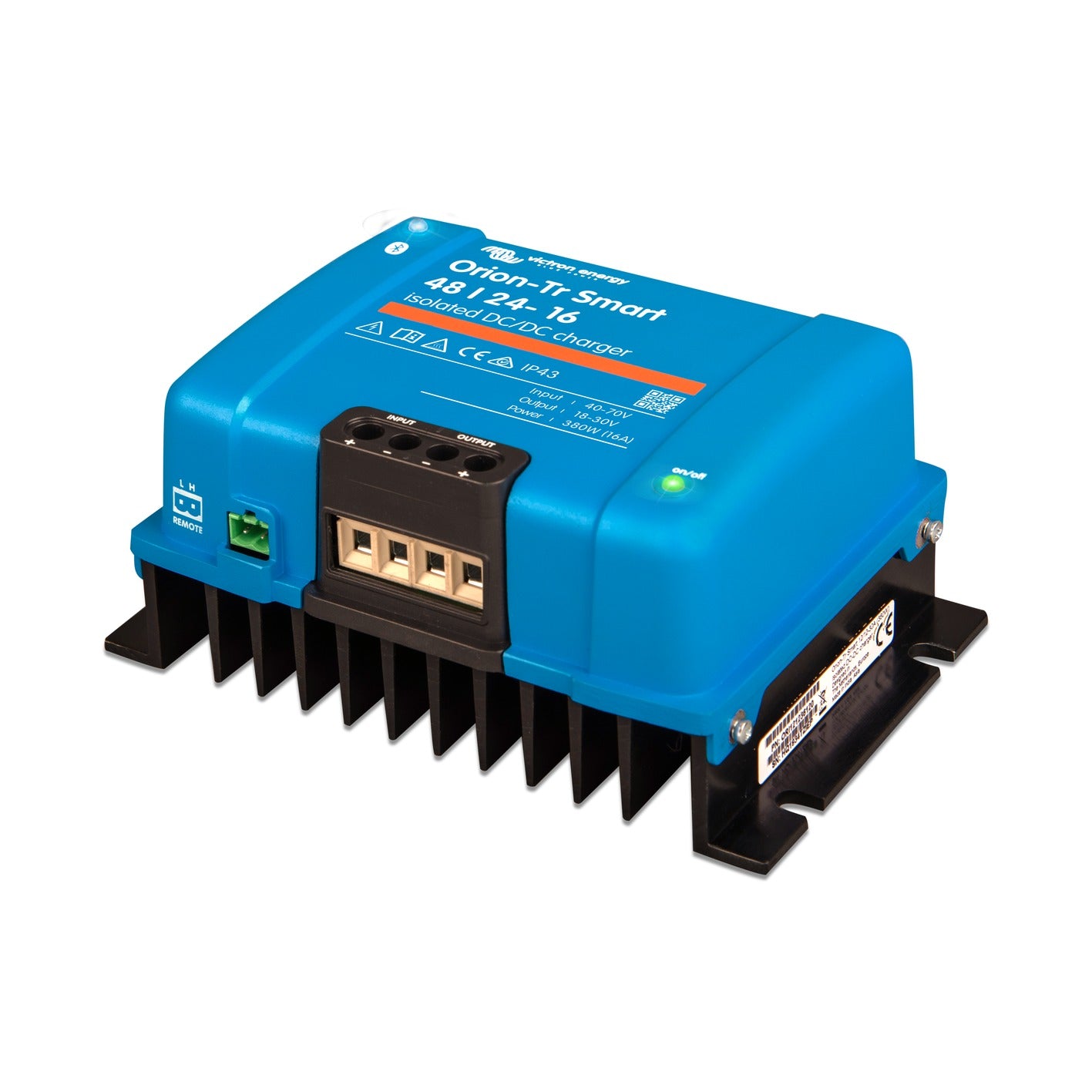

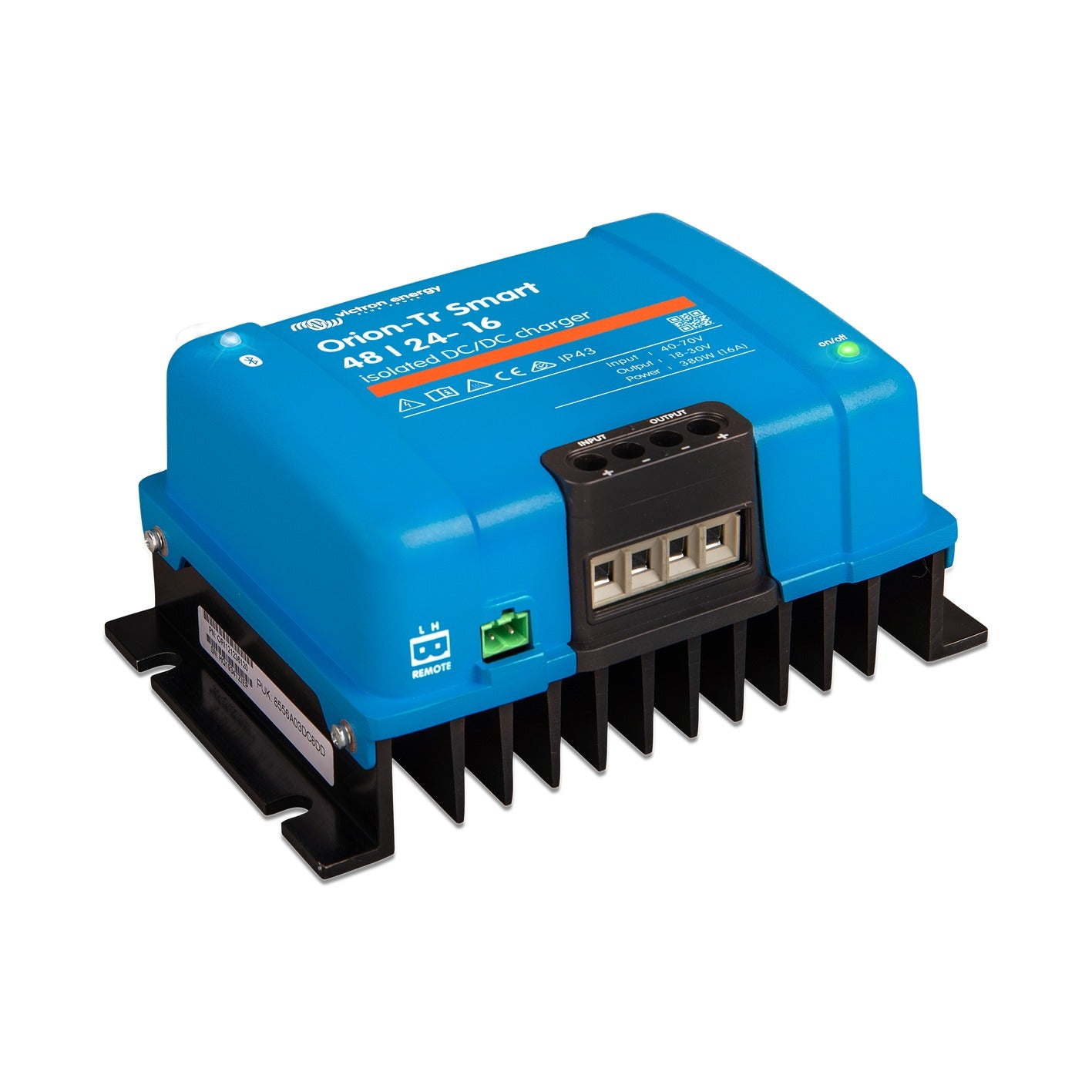

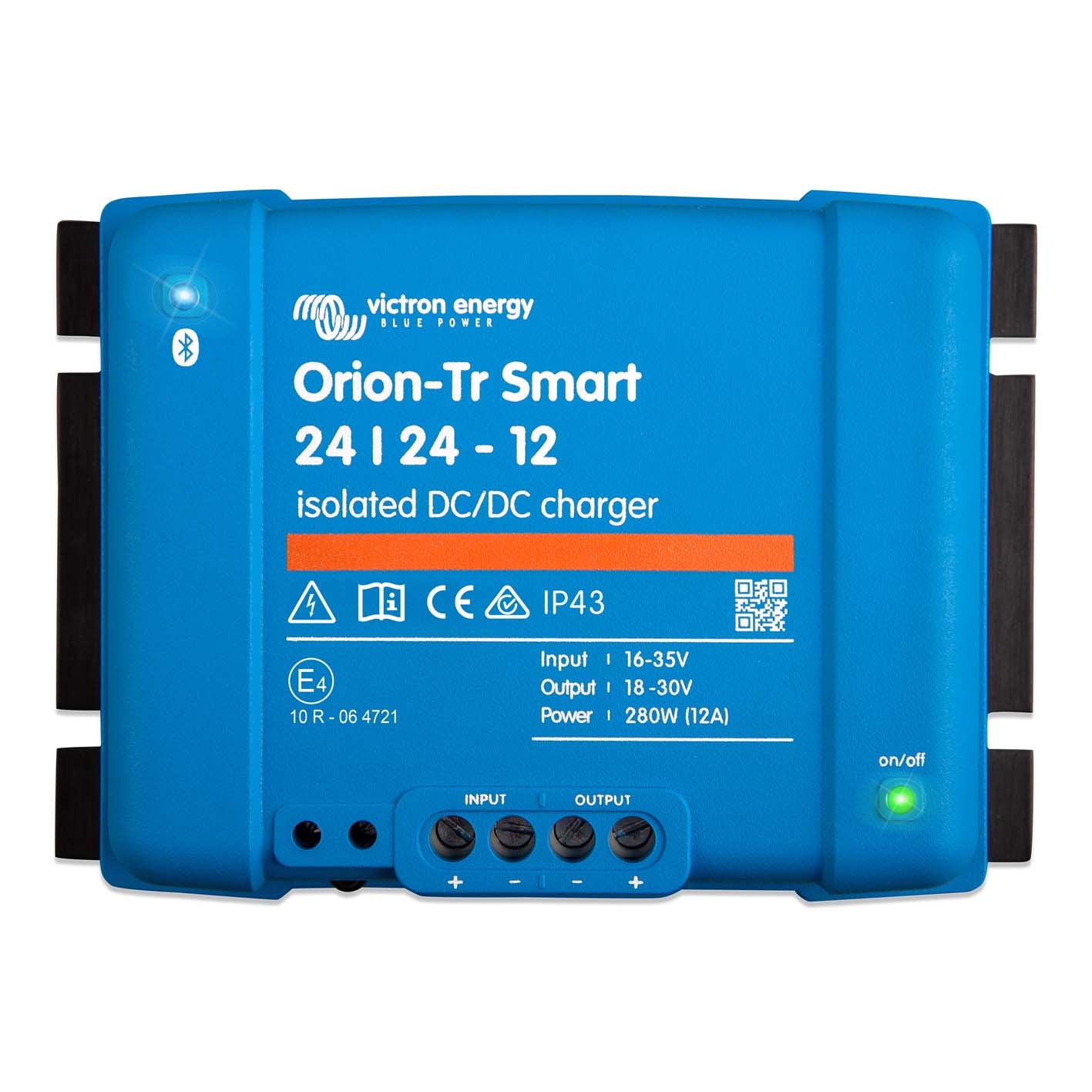

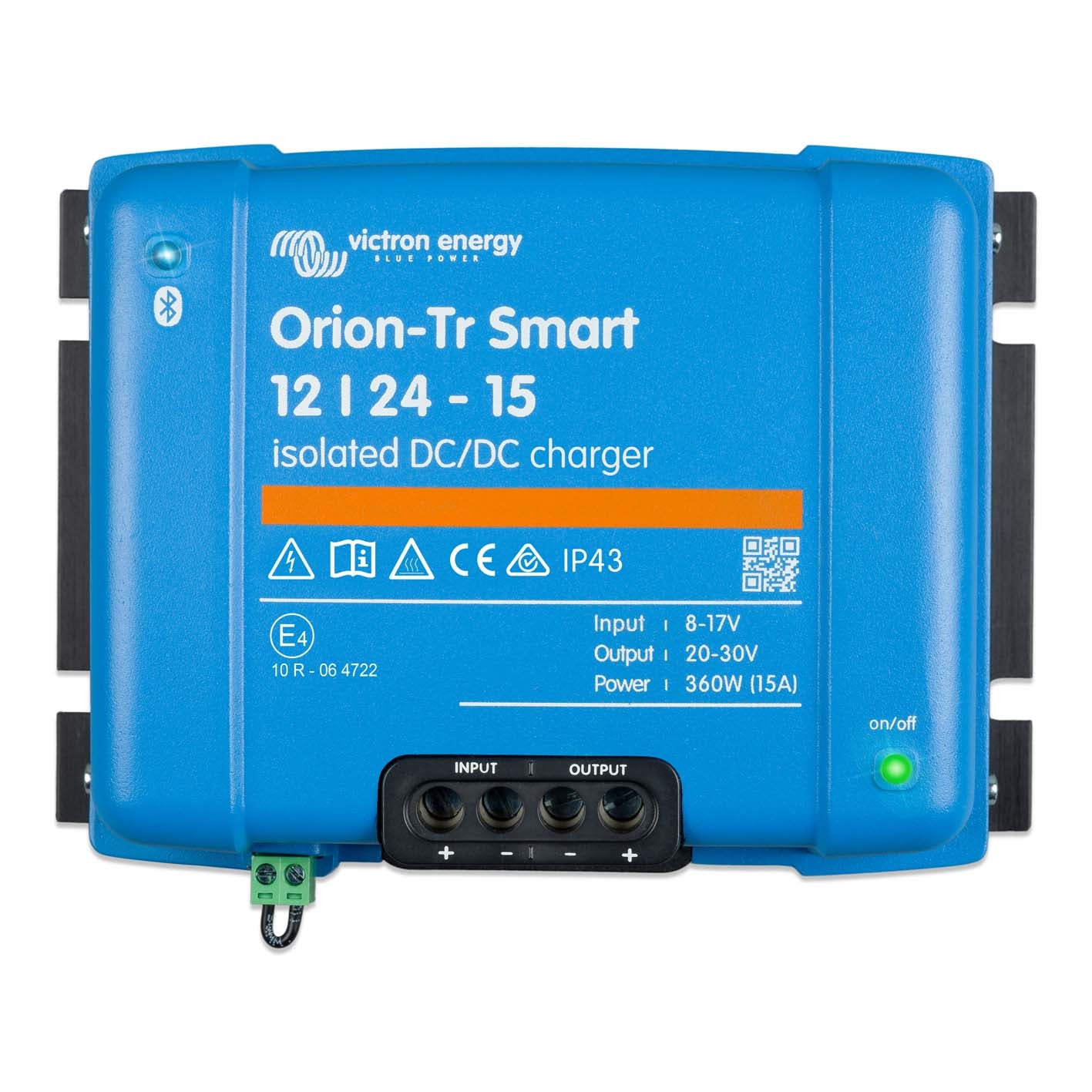

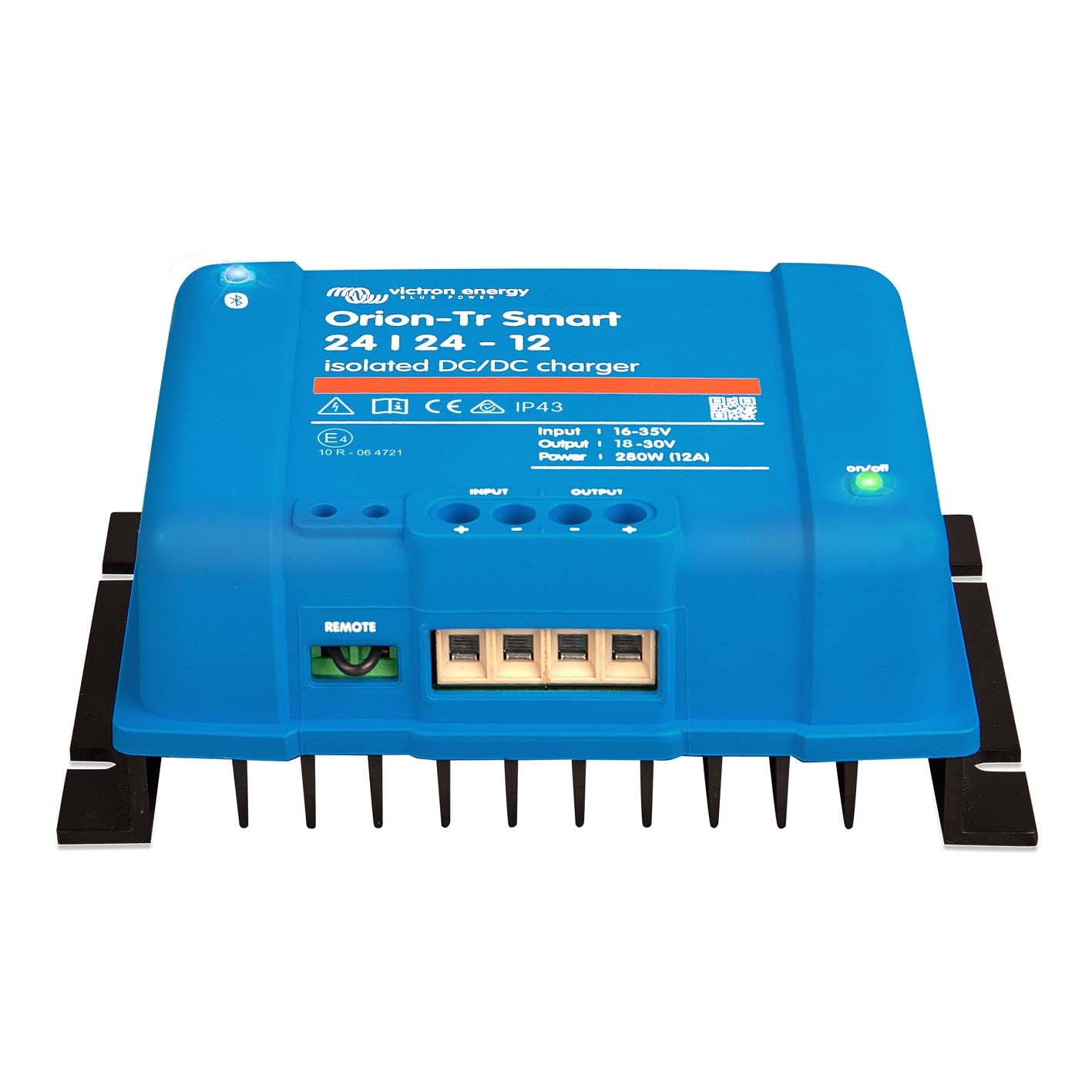

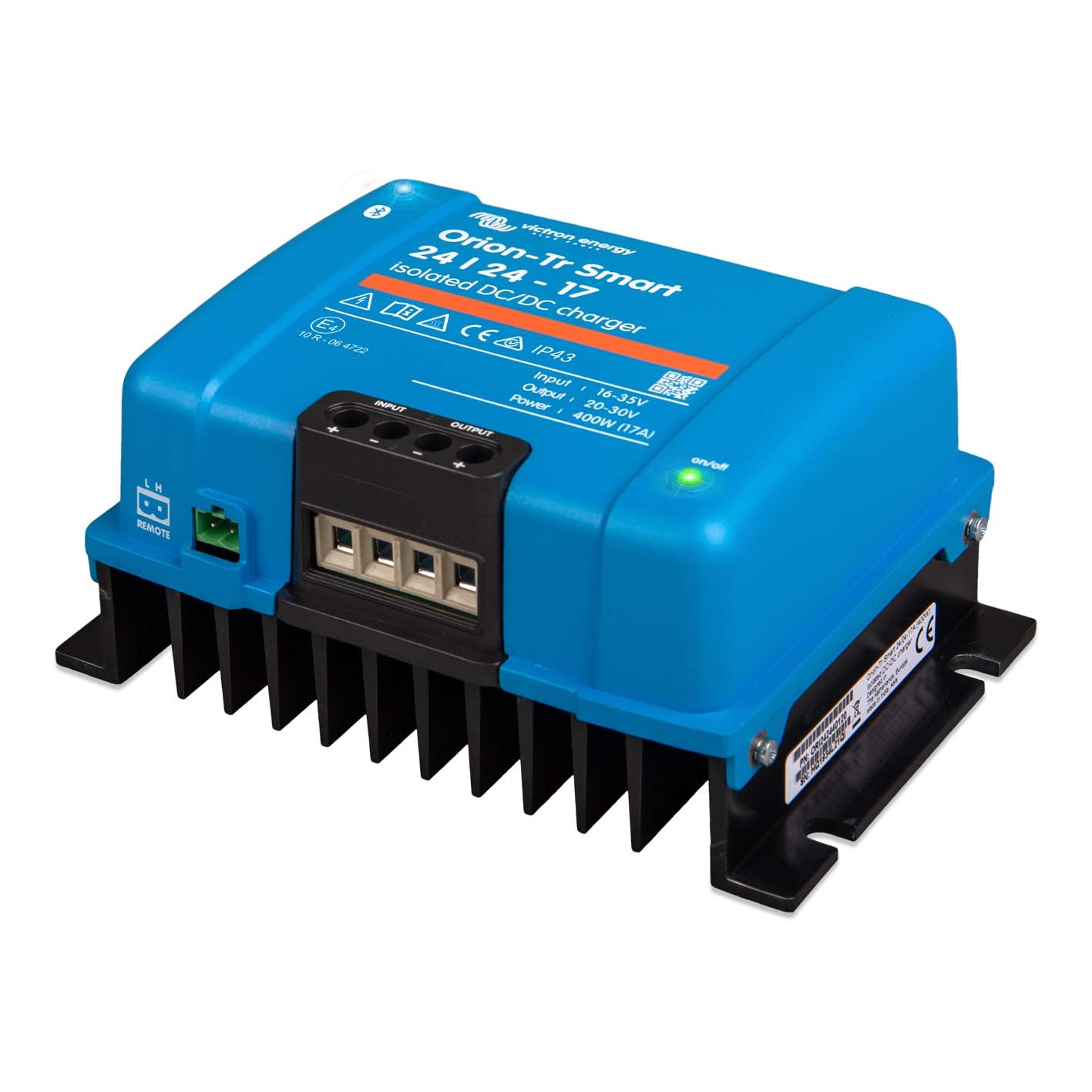

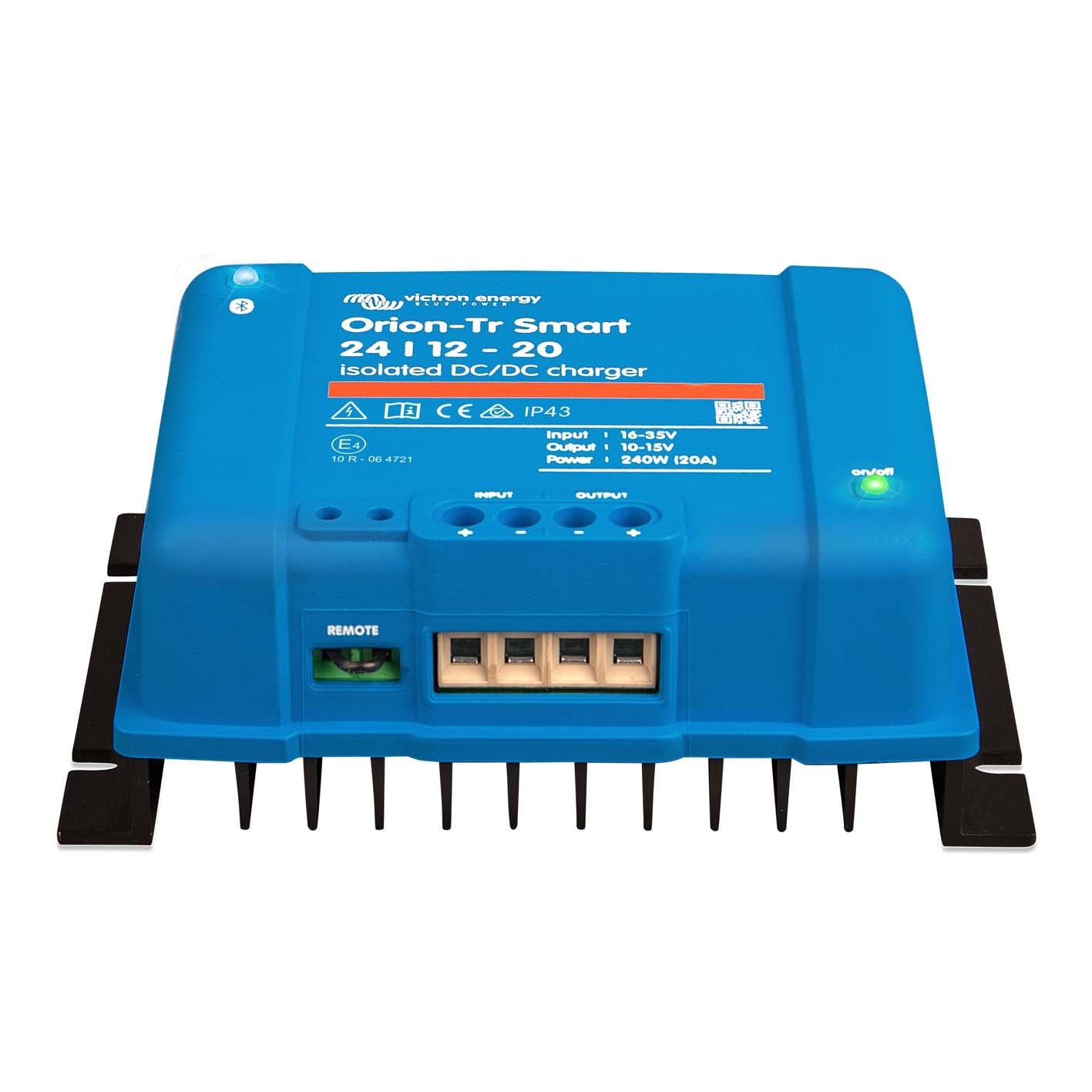

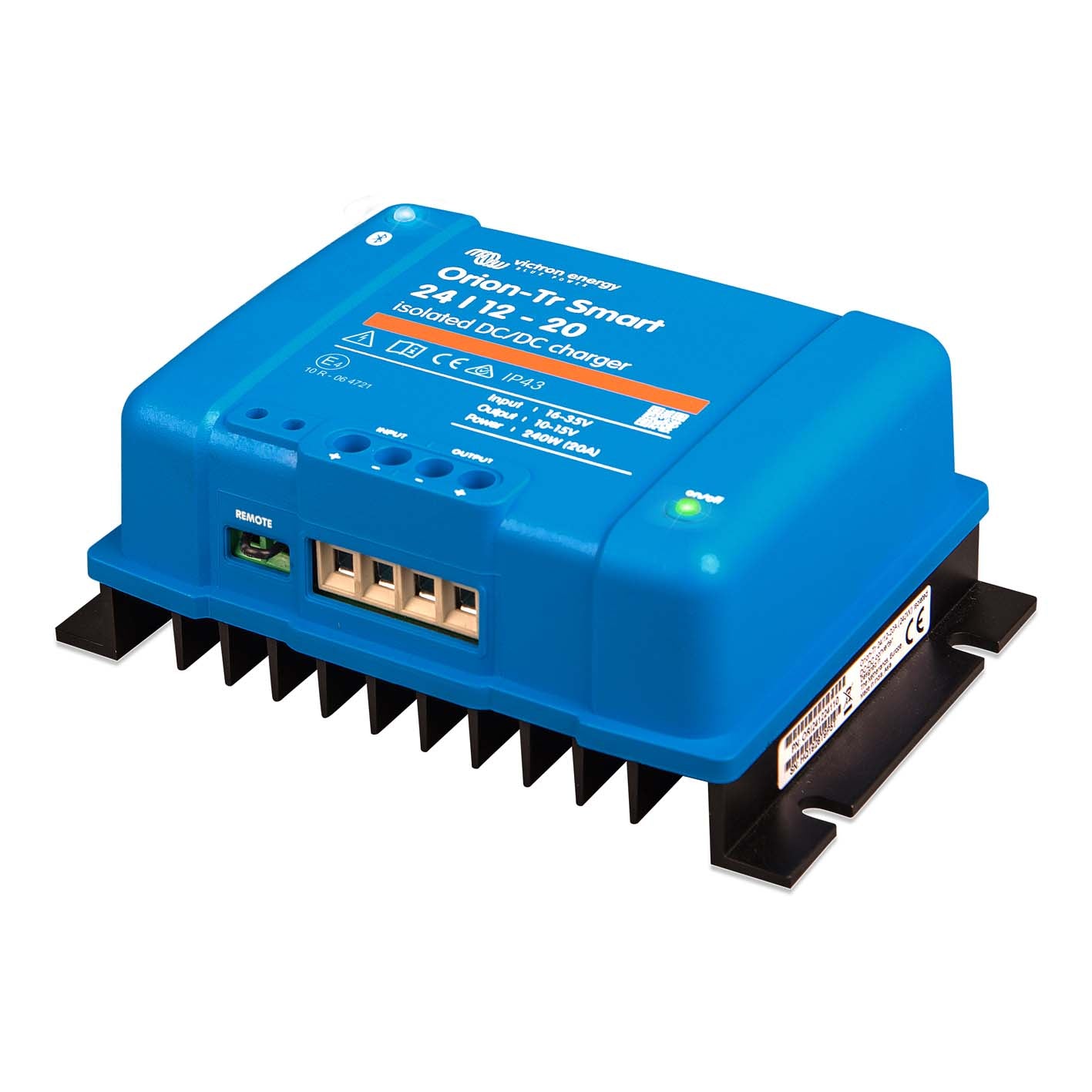

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.
The Orion-Tr Smart charger is suitable for both lead-acid and lithium batteries. Models are available up to 400W, and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
This is the isolated version: the input and output are galvanically isolated, which breaks ground loops and keeps your circuits safely separated — the right choice for marine systems and any install where a shared earth could cause problems. If you don't need isolation, the non-isolated Orion-Tr Smart is a lower-cost alternative.
Key features
- Adaptive 3-stage charging for both lead-acid and lithium batteries
- Full galvanic isolation between input and output — ideal for marine and sensitive electronics
- Built-in Bluetooth — monitor and program from your phone via VictronConnect
- Engine running detection — only charges when the alternator is running

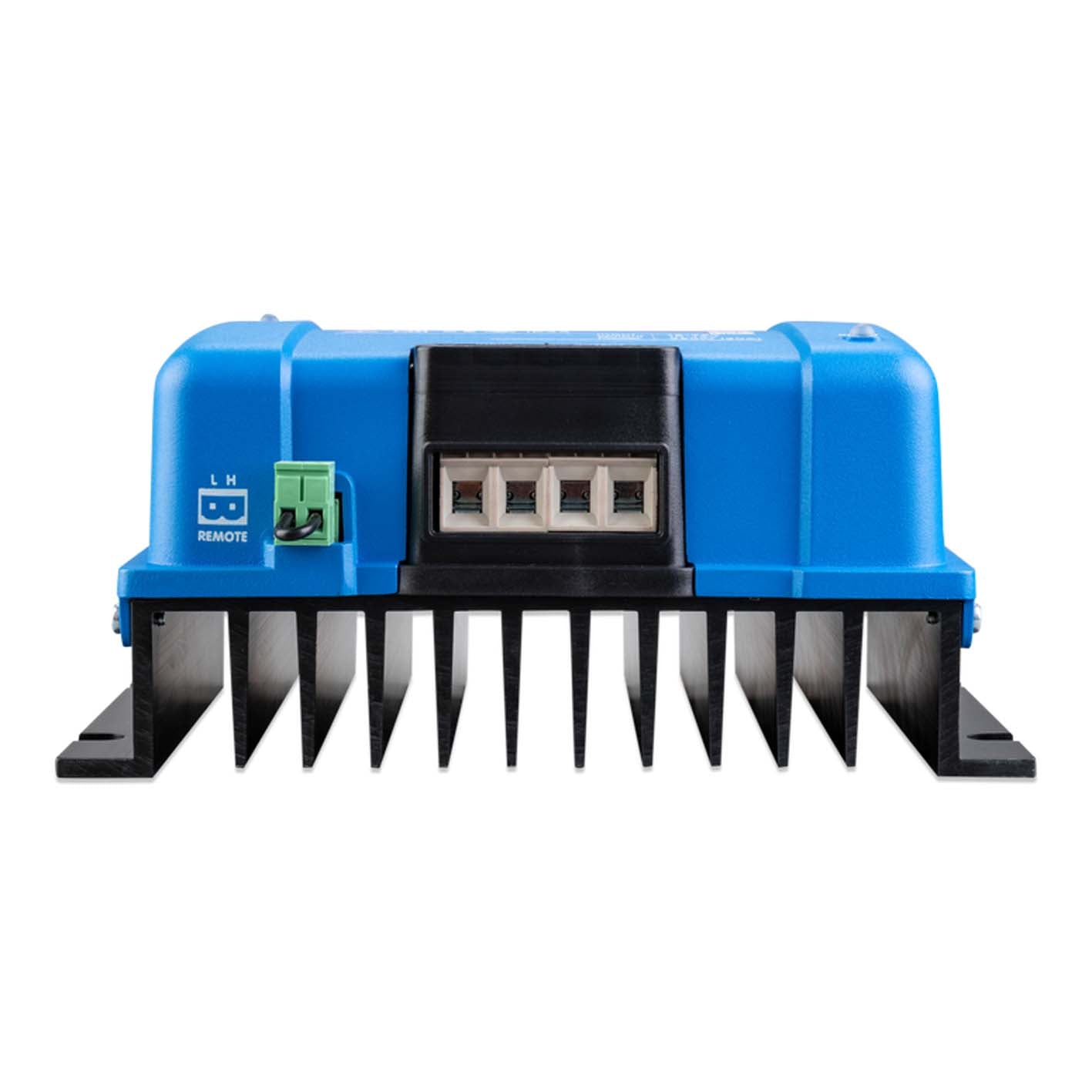

- Remote on/off control
- Models available up to 400 W; connect unlimited units in parallel for more output
- Rated for high ambient temperatures up to 55°C, with full rated output up to 40°C
Available models
| Input voltage | Output voltage | Output (charge) current |
|---|---|---|

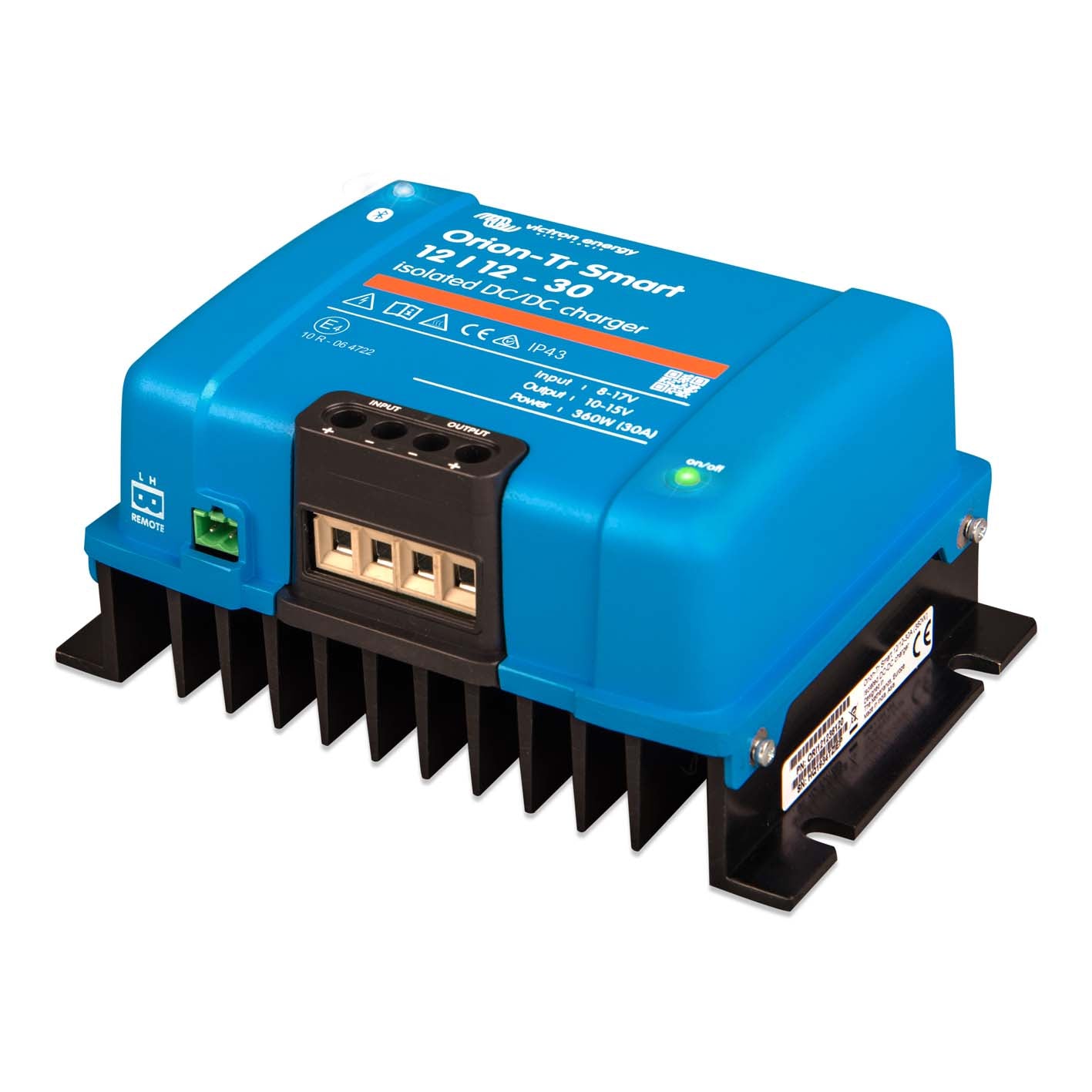

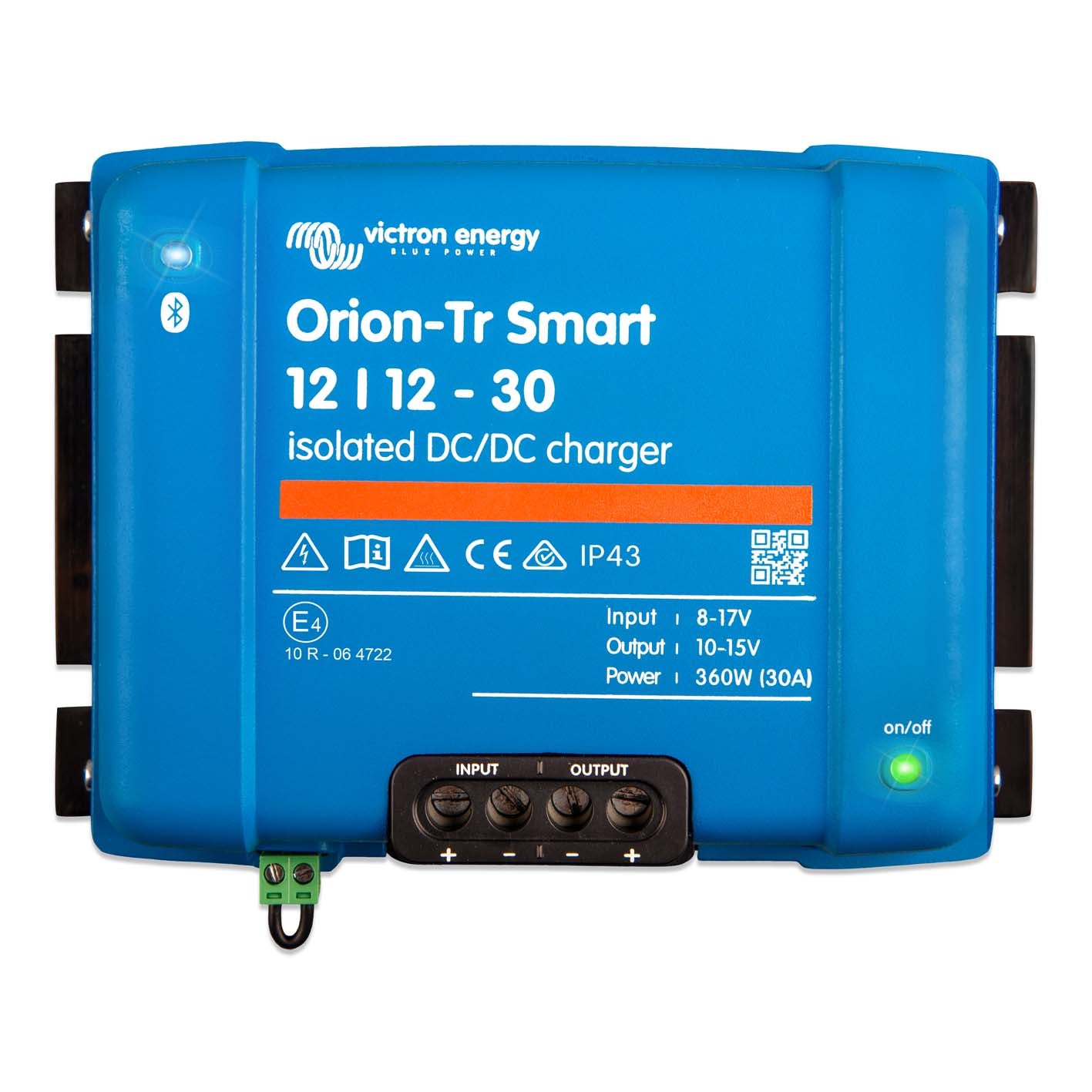

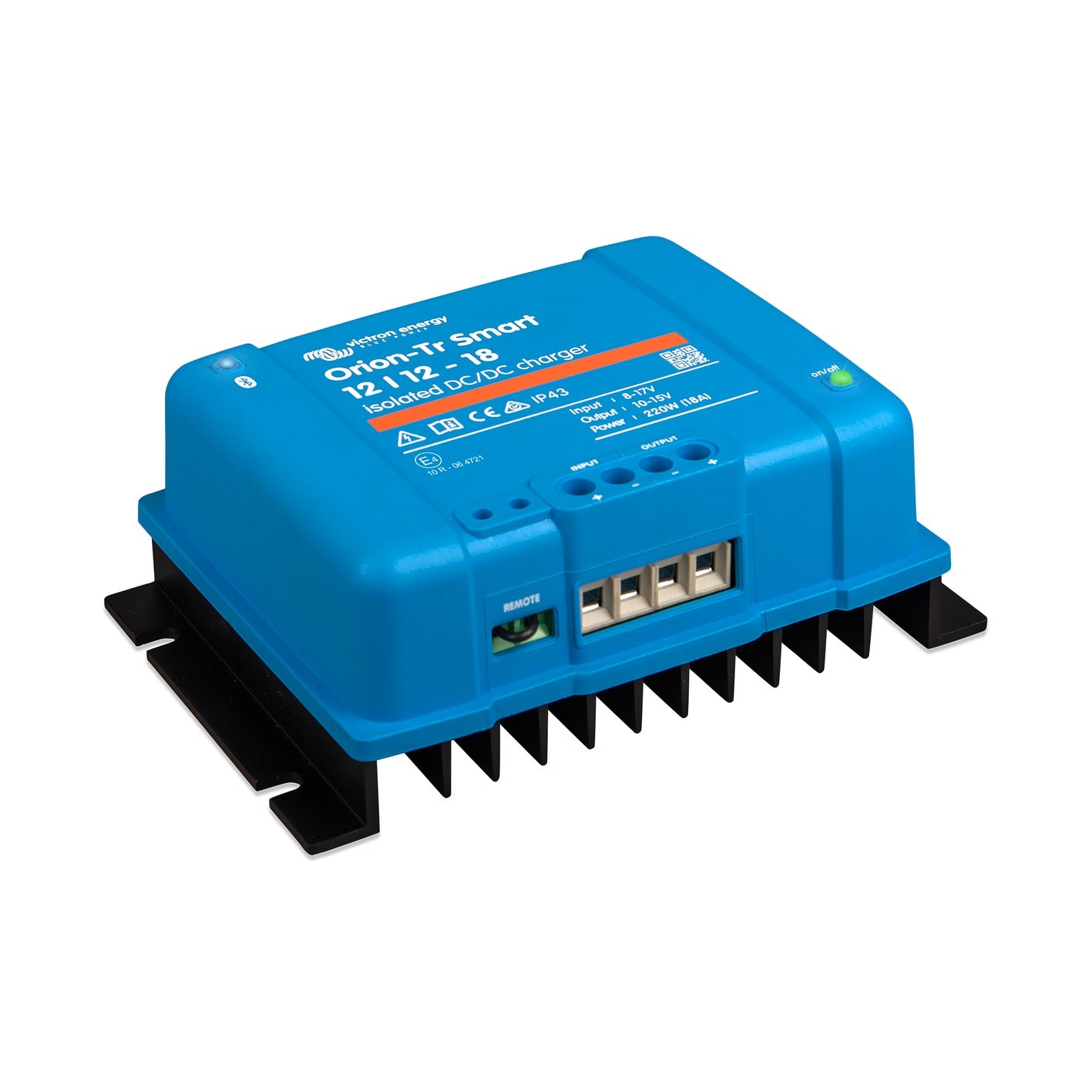

| 12 V | 12 V | 18 A / 30 A |

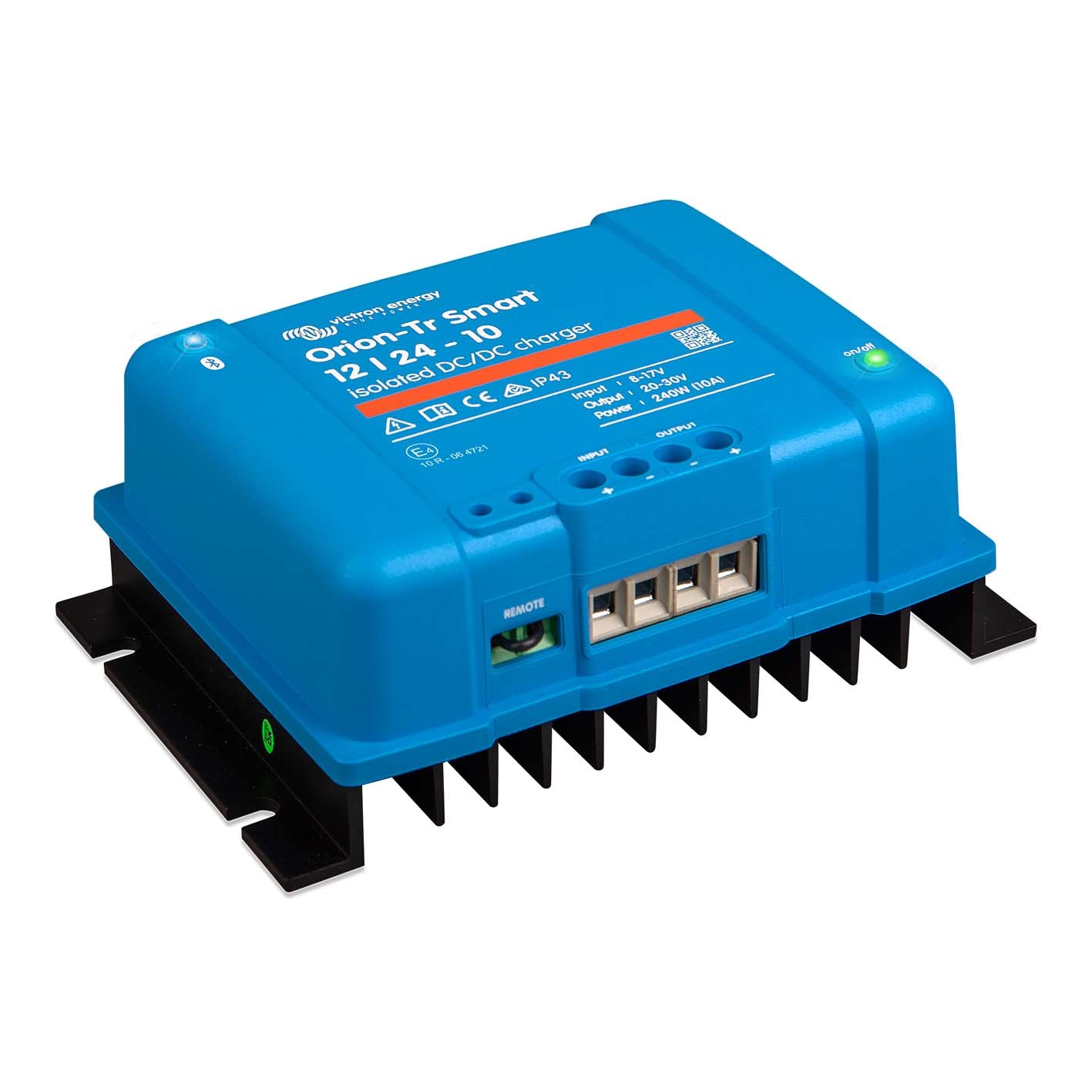

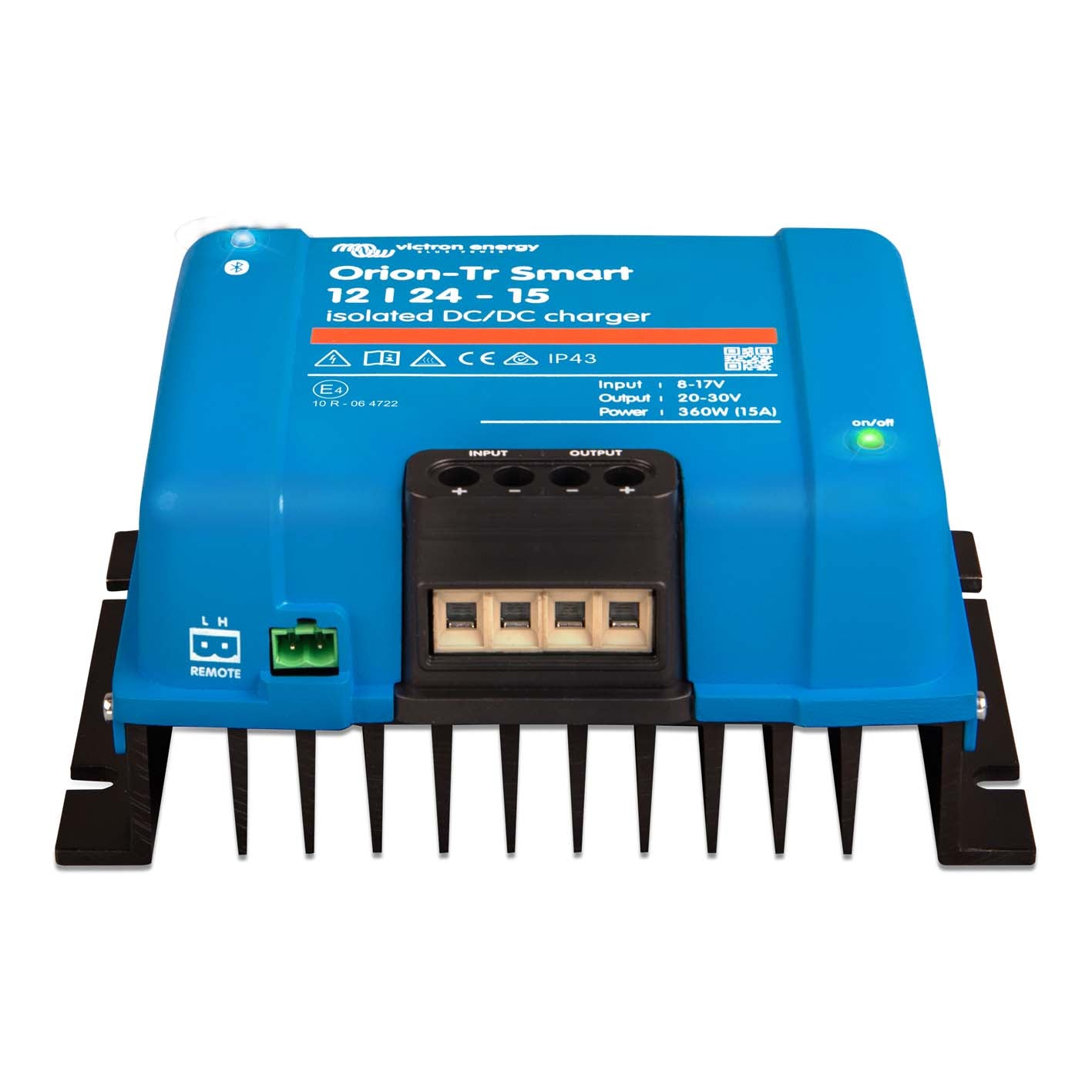

| 12 V | 24 V | 10 A / 15 A |

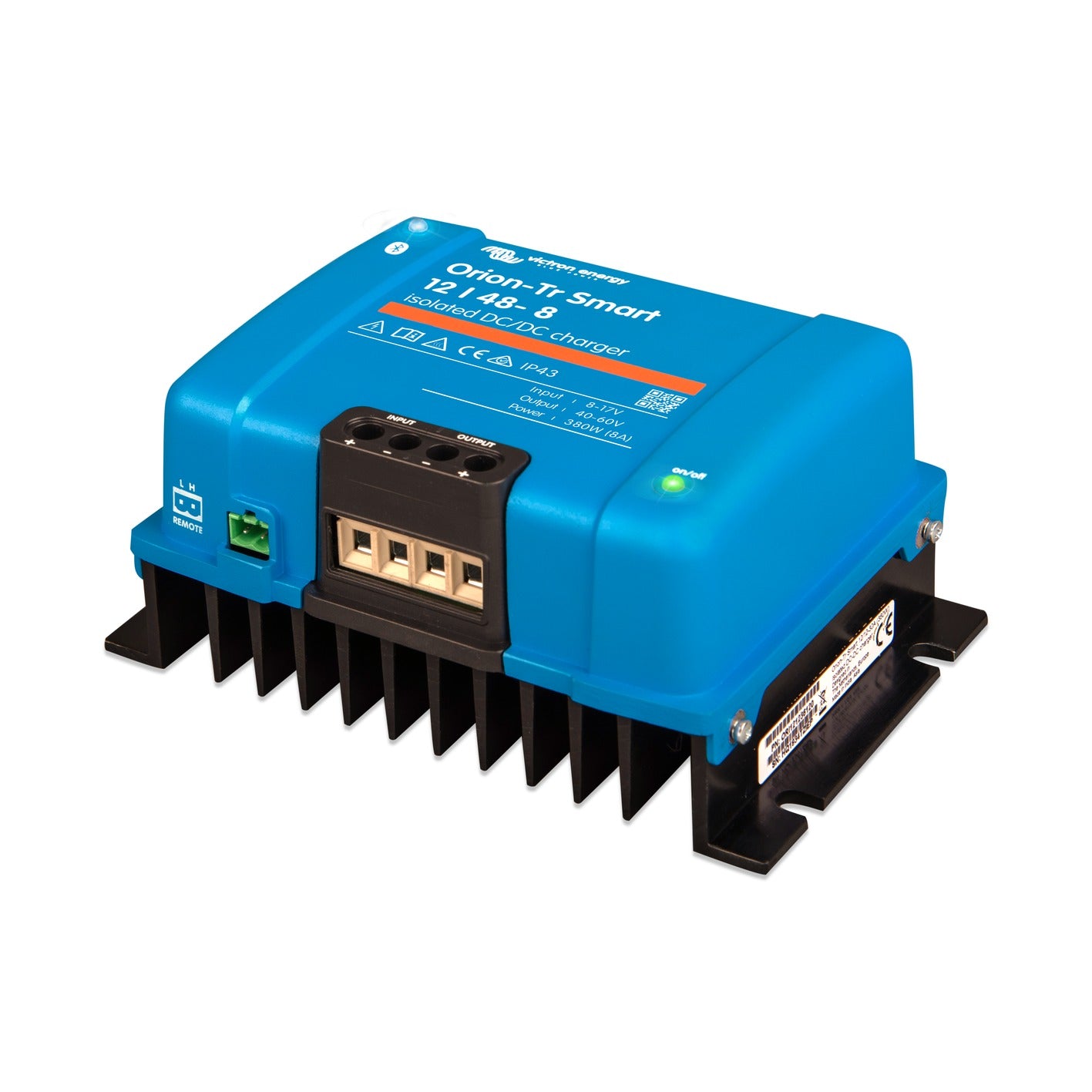

| 12 V | 48 V | 8 A |

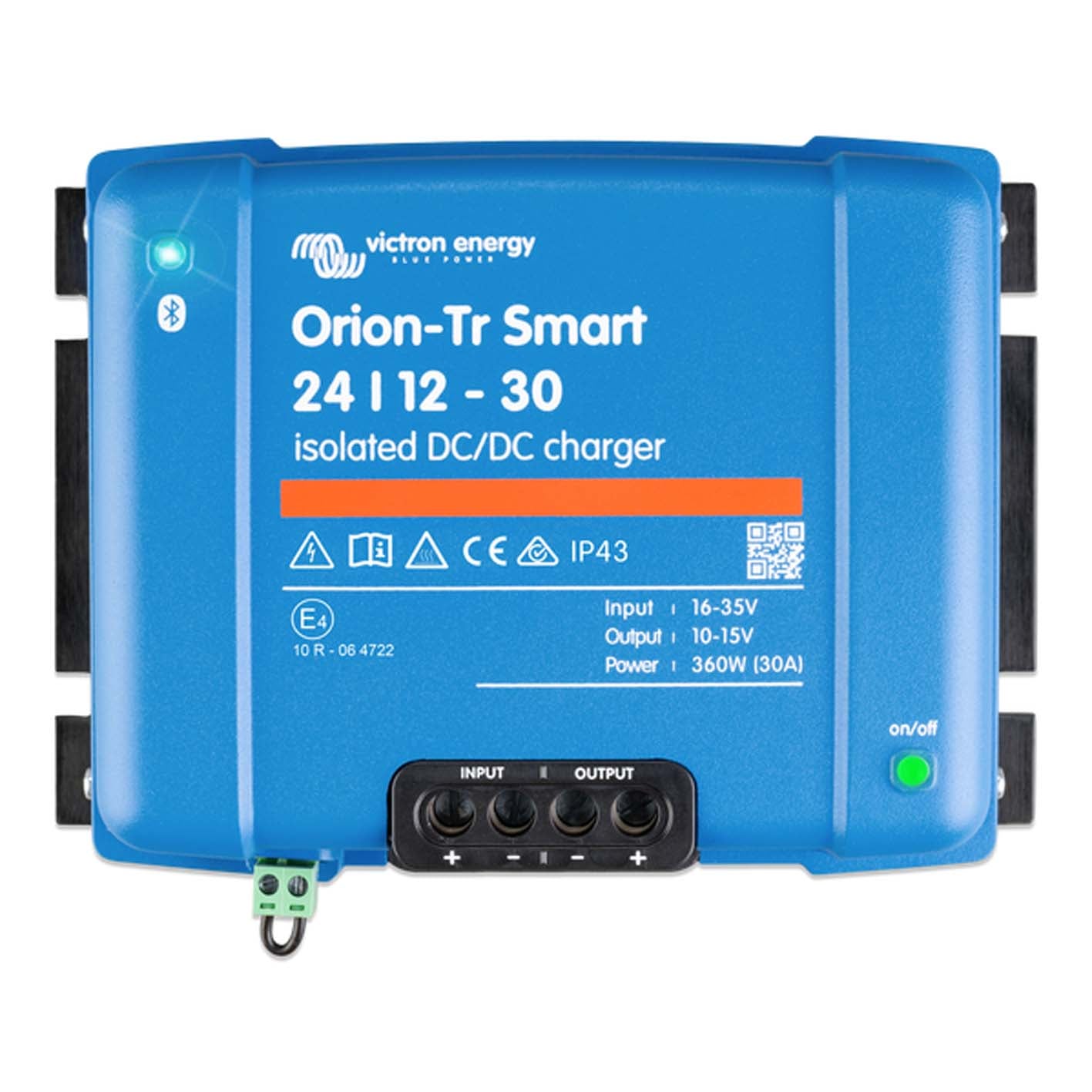

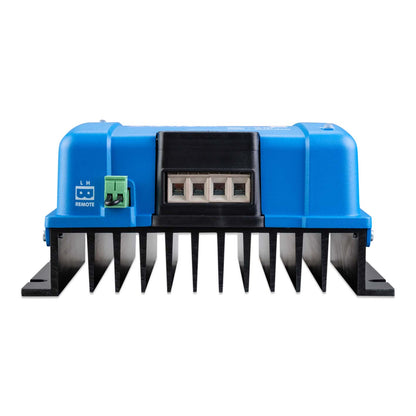

| 24 V | 12 V | 20 A / 30 A |

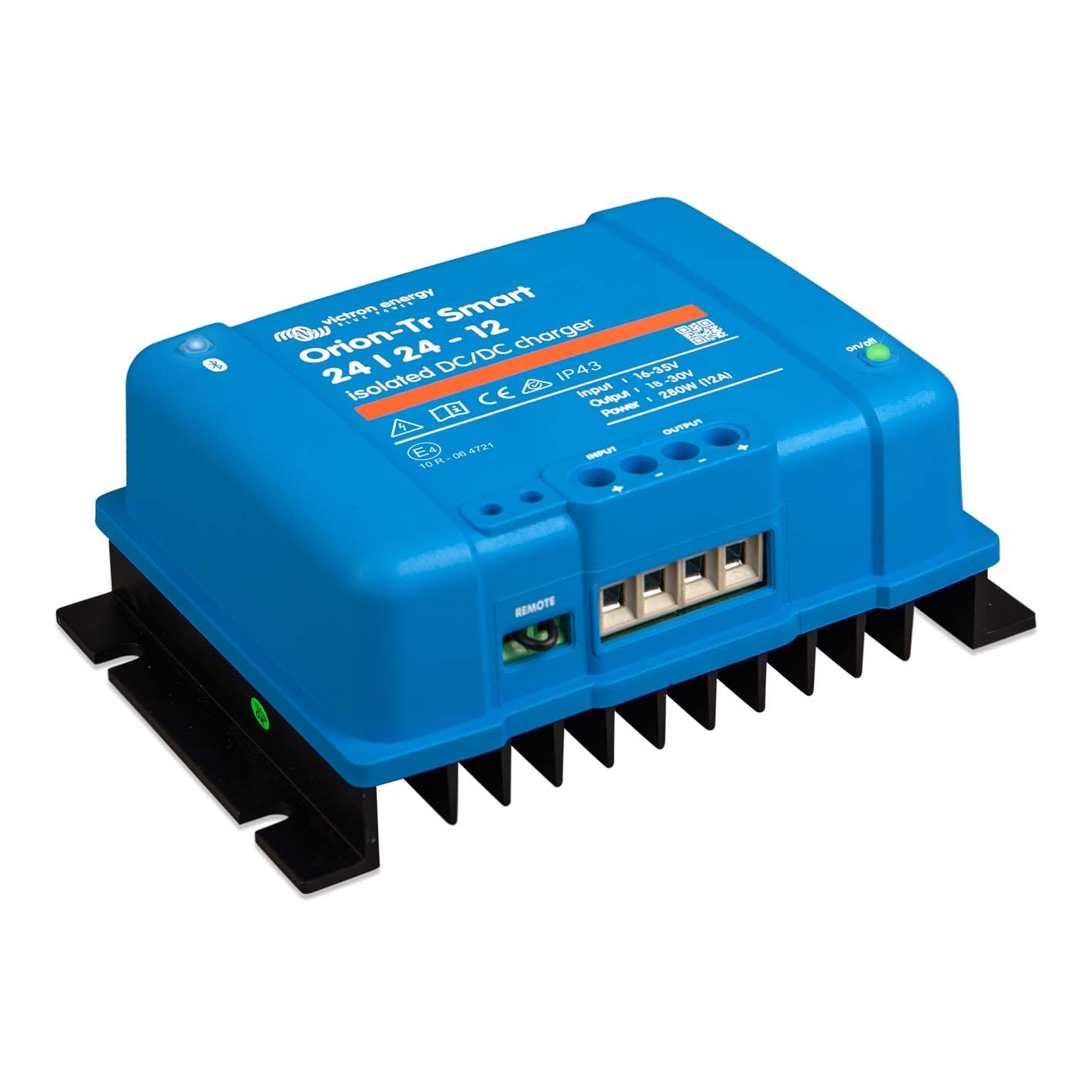

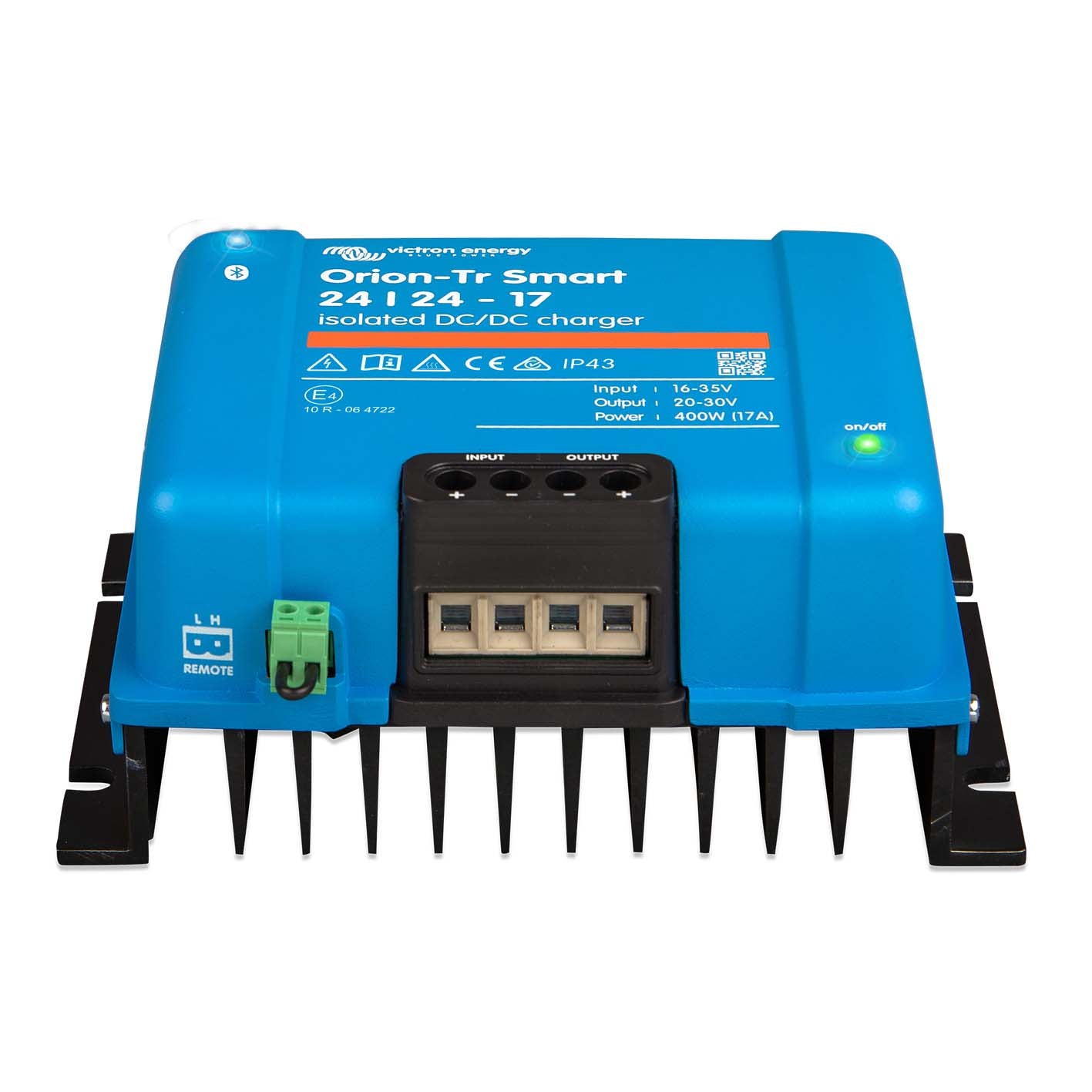

| 24 V | 24 V | 12 A / 17 A |

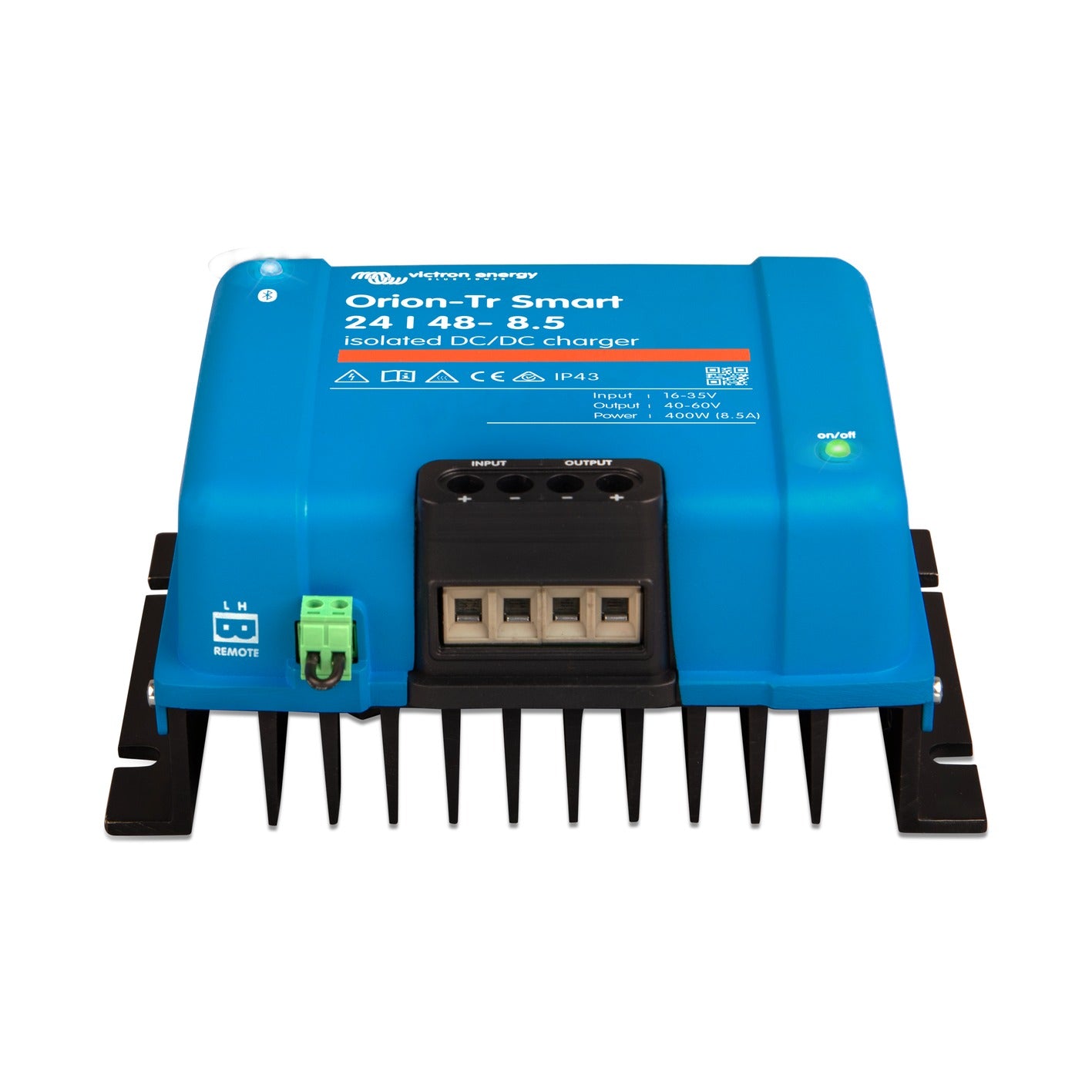

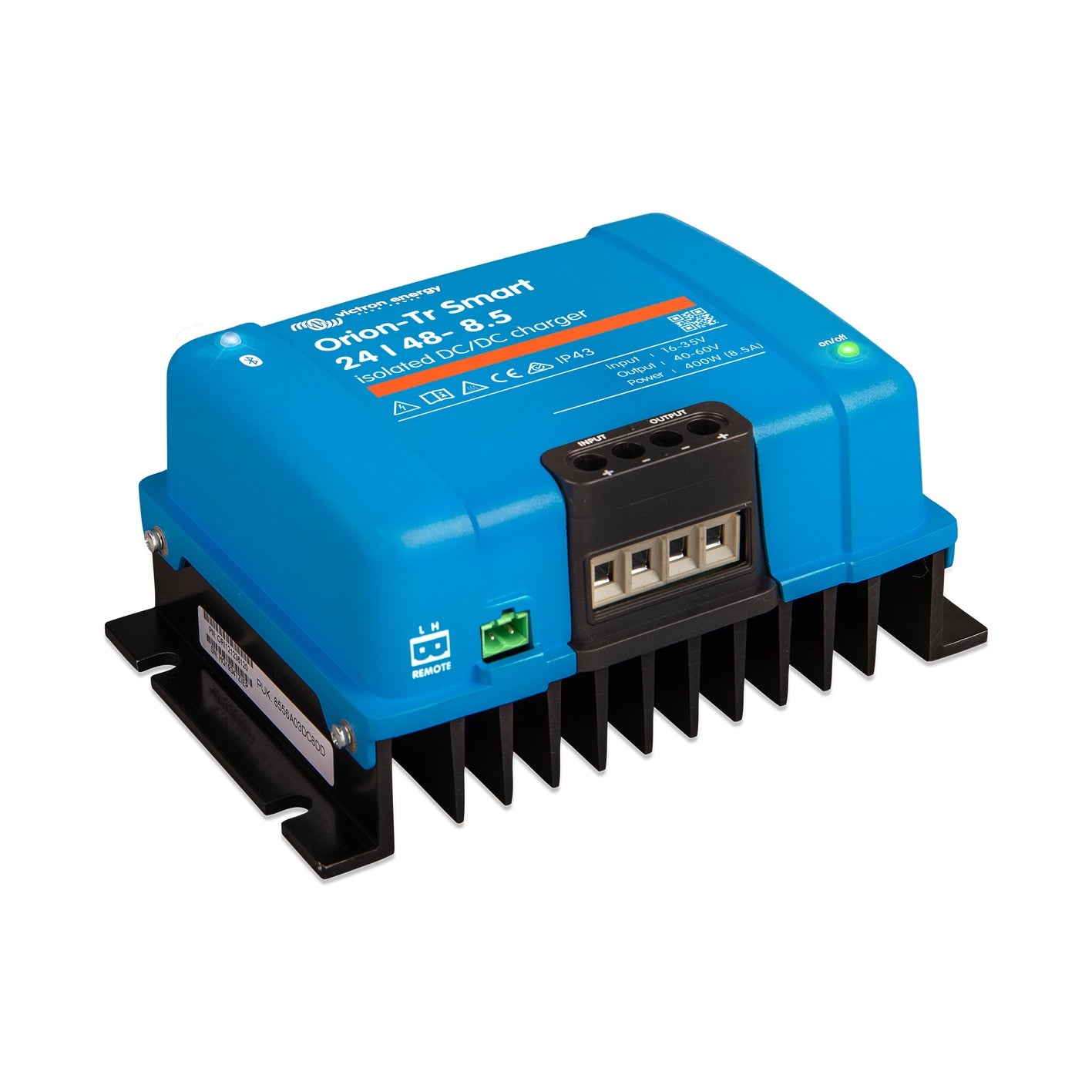

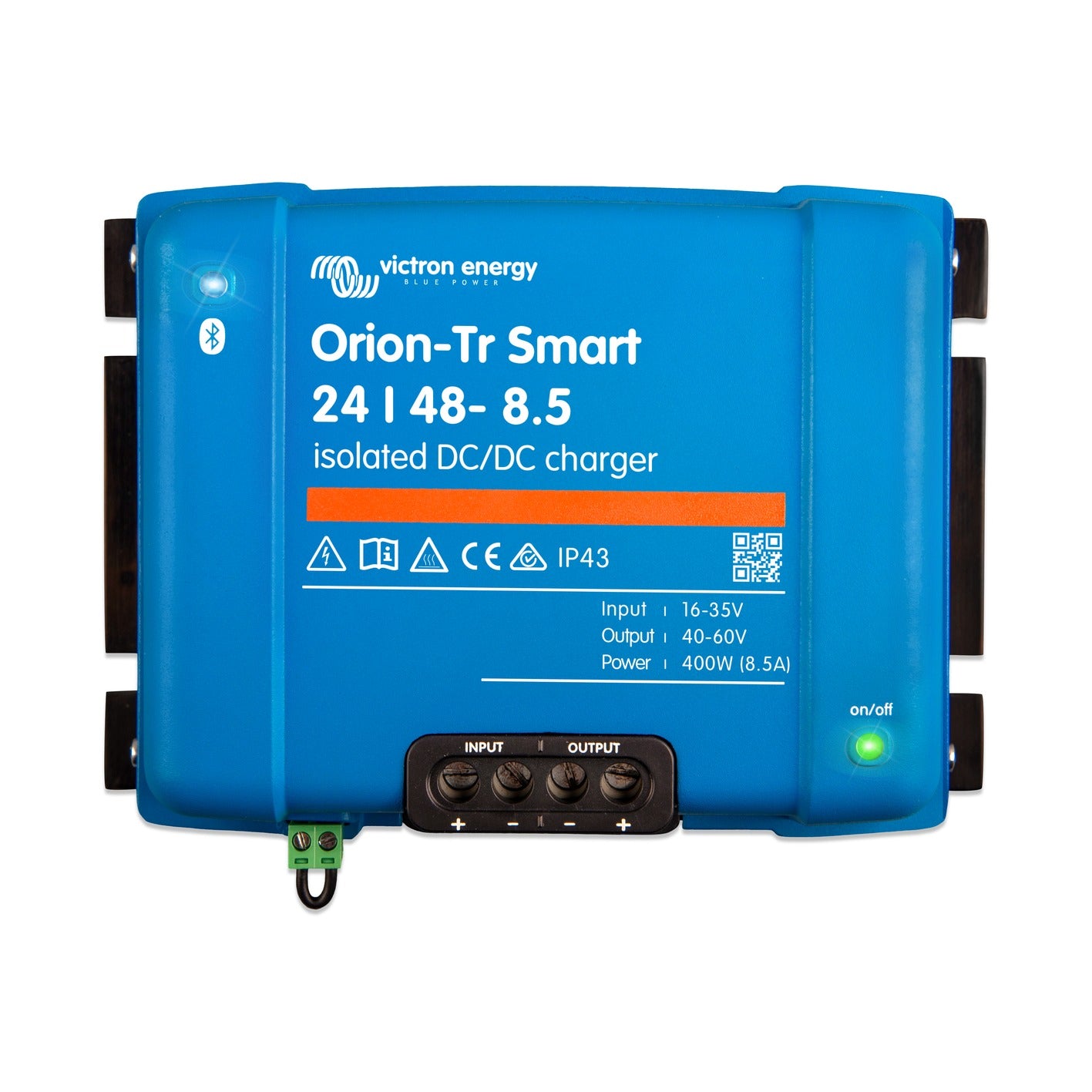

| 24 V | 48 V | 8.5 A |
| 48 V | 12 V | 30 A |
| 48 V | 24 V | 16 A |

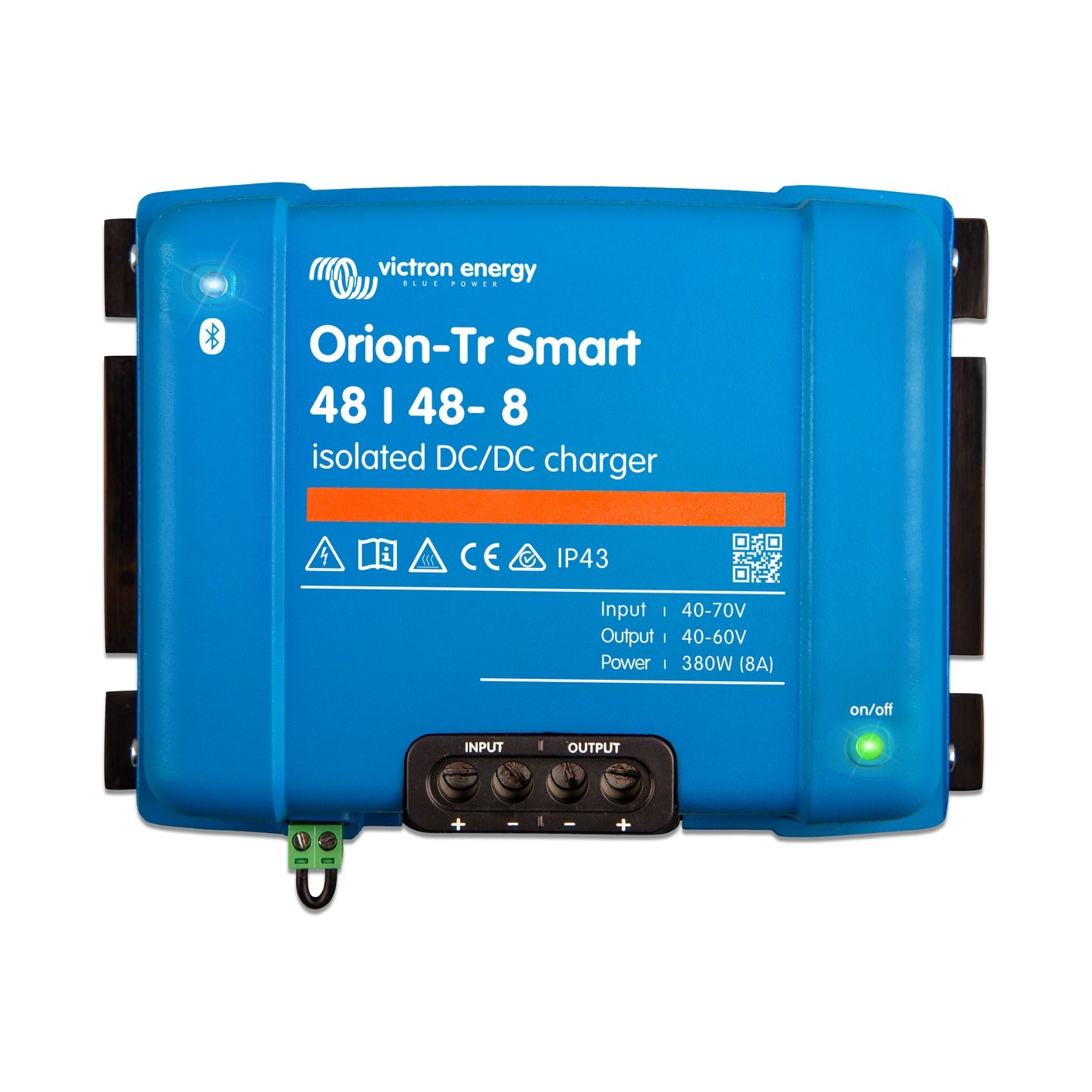

| 48 V | 48 V | 8 A |
How to Select the Right DC-DC Charger
- Choose the "Input Voltage" according to the battery from which you will be charging.
- Choose the "Output Voltage" according to the battery that you want to charge.
- Find a DC-DC model with a lower Output Current (Amps) than the Charge Current of the battery you want to charge.
Not sure which model suits your setup? Email technical@luxsolar.co.nz and we'll point you to the right one.
Why Do We Need Smart DC-DC Chargers?
Modern smart (Euro 5/6) alternators vary their output voltage, so a traditional split-charge relay can't reliably charge a second battery — and connecting lithium directly to an alternator can damage it. A DC-DC charger solves both problems. These articles explain why:
- Alternator Charging Lithium (or How Not to Blow Up Your Alternator) — Victron Energy
- Smart Alternators and Auxiliary Battery Charging
