Victron Temperature Sensor for Smart Shunt and Battery Monitors BMV-702/712
Victron Temperature Sensor for Smart Shunt and Battery Monitors BMV-702/712
SKU: Temperature sensor for BMV-702 and BMV-712 | ASS000100000
Couldn't load pickup availability
Shipping $ & Timeframe
Shipping $ & Timeframe
Free Shipping New Zealand wide.
Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before midday ship out same-day.
Warranty & Returns
Warranty & Returns
5 Year Warranty
We have a 7 day change of mind return policy, subject to a restocking fee.
Datasheets, Manuals, Certifications
Datasheets, Manuals, Certifications

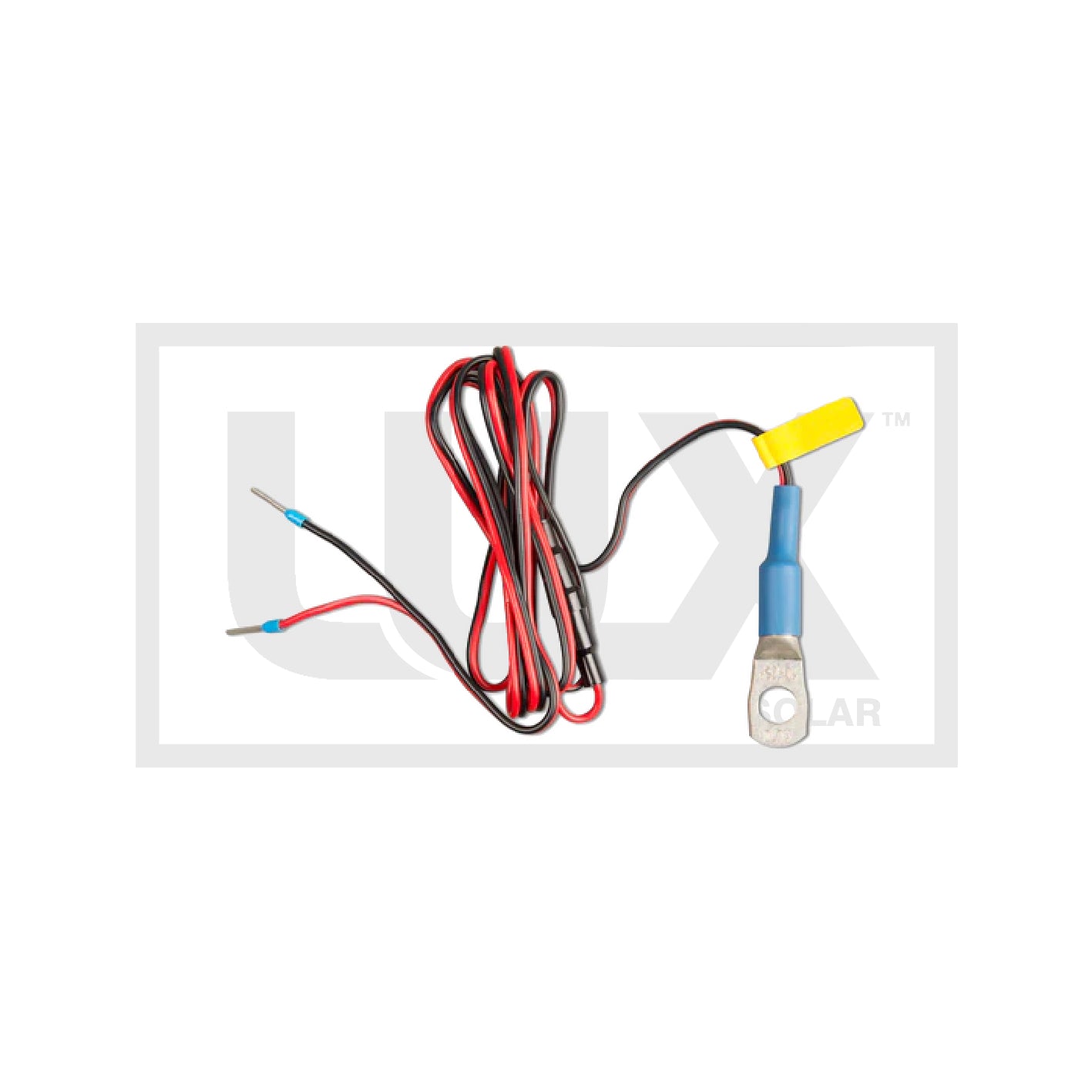

Temperature Sensor for Victron Battery Monitors - BMV 702/712 and Smart Shunt.

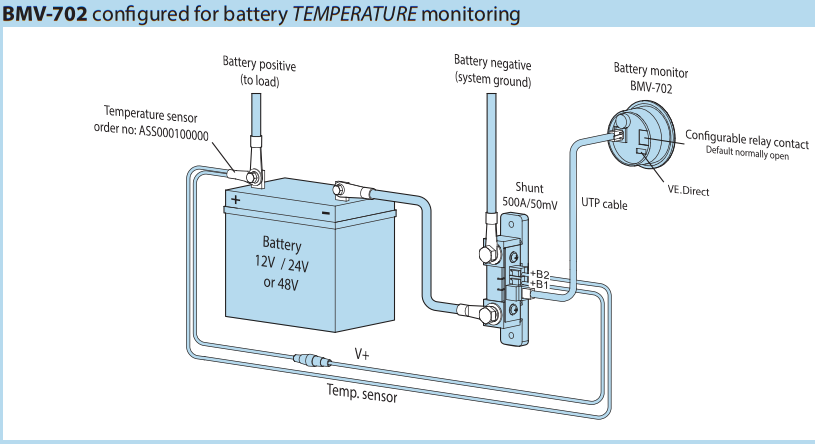

This temperature sensor enables the BMV-702's second channel to monitor battery temperature, with readings stored in the device's historical data log. It connects via a short lead that plugs directly into the circuit board on the shunt.
Please note that this sensor is specific to the BMV-702 and is not interchangeable with temperature sensors used in other Victron products. The BMV-702's second channel can be configured for either temperature monitoring or auxiliary battery voltage measurement, but not both simultaneously — the channel supports only one function at a time, selectable through the device's settings.
