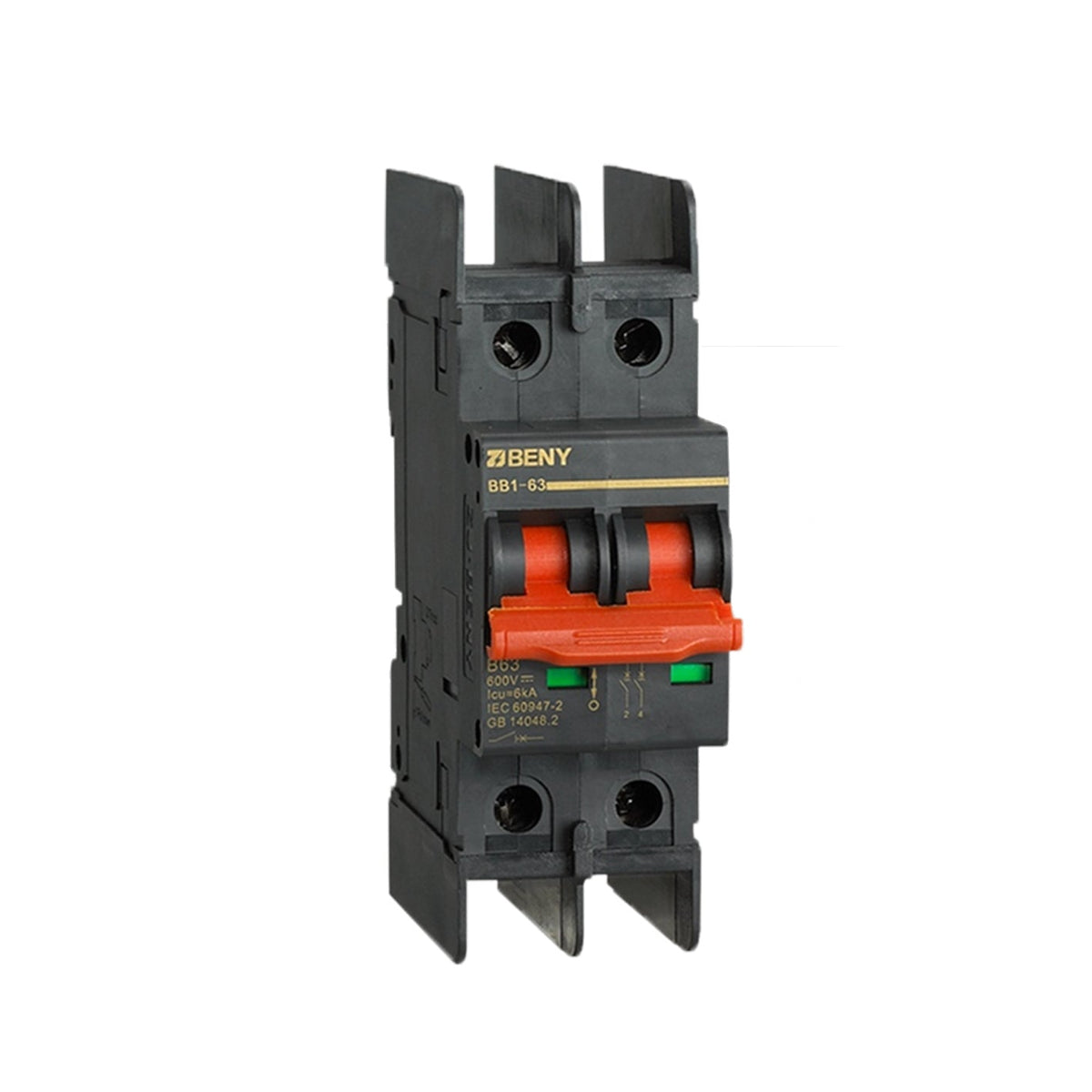

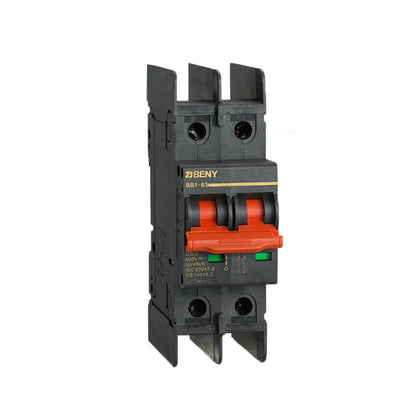

ZBENY Non Polarised Solar Circuit Breaker 10 - 63 Amp
ZBENY Non Polarised Solar Circuit Breaker 10 - 63 Amp
SKU: CB-10A-DP-ZB
Couldn't load pickup availability
Shipping
Shipping
Shipping for this product ranges from $5.99 (non-rural) to $11.99 (rural South Island).
Orders are shipped Mondays to Fridays and take on average 1-3 working days to arrive.
Warranty & Returns
Warranty & Returns
N/A
We have a 7 day change of mind return policy, subject to a restocking fee.
A non-polarised DC circuit breaker that protects your wiring and gives you a manual isolation point for your system — ideal for caravan, motorhome, marine and off-grid solar setups, including installations mounted inside the boat or van.
Fit it between the solar panel and the charge controller, or between the charge controller and the battery. Because it's non-polarised it works regardless of current direction, so there's no positive or negative terminal to get wrong.
Key features
- Non-polarised — connect it either way around
- Doubles as a manual on/off isolation switch for safe servicing
- Rated up to 600 V DC for solar and battery circuits
- Single-pole and dual-pole options, from 10 A up to 63 A
- B-curve tripping, suitable for cable from 2.5 mm² to 25 mm²
- Long mechanical life — rated for 20,000 operations
Which rating do I need?
As a guide, size the breaker at 1.5 to 2.4 times the short-circuit current (Isc) of your solar array, and make sure it trips below the rated current of the cable you are using. Choose a single-pole breaker to switch one conductor, or a dual-pole breaker to switch both positive and negative together. If you're not sure which rating suits your setup, email technical@luxsolar.co.nz and we'll point you to the right one.
Specifications
| Rated current | 10 A, 20 A, 32 A, 50 A and 63 A (single or dual pole — see dropdown for available options) |
| Max voltage | 600 V DC |
| IP rating | IP20 |
| Tripping characteristic | B curve |
| Mechanical life | 20,000 operations |
| Cable cross-section | 2.5 – 25 mm² |
| Test standard | EN/IEC 60947-2 |
Please note: some breakers may now be supplied in a white housing.
