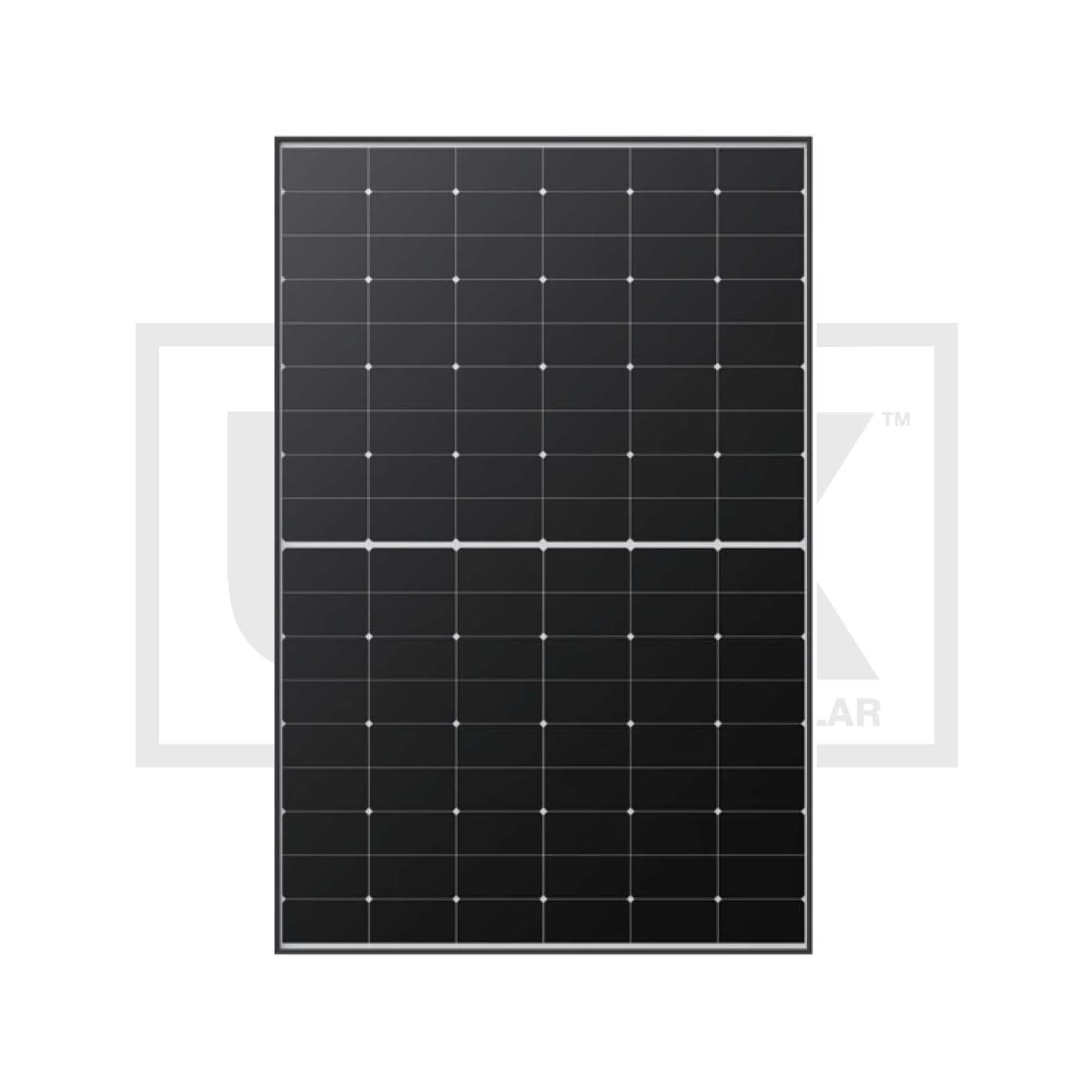

440 Watt Mono Solar Panel - LONGi HPBC - 172.2 x 113.4 cm

440 Watt Mono Solar Panel - LONGi HPBC - 172.2 x 113.4 cm

SKU:LR5-54HTH-440M

Regular price $399.99 NZD
Regular price Sale price $399.99 NZD
Sale Sold out

Shipping $ & Timeframe

This item is very large and fragile. Shipping from $69.99 (North Island) to $94.99 (South Island).

Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before 11am will ship same day.

Warranty & Returns

We have a 7 day change of mind return policy, subject to a restocking fee.

All new LONGi M06

LONGi new generation HPBC cell technology opens a new chapter in the mass production of high-efficiency cells and continues to lead the reform of the industry. The efficiency of LONGi HPBC cells exceeds 25.0% with module efficiency of 23%.


SPECIFICATIONS
Model: LR5-54HTH-440M
Maximum Power (Pmax/W): 440 W
Maximum Power Voltage (Vmpp/V): 33.24
Maximum Power Current (Impp/A): 13.24
Open-Circuit Voltage (Voc/V): 39.53
Short-Circuit Current (Isc/A): 14.30
Module Efficiency (%): 21.5
Power Tolerance: 0~+3 Wp
NOCT: 45ºC±2ºC
Values at Standard Test Conditions STC: (AM 1.5, Irradiance 1,000 W/m2, Cell Temperature 25ºC)Cell Type: Mono Crystalline
Number of cells: 108 (6x18)
Weight: 20.8 kg
Dimensions: 1,722 x 1,134 x 30 mm

Frame: Anodized aluminum alloy frame
Cable length: 1,200mm
Cable cross section size: 4 mm²
Junction Box: IP68, 3 diodes

OPERATING CONDITIONS
Maximum System Voltage: 1500V DC (IEC)
Operating temperature: -40ºC / +85º C
Maximum Series Fuse Rating: 25A
Protection Class: Class II




HPBC

HPBC (Hybrid Passivated Back Contact) solar cells, are the latest solar technology that introduces unobstructed front shading by metal contacts. This pioneering approach optimizes photon collection, resulting in enhanced conversion efficiency. The HPBC cell sets a new industry standard, significantly enhancing light absorption and photovoltaic conversion capability, resulting in substantially improved module power output.

The result is panels capable of generating more energy under higher temperatures and lower light. Some studies have shown that that HPBC cells can produce output up to 10% higher under the same conditions as PERC products.

Monocrystalline

At LUX Solar we only source monocrystalline panels as they offer the highest efficiency. Monocrystalline panels are manufactured from a single rod of silicon thus the crystal structure inside the silicon is uniform, with very few impurities. Polycrystalline panels on the other hand are made up of smaller crystal structures that introduce grain boundaries in each solar cell. This causes inefficiencies in the conduction of electrons due to defects associated with the crystal boundary.

LONGi

LONGi is a leading manufacturer of high-performance solar panels, with a strong market position and a global presence in over 30 countries. LONGi Solar is recognized as a top-tier solar panel manufacturer, and is considered a reliable and high-quality supplier of solar panels. The term "Tier 1" is used in the solar industry to refer to solar panel manufacturers that are vertically integrated, meaning they produce the majority of their own solar cells and have control over their supply chain.
