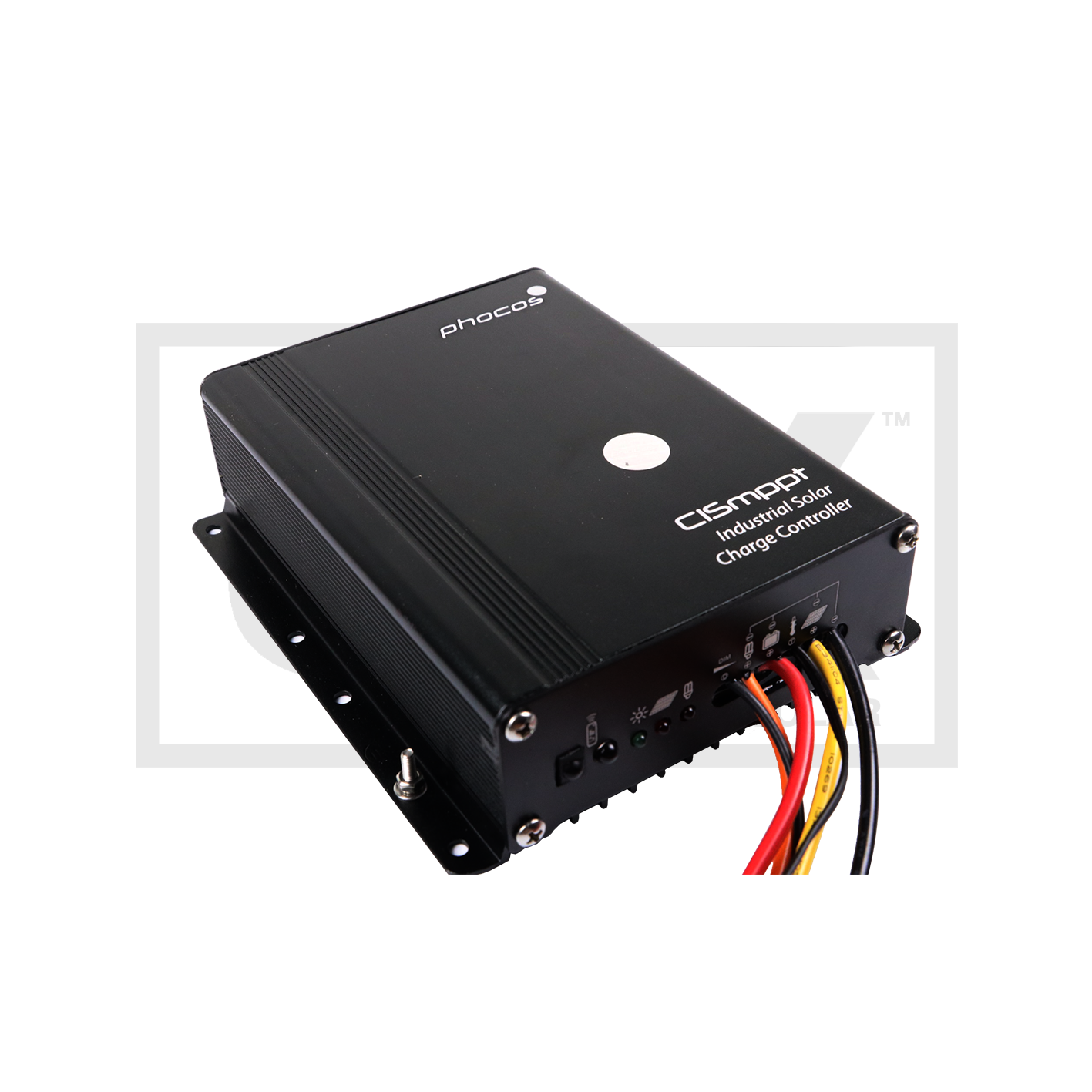

Industrial Solar Charge Controller - Phocos CIS-MPPT-20 Amp - Waterproof IP68 - Clearance
Industrial Solar Charge Controller - Phocos CIS-MPPT-20 Amp - Waterproof IP68 - Clearance
SKU:CNT-PHO-20A-MPPT
Couldn't load pickup availability
Shipping
Shipping
Shipping for this product ranges from $5.99 (non-rural) to $11.99 (rural South Island).
Orders are shipped Mondays to Fridays and take on average 1-3 working days to arrive.
Orders received before midday will be shipped same day.
Warranty & Returns
Warranty & Returns
5 Year Warranty
We have a 7 day change of mind return policy, subject to a restocking fee.
Phocos CIS-MPPT 85/20A
The highly efficient German-designed Phocos CIS-MPPT solar charge controller is perfect for all larger marine solar systems, caravan solar panel systems and rural solar systems.
Phocos’ innovative MPPT technology yields up to 30% more energy than PWM ontrollers. In addition, their signature Power+™ current limiter allows for oversizing PV power by up to 50% for winter months without damage in summer months. The CIS-MPPT controllers are optimized to work with 60-cell modules. They ensure maximum performance and yield from all types of PV systems year-round and in any environment. Phocos’ CIS-MPPT controllers are equipped with 2 year datalogging memory.
Application Examples
• SCADA Systems
• RVs
• Solar Message Boards
• Solar Lighting
• Security/Surveillance
• Wifi/Repeater Stations
• Transportation
Please note the controller has negative grounding.
With a sealed IP68 waterproof housing, 98 percent efficiency and a 5-year manufacturers' warranty, it is built to last.
Data Sheet: https://www.phocos.com/wp-content/uploads/2019/12/CIS-MPPT-Datasheet.pdf
The Phocos CIS MPPT is both ROHS and CE compliant.
| Specifications | 12 Volt / 24 Volt |
| System Voltage | 12/24 V Auto Recognition |
| Max Charge / Load Current | 20 Amps |
| Battery Type | Lead Acid (gel, AGM, flooded) |
| Ingress protection | IP68 |
| Solar Input | 85 Volts 400 Watts/800 Watts |
| Grounding ** Please note** | Negative |
| Dimensions | 148 x 152 x 43 mm |
| Float Charge | 13.8/27.6 V (25 °C) |
| Main Charge | 14.4/28.8 V (25 °C), 0.5 h daily |
| Boost Charge |
14.4/28.8 V (25 °C), 2 h activation: < 12.1/24.2 V |
| Deep discharge Protection | 11.0 - 11.9 /22.0 - 23.8 V |
| Over Voltage Protection | 15.5/31.0 V |
| Under Voltage protection | 10.5/21.0 V |
| Temperature Compensation | -25 mV/degree/ -50 mV/degree |
| Idle self consumption | 15 mA/8 mA |
| Certifications | CE compliant, RoHS compliant, IEC-62509 |
| Warranty | 5 years |
For more information see the Phocos website.
