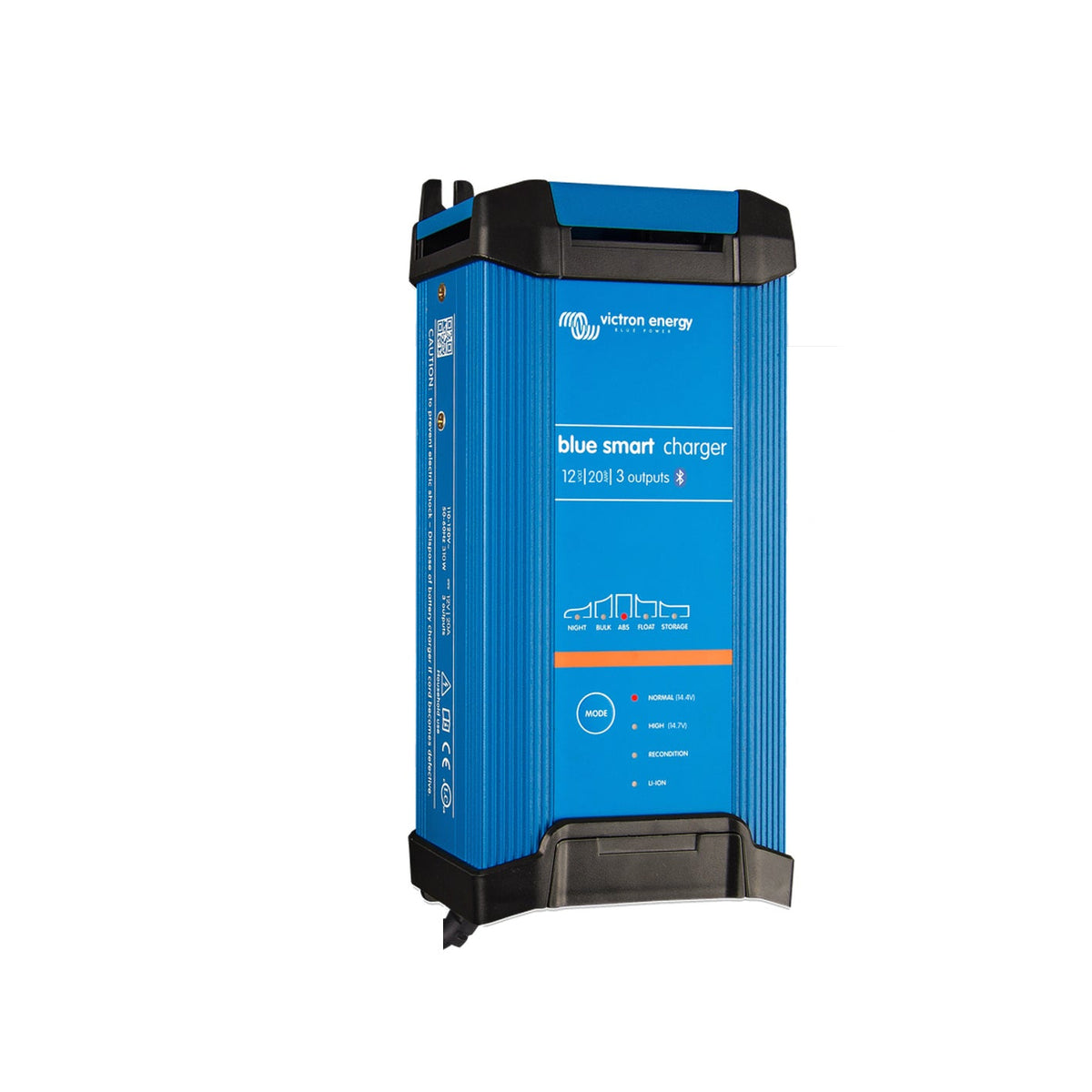

Victron Blue Smart IP22 Charger - Indoor

The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

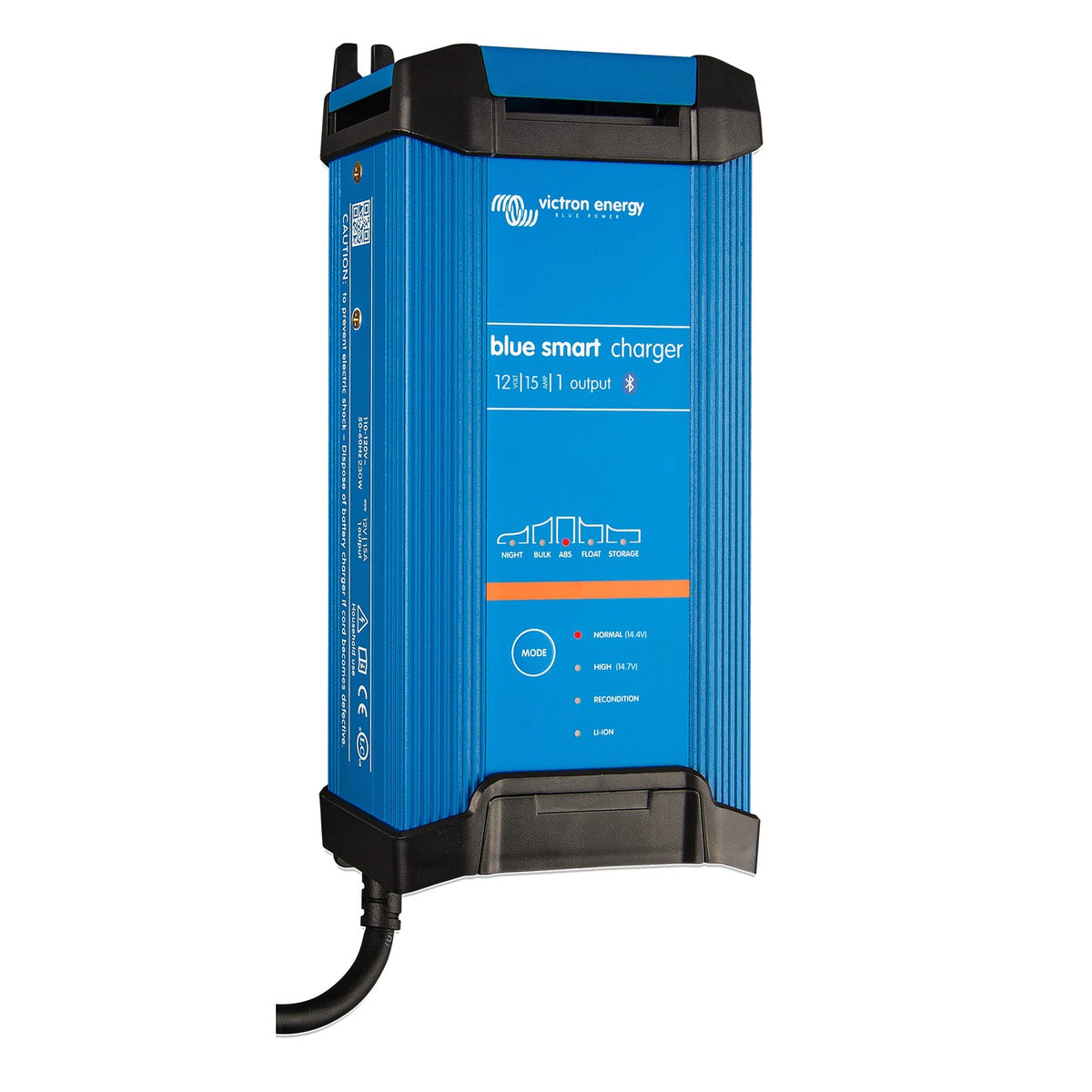

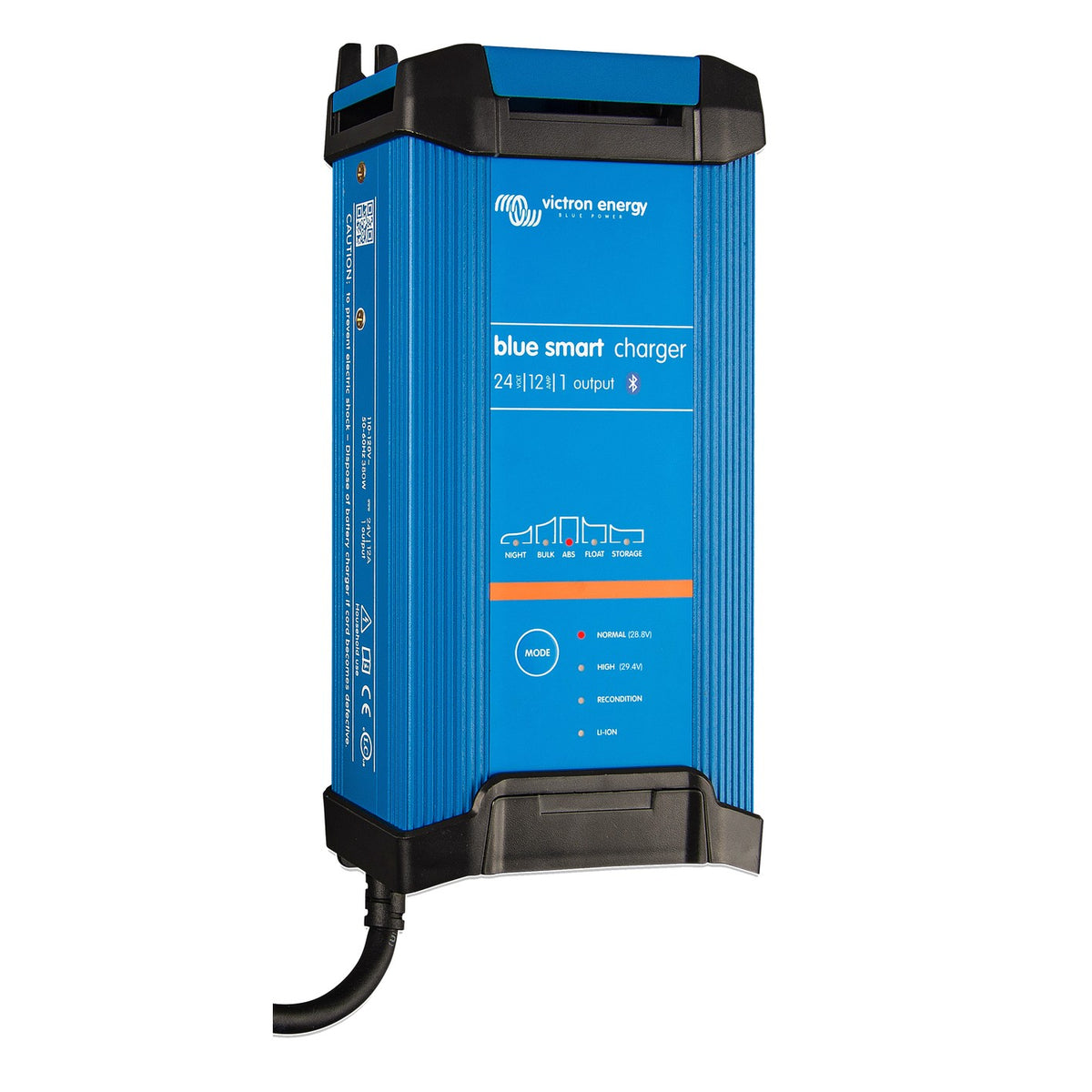

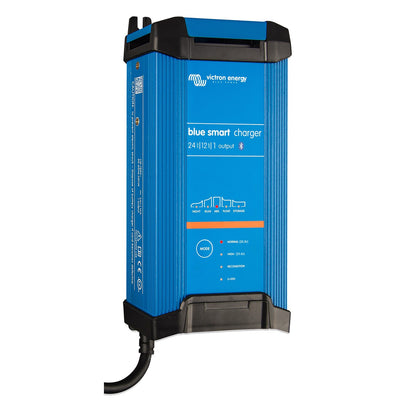

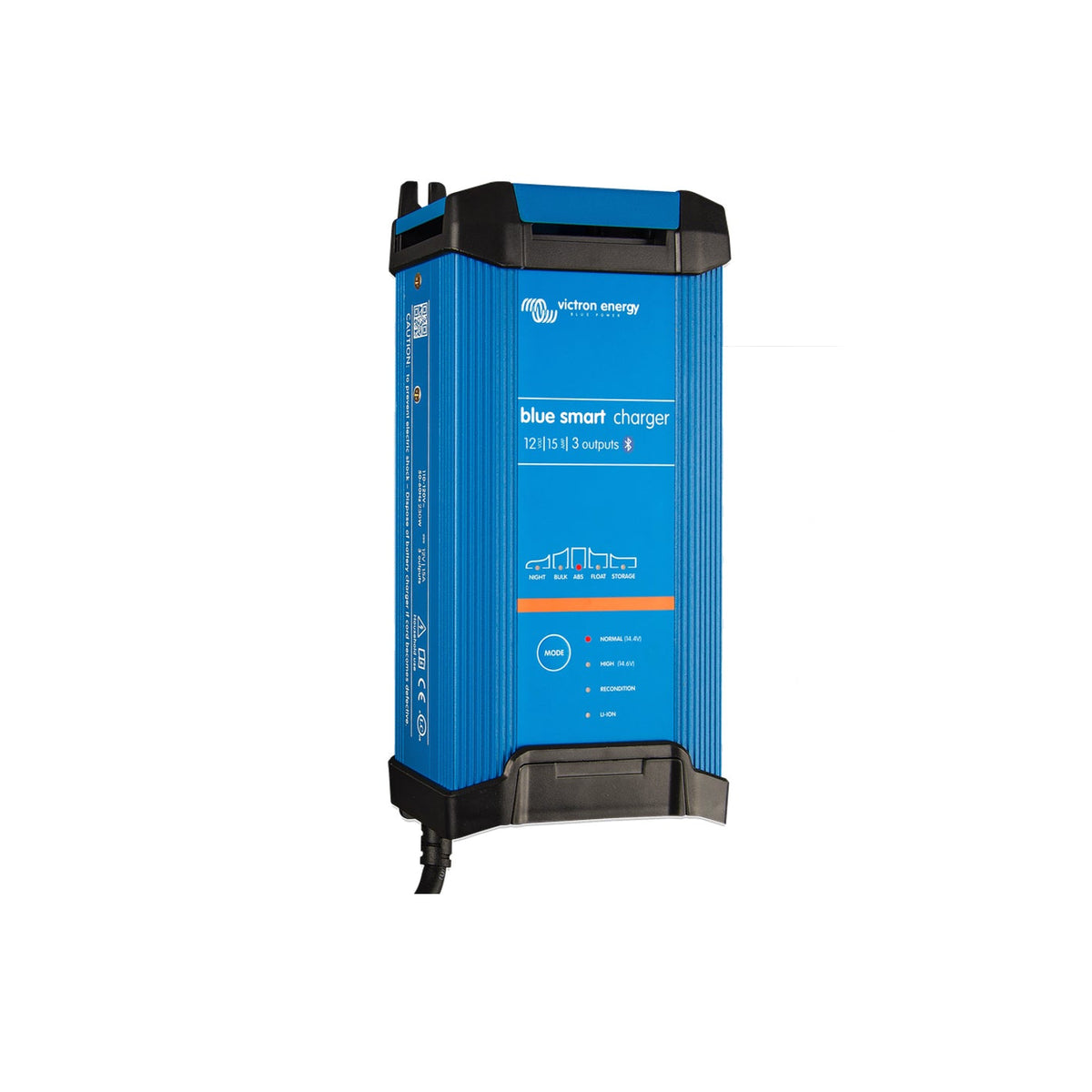

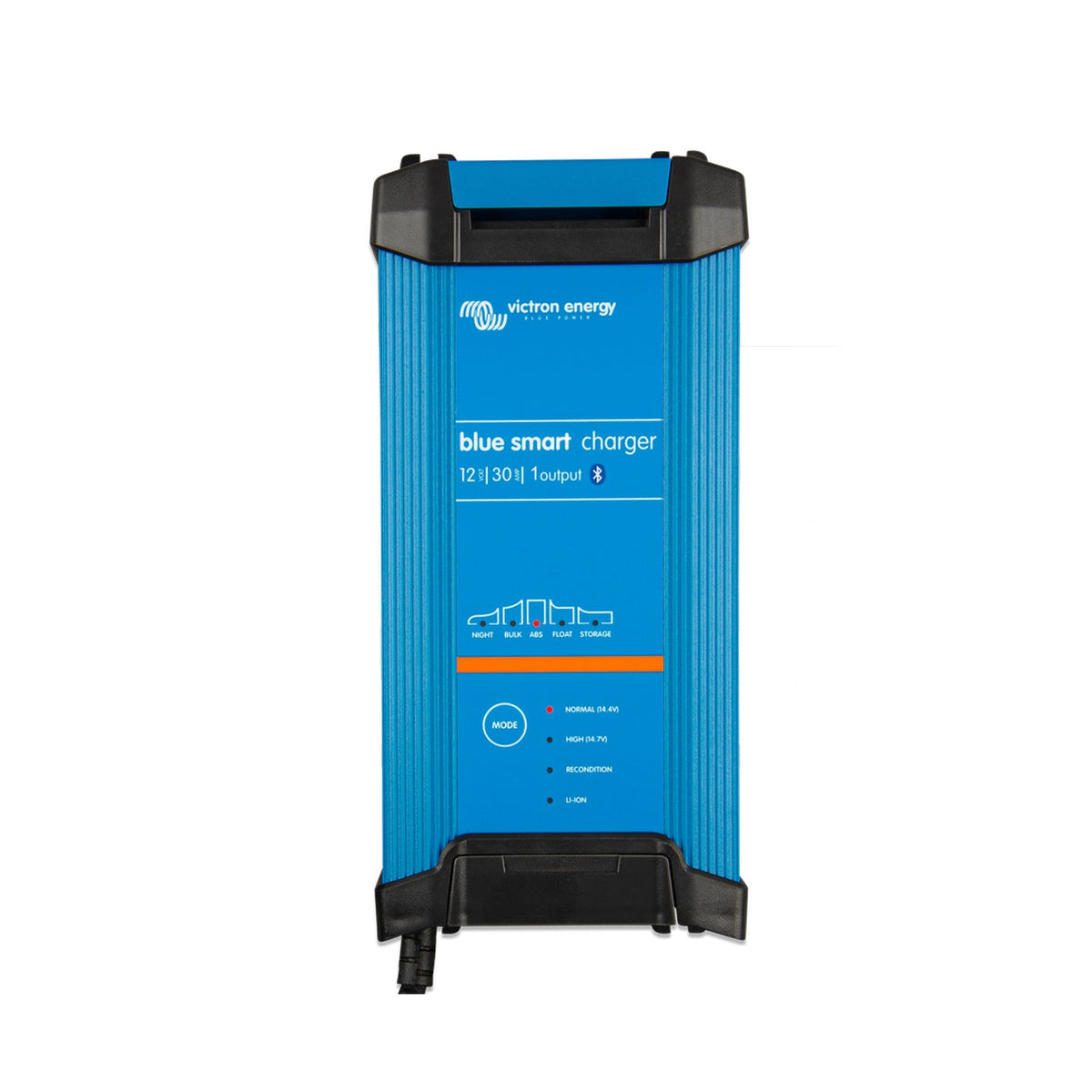

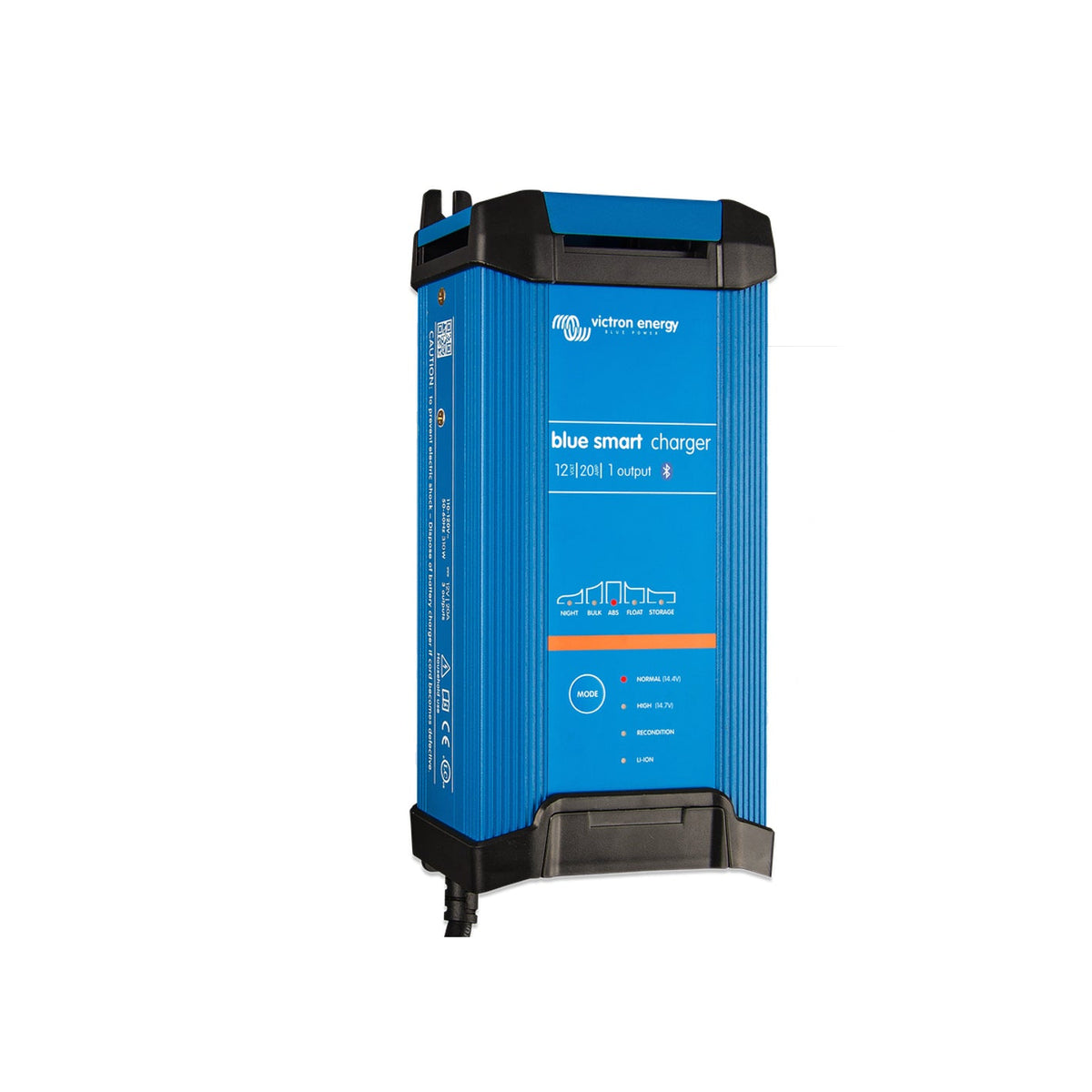

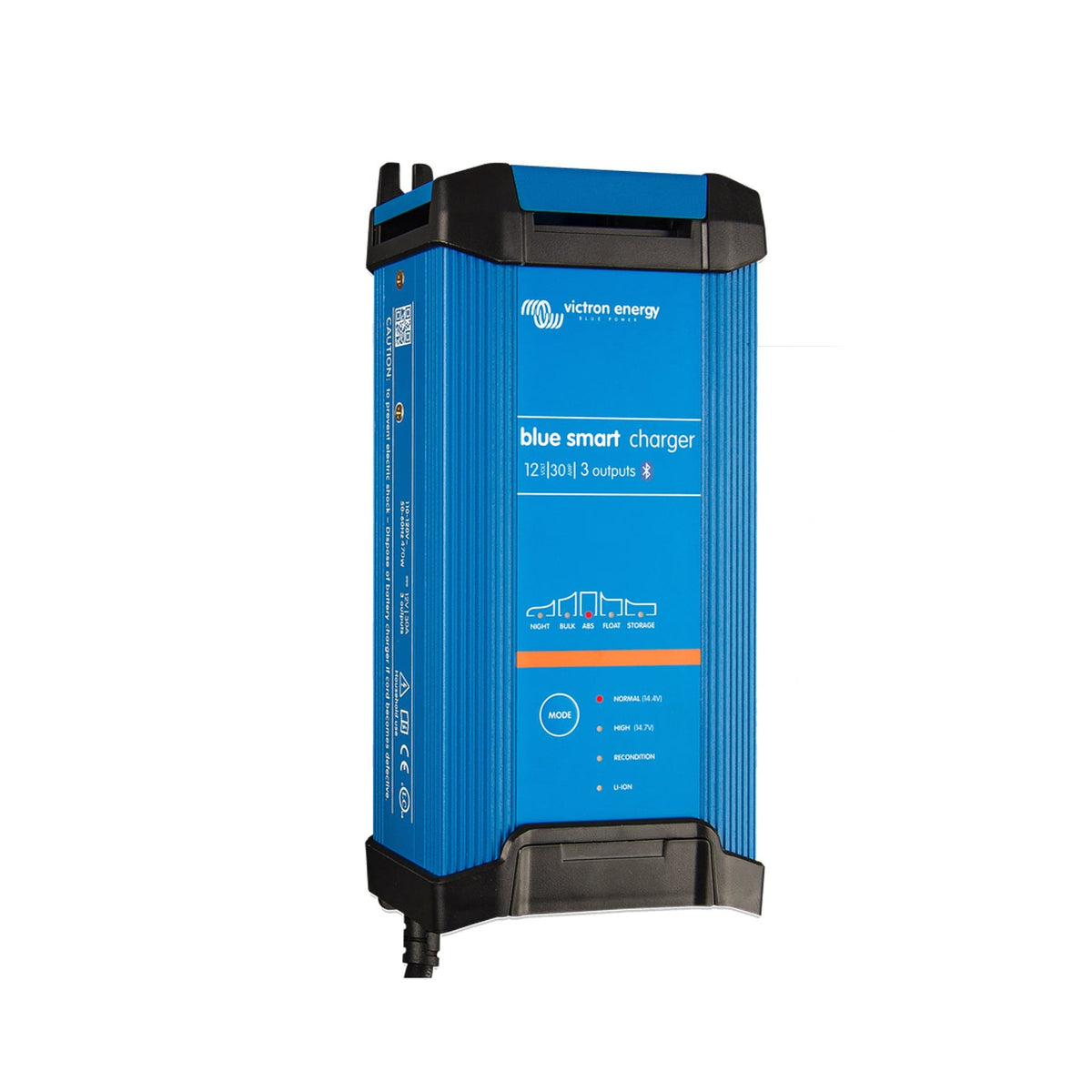

1 output or 3 outputs, fan assisted cooling
The wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available. Once the battery is fully charged, power consumption reduces 0,5 Watt, some five to ten times better than the Industry standard. The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours, in the storage mode float voltage is reduced to 2,2 V/cell (13.2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Synchronize up to ten battery chargers in a VE.Smart network to make them charge a battery as if they were one large charger. The chargers will synchronize the charge algorithm between them.

Bluetooth Smart
The wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency
With up to 94 % efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

AU/NZ Plug
The Blue Smart IP22 Charger is equipped with an AU/NZ plug for use with New Zealand wall sockets.

Synchronized parallel charging
 Synchronize up to ten battery chargers in a VE.Smart network to make them charge a battery as if they were one large charger. The chargers will synchronize the charge algorithm between them. They will simultaneously switch from one charge state to another, for example from bulk to absorption. Synchronized parallel charging has several interesting advantages:

• Redundancy: if one charger stops for whatever reason, the other chargers will continue to operate.
• Flexibility: simply add a charger to the network if more current is needed.
• Cost: several low power chargers will in general cost less than one high power charger.
• Installation: several low power chargers may be easier to fit in a confined space.

Unlike other brands, the Blue Smart IP22 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage

The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

Also charges Li-ion batteries. Li-ion batteries are charged with a simple bulk – absorption – float algorithm.

Datasheet: Victron Blue Smart IP22 Charger

Note connections to the battery are not included with these charge controllers.
