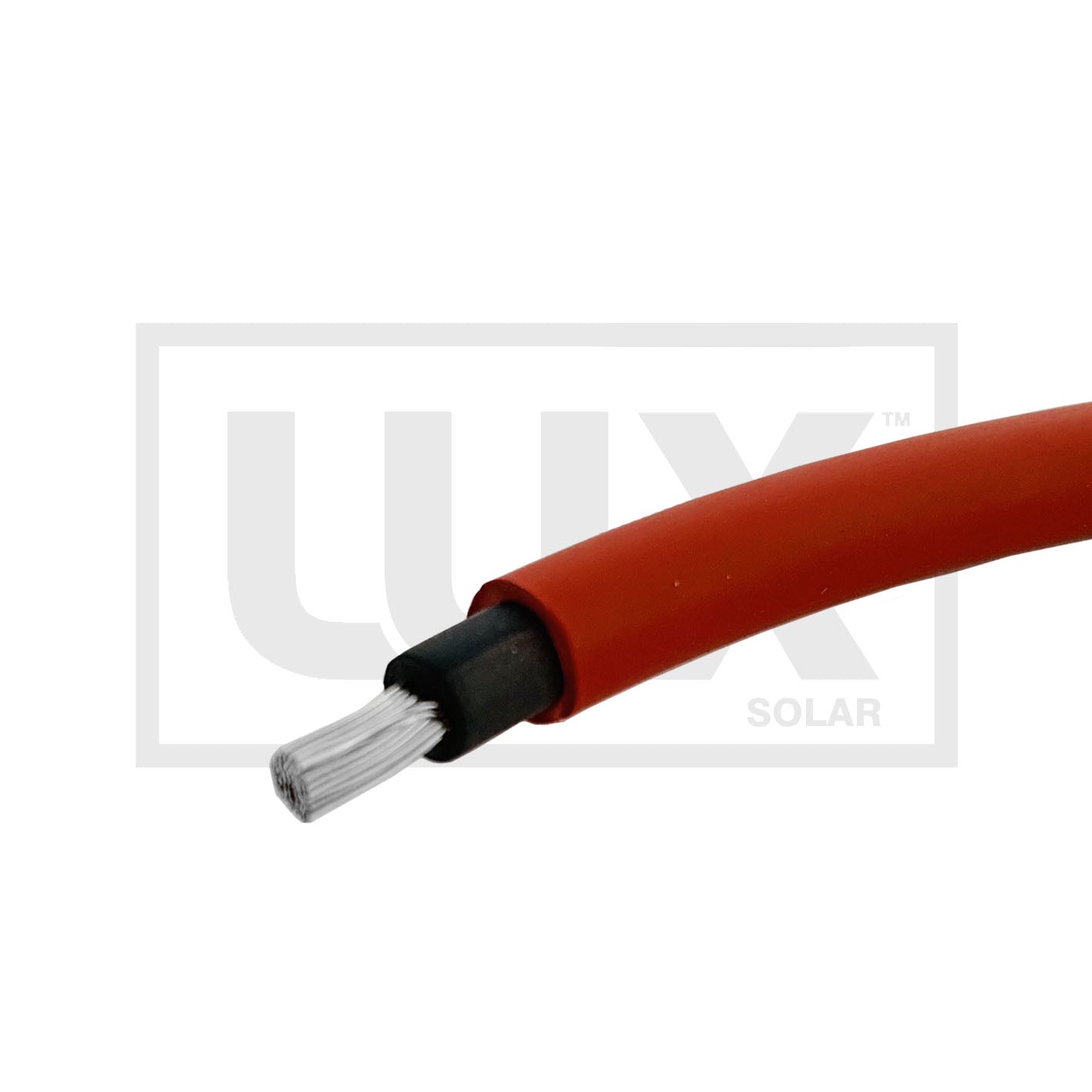

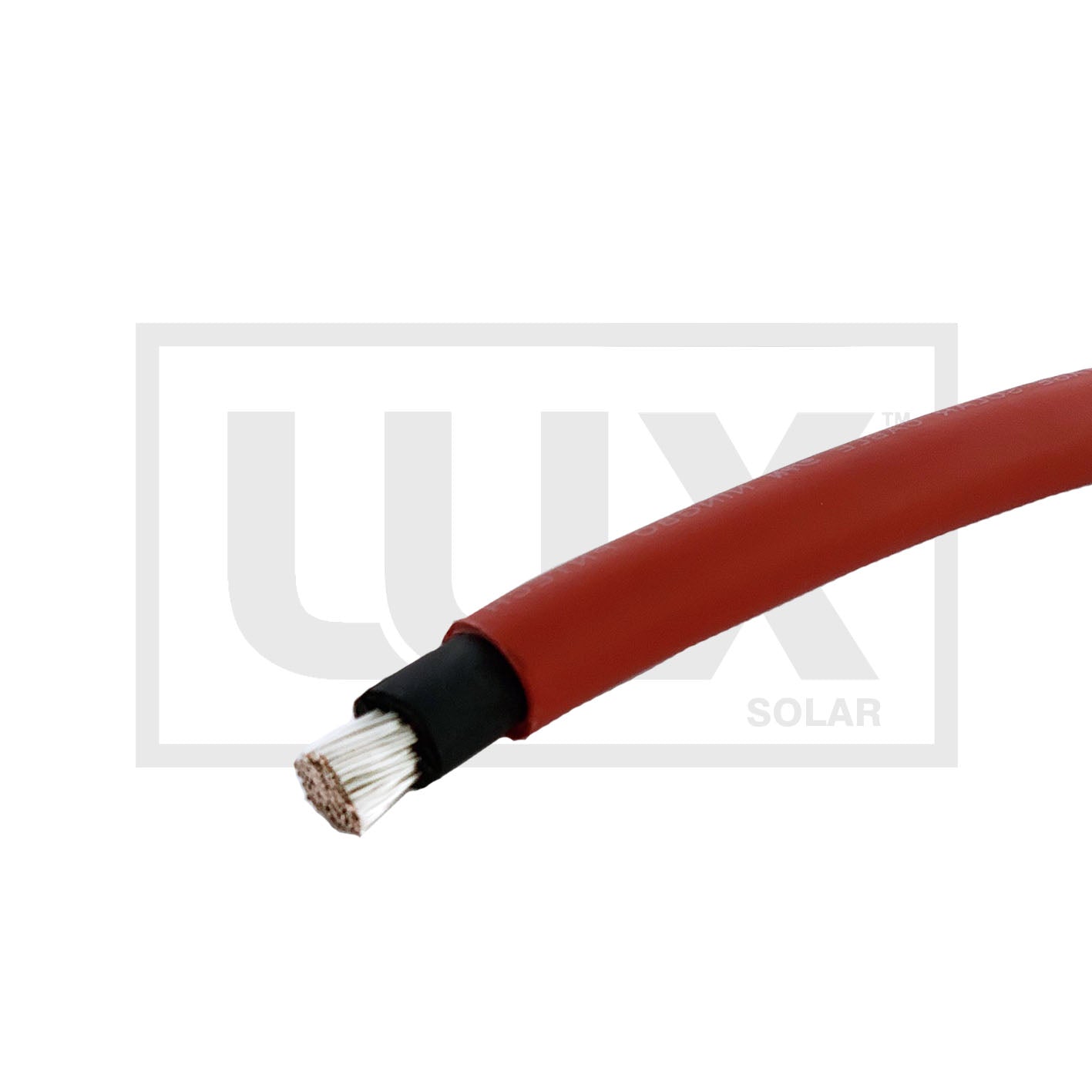

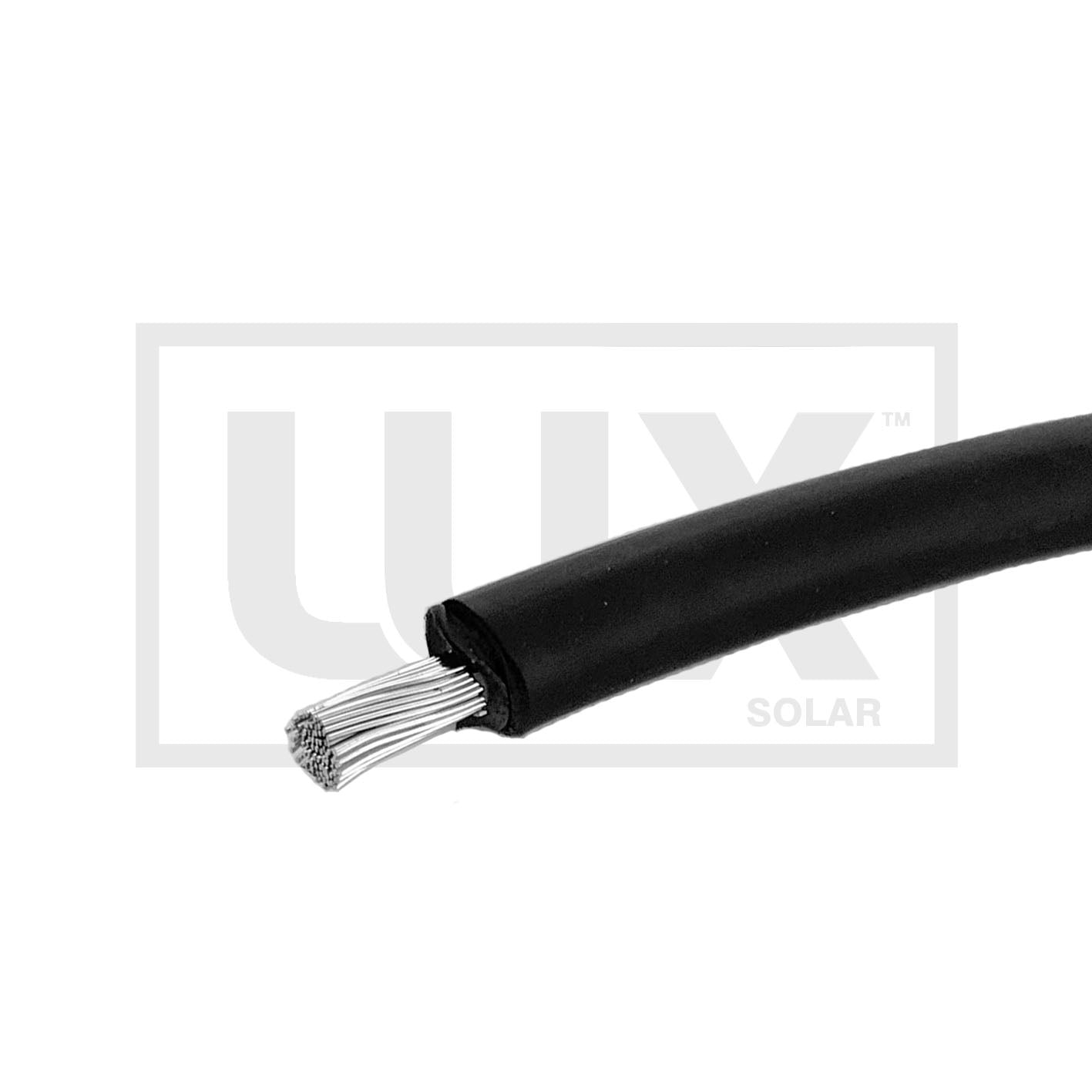

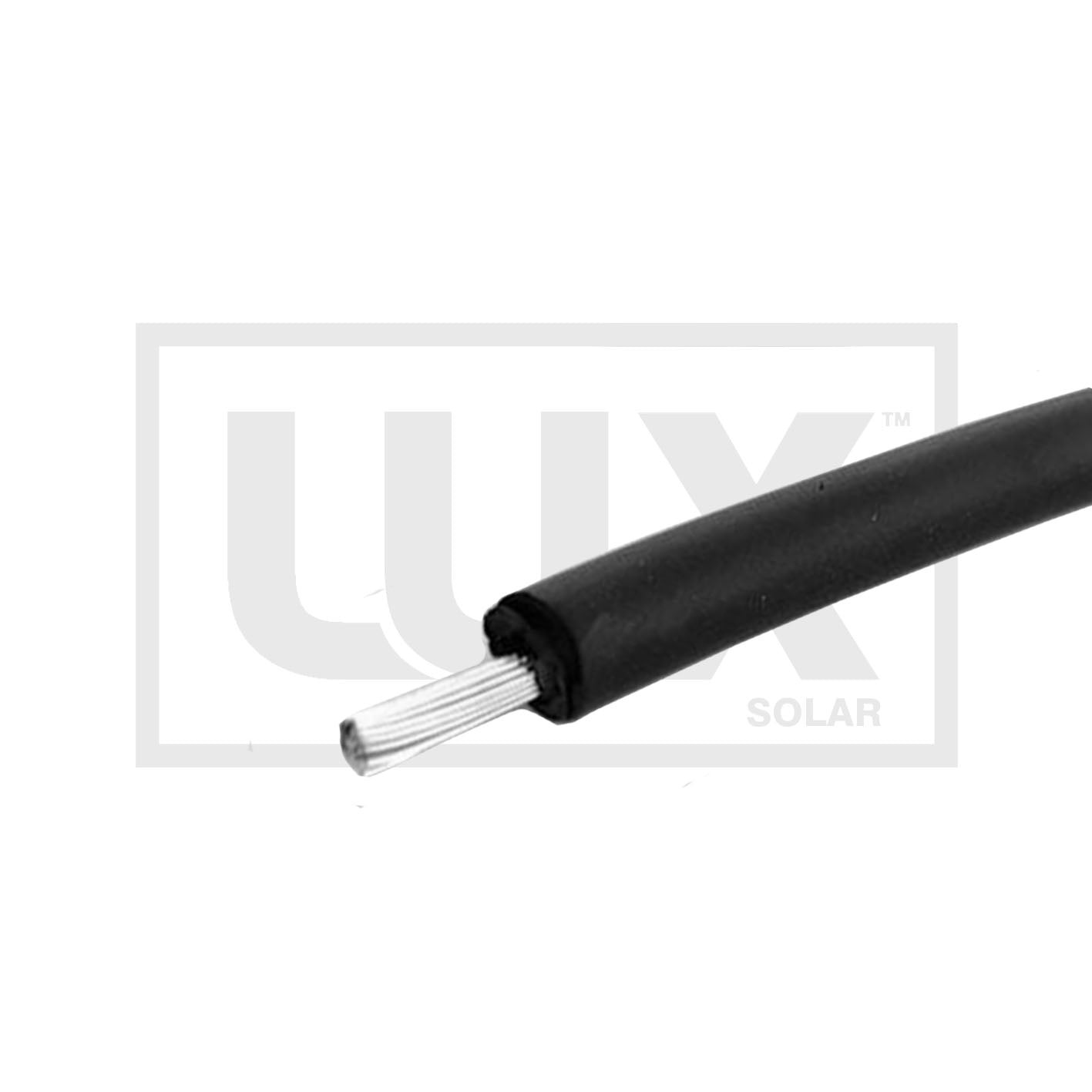

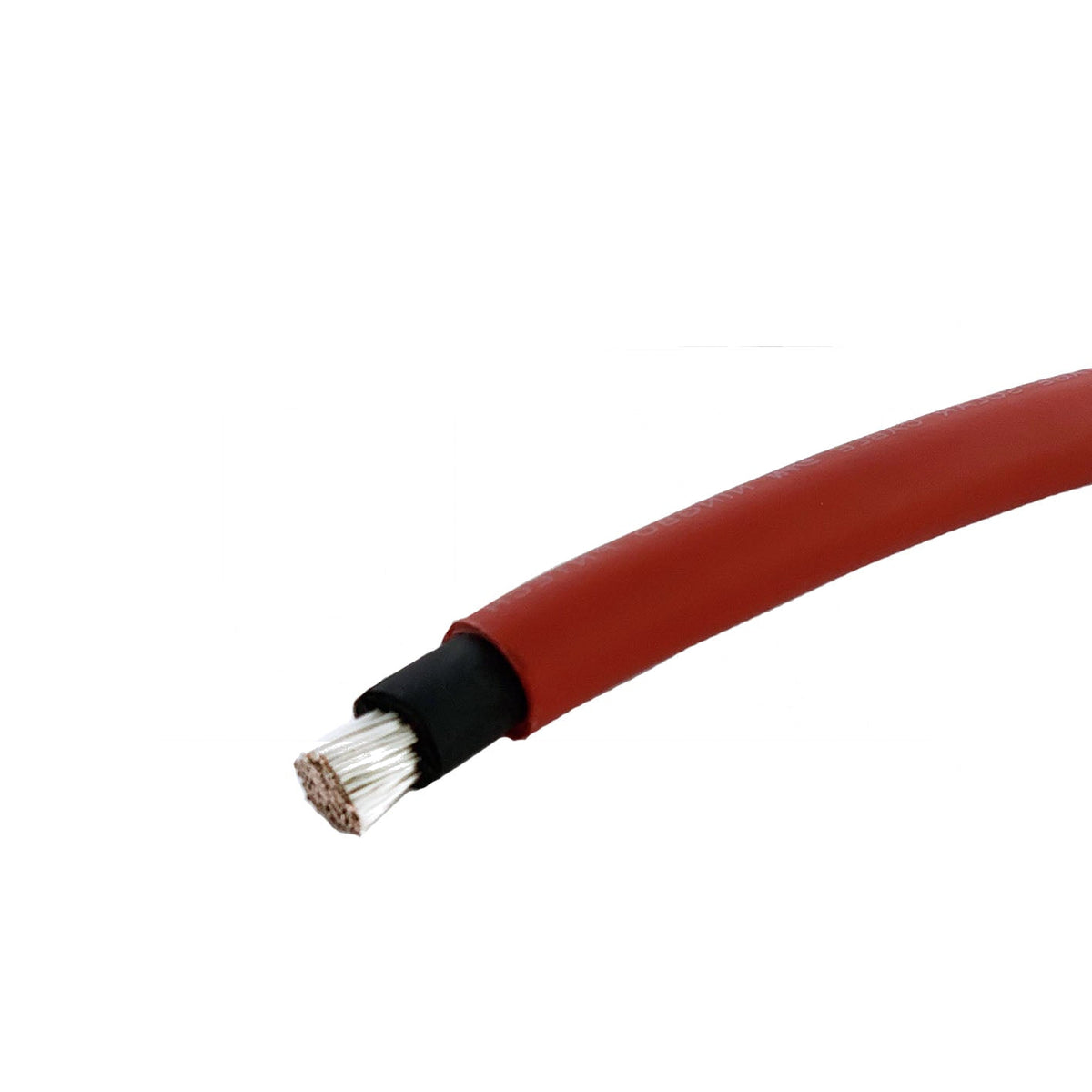

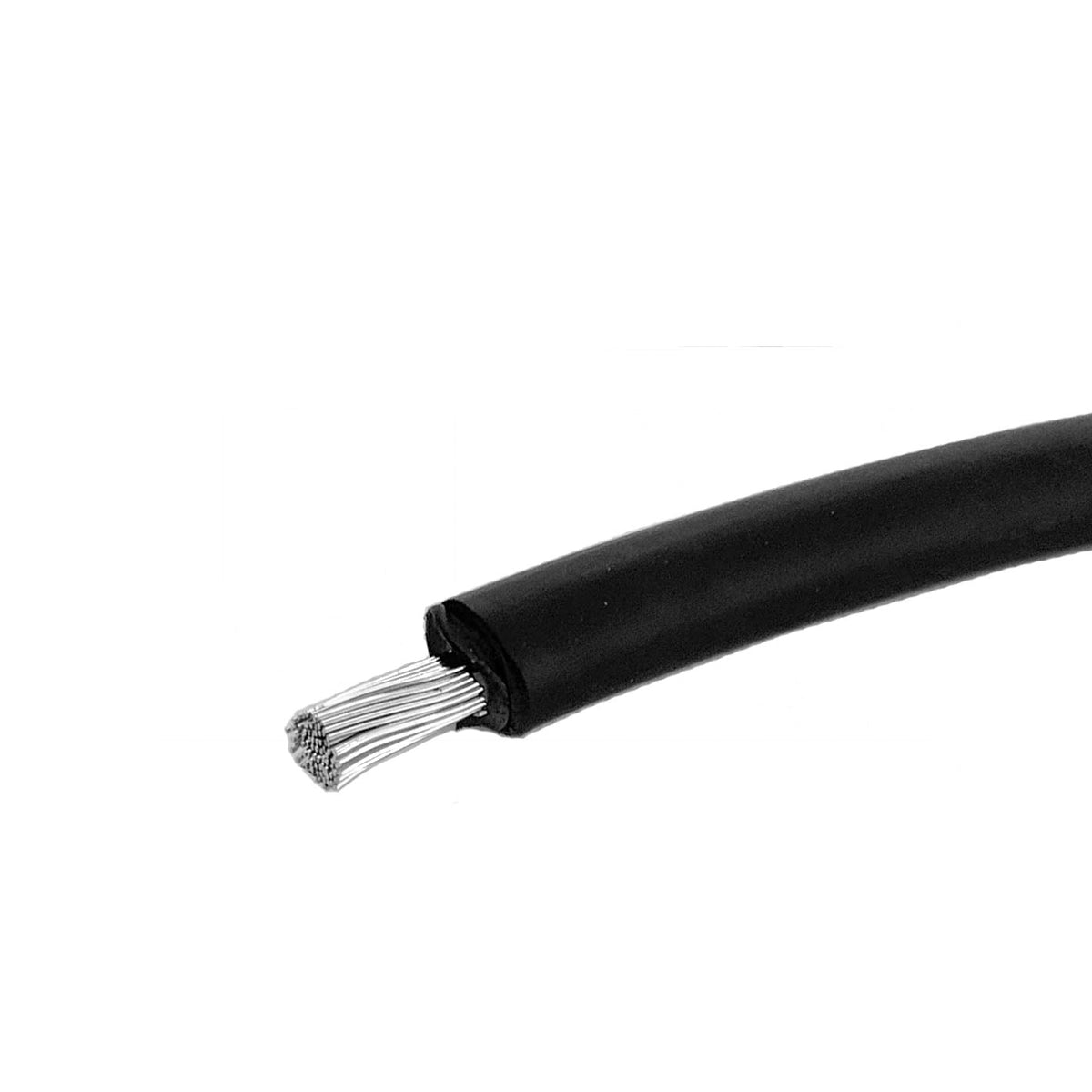

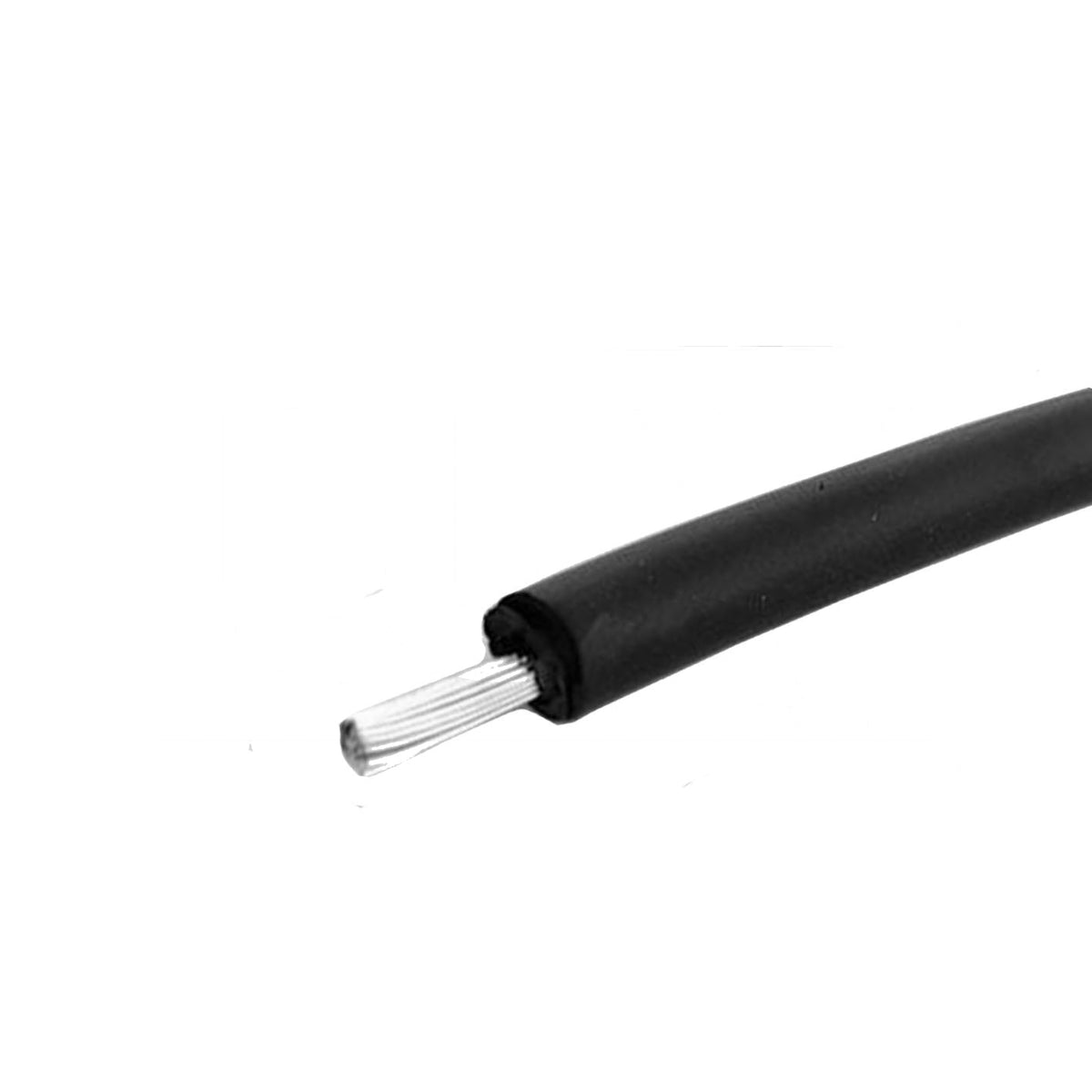

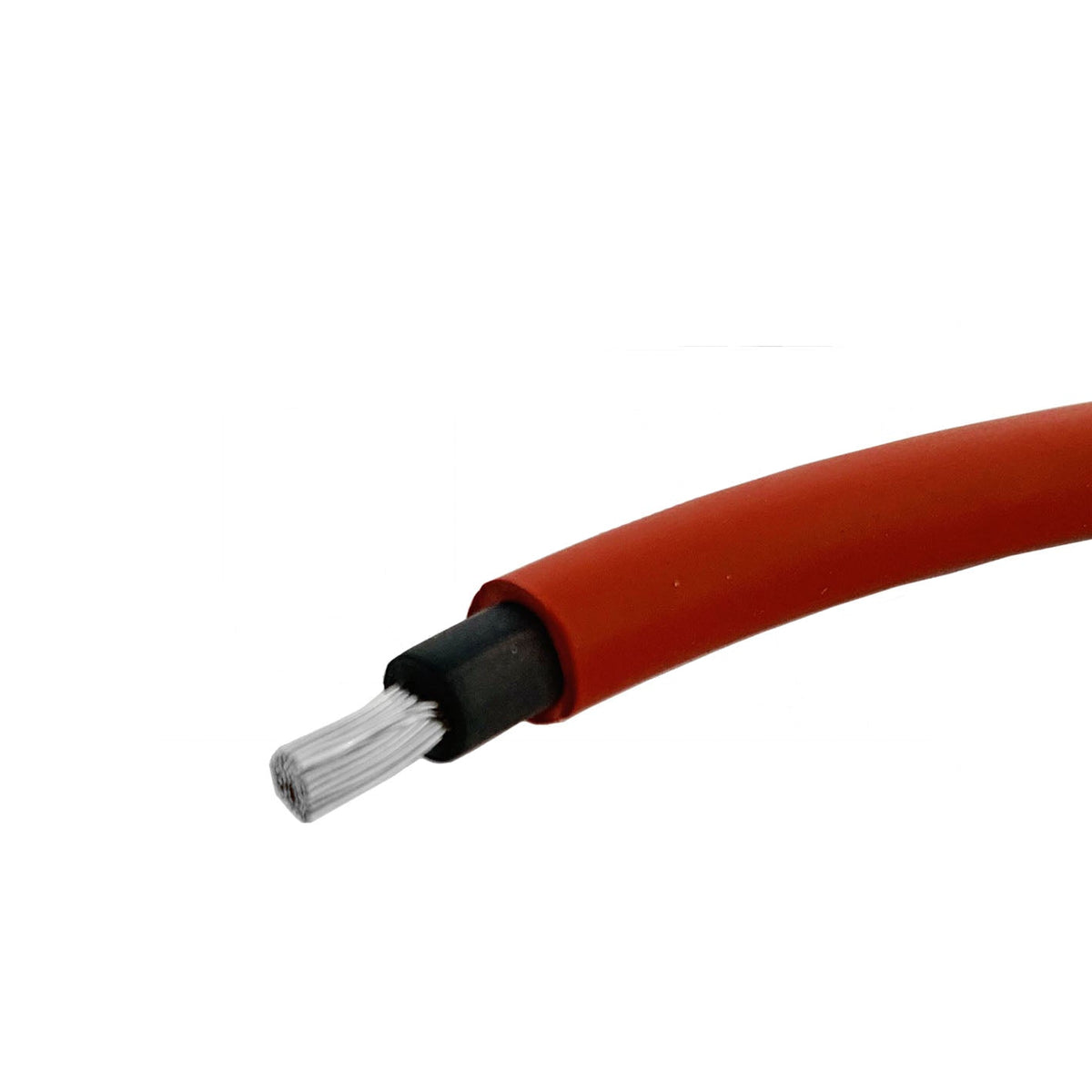

Double Insulated Solar Cables (4mm- 6mm -10mm-16mm-35mm)

Priced per metre — adjust the quantity to set the number of metres required.

All of our cable is double-insulated UV resistant Solar Cable. We only use corrosion resistant tinned copper making it suitable for marine environments.

Key features

• Double-insulated and UV resistant — built for outdoor solar runs on caravans, boats and off-grid installs
• Corrosion-resistant tinned copper conductor, suitable for marine environments
• Available in 4 mm², 6 mm², 10 mm², 16 mm² and 35 mm² sizes
• Black and red insulation (6 mm² and up) for tidy positive and negative runs
• Sold by the metre — buy exactly the length you need

Which cable size do I need?

In general from the solar panel to the solar controller 4 or 6 mm cable is sufficient. From the controller to the battery the safest option is to use the thickest cable the solar controller will take and mount the solar controller as close to the batteries as possible to minimise voltage drop.

If you are unsure of the correct cable size to use please contact us. For a deeper dive into cable sizing and voltage drop, see our cables knowledge guide — or let AnyKit™ design your whole system, including correctly sized cable, fuses and lugs.

Complete the run

• Stäubli MC4-Evo connector pairs — genuine IP68 connectors for your panel-to-controller runs.
• Twin-core solar cable (4–6 mm²) — positive and negative in a single tidy sheath.
• Marine tinned battery cable (25–120 mm²) — for high-current battery, busbar and inverter runs.
• Fuses, connectors and all solar cabling — everything else for a safe, tidy install.

FAQ: What is the difference between solar cable and battery cable?

Solar cable has greater UV resistance, making it the right choice for runs exposed to sunlight. Battery cable is slightly easier to bend and therefore mount in small spaces.

Reel prices

Please contact us for reel prices.
